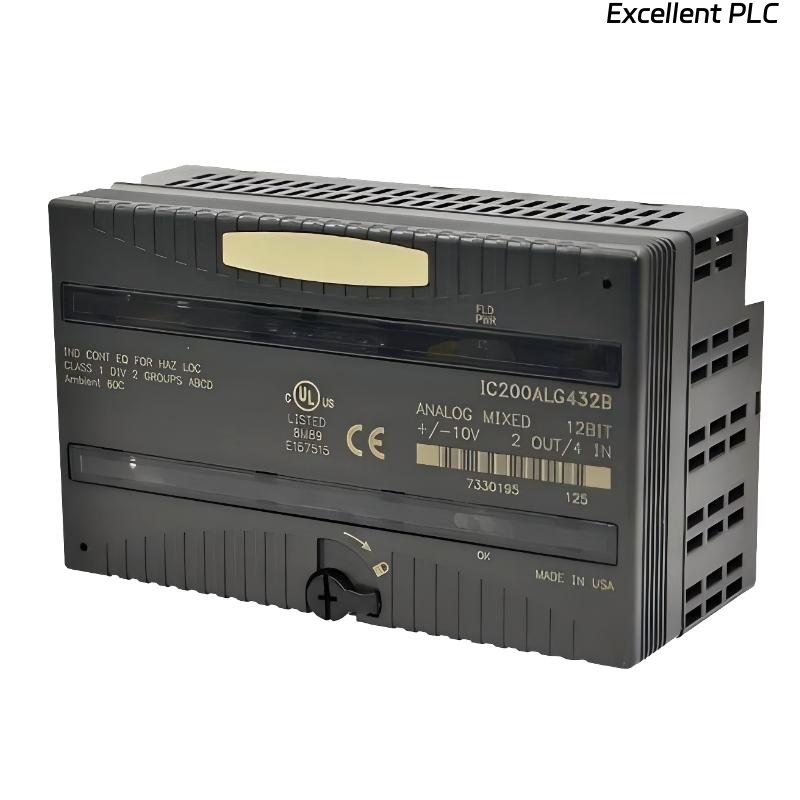

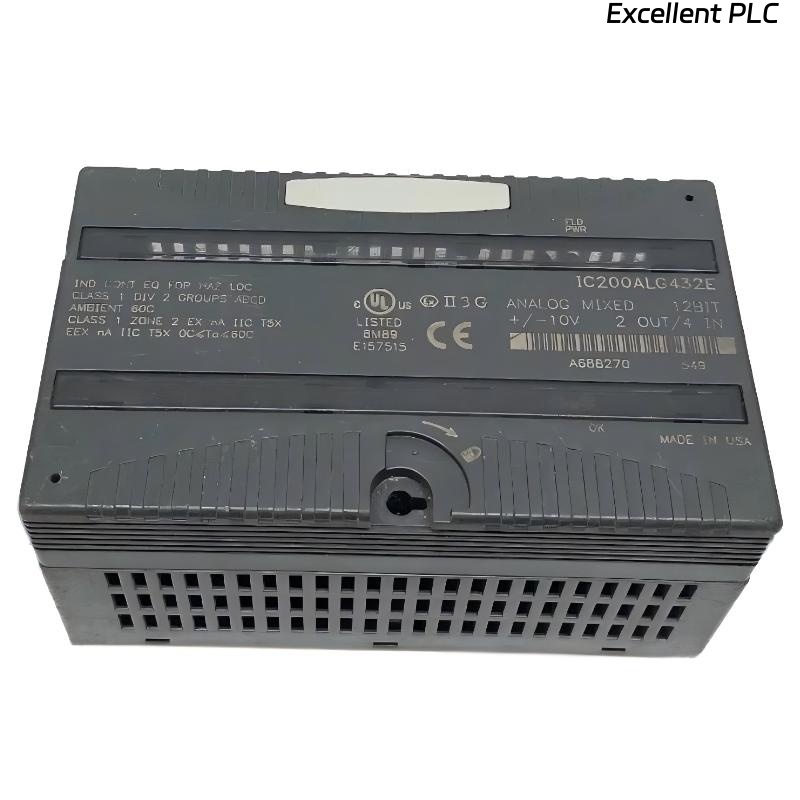

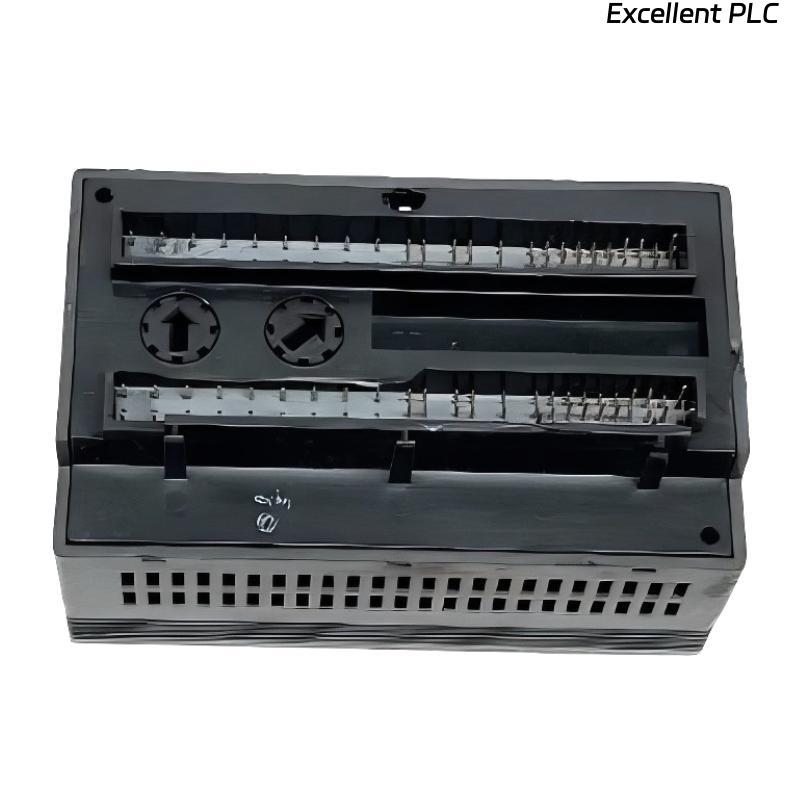

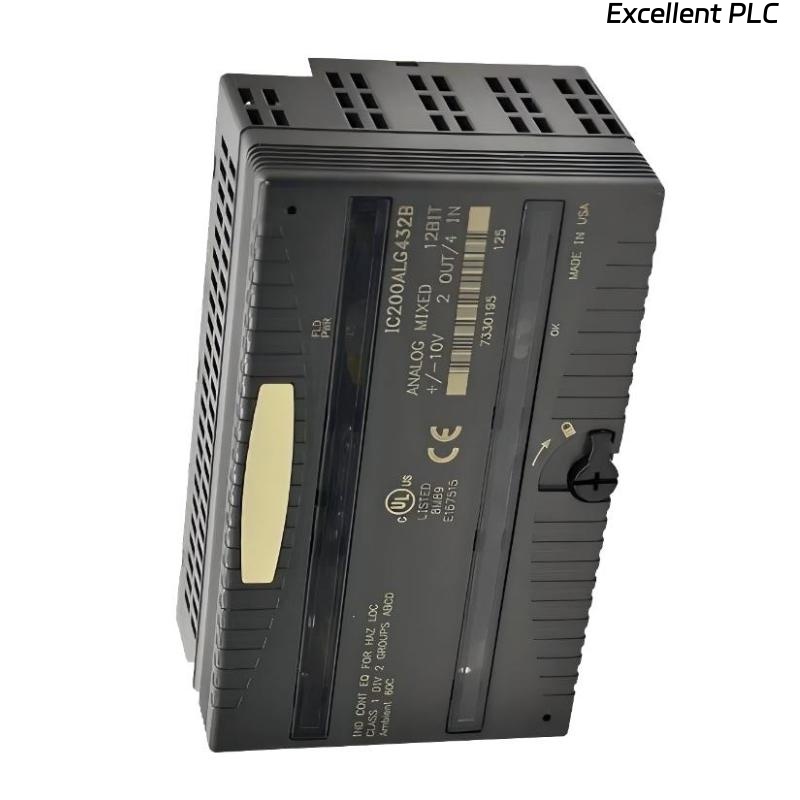

GE IC200ALG432 Analog Mixed Module

Product Introduction

The GE IC200ALG432 Analog Mixed Module is a high-precision mixed-signal I/O module designed for the GE Series 90-30 PLC platform. It provides both analog input and output channels, enabling the monitoring and control of continuous process variables in industrial automation systems.

Engineered for reliable performance in control and process applications, the IC200ALG432 supports accurate signal conversion and robust communication with the PLC backplane. Its compact size allows installation in space-constrained racks while maintaining high signal integrity and operational stability.

---

Product Specifications

---

Applications

• Process control systems requiring both analog input and output channels

• Industrial automation environments for monitoring temperature, pressure, flow, and level sensors

• PLC-based control panels needing mixed analog I/O in a compact module

• Machine automation systems requiring precise signal measurement and output control

• Continuous process monitoring in manufacturing or energy sectors

• Data acquisition systems integrating analog measurements with PLC logic

---

Advantages

• Mixed I/O functionality, combining analog inputs and outputs in a single module

• High accuracy and resolution, ensuring precise signal measurement and control

• Compact form factor, ideal for space-limited control racks

• Configurable channels, allowing flexible adaptation to process requirements

• Direct integration with Series 90-30 PLCs, ensuring seamless communication

• Industrial-grade construction, supporting reliable operation in demanding environments

FAQ

1. What type of signals does the IC200ALG432 support?
   It supports analog input and output signals such as 0–10 V or 4–20 mA.

2. How many input and output channels are available?
   The module provides 4 analog input channels and 2 analog output channels.

3. Can the module operate in harsh industrial conditions?
   Yes, it is rated for 0–60 °C operation and 5–95% non-condensing humidity.

4. How is the module installed in a control system?
   It mounts directly into the Series 90-30 backplane.

5. What is the typical accuracy of the module?
   Accuracy is approximately ±0.1–0.2% full scale.

6. Can the module handle different analog signal types?
   Yes, channels are configurable for voltage or current input/output.

7. How does the module interface with the PLC logic?
   Analog values are converted to digital signals via onboard ADC/DAC and communicated through the backplane.

8. Is the module suitable for compact PLC racks?
   Yes, its small dimensions allow installation in space-limited control panels.

9. Can multiple modules be used in the same PLC system?
   Yes, multiple IC200ALG432 modules can coexist in a single Series 90-30 rack.

10. What applications benefit most from this module?
    Applications requiring precise monitoring and control of continuous analog process variables.
