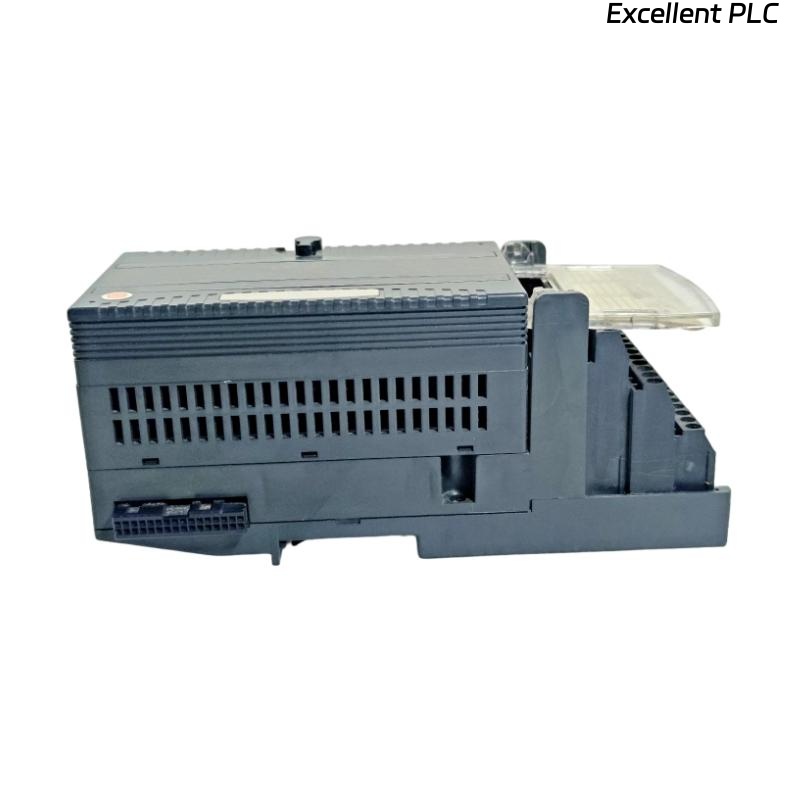

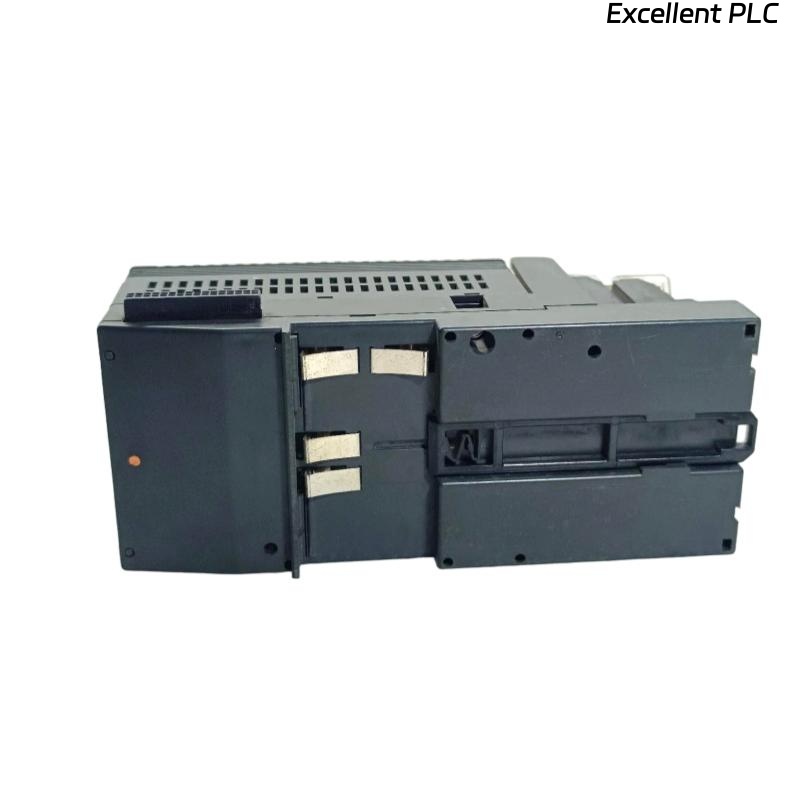

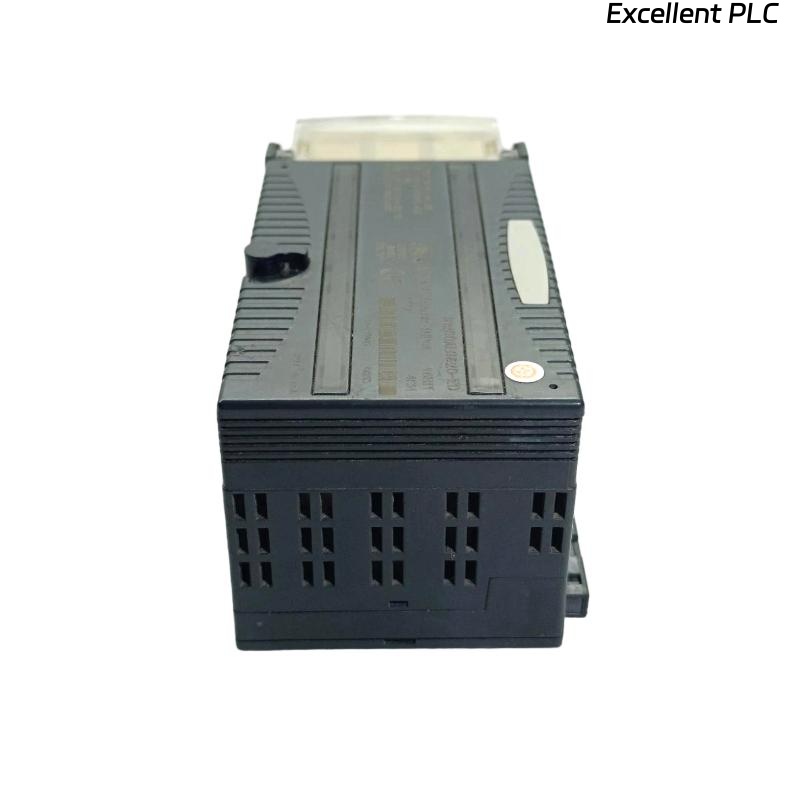

The GE IC200ALG630 Analog Input Module is a key component in the VersaMax automation system. It is designed to enable the VersaMax PLC to handle analog signals from a variety of industrial equipment, providing real-time data collection and enabling precise control. The module allows for the conversion of real-world analog signals such as voltage or current into a digital format that the VersaMax PLC can process.
With 8 channels for analog inputs, the IC200ALG630 module is highly versatile, supporting both voltage (0-10V) and current (4-20mA) signals. It is ideal for applications requiring high-accuracy measurements, such as temperature monitoring, pressure sensing, flow measurement, and other process control tasks.
This module ensures efficient integration with VersaMax PLCs, providing reliable performance in complex industrial control environments.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | IC200ALG630 |
| Number of Channels | 8 Analog Input Channels |
| Signal Type | Voltage (0-10V) or Current (4-20mA) |
| Input Range | Voltage: 0-10V; Current: 4-20mA |
| Resolution | 16-bit resolution |
| Power Supply | 24V DC |
| Mounting Type | DIN Rail Mountable |
| Dimensions | 110 x 66.8 x 50 mm |
| Weight | 0.159 kg |
| Status Indicators | Power, Error, and Status LEDs |
Applications of the GE IC200ALG630
The IC200ALG630 module is versatile and can be used in a wide range of industrial and commercial applications, where precise analog-to-digital conversion is required. Common applications include:
-
Temperature Monitoring: The module can interface with temperature sensors such as thermocouples or RTDs to measure temperatures in industries like HVAC, food processing, and power plants.
-
Pressure Measurement: It can be used to read signals from pressure sensors in industries such as oil & gas, water treatment, and chemical processing.
-
Flow Rate Control: Ideal for measuring flow rates in fluid systems such as pumps, pipes, and tanks.
-
Industrial Automation: The module is often used in process control systems where accurate, real-time data from analog sensors is required to maintain optimal operation.
-
Energy Management: Used for interfacing with energy meters and other monitoring devices to measure electrical variables like current, voltage, and power consumption.
-
Level Measurement: Suitable for measuring the levels of liquids or solids in tanks and containers in applications like chemical storage or water reservoirs.
Advantages of the GE IC200ALG630
-
High-Precision Conversion: The 16-bit resolution of the IC200ALG630 ensures precise analog-to-digital signal conversion, making it ideal for applications that require high accuracy, such as temperature or pressure monitoring.
-
Flexible Signal Handling: With support for both voltage (0-10V) and current (4-20mA) signals, the module is compatible with a wide range of sensors and instruments, offering flexibility in a variety of environments.
-
Reliable Integration with VersaMax PLCs: The module is designed for seamless integration with VersaMax PLCs, making it easy to incorporate into existing control systems for process monitoring and automation.
-
Efficient Data Processing: By converting analog signals into digital data in real-time, the IC200ALG630 allows for faster decision-making and better process control, which is critical in industrial settings.
-
Scalability: With 8 input channels, the module can handle multiple sensors simultaneously, making it a scalable solution for larger systems or more complex monitoring needs.
-
Rugged Design: Built for industrial environments, the module is designed to withstand harsh conditions, including vibration, temperature extremes, and electromagnetic interference.
-
Simple Installation: The module is DIN rail mountable, making it easy to install and integrate into existing industrial control panels.
FAQ
1. What types of signals can the GE IC200ALG630 handle?
The IC200ALG630 can process both voltage signals (0-10V) and current signals (4-20mA), offering flexibility in interfacing with different types of field devices.
2. How many channels does the IC200ALG630 support?
The module supports 8 channels for analog inputs, allowing you to monitor multiple sensors simultaneously.
3. Is the IC200ALG630 compatible with other PLC brands?
No, the IC200ALG630 is specifically designed to interface with VersaMax PLCs and may not be compatible with PLCs from other manufacturers.
4. What is the resolution of the IC200ALG630?
The IC200ALG630 features a 16-bit resolution, providing high precision for accurate analog-to-digital signal conversion.
5. How does the module interface with the VersaMax PLC?
The IC200ALG630 directly interfaces with VersaMax PLCs via a simple, reliable connection, transmitting processed analog signals for further control and monitoring.
6. Can the IC200ALG630 be used for temperature measurement applications?
Yes, the module can interface with temperature sensors like RTDs or thermocouples, making it suitable for temperature monitoring applications.
7. Can the IC200ALG630 be used for pressure or flow measurement?
Yes, the module is ideal for interfacing with pressure sensors or flowmeters in industrial control systems that require analog signal processing.
8. What is the power requirement for the IC200ALG630?
The module operates with a 24V DC power supply, which is standard for many industrial automation devices.
9. Does the module support both current and voltage inputs simultaneously?
Yes, the IC200ALG630 can handle voltage (0-10V) and current (4-20mA) inputs simultaneously, depending on the connected sensors.
10. Is the IC200ALG630 easy to install in industrial environments?
Yes, the module is DIN rail mountable, ensuring quick and easy installation into control panels or existing industrial setups.
Related Models
| Model | Description |
|---|---|
| IC200ALG640 | 4-channel Current Input Module for VersaMax PLCs. |
| IC200ALG610 | 4-channel Voltage Input Module for VersaMax PLCs. |
| IC200ALG650 | 8-channel Voltage and Current Input Module for VersaMax PLCs. |
| IC200ALG660 | 12-channel Analog Input Module for VersaMax PLCs. |
| IC200ALG620 | 4-channel Analog Input Module for VersaMax PLCs. |
| IC200ALG670 | 16-channel Analog Input Module for VersaMax PLCs. |
