Product Introduction

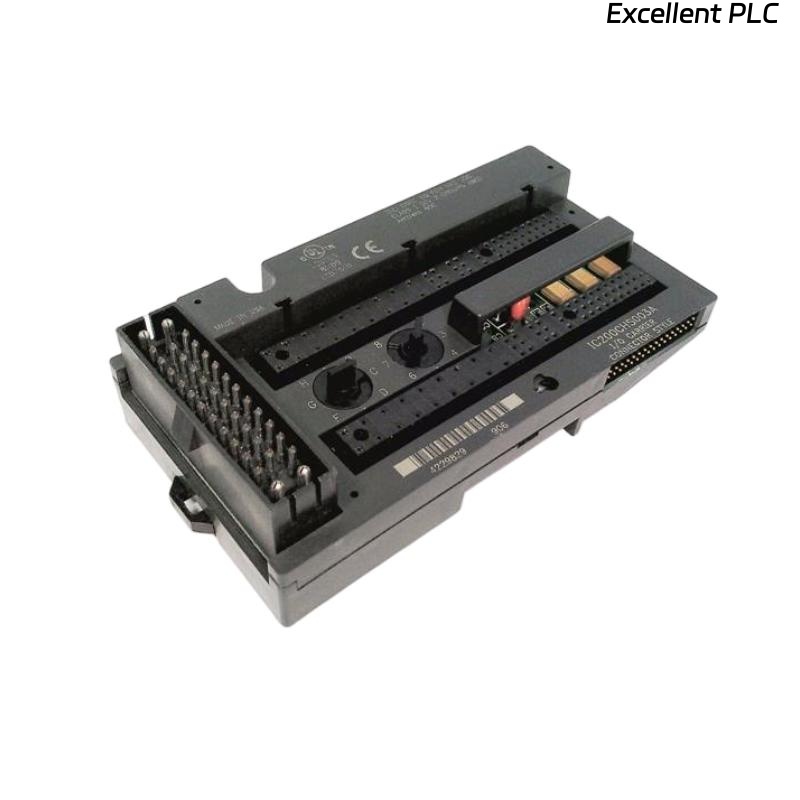

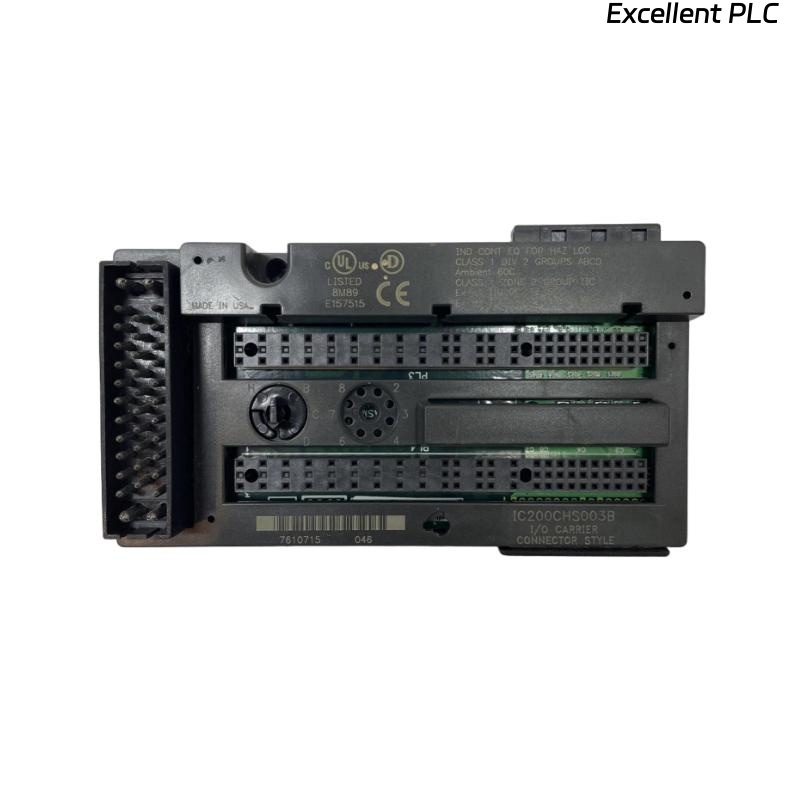

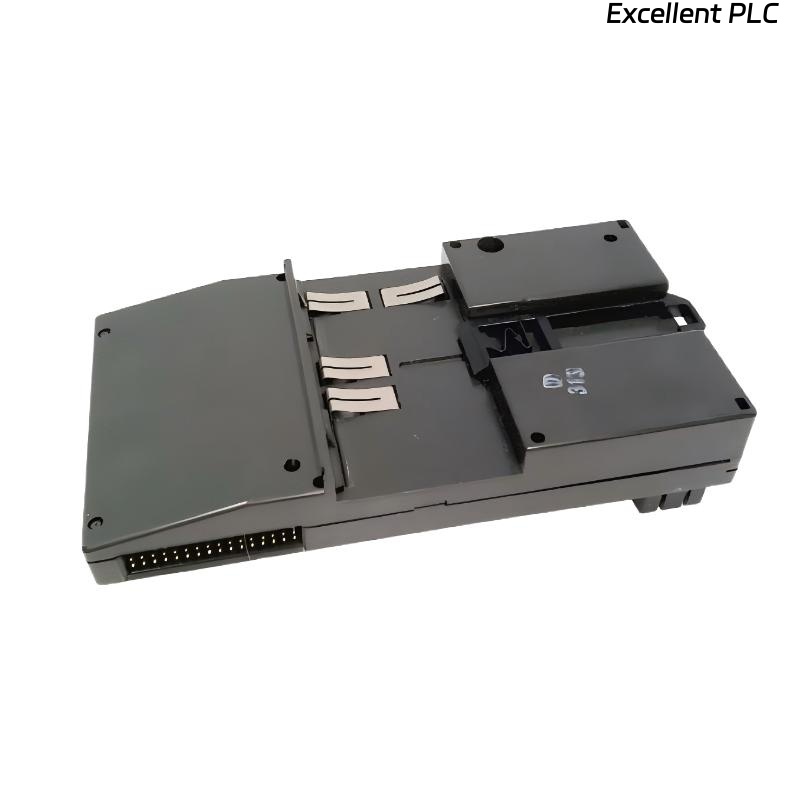

The GE IC200CHS003 VersaMax I/O Connector Carrier Style is designed to facilitate efficient and reliable connections between VersaMax I/O modules and PLC systems. It serves as a carrier for connecting various I/O modules to the VersaMax PLC, enabling seamless communication and data transmission within an industrial control system. This connector carrier features a modular design, making it easy to expand and adapt to different automation requirements.
The IC200CHS003 is part of the VersaMax I/O system, a well-regarded solution known for its flexibility, scalability, and reliability in handling a range of industrial applications. It is designed for quick, tool-free wiring and offers robust electrical connections to ensure the efficient functioning of the connected modules.
Product Specifications
Here are the key specifications for the GE IC200CHS003 VersaMax I/O Connector Carrier Style:
Specification | Value |
---|---|
Model | IC200CHS003 |
Type | VersaMax I/O Connector Carrier Style |
Dimensions (L x W x H) | 66.8 × 133.4 × 70 mm |
Weight | 0.109 kg |
Material | High-quality plastic |
Connector Type | Spring-type terminal |
Mounting Type | DIN rail mounting |
Operating Temperature Range | -20°C to 60°C |
Compatible Modules | Compatible with all VersaMax I/O modules |
Applications
The GE IC200CHS003 VersaMax I/O Connector Carrier Style is ideal for a wide range of industrial automation applications:
-
Industrial Automation: Used to integrate input and output devices like sensors and actuators with the VersaMax PLC, facilitating automated control systems in industries.
-
Control Systems: Perfect for control panel applications, allowing for easy connections between the PLC and I/O devices in an organized and space-saving manner.
-
Process Control: Suitable for managing complex industrial processes, the IC200CHS003 connects sensors, controllers, and actuators in process control systems.
-
Factory Automation: Ideal for factory automation tasks, such as assembly lines, where quick and efficient communication between the PLC and input/output devices is required.
-
Energy Management: The connector carrier style is used in energy management systems, allowing for monitoring and optimization of energy usage through reliable I/O connections.
-
Building Automation: The IC200CHS003 integrates HVAC systems, lighting control, and other automated systems within buildings, ensuring reliable data communication between devices and control panels.
Advantages
-
Compact Design: With dimensions of 66.8 × 133.4 × 70 mm, the IC200CHS003 is compact and easy to integrate into control cabinets or panels with limited space.
-
Tool-Free Wiring: The spring-type terminal design allows for quick, tool-free wiring, reducing installation time and minimizing human errors.
-
Reliable Connections: The carrier ensures stable, secure connections between I/O modules and the VersaMax PLC, supporting high levels of data integrity.
-
Modular and Expandable: The modular nature of the VersaMax system allows for easy expansion, making it ideal for growing automation needs.
-
DIN Rail Mounting: This carrier is designed for DIN rail mounting, which offers a quick and secure installation process, ensuring stability in industrial environments.
-
Wide Operating Range: The IC200CHS003 operates within a wide temperature range of -20°C to 60°C, making it suitable for use in diverse industrial settings.
-
Versatile Compatibility: It is compatible with all VersaMax I/O modules, providing a flexible solution that can adapt to different application requirements.
FAQ
-
What is the GE IC200CHS003 used for?
The IC200CHS003 is used to connect and secure VersaMax I/O modules to PLC systems, facilitating efficient data transfer and communication between input/output devices and controllers. -
What types of I/O modules can the IC200CHS003 support?
The IC200CHS003 is compatible with all VersaMax I/O modules, including digital and analog input/output modules, as well as communication modules. -
Can the IC200CHS003 be used in outdoor applications?
While the IC200CHS003 is designed for indoor use, it can be used outdoors if housed in an appropriate enclosure to protect it from environmental conditions such as moisture or dust. -
What type of wiring is used with the IC200CHS003?
The IC200CHS003 uses spring-type terminals, which allow for tool-free installation of wiring, making it faster and more secure than traditional screw-type terminals. -
What is the maximum number of I/O devices that can be connected using this carrier?
The IC200CHS003 connects multiple I/O devices to the VersaMax PLC, but the exact number depends on the specific I/O modules and system configuration. -
Is the IC200CHS003 compatible with all VersaMax PLCs?
Yes, the IC200CHS003 is compatible with all VersaMax PLC systems, ensuring flexible integration across a variety of VersaMax I/O modules. -
How does the DIN rail mounting feature benefit installation?
The DIN rail mounting feature allows for easy, secure installation within industrial control panels, ensuring that the IC200CHS003 stays firmly in place during operation. -
Can the IC200CHS003 support high-speed data transmission?
Yes, the IC200CHS003 supports fast and reliable data transmission, ensuring that information from the connected I/O modules is transmitted with minimal delay. -
What are the temperature limitations of the IC200CHS003?
The IC200CHS003 can operate within a temperature range of -20°C to 60°C, making it suitable for use in a variety of industrial environments. -
What is the primary benefit of using a connector carrier like the IC200CHS003?
The primary benefit is the easy and reliable connection of I/O devices to the VersaMax PLC, improving the efficiency and flexibility of industrial automation systems.
Related Models from the Same Series
Here are six other models from the VersaMax I/O Connector Carrier Style series:
Model | Description |
---|---|
IC200CHS001 | VersaMax I/O Connector Carrier, Small Terminal Type |
IC200CHS002 | VersaMax I/O Connector Carrier, Large Terminal Type |
IC200CHS004 | VersaMax I/O Connector Carrier with Extended Reach |
IC200CHS005 | VersaMax I/O Connector Carrier with Communication Support |
IC200CHS006 | VersaMax I/O Connector Carrier for Remote I/O Modules |
IC200CHS007 | VersaMax I/O Connector Carrier with High Power Capability |
