Product Introduction

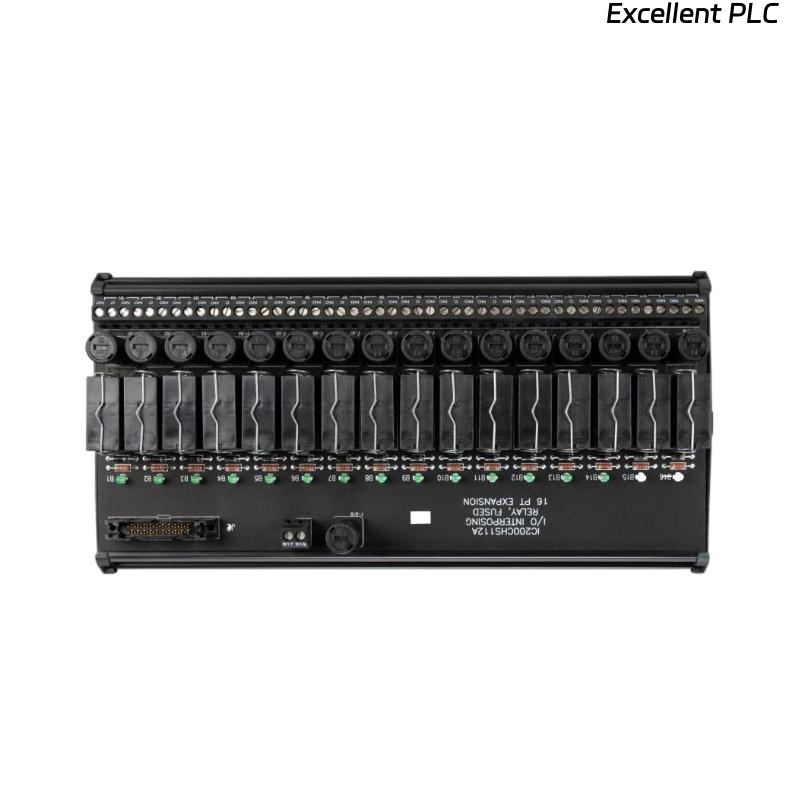

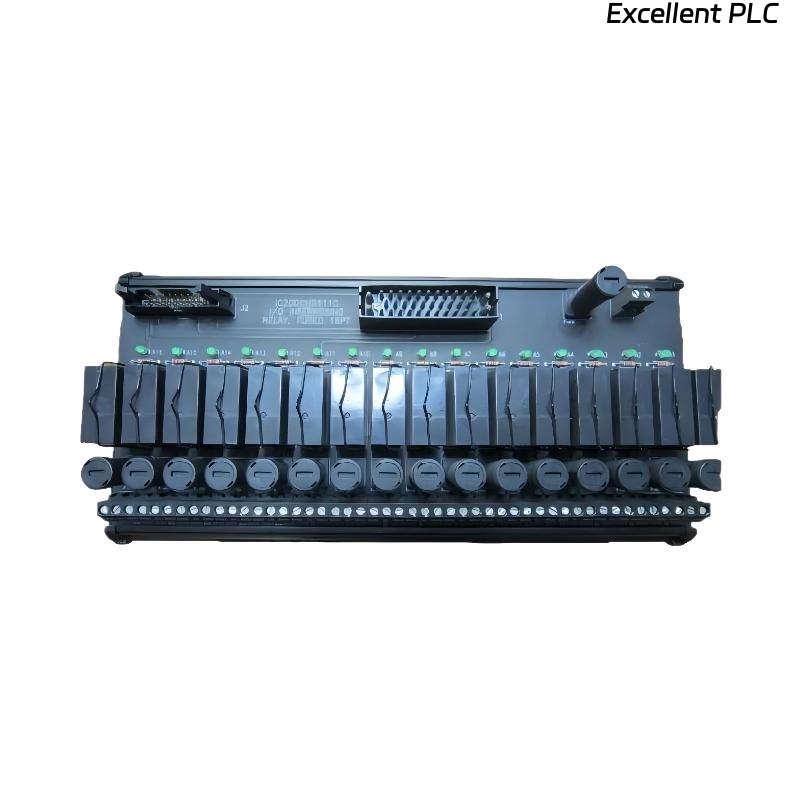

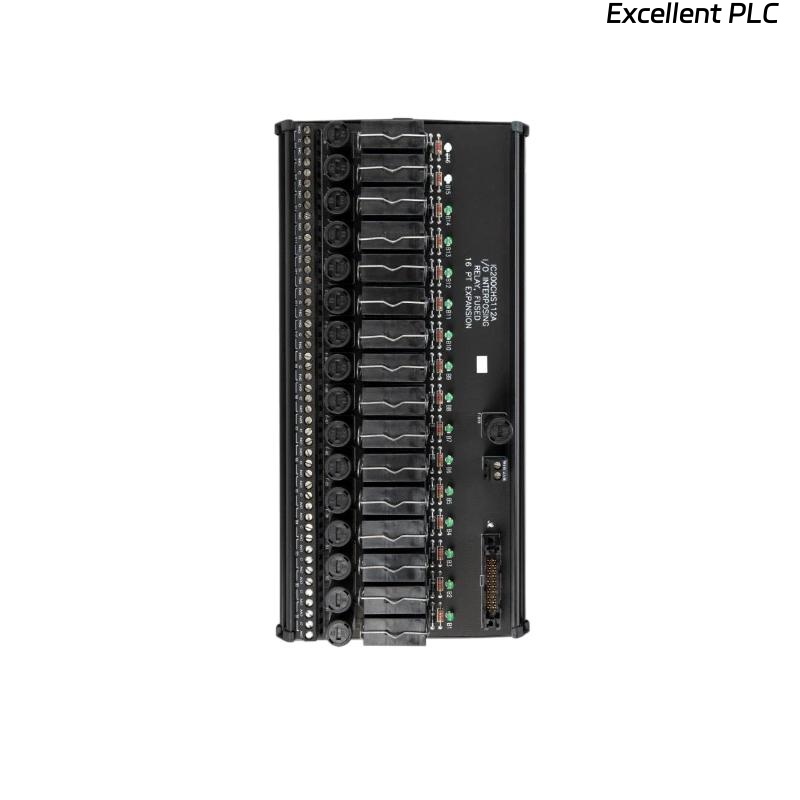

The GE IC200CHS112 is a Relay-style Insertion I/O Terminal, designed as an expansion base for the VersaMax I/O system. This terminal is integral in providing a reliable interface between VersaMax PLC modules and the field devices in industrial automation systems. The relay-style design offers greater flexibility and control, especially in applications where input and output devices need to be securely connected and the system requires quick response times.
This expansion base terminal facilitates easy and scalable input/output configurations, providing a robust solution for applications such as process control, manufacturing automation, and machine control systems. It features easy-to-connect screw terminals for efficient wiring and relay-based connections for enhanced performance, ensuring that users can tailor their I/O network as per their needs.
Product Specifications
Here are the key specifications for the GE IC200CHS112 Relay-style Insertion Input/Output Terminal, Expansion Base:
| Specification | Value |
|---|---|
| Model | IC200CHS112 |
| Type | Relay-style Insertion I/O Terminal |
| Dimensions | 253.7 x 126 x 73 mm |
| Weight | 0.79 kg |
| Relay Type | Relay-style Input/Output Terminal |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN Rail Mounting |
| Maximum Current Rating | 10 A (per terminal) |
| Number of Terminals | 16 (Typically) |
| Power Supply | Powered via the VersaMax I/O Modules |
| Relay Protection | Relay-based protection for inputs/outputs |
| Connection Type | Screw Terminal Block for Wiring |
Applications
The GE IC200CHS112 Relay-style Insertion I/O Terminal, Expansion Base, is used in a variety of applications across different industries, including:
-
Industrial Automation: The terminal is used to connect input/output devices such as sensors and actuators to VersaMax PLC systems, enabling automated control in factory automation systems.
-
Machine Control Systems: In machine control environments, the terminal provides secure and efficient connections between PLC controllers and machine-level devices, ensuring smooth operation of automated machinery.
-
Process Control Systems: The terminal ensures safe and reliable connectivity for process instrumentation, such as pressure sensors, flow meters, and other monitoring devices used in industries like chemical processing or oil & gas.
-
Building Management Systems: The terminal is used in building automation applications, providing connections between the HVAC systems, lighting controls, and security systems with the central PLC.
-
Energy Management: It plays a key role in energy monitoring systems, facilitating communication between energy meters and the centralized control systems for optimizing energy consumption in large facilities.
-
Material Handling Systems: Used in automated material handling systems, the terminal provides I/O connectivity for conveyors, robotic arms, and other machinery used in warehousing and distribution centers.
Advantages
-
Relay Protection: The relay-style connection offers protection against overcurrent conditions, safeguarding the I/O system and reducing the risk of damage to connected devices.
-
Compact Design: Despite its capability to handle multiple devices, the terminal has a compact and space-saving design, making it ideal for environments where space is limited.
-
Modular Expansion: The terminal offers modular expansion capabilities, allowing the system to grow as needed by adding compatible expansion modules.
-
Secure Mounting: The terminal is designed for DIN rail mounting, providing stability and easy installation in control panels.
-
Durable in Harsh Environments: With an operating temperature range of -20°C to 60°C, it is designed to work reliably in industrial environments subject to extreme conditions.
-
Efficient Wiring: The screw terminal block allows for secure and reliable wiring connections, ensuring long-term performance without concerns about loose connections.
FAQ
-
What is the GE IC200CHS112 Relay-style Insertion I/O Terminal?
The IC200CHS112 is an expansion base for the VersaMax I/O system, designed with relay-style connections to securely interface input/output devices with the system, offering enhanced protection. -
How does the relay-style design benefit the IC200CHS112?
The relay-style design allows for greater control and protection of I/O devices, especially in environments with fluctuating power or potentially high current situations. -
How many terminals does the IC200CHS112 support?
The IC200CHS112 typically supports 16 I/O connections, making it suitable for systems with moderate I/O requirements. -
What is the maximum current rating for the IC200CHS112?
The IC200CHS112 supports a maximum current rating of 10 A per terminal, ensuring that it can handle typical industrial loads. -
What type of mounting is used for the IC200CHS112?
The terminal can be easily mounted using a DIN rail, which ensures a secure and stable installation in control panels or industrial enclosures. -
What is the operating temperature range of the IC200CHS112?
The terminal can operate in environments with temperatures ranging from -20°C to 60°C, making it suitable for harsh industrial conditions. -
How is the IC200CHS112 powered?
The terminal is powered through the VersaMax I/O modules, which supply the required 24 VDC power to the terminal and connected devices. -
Can the IC200CHS112 be used with other PLC systems?
No, the IC200CHS112 is specifically designed for use with VersaMax I/O systems and may not be compatible with other PLC brands or systems. -
What is the purpose of the screw terminal block on the IC200CHS112?
The screw terminal block ensures secure and reliable connections between the terminal and connected field devices, minimizing the risk of connection failure. -
Is the IC200CHS112 suitable for high-density I/O configurations?
Yes, the terminal is part of a modular I/O system, making it suitable for high-density I/O configurations by adding compatible expansion modules.
