Product Introduction

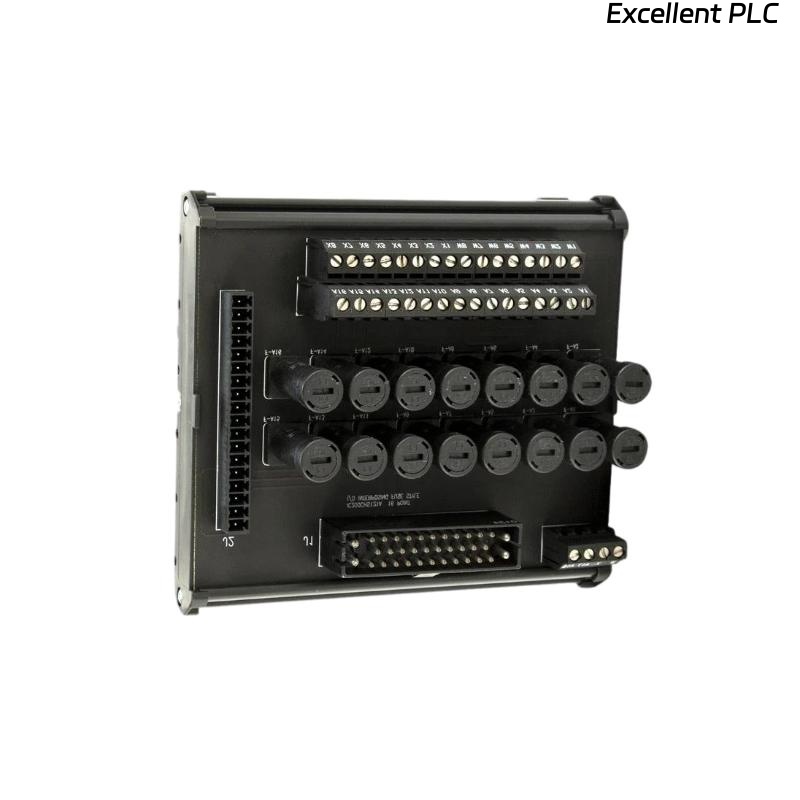

The GE IC200CHS121 is a Fuse-type Intermediate I/O Terminal, designed as the main base in a VersaMax I/O system. It serves as a primary connection point for input/output (I/O) devices, providing necessary overcurrent protection through an integrated fuse. This main base terminal is essential for connecting VersaMax PLC modules to field devices, and it plays a key role in ensuring the safe and efficient operation of industrial control systems.
With its modular design, the IC200CHS121 allows users to easily expand I/O networks and offers the flexibility to configure the system according to specific application requirements. The terminal is well-suited for a range of industries, including manufacturing, process control, and automation systems where reliable, scalable, and safe I/O configurations are essential.
Product Specifications
Here are the key specifications for the GE IC200CHS121 Fuse-type Intermediate I/O Terminal, Main Base:
| Specification | Value |
|---|---|
| Model | IC200CHS121 |
| Type | Fuse-type Intermediate I/O Terminal |
| Dimensions | 137.16 x 126 x 75.4 mm |
| Weight | 1.36 kg |
| Fuse Type | Internal Fuse for Overcurrent Protection |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN Rail Mounting |
| Maximum Current Rating | 10 A (per terminal) |
| Number of Terminals | 16 (Typically) |
| Power Supply | Powered via the VersaMax I/O Modules |
| Protection | Fuse for Overcurrent Protection |
| Connection | Screw Terminal Block for Wiring |
Applications
The GE IC200CHS121 Fuse-type Intermediate I/O Terminal, Main Base, is used in a variety of applications, including:
-
Industrial Automation Systems: The terminal is used to connect VersaMax PLC modules with field devices in manufacturing and industrial automation systems, ensuring secure and efficient data transmission.
-
Machine Control: It provides essential I/O connections for machine control systems, where it interfaces with sensors, actuators, and other devices to enable automated control.
-
Process Control: The terminal plays a key role in process automation systems by connecting sensors and actuators for controlling and monitoring processes such as temperature, pressure, and flow.
-
Building Management Systems: It is used in building automation applications to provide I/O connectivity for HVAC, lighting, and security systems.
-
Energy Management: The IC200CHS121 terminal supports energy management systems by linking energy monitoring devices to the PLC, enabling real-time monitoring and control of power consumption.
-
Material Handling Systems: This terminal helps in automated material handling systems, linking conveyor systems and other material processing machines to the PLC for seamless operation.
Advantages
-
Fuse Protection: The terminal incorporates a fuse to provide overcurrent protection, ensuring that the I/O system is protected from electrical faults.
-
Modular Design: The IC200CHS121 can be used as a main base to expand and configure the VersaMax I/O system, offering flexibility for custom applications.
-
Secure Mounting: The terminal is designed for DIN rail mounting, providing a sturdy and secure installation within control panels.
-
Easy Wiring: Featuring a screw terminal block, the terminal allows for quick and secure wiring connections to I/O devices.
-
Durable: With an operating temperature range of -20°C to 60°C, the terminal is built to perform in harsh industrial environments.
-
Expandable: The modular nature of the terminal allows it to be easily expanded by adding compatible expansion modules to scale the system as needed.
FAQ
-
What is the GE IC200CHS121 Fuse-type Intermediate I/O Terminal?
The IC200CHS121 is a Fuse-type Intermediate I/O Terminal, acting as the main base for the VersaMax I/O system, providing overcurrent protection and secure I/O connections. -
What is the purpose of the fuse in the IC200CHS121?
The integrated fuse provides overcurrent protection, preventing electrical damage to the I/O system by interrupting the current flow in case of faults. -
How many terminals are there in the IC200CHS121?
The IC200CHS121 typically supports 16 terminals, allowing for multiple I/O connections to be securely wired. -
What is the current rating for each terminal?
The IC200CHS121 supports a maximum current rating of 10 A per terminal, ensuring safe operation for connected devices. -
How is the IC200CHS121 mounted?
The terminal is designed for DIN rail mounting, making it easy to integrate into standard control panel setups. -
What is the operating temperature range for the IC200CHS121?
The terminal can operate in environments with temperatures ranging from -20°C to 60°C, making it suitable for use in various industrial conditions. -
What is the connection type used for the IC200CHS121?
The terminal uses screw terminal blocks for wiring, ensuring a secure and reliable connection to the field devices. -
Can the IC200CHS121 be used in other PLC systems?
The IC200CHS121 is specifically designed for the VersaMax I/O system and may not be compatible with other PLC systems. -
What is the power supply for the IC200CHS121?
The terminal is powered through the VersaMax I/O modules, which supply the necessary 24 VDC power for the I/O system. -
Can the IC200CHS121 be used for high-density I/O configurations?
Yes, the terminal is suitable for modular system configurations, allowing the I/O system to be expanded with additional modules as needed.
