Product Introduction

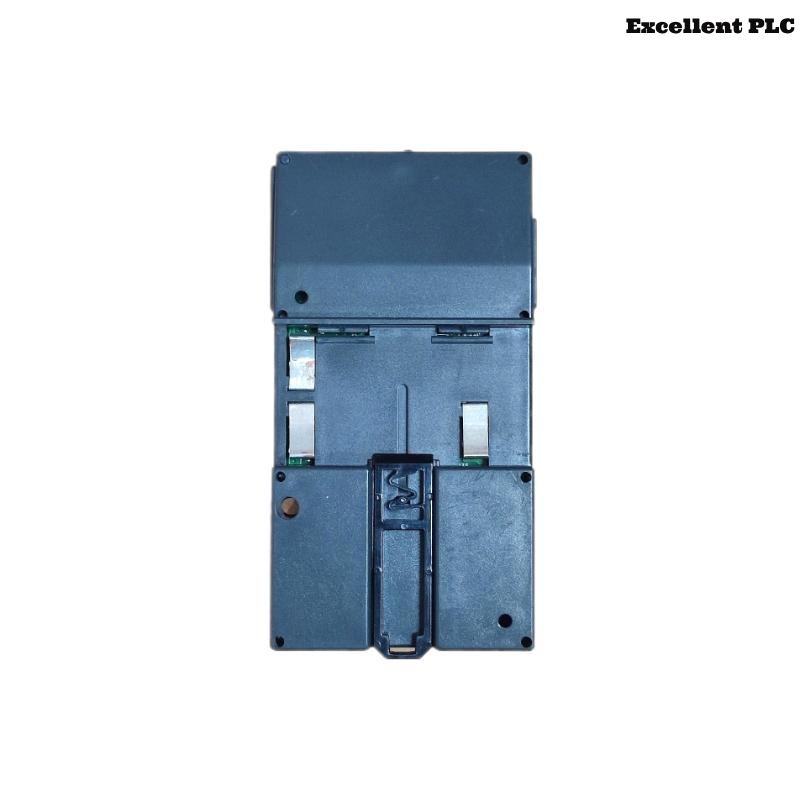

The GE IC200CPU002-EG is a compact and highly capable CPU module designed for use in GE Fanuc’s VersaMax™ PLC system. As the brain of the control system, this module is responsible for executing user programs, managing I/O operations, and facilitating communication between various parts of an industrial automation system.
This particular CPU module integrates control logic, communication capability, and diagnostics into a compact footprint. With onboard memory and multiple communication ports, the IC200CPU002-EG delivers strong performance for a variety of mid-range applications. It is especially suited to distributed control environments, small machine automation, and modular process control.
With a focus on reliability, flexibility, and ease of deployment, the IC200CPU002-EG CPU module provides a solid foundation for modern control systems where space, cost, and performance must be balanced carefully.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | IC200CPU002-EG |
| Product Type | CPU Module for VersaMax PLC |
| Processor | 32-bit embedded processor |
| Program Memory | 32 KB |
| User Data Memory | 12 KB |
| I/O Capacity | Supports up to 256 discrete I/O points |
| Integrated Ports | 1 x RS-232 Serial, 1 x RS-485 (Half Duplex) |
| Communication Protocols | SNP, Modbus RTU |
| Power Requirements | 5V DC (via backplane) |
| Execution Speed | 0.4 ms/K ladder logic instructions |
| Battery Backup | Yes (for RAM and Real-Time Clock) |
| Real-Time Clock | Integrated |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions | 150 × 120 × 60 mm |
| Weight | 0.449 kg |
| Certifications | CE, UL, cUL, RoHS |
Product Applications
The GE IC200CPU002-EG is a versatile controller designed to fit into a wide range of industrial control and automation scenarios. Its applications include:
-
Machine Automation: Controls packaging machines, conveyors, robotic arms, and automated assembly systems.
-
Process Control: Used in chemical, water treatment, and pharmaceutical industries for sequence and logic control.
-
Building Automation: Manages lighting, HVAC systems, and access control in smart buildings.
-
Distributed Control Systems (DCS): Operates as a local controller in larger DCS networks.
-
Energy Management Systems: Interfaces with power monitoring devices for facility-wide control.
-
OEM Control Panels: Perfect for integration into control cabinets produced by Original Equipment Manufacturers.
Its compatibility with GE’s VersaMax I/O modules also ensures smooth deployment in existing installations, making it a reliable upgrade or replacement option.
Product Advantages
-
Compact Design: Small footprint makes it ideal for space-constrained environments.
-
Integrated Communications: Built-in RS-232 and RS-485 ports support both local and networked control.
-
Battery Backup & RTC: Keeps critical operations and real-time data intact during power outages.
-
Quick Execution Speed: Processes ladder logic instructions quickly, suitable for time-sensitive control operations.
-
Versatile Protocol Support: SNP and Modbus RTU support simplifies integration into multi-vendor environments.
-
Easy Installation: DIN rail and panel mount compatibility streamlines installation in control cabinets.
-
Cost-Effective: Offers solid performance without the cost burden of larger PLC CPUs.
-
Modular Expansion: Seamlessly works with a variety of I/O modules in the VersaMax series.
-
Reliable in Harsh Environments: Withstands industrial temperature ranges and high humidity.
-
Diagnostic Capabilities: Built-in diagnostics aid in troubleshooting and maintenance.
FAQ (Frequently Asked Questions)
-
What is the program memory capacity of the IC200CPU002-EG?
It provides 32 KB of program memory for user applications. -
Does the module support real-time clock (RTC)?
Yes, the CPU includes an integrated real-time clock with battery backup. -
How many I/O points can this CPU control?
It supports up to 256 discrete I/O points when paired with VersaMax I/O modules. -
What programming software is used with the IC200CPU002-EG?
It is programmed using GE Proficy Machine Edition (Logic Developer). -
Can I use Modbus communication with this CPU?
Yes, it supports Modbus RTU via the RS-485 port. -
Is the module suitable for use in harsh environments?
Yes, it operates from 0°C to 60°C and supports non-condensing humidity up to 95%. -
How is the CPU powered?
It receives 5V DC power via the VersaMax backplane. -
Can I update the firmware of this CPU module?
Firmware updates are possible using GE configuration tools, depending on the version. -
Does this model support Ethernet communication?
No, this specific model supports only serial communication (RS-232 and RS-485). For Ethernet, other VersaMax CPUs are available. -
What is the installation method for this CPU?
It can be DIN rail mounted or panel mounted for flexible installation.
