Product Introduction

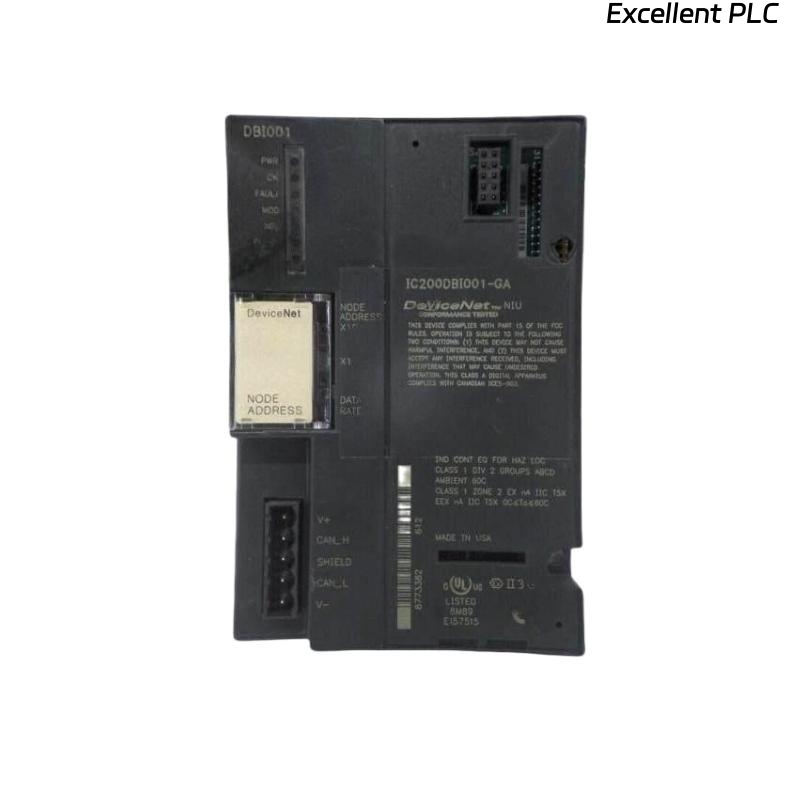

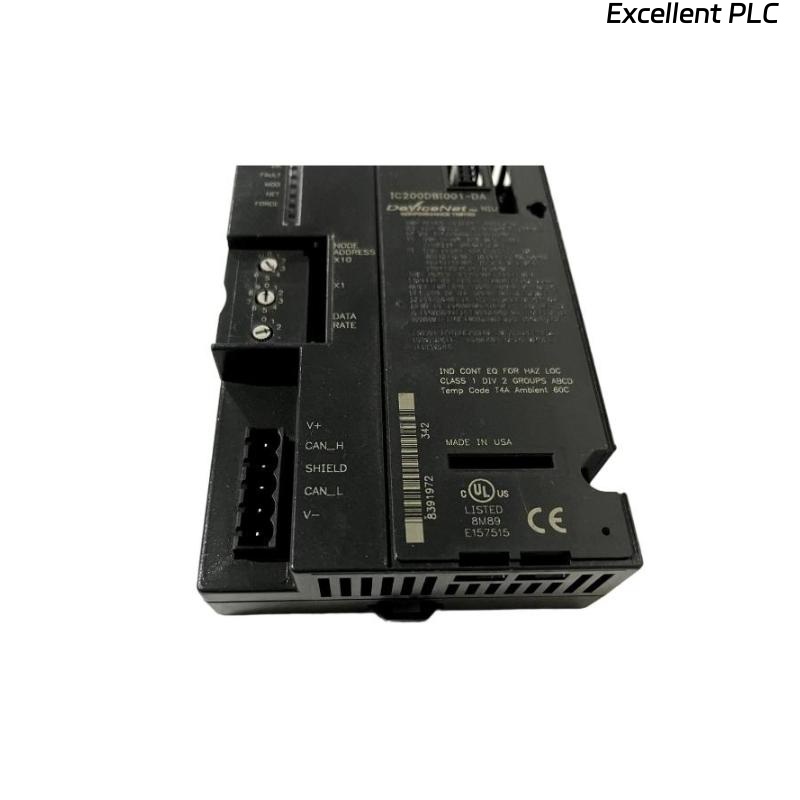

The GE IC200DBI001 is a DeviceNet Network Interface Communication Card designed to provide seamless connectivity for VersaMax PLC systems to DeviceNet networks. As an essential communication module, the IC200DBI001 enables industrial devices, such as sensors, actuators, and controllers, to exchange data reliably in a distributed automation environment. It supports communication between programmable logic controllers (PLCs) and field devices across a DeviceNet network, offering an efficient solution for integration in industrial settings.
This card features high-performance data exchange capabilities, making it an ideal solution for factory automation, process control, and machine monitoring. The IC200DBI001 offers robust and flexible communication, simplifying system integration and reducing the complexity of field device connectivity.
Product Specifications
Here are the key specifications for the GE IC200DBI001 DeviceNet Network Interface Communication Card:
| Specification | Value |
|---|---|
| Model | IC200DBI001 |
| Type | DeviceNet Network Interface Card |
| Dimensions | 133.4 x 69.1 x 85.9 mm |
| Weight | 0.29 kg |
| Input Voltage | 24 VDC (nominal) |
| Communication Protocol | DeviceNet, CAN Protocol |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN Rail Mounting |
| Network Speed | 125 kbps, 250 kbps, and 500 kbps |
| Power Consumption | 500 mA (max) |
| Data Transfer Rate | 125 kbps, 250 kbps, and 500 kbps |
| LED Indicators | Power, Network Status, Device Status |
Applications
The GE IC200DBI001 DeviceNet Network Interface Communication Card is widely used in industrial automation systems that require reliable and fast communication between PLCs and field devices, such as:
-
Factory Automation: The card connects PLCs to field devices like sensors, actuators, and controllers, enabling efficient factory control and automation in industries such as automotive manufacturing and electronics production.
-
Process Control: It provides integration in process control systems, including chemical plants, water treatment facilities, and pharmaceutical production, ensuring reliable data exchange between controllers and monitoring systems.
-
Machine Monitoring: The card is used in machine monitoring systems where real-time data exchange is essential for diagnostics, fault detection, and performance optimization.
-
Material Handling Systems: It enables DeviceNet communication in material handling and conveyor systems, allowing for the automation of tasks such as sorting, packaging, and transportation.
-
Building Automation: It facilitates communication between building management systems and various HVAC systems, lighting, and security systems.
-
Industrial Networking: The card can be used in industrial networking solutions to connect different control systems over DeviceNet for seamless integration in larger automation environments.
Advantages
-
Seamless Integration: The IC200DBI001 integrates smoothly with VersaMax PLC systems, making it ideal for DeviceNet networks in automation environments.
-
Flexible Communication: With support for multiple DeviceNet communication speeds (125 kbps, 250 kbps, and 500 kbps), it offers flexibility to meet the requirements of different applications.
-

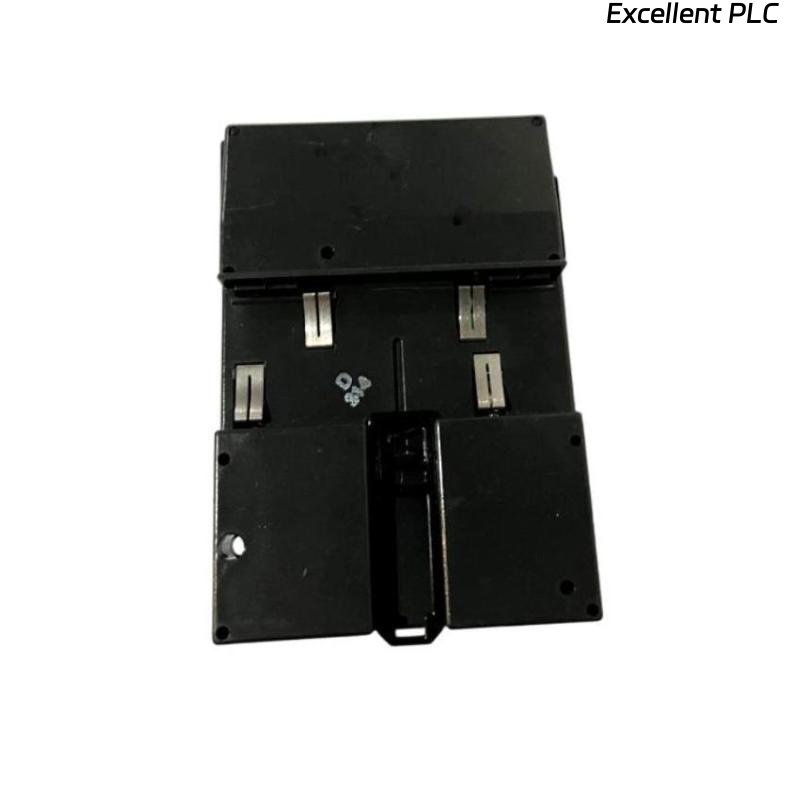

Compact Design: The card’s compact dimensions and DIN rail mounting provide ease of installation, even in space-constrained control panels.
-
Reliable Power and Data Transfer: Ensures reliable 24 VDC operation with robust data transfer over DeviceNet networks, offering high data integrity for industrial automation tasks.
-
Wide Operating Temperature Range: Designed to function in environments ranging from -20°C to 60°C, making it suitable for a variety of industrial conditions.
-
Clear Indicators: Equipped with LED indicators for power, network status, and device status, which simplify troubleshooting and system diagnostics.
FAQ
-
What is the GE IC200DBI001 DeviceNet Network Interface Communication Card?
The IC200DBI001 is a DeviceNet interface card that connects VersaMax PLC systems to DeviceNet networks, enabling communication between the PLC and field devices such as sensors and actuators. -
What communication protocols does the IC200DBI001 support?
The card supports DeviceNet and CAN protocol, enabling reliable and efficient data transfer between devices in the network. -
What is the operating voltage for the IC200DBI001?
The IC200DBI001 operates on a 24 VDC power supply. -
What are the communication speeds supported by the IC200DBI001?
The card supports 125 kbps, 250 kbps, and 500 kbps communication speeds, providing flexibility in choosing the appropriate speed for the network. -
How is the IC200DBI001 mounted?
The card can be easily mounted on DIN rail, making installation straightforward in control panels. -
What is the maximum power consumption of the IC200DBI001?
The IC200DBI001 has a maximum power consumption of 500 mA. -
Can the IC200DBI001 be used with other PLC systems besides VersaMax?
No, the IC200DBI001 is specifically designed for VersaMax PLC systems and may not be compatible with other PLC brands. -
What is the temperature range for the IC200DBI001?
The card operates in a temperature range from -20°C to 60°C, making it suitable for industrial environments. -
What LED indicators does the IC200DBI001 have?
The card is equipped with LED indicators for power, network status, and device status, which help in monitoring and troubleshooting. -
Is the IC200DBI001 compatible with all DeviceNet networks?
Yes, the card is compatible with DeviceNet networks, ensuring seamless integration with various field devices and controllers that support DeviceNet communication.
