Product Overview

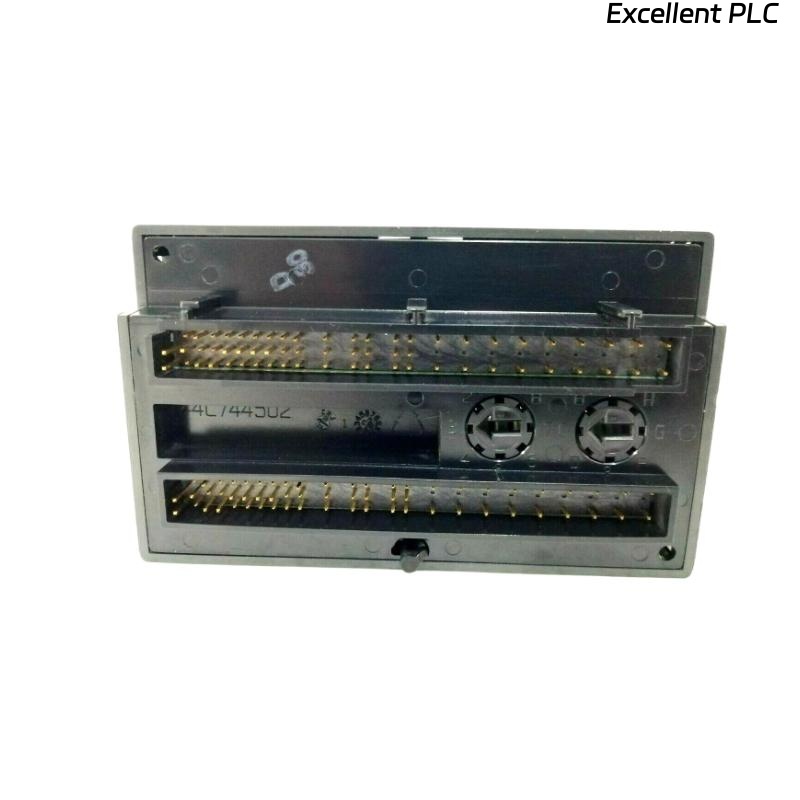

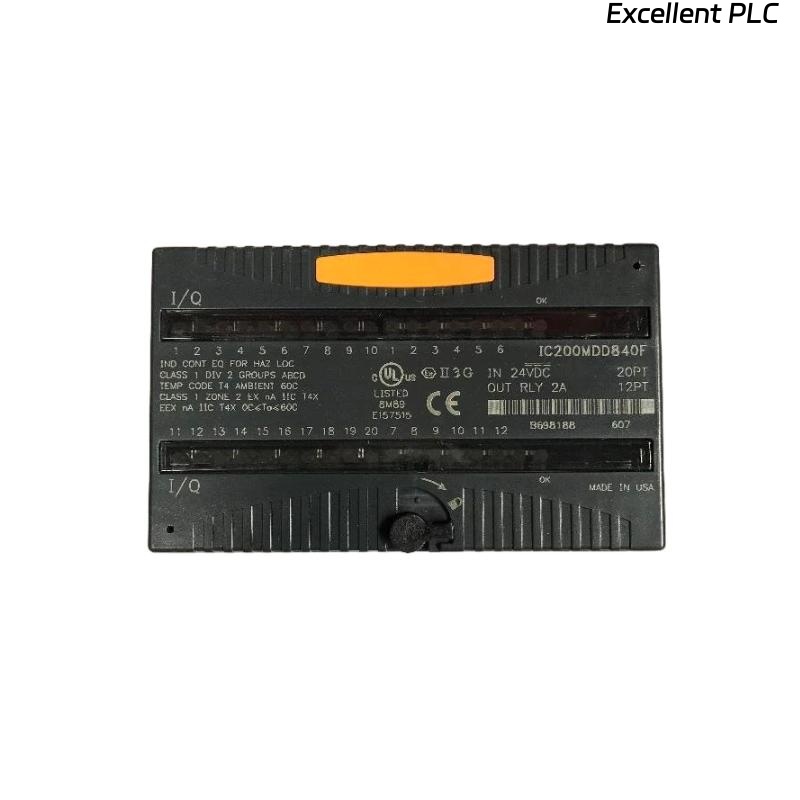

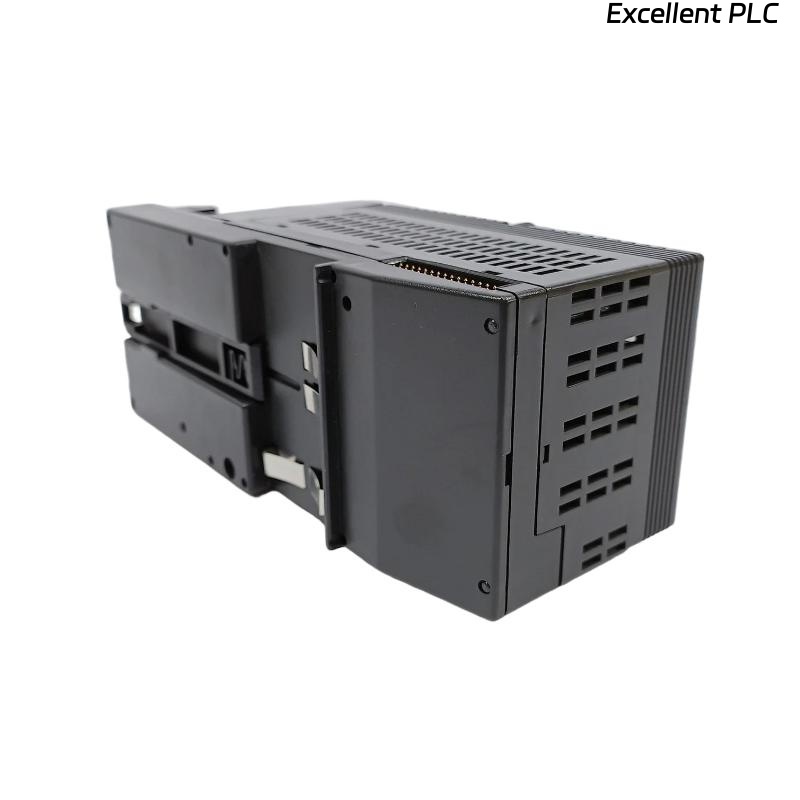

The GE IC200MDD840 is a VersaMax Discrete Mixed I/O module designed for use in industrial automation applications. This module integrates both digital input and output capabilities in a single unit, making it highly versatile and ideal for compact control systems. The IC200MDD840 provides reliable communication between sensors, actuators, and controllers while minimizing the need for additional equipment. It is an essential component in distributed control systems, helping reduce wiring complexity and space requirements in industrial setups.
Product Specifications:
| Specification | Details |
|---|---|
| Model | IC200MDD840 |
| Type | Discrete Mixed I/O Module |
| Compatibility | VersaMax Micro PLC |
| Input Points | 8 Digital Inputs |
| Output Points | 8 Digital Outputs |
| Dimensions (W x H x D) | 133.4 x 85.9 x 69.1 mm |
| Weight | 0.159 kg |
| Mounting Type | DIN Rail |
| Power Supply | 5V DC |
| Operating Temperature | 0°C to 60°C |
| Protocol | Modbus/TCP |
| Current Rating | 2 A per Output |
| Protection | Overcurrent and Overvoltage Protection |
| LED Indicators | Power, Input, Output Status |
Product Applications:
The GE IC200MDD840 Discrete Mixed I/O Module is suitable for various industrial applications requiring both input and output control in a compact module. Some common applications include:
-
Industrial Automation Systems: Used to interface sensors, switches, and actuators with a PLC for monitoring and control of manufacturing processes.
-
Remote Control: Enables remote control of machinery, reducing the need for physical intervention.
-
Data Collection Systems: Captures input from field devices and sends it to a central system for monitoring and analysis.
-
Process Control: Useful in controlling the operation of machines and processes in environments where both digital inputs and outputs are needed.
Product Advantages:
-
Compact Design: The IC200MDD840’s small footprint allows for easy installation in space-constrained environments.
-
Integrated Inputs and Outputs: By combining digital inputs and outputs into a single module, it reduces the need for separate I/O modules, saving space and simplifying wiring.
-
Flexibility: The module can be used in a wide variety of applications, from simple on/off control to more complex systems requiring both input and output capabilities.
-
Real-Time Control: The IC200MDD840 offers real-time communication between the control system and field devices, ensuring timely actions based on real-time data.
-
High Reliability: Built with industrial-grade components, this module ensures long-term, reliable performance in harsh environments.
-
Easy Integration: The module integrates seamlessly with the VersaMax Micro PLC and is fully compatible with other GE automation products.
FAQ:
1. What type of I/O does the IC200MDD840 support?
The IC200MDD840 supports both digital input and output. It has 8 digital input points and 8 digital output points.
2. Can this module be used with other PLC brands?
The IC200MDD840 is designed specifically for the VersaMax Micro PLC series, but it can also be used with other PLCs that support the Modbus/TCP protocol for communication.
3. What is the voltage rating for the digital outputs?
The IC200MDD840 provides 5V DC for its digital output points, with a current rating of up to 2 A per output.
4. How is the IC200MDD840 mounted?
The module is mounted using a DIN rail, which is a standard method of securing control devices in industrial applications.
5. What types of devices can be connected to the IC200MDD840?
You can connect a wide range of devices to the IC200MDD840, including sensors, switches, relays, and actuators, depending on the specific application.
6. Does the IC200MDD840 offer protection against power surges?
Yes, the module includes overcurrent and overvoltage protection to ensure the safety and reliability of connected devices.
7. Can I monitor the status of the inputs and outputs?
Yes, the IC200MDD840 includes LED indicators for input and output status, allowing for quick visual inspection of device health.
8. Is there a limit to the distance between the IC200MDD840 and connected devices?
The distance is generally determined by the type of wiring and signal strength. For optimal performance, it’s recommended to follow standard industrial wiring guidelines.
9. How does this module communicate with the PLC?
The IC200MDD840 communicates with the VersaMax Micro PLC using the Modbus/TCP protocol, which is widely used in industrial automation.
10. What is the power supply requirement for the IC200MDD840?
The IC200MDD840 requires a 5V DC power supply to operate, which is standard for many of the VersaMax series modules.
