Product Introduction

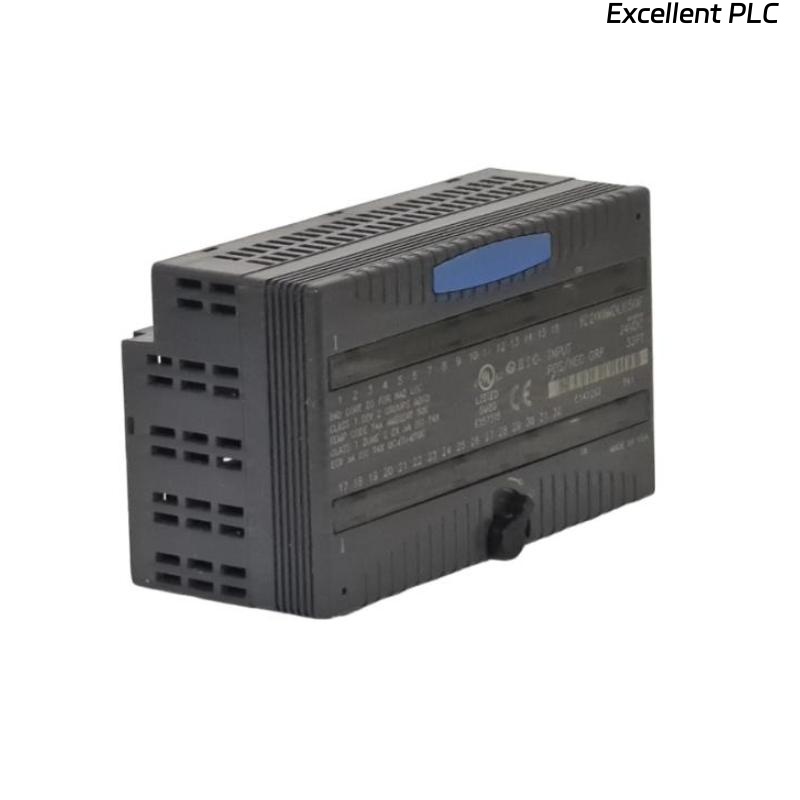

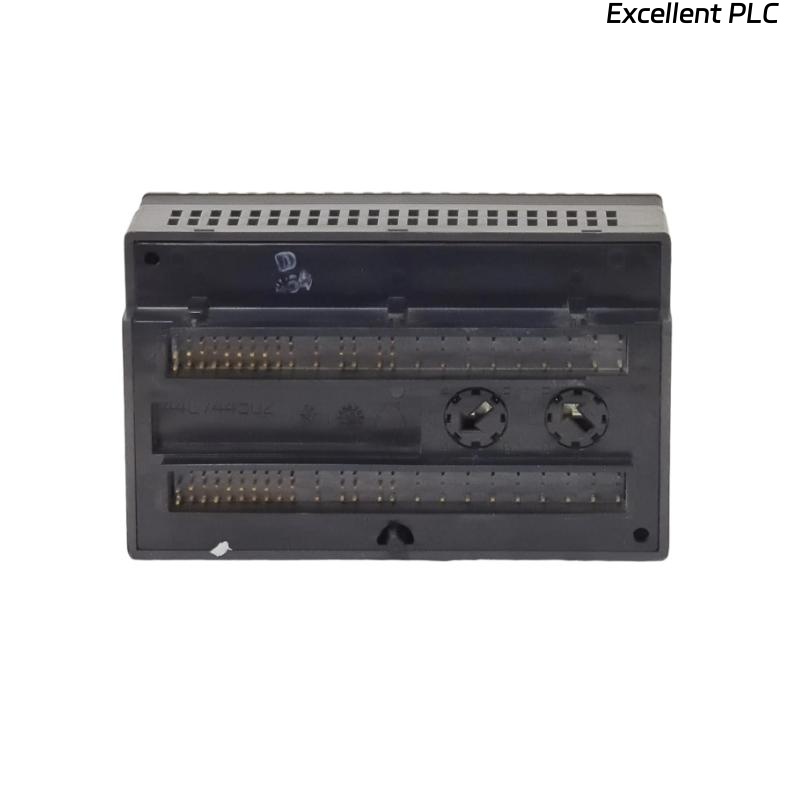

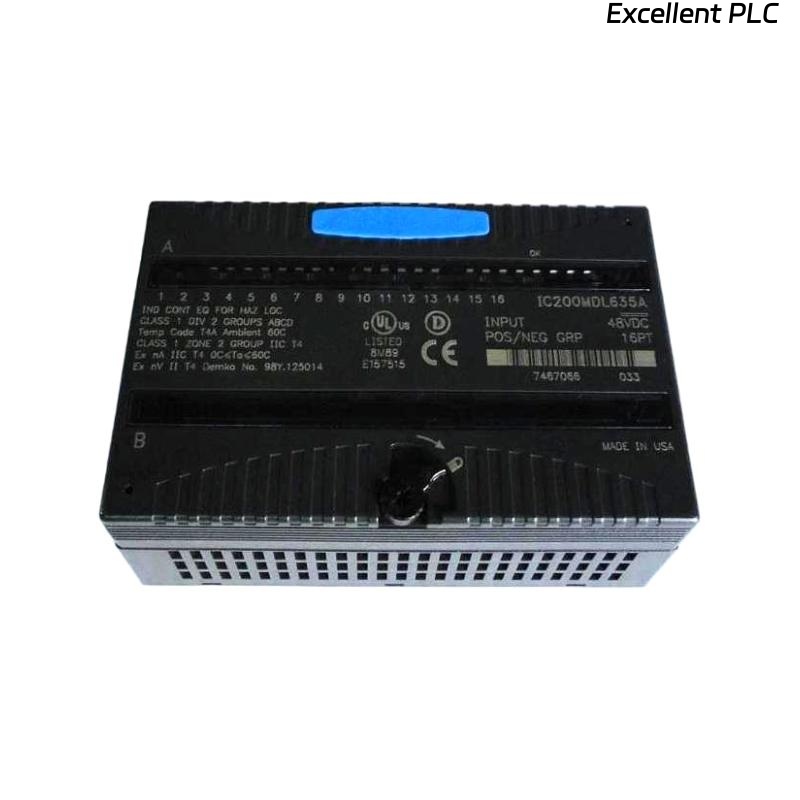

The GE IC200MDL635 VersaMax Discrete Input Module is a robust and highly reliable component of the VersaMax PLC system, designed to handle digital input signals from a variety of field devices. This module supports 8 digital input points, making it ideal for applications where simple on/off control is needed. It is particularly suitable for capturing input from sensors, limit switches, proximity detectors, and other devices that generate binary signals.
Built to ensure reliable performance in demanding industrial environments, the IC200MDL635 module is often deployed in manufacturing, automated control systems, process control, and packaging industries. Its DIN rail mounting system makes it easy to install, and it integrates seamlessly with other modules in the VersaMax family.
With each input channel featuring optical isolation, the module provides protection from electrical noise and spikes, ensuring system reliability even in harsh conditions. The IC200MDL635 is ideal for industries where reliability and flexibility are critical.
Product Specifications
| Specification | Details |
|---|---|
| Model | IC200MDL635 |
| Module Type | Discrete Input Module |
| Number of Inputs | 8 Inputs |
| Input Type | Digital (Discrete) |
| Input Voltage | 24 VDC |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| Weight | 0.136 kg |
| Optical Isolation | Yes |
| Operating Temperature Range | -20°C to 60°C |
| Status Indicators | Yes, for each input |
Product Applications
The GE IC200MDL635 VersaMax Discrete Input Module is a versatile and adaptable component, suitable for a wide range of applications that require digital input processing. Its typical uses include:
-
Sensor and Switch Monitoring: The module is commonly used to receive signals from proximity sensors, limit switches, and temperature switches, providing vital input to the control system.
-
Conveyor and Sorting Systems: It can be integrated into conveyor systems to monitor positions and speeds of goods being transported, allowing for efficient automated control.
-
Safety Systems: The IC200MDL635 can be used in safety monitoring systems to read inputs from emergency stop buttons, safety interlocks, and other safety-critical sensors.
-
Process Control: In process control systems, the module is used to capture status signals from pressure switches, flow sensors, and level detectors, helping to maintain optimal operation of critical systems.
-
Alarm Systems: The module can also be employed in alarm systems to monitor safety signals and trigger outputs like sirens, lights, or automatic shutdowns.
Product Advantages
-
Optical Isolation: Each of the 8 digital input channels is optically isolated, ensuring that external electrical noise or power surges do not interfere with the system’s operation, which is crucial in noisy industrial environments.
-
Compact Design: The IC200MDL635 features a compact form factor (110 x 66.8 x 50 mm) that allows for easy installation in tight spaces, maximizing panel space while maintaining efficient performance.
-
Reliable Performance: This module is engineered to provide high-performance digital input processing, with support for 24 VDC input voltage, making it suitable for use in a wide range of industrial applications.
-
Wide Temperature Range: The IC200MDL635 operates across a temperature range of -20°C to 60°C, ensuring stable operation in both cold and hot environments.
-
Ease of Integration: As part of the VersaMax PLC system, the IC200MDL635 integrates smoothly with other VersaMax modules, providing flexibility for scaling and modifying systems as needed.
-
Status Indicators: The module includes LED status indicators for each input, making it easier to monitor system performance and quickly identify issues or faults in the input signals.
FAQ
1. How many digital inputs does the IC200MDL635 module support?
The IC200MDL635 provides 8 digital input points, suitable for handling binary (on/off) signals from various field devices.
2. What type of input signals are processed by the IC200MDL635 module?
The IC200MDL635 module is designed to process digital (discrete) signals, such as on/off signals from devices like proximity sensors, limit switches, and temperature switches.
3. What is the input voltage for the IC200MDL635 module?
The module operates with a 24 VDC input voltage, which is standard for many industrial control systems.
4. Does the IC200MDL635 module provide protection from electrical noise?
Yes, each input channel on the IC200MDL635 is optically isolated, providing protection from electrical noise and voltage spikes.
5. What is the operating temperature range of the IC200MDL635 module?
The IC200MDL635 operates within a temperature range of -20°C to 60°C, making it suitable for use in a wide range of industrial environments.
6. How is the IC200MDL635 module mounted?
The IC200MDL635 module is designed for DIN rail mounting, allowing for quick and secure installation in industrial control panels.
7. Can the IC200MDL635 module be used in high-speed applications?
The IC200MDL635 is optimized for digital input processing in typical industrial applications. While it offers reliable input handling, it may not be suited for high-speed or high-frequency input requirements.
8. Is the IC200MDL635 module compatible with other VersaMax modules?
Yes, the IC200MDL635 integrates seamlessly with other VersaMax PLC modules, providing flexibility for expanding or customizing your system.
9. Does the module provide status feedback for the inputs?
Yes, the IC200MDL635 includes LED status indicators for each input channel, making it easy for operators to monitor the operational status of connected devices.
10. Can the IC200MDL635 module be used for analog inputs?
No, the IC200MDL635 is designed specifically for digital input signals and is not suitable for processing analog inputs.
