Product Introduction

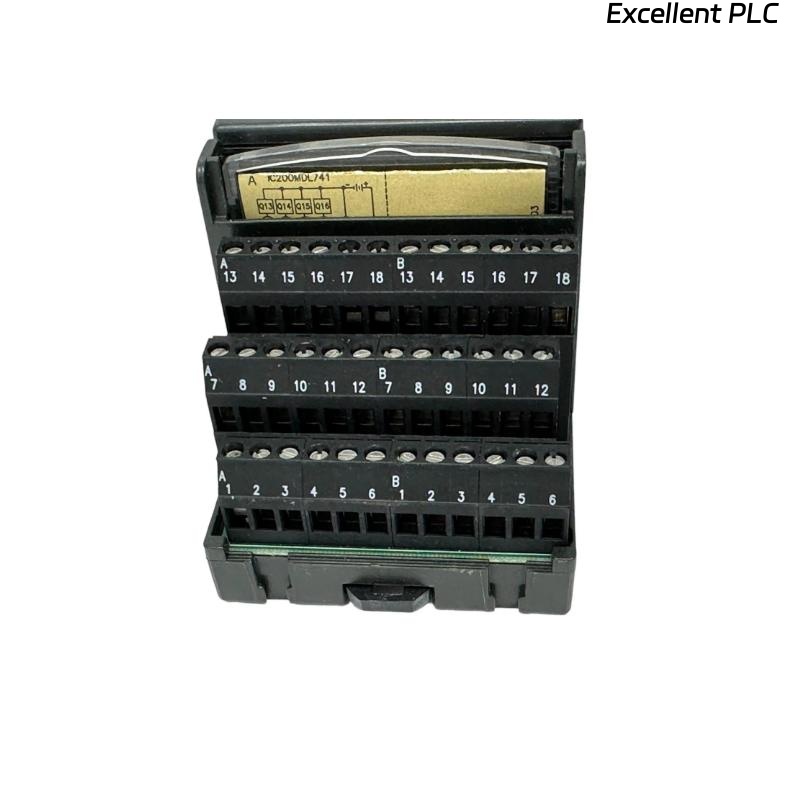

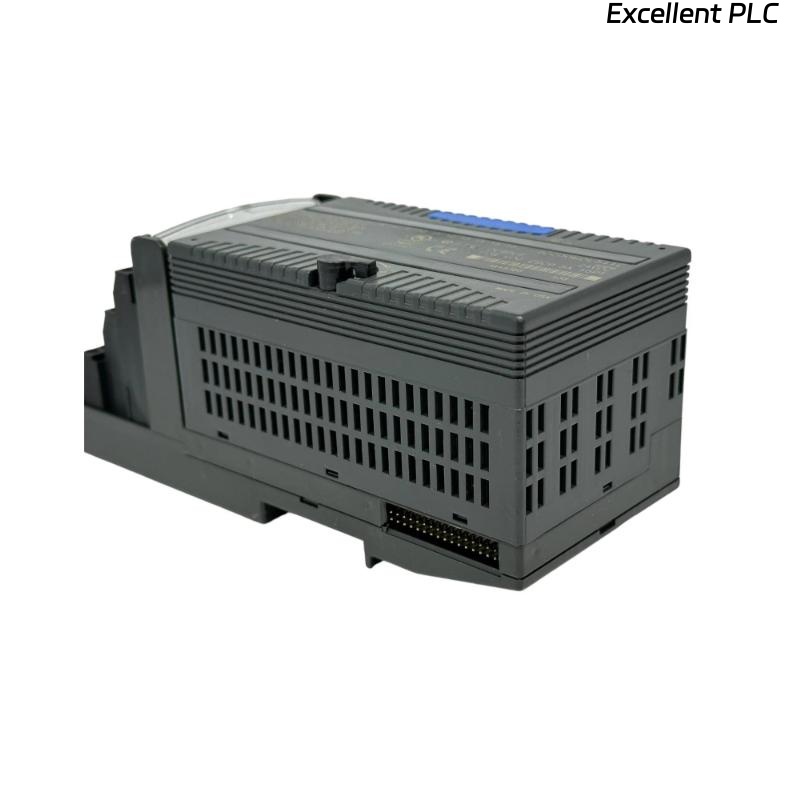

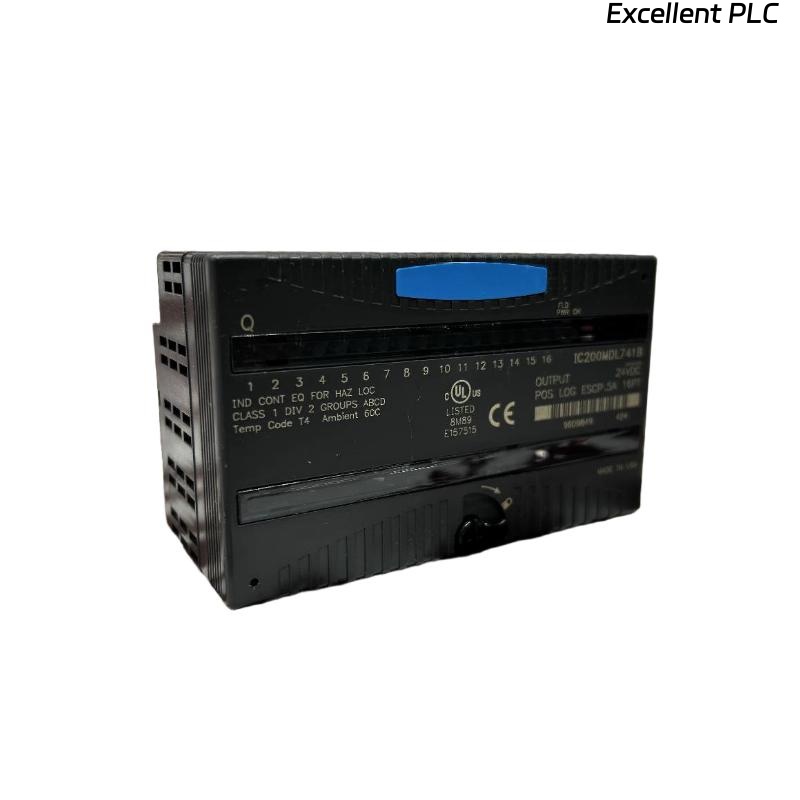

The GE IC200MDL741 VersaMax Discrete Output Module is an integral part of the VersaMax PLC system, designed for providing reliable discrete output control in industrial automation applications. It provides 8 output points that can be used to control various field devices such as relays, solenoids, motors, and actuators. These outputs function in a binary on/off mode, making the module ideal for systems requiring simple digital control signals.
The IC200MDL741 is a compact and efficient solution, designed to be easily mounted on a DIN rail for quick installation in control panels. With status feedback indicators for each output, this module ensures that operators can easily monitor the operational status of connected devices, improving diagnostics and troubleshooting. It is widely used across various industries, including manufacturing, building automation, process control, and packaging systems, where high reliability and simple digital control are essential.
Product Specifications
| Specification | Details |
|---|---|
| Model | IC200MDL741 |
| Module Type | Discrete Output Module |
| Number of Outputs | 8 Outputs |
| Output Type | Digital (Discrete) |
| Output Current | 0.5 A per Output |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| Weight | 0.1 kg |
| Operating Voltage | 24 VDC |
| Status Indicators | Yes, for each output |
| Operating Temperature Range | -20°C to 60°C |
Product Applications
The GE IC200MDL741 VersaMax Discrete Output Module finds application across a wide range of industrial environments that require digital output control. Some typical applications include:
-
Control of Solenoids and Relays: The module is used to control solenoids, relays, and other similar devices in applications such as automation systems, sorting lines, and conveyor control.
-
Motor and Pump Control: It is commonly used to provide on/off control for motors and pumps in manufacturing or production lines.
-
Lighting Control: The IC200MDL741 can be used in building automation systems to control lighting systems, providing an efficient way to manage large numbers of lights across commercial or industrial buildings.
-
Alarm Systems: This module can trigger alarm systems by controlling devices like sirens or warning lights in response to specific system conditions or faults.
-
Actuator Control: It is also used for controlling actuators, valves, and other devices in process control systems for the oil, gas, and chemical industries.
Product Advantages
-
Compact Design: The IC200MDL741 offers a compact design (110 x 66.8 x 50 mm), making it suitable for installations in tight spaces. It can be easily mounted on a DIN rail for quick setup in control panels.
-
Simple On/Off Control: With 8 discrete output channels, this module provides simple on/off control for field devices, making it ideal for applications that do not require complex input/output processing.
-
Reliable Performance: The module is capable of handling 0.5 A per output, ensuring reliable switching for low-power devices and offering consistent performance across a wide range of industrial applications.
-
Status Feedback: Each output channel is equipped with LED status indicators, which help operators monitor the operational status of the connected devices and simplify troubleshooting.
-
Wide Operating Range: Designed to operate within a temperature range of -20°C to 60°C, the IC200MDL741 is suitable for use in both cold and hot environments, making it versatile across industries.
-
Cost-effective: The IC200MDL741 is a cost-efficient digital output module, offering high value and reliable performance at an affordable price point for industrial control systems.
FAQ
1. How many output points does the IC200MDL741 provide?
The IC200MDL741 provides a total of 8 discrete output points, which can be used to control various field devices.
2. What is the maximum output current per channel on the IC200MDL741?
Each output channel on the IC200MDL741 can handle up to 0.5 A of output current.
3. Can the IC200MDL741 be used to control high-power devices?
The IC200MDL741 is suitable for controlling low to medium power devices with a maximum output current of 0.5 A per point.
4. How are the output points controlled on the IC200MDL741?
The IC200MDL741 is controlled by a VersaMax PLC system, which sends digital signals to switch the outputs on or off.
5. Does the IC200MDL741 module provide status feedback for the outputs?
Yes, each output channel on the IC200MDL741 has an LED status indicator that shows the operational state of the output.
6. What type of relay is used in the IC200MDL741?
The IC200MDL741 uses digital on/off outputs and does not rely on traditional relays. It uses solid-state switches for output control.
7. What is the operating voltage for the IC200MDL741?
The IC200MDL741 requires a 24 VDC power supply to operate.
8. What is the temperature range for the IC200MDL741 module?
The IC200MDL741 operates within a temperature range of -20°C to 60°C, making it suitable for a variety of industrial environments.
9. Can the IC200MDL741 module be used with other types of PLC systems?
The IC200MDL741 is designed specifically for the VersaMax PLC system and may not be compatible with other PLC systems unless they support similar I/O configurations.
10. How is the IC200MDL741 module mounted?
The IC200MDL741 is mounted on a DIN rail, which ensures secure and easy installation in industrial control panels.
