Product Overview

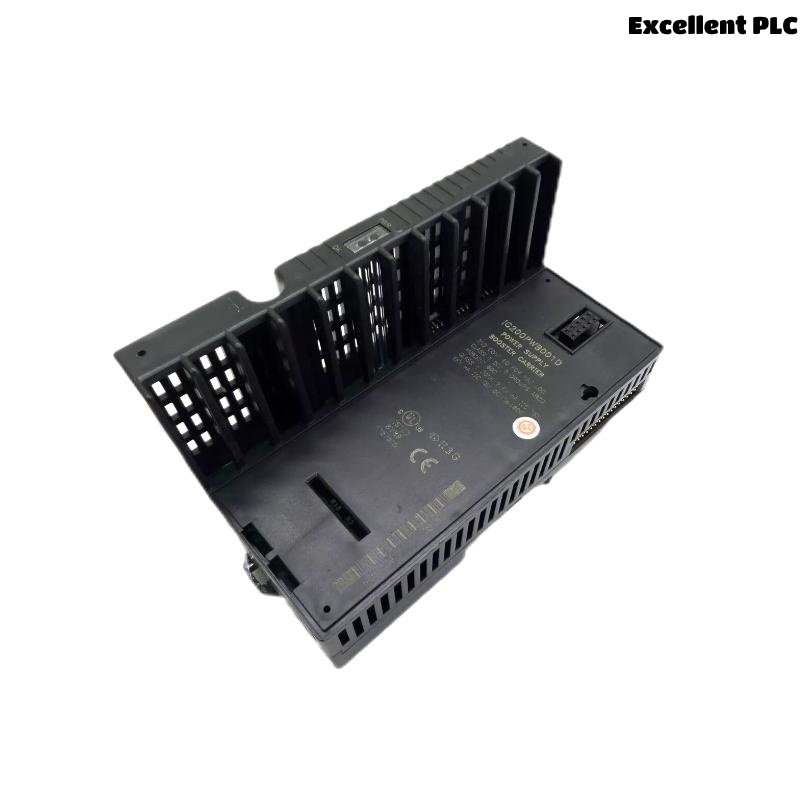

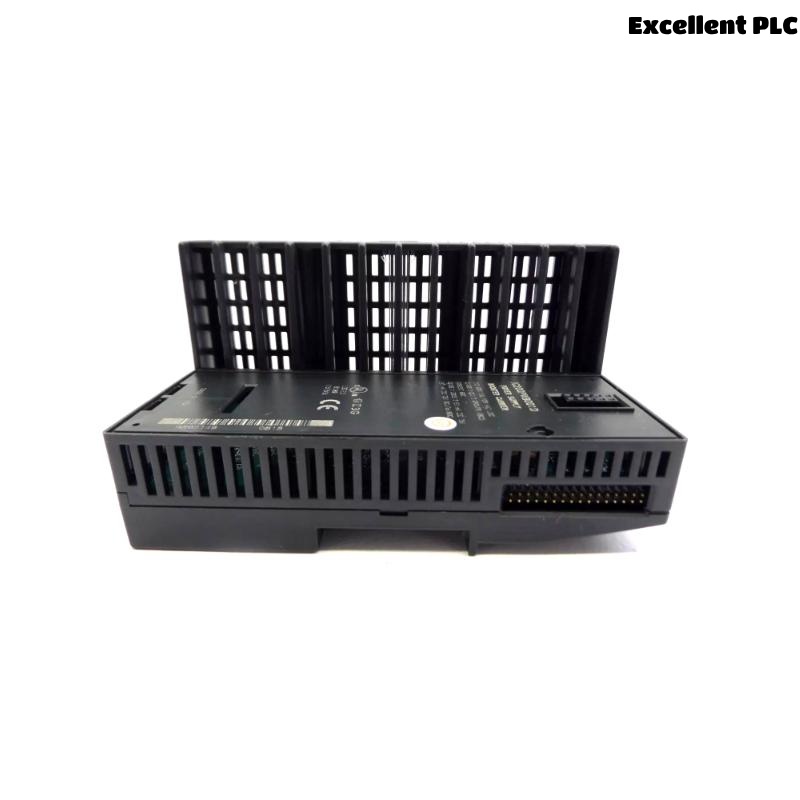

The GE IC200PWB001 is a VersaMax power booster module designed to enhance the power capacity of VersaMax programmable logic controllers (PLCs). This module supplements the power supply by providing additional current to drive input/output modules, sensors, and other connected devices within the control system.
Engineered for compactness and efficiency, the IC200PWB001 ensures that the system maintains consistent voltage and current levels, particularly in applications with high I/O density or where multiple modules demand increased power. Its robust design meets industrial standards, guaranteeing reliability and longevity in harsh manufacturing environments.
The power booster integrates seamlessly with existing VersaMax setups, allowing system expansions without the need for a complete power supply overhaul. The module’s ease of installation and compatibility make it an ideal choice for system upgrades and retrofits.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | VersaMax Power Booster |
| Model Number | IC200PWB001 |
| Manufacturer | General Electric (GE) |
| Input Voltage | 5 VDC |
| Output Voltage | 5 VDC |
| Output Current | Up to 5 A (additional current capacity) |
| Dimensions | 66.8 × 133.4 × 70 mm |
| Weight | 0.35 kg |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 85°C |
| Mounting Type | DIN rail or panel mount |
| Status Indicators | Power OK LED |
| Protection Features | Overcurrent and short circuit protection |
| Compliance | UL, CE, CSA |
Applications
-
Supplementing power in VersaMax PLC systems with high input/output demands
-
Supporting expansion of existing VersaMax systems without replacing power supplies
-
Industrial automation processes requiring additional power for sensors and modules
-
Manufacturing plants utilizing VersaMax for machinery control and process automation
-
Retrofitting older control panels to accommodate new modules with higher power needs
-
Systems where stable and reliable 5 VDC power is critical for control module performance
Advantages
-
Enhanced Power Capacity: Provides additional current to support high-density I/O module configurations
-
Compact Size: Small form factor (66.8 × 133.4 × 70 mm) fits easily within existing control cabinets
-
Reliable Operation: Designed for industrial environments with robust thermal and electrical protection
-
Seamless Integration: Compatible with existing VersaMax components for easy system expansion
-
Simple Installation: Supports DIN rail or panel mounting, facilitating quick setup and maintenance
-
Power Stability: Maintains consistent 5 VDC output voltage even under high load conditions
-
Diagnostic LED: Provides visual confirmation of power status for quick troubleshooting
-
Compliant with Safety Standards: Certified to meet UL, CE, and CSA safety and performance standards
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the IC200PWB001?
A1: It acts as a power booster, providing additional current to support VersaMax PLC modules.
Q2: What output voltage does the power booster supply?
A2: It supplies a regulated 5 VDC output.
Q3: Can this module be used with all VersaMax systems?
A3: It is compatible with standard VersaMax PLC systems requiring extra power.
Q4: How much additional current can it supply?
A4: The module can provide up to 5 A of additional current.
Q5: Is the module easy to install?
A5: Yes, it supports DIN rail or panel mounting and integrates smoothly with existing setups.
Q6: Does it have any protection features?
A6: Yes, it includes overcurrent and short circuit protection.
Q7: What are the physical dimensions and weight of the module?
A7: Dimensions are 66.8 × 133.4 × 70 mm, and it weighs approximately 0.35 kg.
Q8: What environmental conditions can the module operate in?
A8: It operates reliably between 0 to 60°C and can be stored from -20 to 85°C.
Q9: How does the module indicate its operating status?
A9: A Power OK LED provides visual indication of proper operation.
Q10: Is the IC200PWB001 certified for safety compliance?
A10: Yes, it meets UL, CE, and CSA standards.
Recommended Related or Similar Models
| Model | Description |
|---|---|
| IC200PWR001 | Standard VersaMax power supply module |
| IC200PWA001 | Power supply with enhanced output capabilities |
| IC200PWB002 | Higher capacity power booster for VersaMax |
| IC200MDL040 | Digital I/O module compatible with VersaMax |
| IC200CHS020 | Communication module for VersaMax systems |
| IC200ALG220 | Analog input module for VersaMax PLC systems |
