Product Introduction

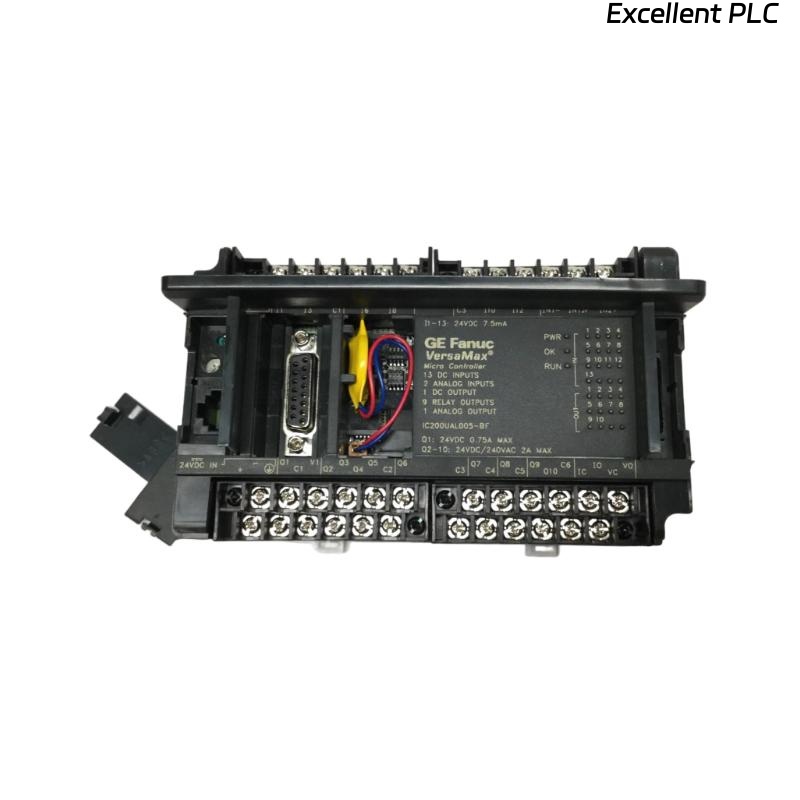

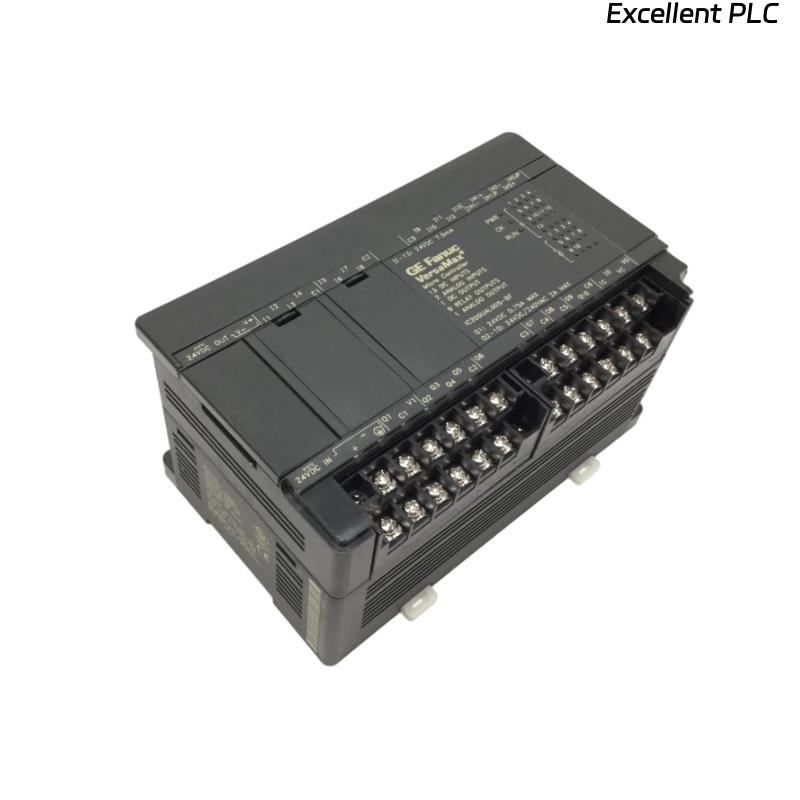

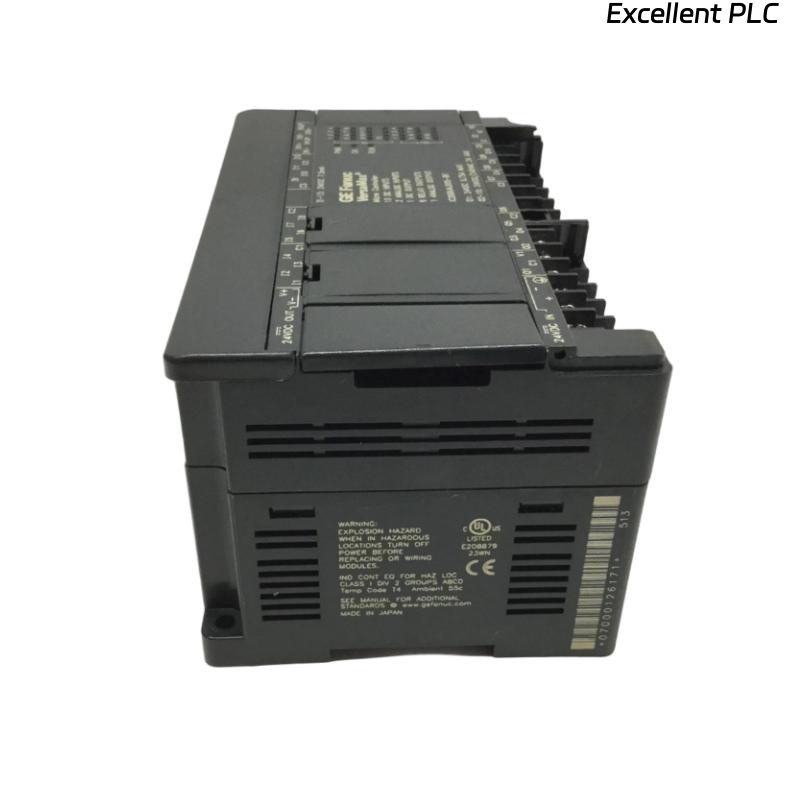

The GE IC200UAL005 is part of the VersaMax series, a microcontroller processor designed to provide reliable, compact, and flexible control solutions for industrial automation systems. The IC200UAL005 processor is ideal for controlling smaller to medium-sized systems where space, performance, and integration flexibility are crucial. It offers an intuitive and cost-effective solution for applications in manufacturing, process control, and building automation.
Built with a 200 MHz processor, the IC200UAL005 ensures high-speed processing for real-time operations. It supports various communication protocols and allows for easy integration with existing systems, which makes it a perfect choice for projects that require seamless communication between multiple devices.
Its compact size (150 x 90 x 76 mm, 0.6 kg) allows it to be easily mounted in tight spaces, providing an efficient solution for industrial environments. The controller is equipped with 8 digital inputs and 6 digital outputs, with the ability to expand using additional VersaMax I/O modules for more I/O points as the system grows.
Product Specifications
| Specification | Value |
|---|---|
| Model | GE IC200UAL005 |
| Controller Type | VersaMax Micro Controller Processor |
| Dimensions (L x W x H) | 150 x 90 x 76 mm |
| Weight | 0.6 kg |
| Mounting Type | DIN Rail or Panel Mounting |
| Processor Speed | 200 MHz (maximum processing speed) |
| Memory | 1 MB RAM (available for program memory) |
| Power Supply | 24 VDC (nominal) |
| Communication Ports | RS-232, RS-485 |
| I/O Configuration | 8 Digital Inputs, 6 Digital Outputs |
| Operating Temperature Range | -40°C to +70°C |
Applications
The GE IC200UAL005 VersaMax Micro Controller Processor is versatile and suited for a variety of industrial applications. Here are some of its key applications:
-
Industrial Automation: The IC200UAL005 is used to control a wide variety of industrial machines, including motors, conveyors, pumps, and other automation equipment. It provides precise control in a compact form factor.
-
Machine Control: Perfect for machine control systems, such as robotic arms, sorting machines, and assembly lines, the IC200UAL005 ensures efficient, synchronized operation in automated environments.
-
Process Control: The controller is ideal for monitoring and adjusting process variables like temperature, pressure, and flow in industries like pharmaceuticals, chemical processing, and food production.
-
Energy Management: With its efficient power supply and real-time control capabilities, the IC200UAL005 is used to monitor and control energy systems, making it an excellent choice for energy management applications.
-
Building Automation: The controller is widely used for controlling HVAC systems, lighting, and security systems, helping to improve energy efficiency and reduce operational costs in commercial buildings.
-
Packaging Systems: In packaging, the processor automates tasks like sorting, labeling, and packing, leading to enhanced operational efficiency and accuracy.
Advantages
-
High-Speed Processing: The 200 MHz processor ensures that the IC200UAL005 can handle demanding real-time control tasks with ease, delivering high performance.
-
Compact and Space-Saving: With dimensions of 150 x 90 x 76 mm and a weight of 0.6 kg, the IC200UAL005 can fit into compact spaces, making it ideal for systems with limited space.
-
Versatile I/O Options: The processor supports 8 digital inputs and 6 digital outputs, and can be expanded with additional I/O modules to support larger systems.
-
Seamless Communication: It comes equipped with RS-232 and RS-485 communication ports, ensuring reliable communication with a wide variety of external devices.
-
Energy Efficiency: Powered by 24 VDC, the IC200UAL005 operates efficiently, making it suitable for power-sensitive applications in industrial automation.
-
Durability: With an operating temperature range from -40°C to +70°C, the controller is built to withstand challenging industrial environments, ensuring reliable operation.
-
Scalable: The IC200UAL005 can grow with your system, allowing the addition of more I/O modules or communication options as your control needs expand.
-
Cost-Effective: The IC200UAL005 is a cost-effective solution for smaller industrial automation systems, providing powerful control at an affordable price point.
FAQ
1. What communication protocols are supported by the IC200UAL005?
The IC200UAL005 supports RS-232 and RS-485 communication protocols, allowing for versatile integration with external devices.
2. Can the IC200UAL005 be expanded with additional I/O modules?
Yes, the IC200UAL005 supports expansion with other VersaMax I/O modules, allowing you to increase the I/O capacity as needed.
3. What is the processor speed of the IC200UAL005?
The IC200UAL005 is equipped with a 200 MHz processor, ensuring quick processing for time-sensitive control tasks.
4. How many I/O points does the IC200UAL005 support?
The IC200UAL005 comes with 8 digital inputs and 6 digital outputs. It can be expanded with additional modules for more I/O points.
5. What is the power supply requirement for the IC200UAL005?
The IC200UAL005 operates on a 24 VDC power supply, which is common for industrial control systems.
6. How is the IC200UAL005 programmed?
The IC200UAL005 can be programmed using GE’s VersaPro or Proficy Machine Edition software, which provides a user-friendly environment for creating control logic.
7. Is the IC200UAL005 suitable for high-speed control applications?
Yes, the 200 MHz processor in the IC200UAL005 ensures it can handle real-time, high-speed control tasks efficiently.
8. Can the IC200UAL005 be used in harsh environments?
Yes, the IC200UAL005 operates in extreme temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments.
9. How does the IC200UAL005 communicate with other devices?
The IC200UAL005 uses RS-232 and RS-485 communication ports to exchange data with external devices, ensuring seamless integration into larger control systems.
10. What are the main advantages of using the IC200UAL005?
The IC200UAL005 offers high-speed processing, a compact design, flexible I/O options, advanced communication features, and scalability, making it ideal for small to medium-sized control systems.
