Product Overview

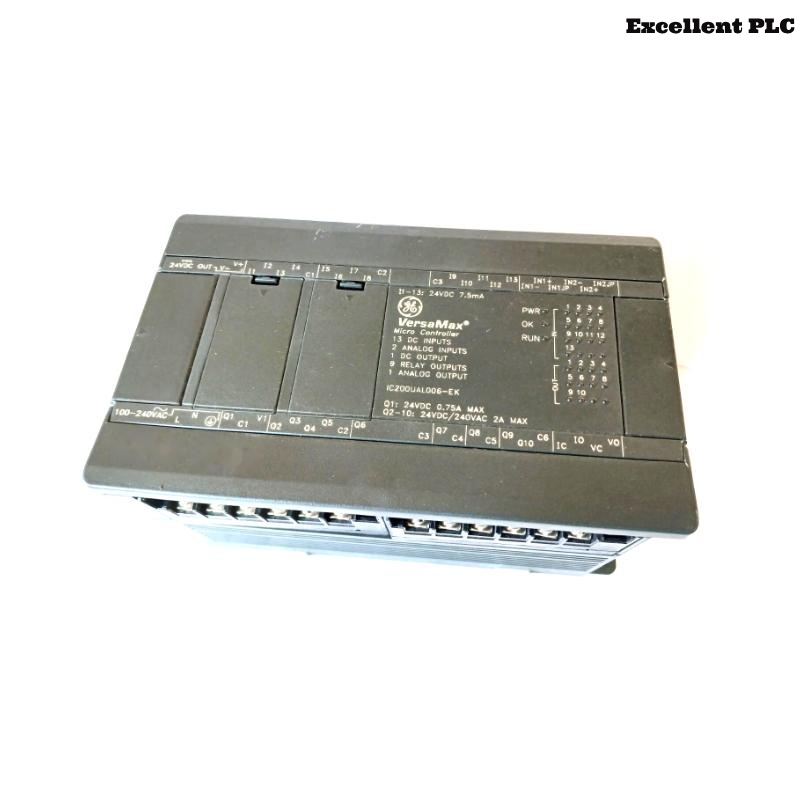

The GE IC200UAL006-EL is a compact and versatile Programmable Logic Controller (PLC) from the VersaMax Micro series. Designed for small to medium-sized industrial automation tasks, it offers a blend of digital and analog I/O capabilities, making it suitable for various applications.
Technical Specifications
| Parameter | Specification |
| Model Number | IC200UAL006-EL |
| Series | VersaMax Micro |
| Power Supply | 120/240 VAC |
| Digital Inputs | 13 x 24VDC |
| Digital Outputs | 9 x Relay Outputs |
| Additional Digital Output | 1 x 24VDC Output |
| Analog Inputs | 2 x Analog Inputs |
| Analog Outputs | 1 x Analog Output |
| Communication Ports | RS-232, RS-485 |
| Expansion Capability | Supports up to 4 expansion units |

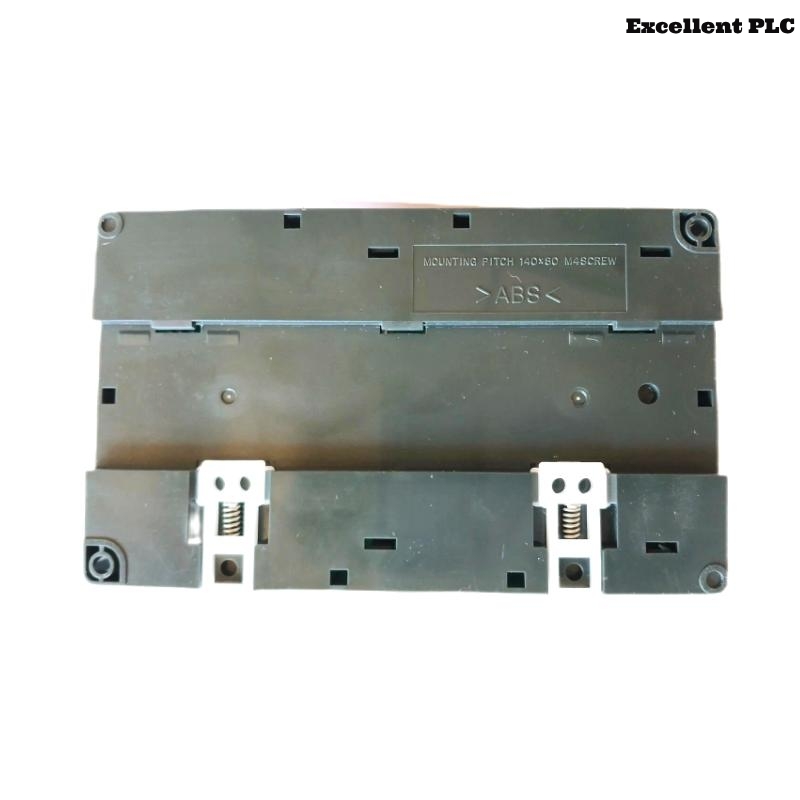

| Mounting Options | DIN Rail or Panel Mount |
| Dimensions (H x W x D) | 90 x 150 x 100 mm |
| Weight | 0.726 kg |
| Programming Software | Proficy Machine Edition |
| Operating Temperature Range | 0°C to 60°C |

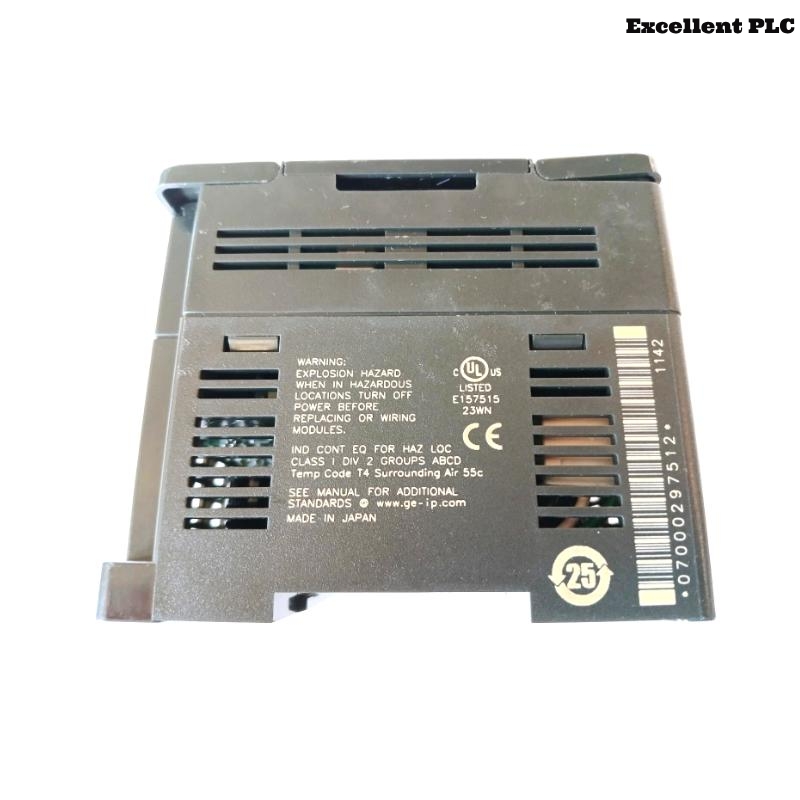

| Certifications | CE, UL, cUL, Class I Div 2 |
Applications
The IC200UAL006-EL is ideal for:
-
Machine control in manufacturing environments
-
Process automation in chemical and pharmaceutical industries
-
Building automation systems
-
Water and wastewater treatment facilities
-
Food and beverage processing lines
Key Advantages
-
Compact Design: Saves space in control panels.
-
Integrated I/O: Combines digital and analog I/O in one unit.
-
Flexible Communication: Offers RS-232 and RS-485 ports for diverse connectivity.
-
Scalability: Supports expansion modules for future growth.
-
Reliable Performance: Suitable for harsh industrial environments.
Recent News Headlines
-
“Emerson Enhances VersaMax Micro PLCs with Advanced Features”
-
“GE’s VersaMax Series Gains Popularity in Industrial Automation”
-
“VersaMax Microcontrollers Streamline Manufacturing Processes”
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC200UAL006-EL?
It serves as a micro PLC for controlling and automating industrial processes, integrating both digital and analog I/O.
2. Can I expand the I/O capabilities of this PLC?
Yes, it supports up to four expansion units to increase I/O points as needed.
3. What programming software is compatible with this model?
The PLC is programmed using Proficy Machine Edition software.
4. Is the PLC suitable for use in hazardous environments?
Yes, it has certifications including Class I Div 2, making it suitable for certain hazardous locations.
5. What types of communication ports are available?
It includes RS-232 and RS-485 ports for serial communication.
6. Does it support analog signal processing?
Yes, it has two analog inputs and one analog output for processing analog signals.
7. What is the power supply requirement?
The PLC operates on a 120/240 VAC power supply.
8. Can it be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting options.
9. What is the operating temperature range?
The PLC operates within a temperature range of 0°C to 60°C.
10. Is there a battery backup option?
Yes, a battery (IC200ACC403) is required for maintaining memory during power loss.
Related Models (Same Series or Compatible with IC200UAL006-EL)
| Model | Description | Key Features |
| IC200UAL004 | VersaMax Micro PLC, 13 Inputs (12VDC), 10 Relay Outputs | Compact controller for low-voltage digital inputs |
| IC200UAL005 | VersaMax Micro PLC, 13 Inputs (24VDC), 9 Relay Outputs | 24VDC version for broader industrial applications |
| IC200UDR001 | VersaMax Micro PLC, 8 Inputs, 6 Relay Outputs | Minimal I/O, ideal for very compact or embedded uses |
| IC200UDR002 | VersaMax Micro PLC, 8 Inputs, 6 Relay Outputs | Similar to UDR001 with slight functional variations |
| IC200UEX209 | VersaMax Expansion Unit, 16 Inputs (120VAC), 12 Relay Outputs | Adds high-voltage I/O capacity to base unit |
| IC200UEX210 | VersaMax Expansion Unit, 16 Inputs (24VDC), 12 Relay Outputs | Enables modular expansion with digital I/O |
| IC200UEX164 | VersaMax Expansion Unit, 40 Inputs (24VDC), 24 Relay Outputs | High-density expansion module for complex systems |
| IC200UEM001 | VersaMax Serial Communications Module | Adds RS-232/485 port for networking and device control |
