Product Introduction

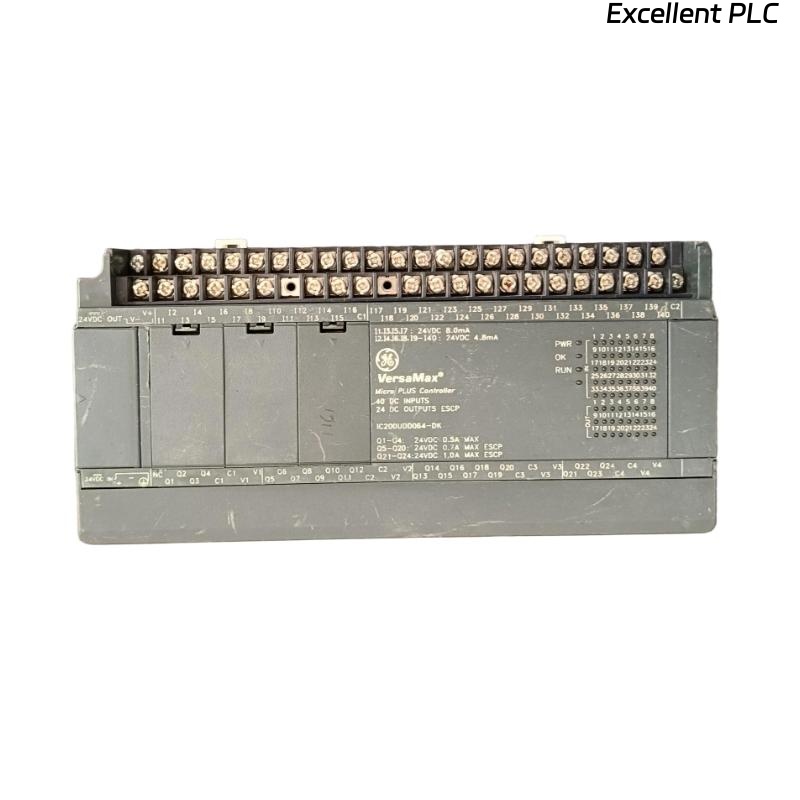

The GE IC200UDD064 is a VersaMax Micro Controller Processor, designed to provide reliable and efficient control solutions for industrial automation and control systems. This processor is part of GE’s VersaMax Micro series, offering compactness, scalability, and ease of integration into diverse applications. It is well-suited for a wide range of control systems, from small to medium-sized applications.
The IC200UDD064 combines high-performance processing with flexible I/O configurations and the ability to interface with various communication devices. Its compact size (150 x 90 x 76 mm, 0.87 kg) allows it to fit into confined spaces, while still providing ample capabilities for controlling industrial systems like machine controls, process automation, and energy management.
Equipped with a 200 MHz processor and 1 MB of RAM, the IC200UDD064 can handle real-time processing and control tasks in automation systems. Whether used in factory automation, building systems, or industrial machinery, the controller delivers high efficiency and long-term reliability.
Product Specifications
| Specification | Value |
|---|---|
| Model | GE IC200UDD064 |
| Controller Type | VersaMax Micro Controller Processor |
| Dimensions (L x W x H) | 150 x 90 x 76 mm |
| Weight | 0.87 kg |
| Mounting Type | DIN Rail or Panel Mounting |
| Processor Speed | 200 MHz (maximum processing speed) |
| Memory | 1 MB RAM (available for program memory) |
| Power Supply | 24 VDC (nominal) |
| Communication Ports | RS-232 |
| I/O Configuration | 8 Digital Inputs, 6 Digital Outputs |
| Operating Temperature Range | -40°C to +70°C |
Applications
The GE IC200UDD064 VersaMax Micro Controller Processor is well-suited for a wide variety of industrial applications that require compact, cost-effective, and reliable control solutions. Here are the primary applications for this controller:
-
Industrial Automation: The processor is used to control machinery such as motors, conveyor belts, pumps, and other automated systems in industrial environments.
-
Machine Control: It is widely used for controlling machines such as robotic arms, assembly lines, and packaging machinery, ensuring efficient and synchronized operation.
-
Process Automation: The IC200UDD064 is ideal for controlling process variables like temperature, pressure, and flow in industries like chemicals, pharmaceuticals, and food processing.
-
Energy Management: The processor is employed in energy management systems for monitoring and controlling energy production, distribution, and consumption in industries such as power generation and renewable energy.
-
Building Automation: It is used for controlling HVAC systems, lighting, and security systems in commercial and industrial buildings, contributing to energy efficiency and system optimization.
-
Packaging Systems: In packaging, the controller manages the operation of sorting, labeling, and packing machines, providing seamless automation in packaging lines.
Advantages
-
High-Speed Processing: The 200 MHz processor allows the IC200UDD064 to handle time-sensitive tasks and real-time control, ensuring high-performance automation.
-
Compact Design: Its compact size (150 x 90 x 76 mm, 0.87 kg) makes it ideal for installations in tight spaces without sacrificing performance.
-
Flexibility and Expandability: The controller supports 8 digital inputs and 6 digital outputs, and it can be expanded with additional VersaMax I/O modules to meet system demands.
-
Integrated Communication: The RS-232 communication port ensures seamless data transfer between the IC200UDD064 and other industrial devices, facilitating integration with existing control systems.
-
Energy Efficiency: Powered by a 24 VDC supply, the IC200UDD064 operates efficiently, helping to lower energy consumption in industrial automation systems.
-
Durability: With an operating temperature range of -40°C to +70°C, the processor is designed to work in harsh environmental conditions, ensuring reliable operation even in extreme environments.
-
Cost-Effective Solution: The IC200UDD064 provides excellent control at a competitive price, making it a great choice for smaller control systems where budget constraints are a concern.
-
Scalable: The ability to add more I/O modules and communication options allows the IC200UDD064 to scale with the growing needs of your control system.
FAQ
1. What communication ports are available on the IC200UDD064?
The IC200UDD064 comes with an RS-232 communication port for easy data exchange with other devices in the control system.
2. Can the IC200UDD064 be expanded with additional I/O modules?
Yes, the IC200UDD064 can be expanded with other VersaMax I/O modules to increase the number of inputs and outputs as needed.
3. What is the processing speed of the IC200UDD064?
The IC200UDD064 operates at a 200 MHz processing speed, allowing it to handle high-speed control tasks and real-time data processing.
4. How many I/O points are supported by the IC200UDD064?
The IC200UDD064 has 8 digital inputs and 6 digital outputs, providing flexibility for small to medium-sized control applications.
5. What is the power supply requirement for the IC200UDD064?
The IC200UDD064 requires a 24 VDC power supply, which is standard for VersaMax PLCs and other industrial control systems.
6. What software is required for programming the IC200UDD064?
The IC200UDD064 can be programmed using GE’s VersaPro or Proficy Machine Edition software, which provides an intuitive interface for creating control programs.
7. Is the IC200UDD064 suitable for harsh environments?
Yes, the IC200UDD064 is designed to operate in environments with temperatures ranging from -40°C to +70°C, ensuring reliability in extreme conditions.
8. Can the IC200UDD064 be used in energy management systems?
Yes, the IC200UDD064 is ideal for energy management applications, helping to monitor and control energy systems like power grids and renewable energy sources.
9. How does the IC200UDD064 handle communication with external devices?
The IC200UDD064 uses its RS-232 communication port to interface with external devices such as sensors, actuators, and controllers in industrial systems.
10. How is the IC200UDD064 mounted?
The IC200UDD064 can be mounted using DIN rail or panel mounting, providing flexibility for installation in different environments.
