Product Introduction

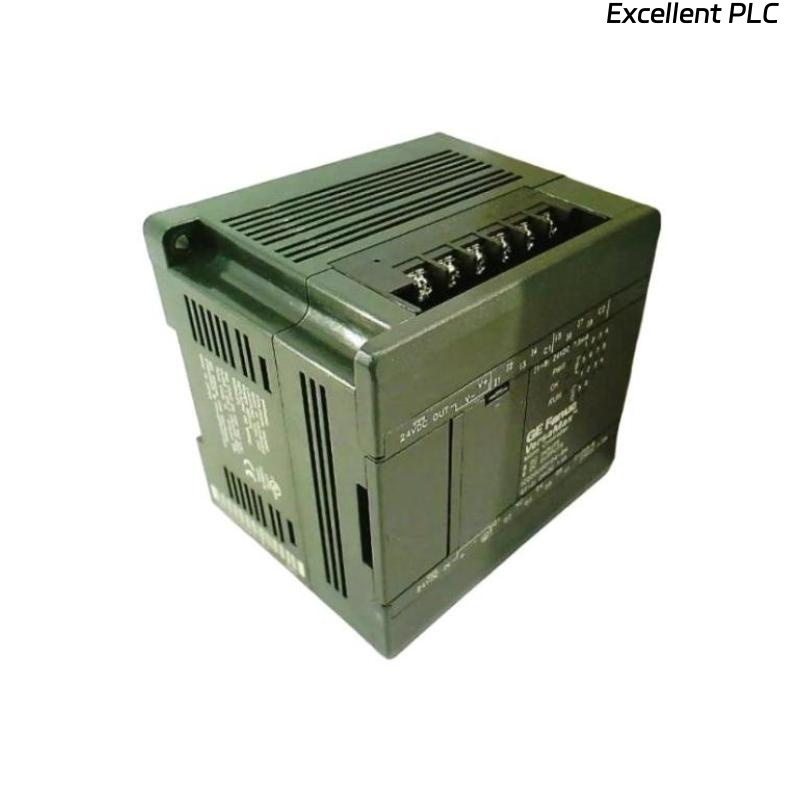

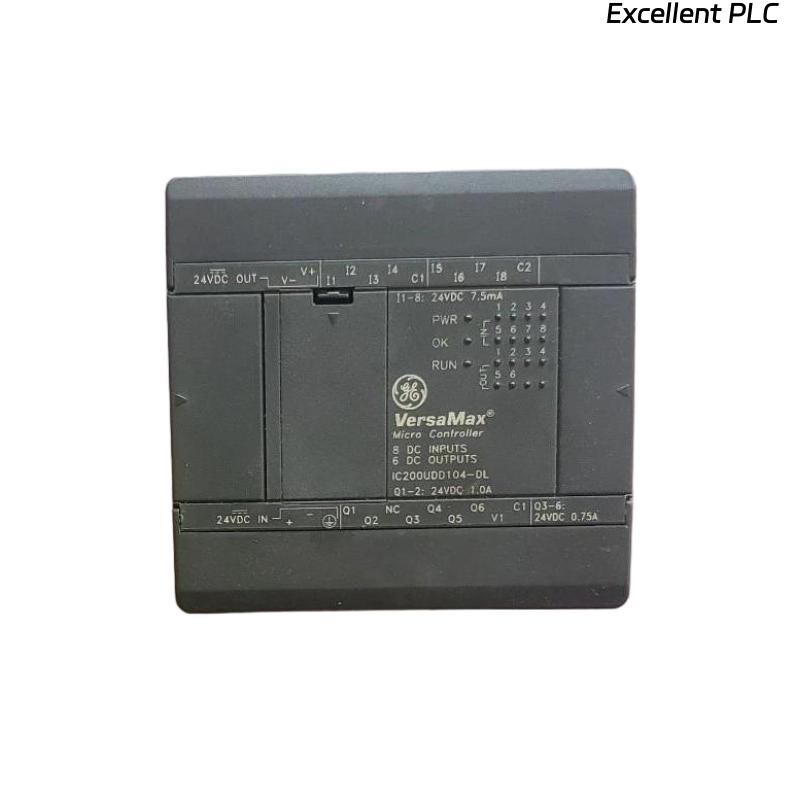

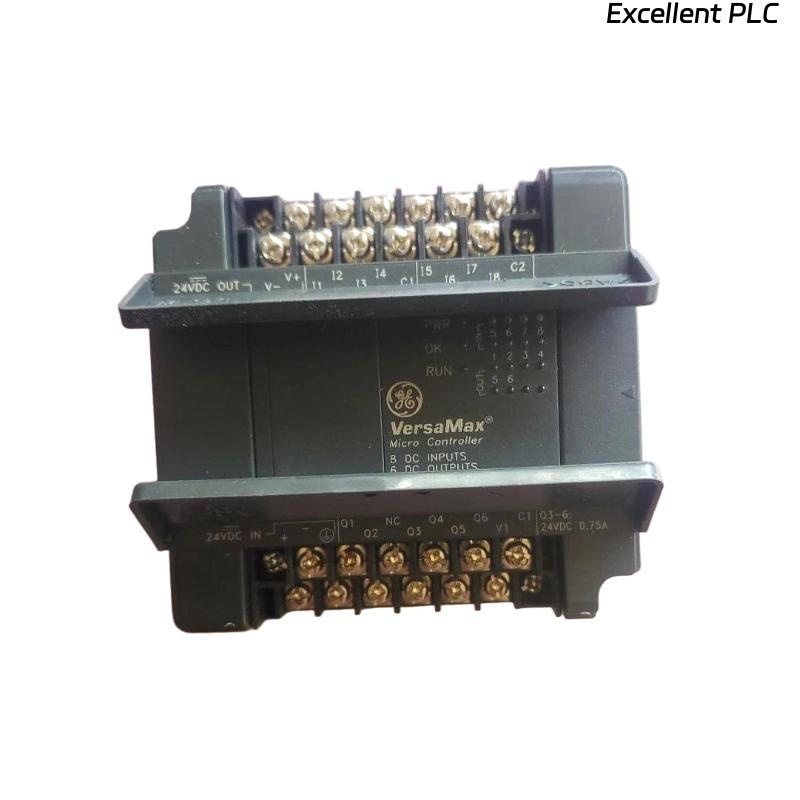

The GE IC200UDD104 is a VersaMax Micro Controller Processor, a versatile and compact controller designed for industrial control systems. This controller is part of the VersaMax family, which is known for its modular and scalable design, making it suitable for a variety of industrial applications, from small to medium-sized control systems. The IC200UDD104 processor offers high performance and reliability for tasks requiring real-time processing, data acquisition, and device control in automation environments.
With its integrated I/O, built-in communication options, and expandability, the IC200UDD104 is designed for efficient and flexible industrial control. It can be used in systems that require simple to moderate control capabilities, and its compact size (95 x 90 x 76 mm, 0.381 kg) allows it to be installed in constrained spaces where larger controllers might not fit.
This controller is ideal for applications in machine control, manufacturing, energy management, and process automation. Its ability to integrate with other VersaMax modules and communication options allows it to grow and adapt with the needs of the control system, providing long-term flexibility and performance.
Product Specifications
| Specification | Value |
|---|---|
| Model | GE IC200UDD104 |
| Controller Type | VersaMax Micro Controller Processor |
| Dimensions (L x W x H) | 95 x 90 x 76 mm |
| Weight | 0.381 kg |
| Mounting Type | DIN Rail or Panel Mounting |
| Processor Speed | 200 MHz (maximum processing speed) |
| Memory | 1 MB RAM (available for program memory) |
| Power Supply | 24 VDC (nominal) |
| Communication Ports | RS-232 |
| I/O Configuration | 6 Digital Inputs, 4 Digital Outputs |
| Operating Temperature Range | -40°C to +70°C |
Applications
The GE IC200UDD104 VersaMax Micro Controller Processor is well-suited for a broad range of industrial applications, particularly those requiring compact, flexible, and efficient control solutions. Below are some of the primary applications for this processor:
-
Industrial Automation: The processor is used to control various devices in industrial systems such as motors, sensors, and actuators, providing reliable and precise control in automation tasks.
-
Machine Control: The IC200UDD104 is ideal for controlling machines such as robotic arms, assembly lines, and other automated machinery in manufacturing settings.
-
Energy Management: It is used in energy systems, such as wind turbines, solar energy systems, and power plants, where real-time monitoring and control of energy production and consumption are essential.
-
Process Control: The processor helps regulate process control parameters like temperature, pressure, and flow, ensuring efficient operation in industries such as chemical processing, water treatment, and oil refining.
-
Building Automation: The IC200UDD104 can manage HVAC systems, lighting, and security systems in building automation applications, improving energy efficiency and comfort.
-
Packaging and Sorting: In packaging systems, this controller enables automated sorting, labeling, and packaging of products, enhancing production efficiency in industries like food and beverage and pharmaceuticals.
Advantages
-
High Processing Speed: With a 200 MHz processor, the IC200UDD104 ensures fast and responsive control, making it ideal for time-sensitive tasks and real-time processing applications.
-
Compact Design: At just 95 x 90 x 76 mm and weighing only 0.381 kg, the processor fits into small spaces, making it suitable for installations with size constraints.
-
Scalability: The IC200UDD104 is part of the VersaMax Micro family, which means it can be expanded with additional I/O modules, communication options, and other VersaMax accessories to meet growing system needs.
-
Integrated Communication: With an RS-232 communication port, the processor enables easy data transfer and integration with other devices in industrial networks.
-
Energy Efficient: Powered by a 24 VDC supply, the processor is energy-efficient, reducing operational costs while maintaining high performance.
-
Rugged Durability: Designed to operate in environments with temperatures ranging from -40°C to +70°C, the processor is durable and reliable even in harsh conditions.
-
Flexible I/O Configuration: The IC200UDD104 supports 6 digital inputs and 4 digital outputs, providing flexibility for various control applications.
-
Cost-Effective Solution: Offering robust performance at a competitive price, the IC200UDD104 is a cost-effective option for small to medium-sized control systems without compromising functionality.
FAQ
1. What is the processing speed of the IC200UDD104?
The IC200UDD104 operates at a speed of 200 MHz, which provides fast and efficient processing for various control applications.
2. Can the IC200UDD104 be integrated with other VersaMax modules?
Yes, the IC200UDD104 is compatible with other VersaMax modules and can be expanded with additional I/O modules, communication boards, and more.
3. How many I/O points does the IC200UDD104 have?
The IC200UDD104 has 6 digital inputs and 4 digital outputs, making it suitable for small-scale control applications.
4. What type of communication does the IC200UDD104 support?
The IC200UDD104 features an RS-232 communication port for reliable data exchange with other devices in industrial systems.
5. What is the power supply requirement for the IC200UDD104?
The processor requires a 24 VDC power supply, which is standard for VersaMax controllers and widely used in industrial automation systems.
6. What is the memory capacity of the IC200UDD104?
The IC200UDD104 has 1 MB of RAM, available for storing programs and other operational data.
7. How does the IC200UDD104 perform in extreme temperatures?
The IC200UDD104 operates in an environment with temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial conditions.
8. Is the IC200UDD104 suitable for high-speed control applications?
While it offers good performance, the IC200UDD104 is best suited for moderate-speed control applications rather than extremely high-speed operations.
9. How is the IC200UDD104 programmed?
The IC200UDD104 can be programmed using GE’s VersaPro or Proficy Machine Edition software, which provides an intuitive programming environment for control tasks.
10. Can the IC200UDD104 be mounted in tight spaces?
Yes, its compact size (95 x 90 x 76 mm) allows the processor to be mounted in confined spaces where larger controllers might not fit.
