Product Introduction

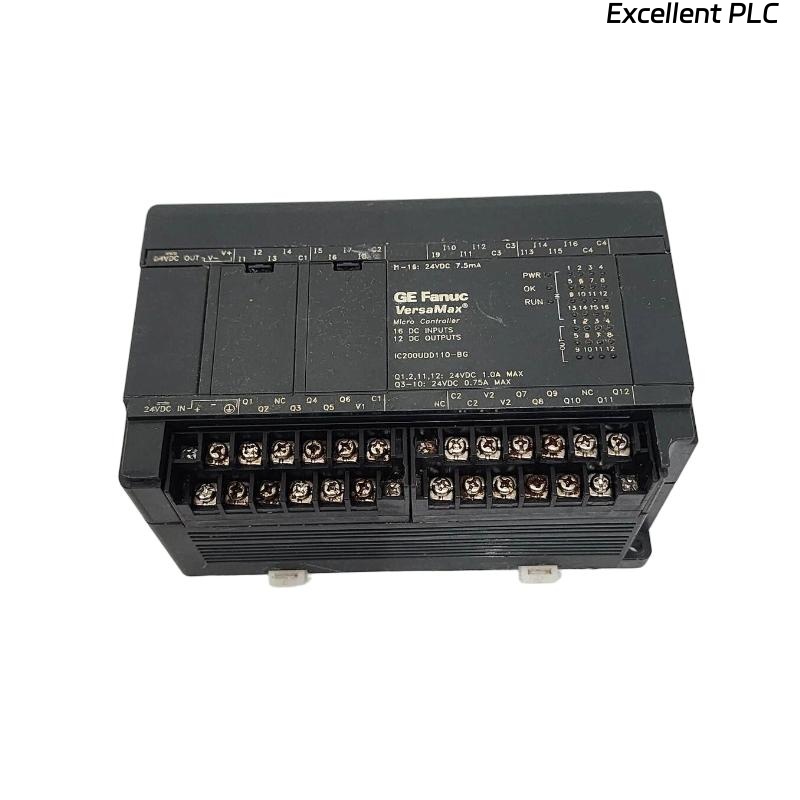

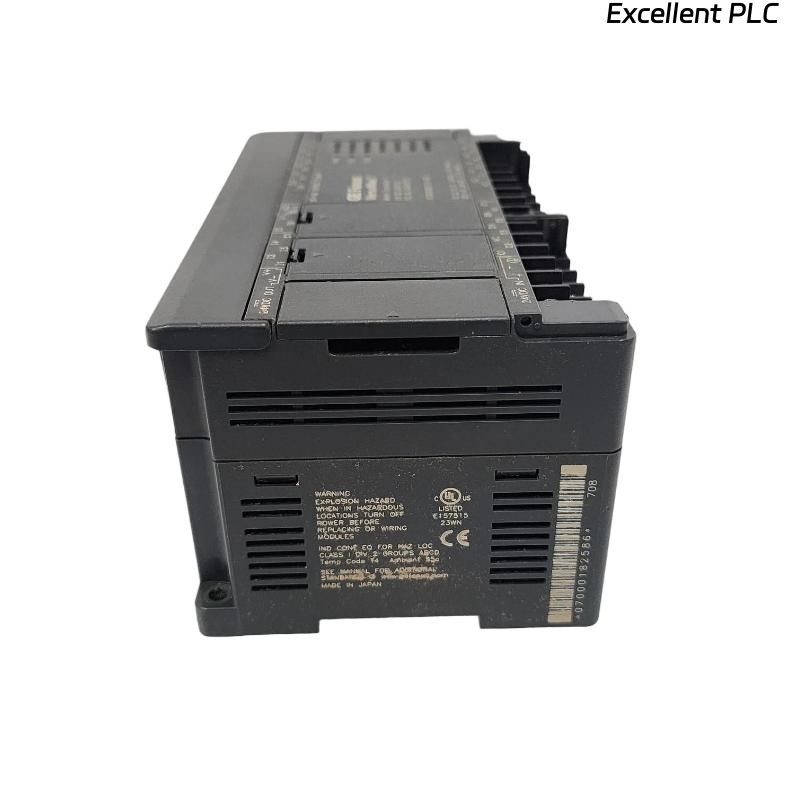

The GE IC200UDD110 is a VersaMax Micro Controller Processor, a part of GE’s VersaMax family, designed for industrial automation and control systems. It provides reliable, high-performance processing capabilities for applications that require efficient control over both simple and complex systems. The IC200UDD110 offers powerful functionality for small to medium-sized control systems, with a variety of features such as integrated I/O, communication ports, and expandability with other VersaMax modules.
This controller is particularly suited for a wide range of industries including manufacturing, packaging, energy management, and water treatment. Its flexibility and ease of integration with other VersaMax components allow for cost-effective solutions to meet the control needs of various automation tasks.
By combining compactness with high processing power, the IC200UDD110 can handle real-time control requirements, making it a key component in process control systems, machine control, and data acquisition systems. With a built-in RS-232 communication port, the processor supports easy integration into existing industrial communication networks, facilitating data exchange and remote control.
Product Specifications
| Specification | Value |
|---|---|
| Model | GE IC200UDD110 |
| Controller Type | VersaMax Micro Controller Processor |
| Dimensions (L x W x H) | 150 x 90 x 76 mm |
| Weight | 1.3 kg |
| Mounting Type | DIN Rail or Panel Mounting |
| Processor Speed | 200 MHz (maximum processing speed) |
| Memory | 1 MB RAM (available for program memory) |
| Power Supply | 24 VDC (nominal) |
| Communication Ports | RS-232 |
| I/O Configuration | 8 Digital Inputs, 6 Digital Outputs |
| Operating Temperature Range | -40°C to +70°C |
Applications
The GE IC200UDD110 VersaMax Micro Controller Processor is well-suited for a broad spectrum of industrial control applications. Its compact design and powerful processing capabilities make it ideal for industries such as manufacturing, automation, machine control, and energy management. Below are some key applications:
-
Industrial Automation: The IC200UDD110 processor provides flexible control over various industrial systems such as conveyor belts, motors, valves, and other machinery.
-
Machine Control: This processor is used to manage machine functions such as robotic arms, assembly lines, and packaging machinery, offering precise and reliable control in automated manufacturing systems.
-
Process Control: It is used in process control systems where real-time monitoring and control of temperature, pressure, flow, and other critical process variables are required.
-
Energy Management: The IC200UDD110 is widely used for energy management, controlling devices such as power generators, wind turbines, and solar energy systems.
-
Water Treatment: In water treatment plants, the processor handles control over systems such as pumps, filters, and treatment chemicals to ensure optimal operation and efficiency.
-
Packaging and Sorting Systems: The controller efficiently manages operations in packaging lines, enabling automated sorting, labeling, and packaging of products.
Advantages
-
High Performance: Equipped with a 200 MHz processor, the IC200UDD110 offers fast processing for real-time control applications, ensuring timely and efficient execution of control tasks.
-
Compact and Robust Design: With compact dimensions (150 x 90 x 76 mm) and weighing just 1.3 kg, the processor is easy to install in tight spaces, yet it is highly durable for industrial environments.
-
Flexible I/O Configuration: It comes with 8 digital inputs and 6 digital outputs, which can be expanded with other VersaMax modules to accommodate different system requirements.
-
Integrated Communication Ports: The processor includes an RS-232 communication port for easy integration with other industrial devices, systems, and computer interfaces.
-
Energy-Efficient: Designed to operate with a 24 VDC power supply, the processor is energy-efficient, helping reduce operational costs.
-
Scalable and Expandable: The VersaMax Micro Controller can be expanded with additional I/O modules, communication boards, and more to meet the growing demands of the control system.
-
Rugged and Reliable: Operating in temperatures ranging from -40°C to +70°C, this processor is built to handle extreme environmental conditions, ensuring reliability and stability in industrial settings.
-
Cost-Effective: Offering high performance at a competitive price point, the IC200UDD110 is an ideal choice for small to medium-sized control applications, providing robust control without the need for expensive hardware.
FAQ
1. What communication protocol does the IC200UDD110 support?
The IC200UDD110 supports RS-232 communication, enabling reliable data exchange with other devices in industrial control systems.
2. Can the IC200UDD110 be used with other VersaMax modules?
Yes, the IC200UDD110 is part of the VersaMax Micro system and is fully compatible with other VersaMax I/O modules, expansion modules, and communication boards.
3. How many I/O points does the IC200UDD110 have?
The IC200UDD110 has 8 digital inputs and 6 digital outputs, with the ability to expand further using VersaMax expansion modules.
4. What is the maximum processor speed of the IC200UDD110?
The IC200UDD110 has a processing speed of 200 MHz, which allows for fast and efficient control of industrial processes.
5. How does the IC200UDD110 handle communication with external devices?
The IC200UDD110 utilizes its RS-232 communication port to connect and exchange data with external devices such as sensors, actuators, and computers.
6. Can the IC200UDD110 be used in a process control system?
Yes, the IC200UDD110 is perfect for use in process control systems, allowing real-time control of parameters like temperature, pressure, and flow in various industries.
7. What is the power supply requirement for the IC200UDD110?
The IC200UDD110 requires a 24 VDC power supply, which is standard for VersaMax PLCs and other industrial automation systems.
8. How does the IC200UDD110 manage environmental conditions?
The processor is designed to operate within an operating temperature range of -40°C to +70°C, ensuring reliability even in extreme environments.
9. What type of mounting is required for the IC200UDD110?
The IC200UDD110 can be mounted using DIN rail or panel mounting, providing flexibility depending on installation needs.
10. How is the IC200UDD110 programmed?
The IC200UDD110 can be programmed using GE’s VersaPro or Proficy Machine Edition software, which offers a user-friendly environment for control system programming.
