Product Introduction

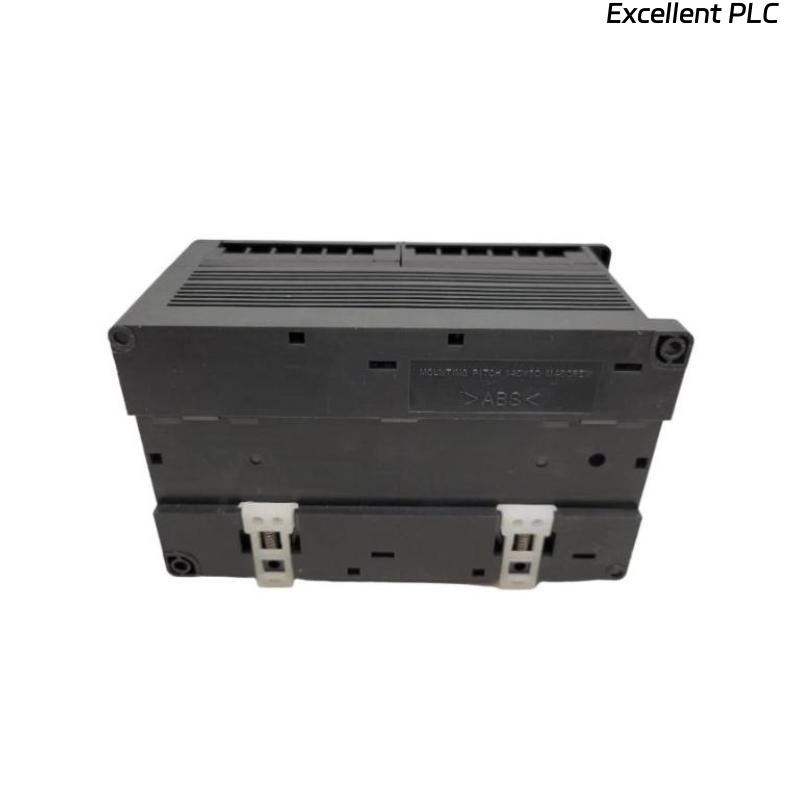

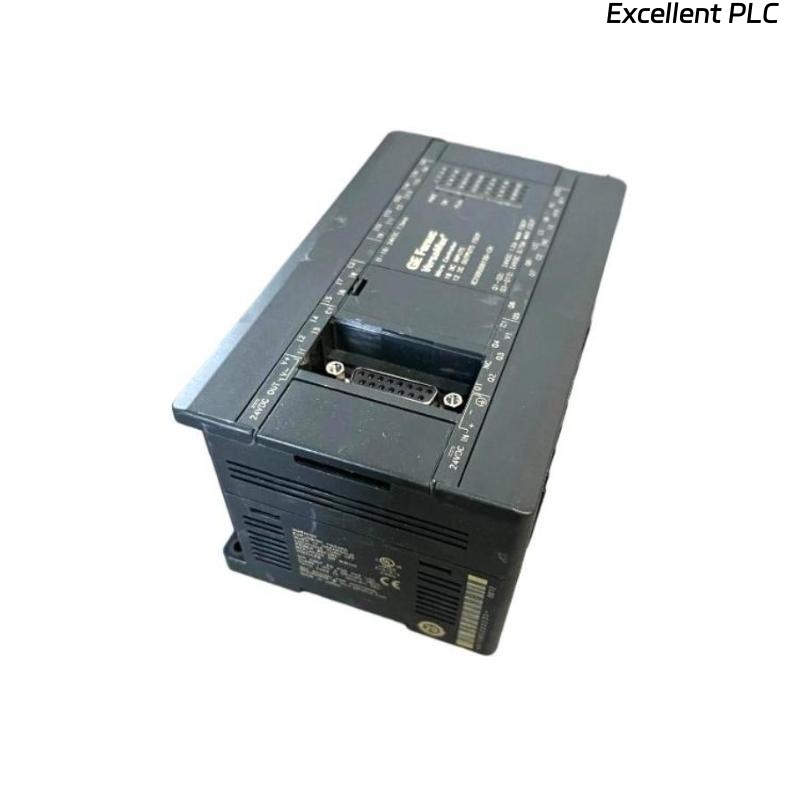

The GE IC200UDD120 is a VersaMax Micro Controller Processor, designed to provide flexible, scalable, and efficient control in industrial automation systems. This microcontroller processor is part of GE’s VersaMax Micro family, which offers a modular approach to system control, allowing for a range of applications in both small and medium-sized control systems. The IC200UDD120 is designed for high performance, reliability, and ease of integration with other VersaMax modules.
This processor supports various input/output (I/O) configurations, making it ideal for a broad spectrum of industrial automation tasks, from simple control processes to more complex systems requiring connectivity to a wide range of devices. It serves as the brain of the VersaMax Micro PLC system, facilitating seamless communication with expansion modules, communication boards, and other field devices.
Designed for flexibility, the IC200UDD120 offers the ability to perform critical tasks in industrial settings like manufacturing, oil & gas, water treatment, and packaging, while offering scalability for future expansion. Whether for discrete control, continuous processes, or machine control, the VersaMax Micro Controller Processor provides the necessary functionality and performance to meet diverse industry needs.
Product Specifications
| Specification | Value |
|---|---|
| Model | GE IC200UDD120 |
| Controller Type | VersaMax Micro Controller Processor |
| Dimensions (L x W x H) | 150 x 90 x 76 mm |
| Weight | 1.36 kg |
| Mounting Type | DIN Rail or Panel Mounting |
| Processor Speed | 200 MHz (maximum processing speed) |
| Memory | 2 MB RAM (available for program memory) |
| Power Supply | 24 VDC (nominal) |
| Communication Ports | RS-232, RS-485, Ethernet (optional) |
| I/O Configuration | 8 Digital Inputs, 6 Digital Outputs |
| Operating Temperature Range | -40°C to +70°C |
Applications
The GE IC200UDD120 VersaMax Micro Controller Processor is designed to meet the control needs of a wide range of industrial applications. It is particularly useful in systems where flexibility, scalability, and communication with various devices are required. Here are some of its common applications:
-
Industrial Automation: Ideal for automating industrial processes, this controller provides seamless control over motors, valves, sensors, and other industrial equipment.
-
Machine Control: The IC200UDD120 can be used in machine control applications, such as managing robotic arms, conveyor systems, and assembly lines in industries like automotive manufacturing.
-
Process Control: It serves as a key component in process control systems, where precise, continuous monitoring of processes such as chemical dosing, water treatment, or oil refining is essential.
-
Packaging Systems: The controller is widely used in packaging machinery, providing reliable control over packaging lines, material handling, and sorting systems.
-
Building Automation: In HVAC systems and lighting control systems, the IC200UDD120 manages temperature, humidity, and lighting levels, improving energy efficiency.
-
Energy Management: The controller can be used in energy management systems, providing monitoring and control for devices in power plants, wind farms, and other energy generation facilities.
Advantages
-
High Performance: With a processing speed of 200 MHz, the IC200UDD120 offers excellent performance, handling complex control tasks and real-time data processing effectively.
-
Flexible I/O Configuration: The processor supports a variety of I/O configurations, with built-in digital inputs and outputs, making it suitable for numerous industrial applications.
-
Scalability: The VersaMax Micro Controller Processor can easily be expanded with additional I/O modules, communication boards, and other accessories, ensuring the system can grow with the needs of the application.
-
Integrated Communication Ports: The IC200UDD120 includes RS-232, RS-485, and Ethernet (optional) communication ports, allowing for seamless integration into existing control and monitoring networks.
-
Compact Design: With its compact dimensions (150 x 90 x 76 mm) and lightweight design (1.36 kg), this processor is easy to install in limited spaces, making it ideal for installations with size constraints.
-
Durability and Reliability: Designed for harsh industrial environments, the IC200UDD120 has an operating temperature range of -40°C to +70°C, making it suitable for use in extreme conditions.
-
Cost-Effective: Offering high performance at a competitive price point, the IC200UDD120 provides a cost-effective solution for small and medium-sized control systems without compromising on functionality or quality.
-
Ease of Use: The processor is easy to set up and program, with user-friendly software and built-in diagnostics that simplify integration and maintenance.
FAQ
1. What is the processing speed of the IC200UDD120?
The IC200UDD120 features a 200 MHz processor, providing fast and efficient performance for a variety of control tasks.
2. Can the IC200UDD120 be used with other VersaMax modules?
Yes, the IC200UDD120 is part of the VersaMax Micro system and is fully compatible with other VersaMax I/O modules, communication boards, and expansion modules.
3. How many I/O points can the IC200UDD120 support?
The IC200UDD120 has 8 digital inputs and 6 digital outputs built into the processor, but the system can be expanded with additional I/O modules.
4. What communication protocols does the IC200UDD120 support?
The processor supports RS-232, RS-485, and Ethernet (optional) communication protocols for easy integration with a variety of devices.
5. What is the power supply requirement for the IC200UDD120?
The IC200UDD120 operates on a 24 VDC power supply, which is standard for VersaMax PLC systems.
6. What is the memory capacity of the IC200UDD120?
The processor comes with 2 MB of RAM, available for program memory and other data storage needs.
7. How does the IC200UDD120 handle temperature extremes?
The IC200UDD120 can operate in temperatures ranging from -40°C to +70°C, making it suitable for use in harsh industrial environments.
8. Can the IC200UDD120 be mounted in confined spaces?
Yes, its compact size of 150 x 90 x 76 mm and light weight (1.36 kg) make it ideal for installation in spaces where larger controllers may not fit.
9. Can the IC200UDD120 be programmed using GE’s software tools?
Yes, the IC200UDD120 can be programmed using GE’s VersaPro or Proficy Machine Edition software, providing a user-friendly environment for control system programming.
10. Is the IC200UDD120 suitable for high-speed applications?
While the processor is not intended for extremely high-speed applications, it is well-suited for typical industrial control and automation tasks that require reliable and accurate processing.
