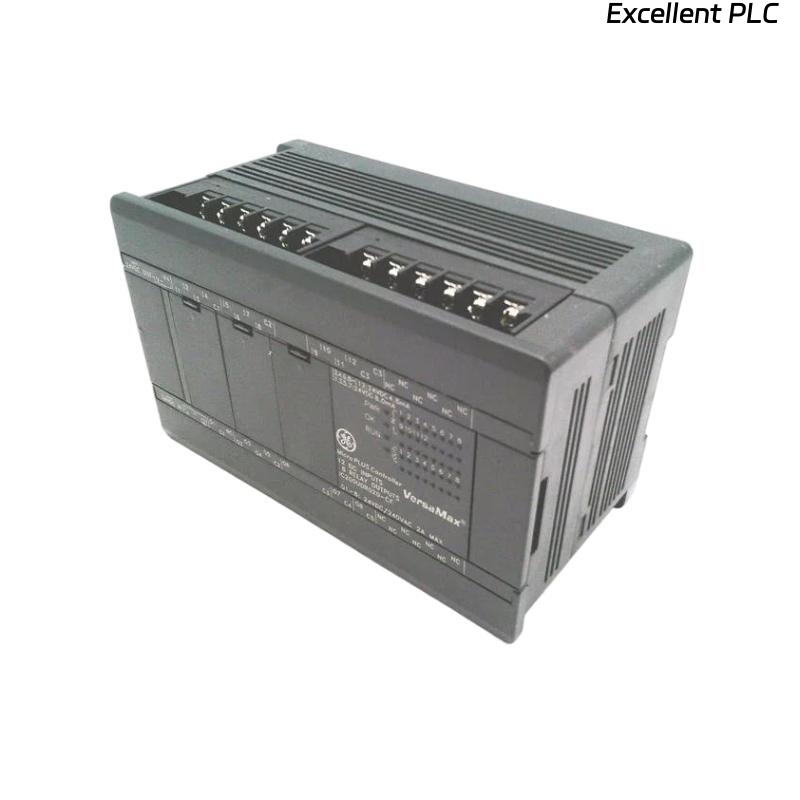

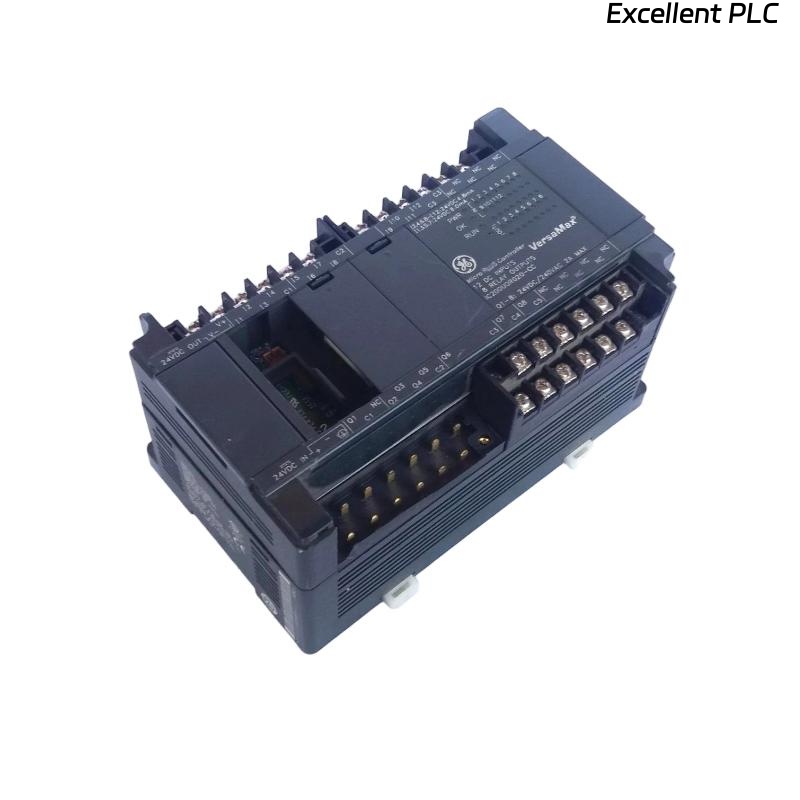

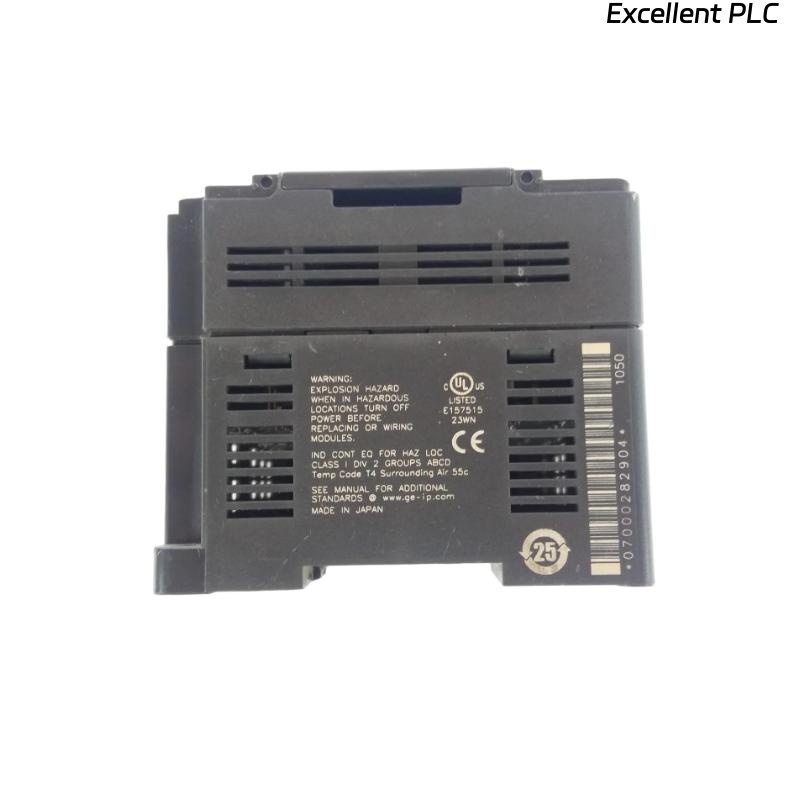

The GE IC200UDR020 VersaMax Micro Controller Processor is an advanced central processing unit (CPU) designed for use in VersaMax Micro PLC systems. This processor is the backbone of the VersaMax system, providing high-performance control and processing capabilities for small to medium-scale automation applications. The IC200UDR020 is engineered to deliver a compact yet powerful solution for industrial control, automation, and system integration.
With its robust design, expandable I/O capabilities, and modular architecture, the IC200UDR020 is suitable for a wide variety of applications in industries such as manufacturing, energy management, building automation, and process control. It integrates seamlessly with other VersaMax modules, allowing users to scale their systems as their operational needs evolve.
Product Specifications
Here are the key specifications for the GE IC200UDR020 VersaMax Micro Controller Processor:
| Specification | Value |
|---|---|
| Model | IC200UDR020 |
| Type | VersaMax Micro Controller Processor |
| Dimensions | 95 x 90 x 76 mm |
| Weight | 0.5 kg |
| CPU Type | 32-bit Processor |
| Input Voltage | 24 VDC (nominal) |
| I/O Capacity | 256 I/O Points |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN Rail Mounting |
| Communication Protocol | Modbus RTU, Ethernet (optional) |
| Programming Languages | Ladder Logic, Structured Text, Function Block Diagram |
| Power Supply | 24 VDC (nominal) |
| RAM | 64 KB |
| Program Memory | 128 KB |
Applications
The GE IC200UDR020 VersaMax Micro Controller Processor is ideal for a wide range of applications in both industrial and commercial settings. Some of its common applications include:
-
Machine Control: The processor provides reliable control for automated machinery, such as conveyors, robotic systems, and assembly lines, by processing real-time data from sensors and controlling actuators.
-
Building Automation: It is used to integrate and control building systems such as HVAC, lighting, and security, improving energy efficiency and occupant comfort.
-
Energy Management: The IC200UDR020 is ideal for managing energy use across industrial facilities, helping to optimize power consumption and reduce operational costs.
-
Industrial Process Control: The processor can control industrial processes like temperature regulation, pressure monitoring, and flow control, ensuring consistent performance in critical systems.
-
SCADA Systems: The module is often used in SCADA (Supervisory Control and Data Acquisition) systems to provide centralized control of remote processes or operations, using Modbus RTU or Ethernet for communication.
-
Packaging and Manufacturing: The IC200UDR020 enables precise control over manufacturing processes in industries such as packaging, pharmaceuticals, and automotive production.
Advantages
-
Compact and Efficient: Despite its small size, the IC200UDR020 is a high-performance processor capable of controlling complex systems with up to 256 I/O points.
-
Scalable System: The processor can be expanded by adding more VersaMax I/O modules, making it suitable for both small and large applications.
-
Flexible Programming Options: Supports Ladder Logic, Structured Text, and Function Block Diagram, allowing for versatile programming based on user preference and application needs.
-
Reliable Communication: Supports Modbus RTU for serial communication and Ethernet for networked communication, ensuring fast and reliable data exchange with other devices and systems.
-
Wide Temperature Range: With an operational range of -20°C to 60°C, the processor is designed to withstand harsh industrial environments.
-
DIN Rail Mounting: The module can be mounted easily on a DIN rail, providing a secure and organized installation for industrial control panels.
-
Enhanced Memory Capacity: With 64 KB of RAM and 128 KB of program memory, the processor has ample resources for executing complex control programs.
FAQ
-
What is the GE IC200UDR020 VersaMax Micro Controller Processor?
The IC200UDR020 is the central processing unit (CPU) for the VersaMax Micro PLC system, responsible for controlling and processing data from the system’s I/O devices. -
How many I/O points can the IC200UDR020 handle?
The IC200UDR020 can handle up to 256 I/O points, making it suitable for medium-sized automation systems. -
What communication protocols are supported by the IC200UDR020?
The IC200UDR020 supports Modbus RTU and Ethernet communication, providing flexible data transfer options. -
What programming languages are supported by the IC200UDR020?
The processor supports Ladder Logic, Structured Text, and Function Block Diagram, providing flexibility in how control logic is programmed. -
What is the power supply requirement for the IC200UDR020?
The module requires a 24 VDC nominal power supply. -
Can the IC200UDR020 be expanded with additional I/O modules?
Yes, the IC200UDR020 can be expanded by adding VersaMax I/O modules, allowing the system to grow as needed. -
What is the operating temperature range for the IC200UDR020?
The IC200UDR020 operates within a temperature range of -20°C to 60°C, making it suitable for a wide range of industrial environments. -
Is the IC200UDR020 compatible with other brands of PLCs?
No, the IC200UDR020 is specifically designed for the VersaMax Micro PLC system and is not compatible with other PLC brands. -
How is the IC200UDR020 mounted?
The IC200UDR020 is designed for DIN rail mounting, which ensures a secure and organized installation. -
What is the memory capacity of the IC200UDR020?
The processor has 64 KB of RAM and 128 KB of program memory, providing sufficient resources for control logic and data processing.
