Product Introduction

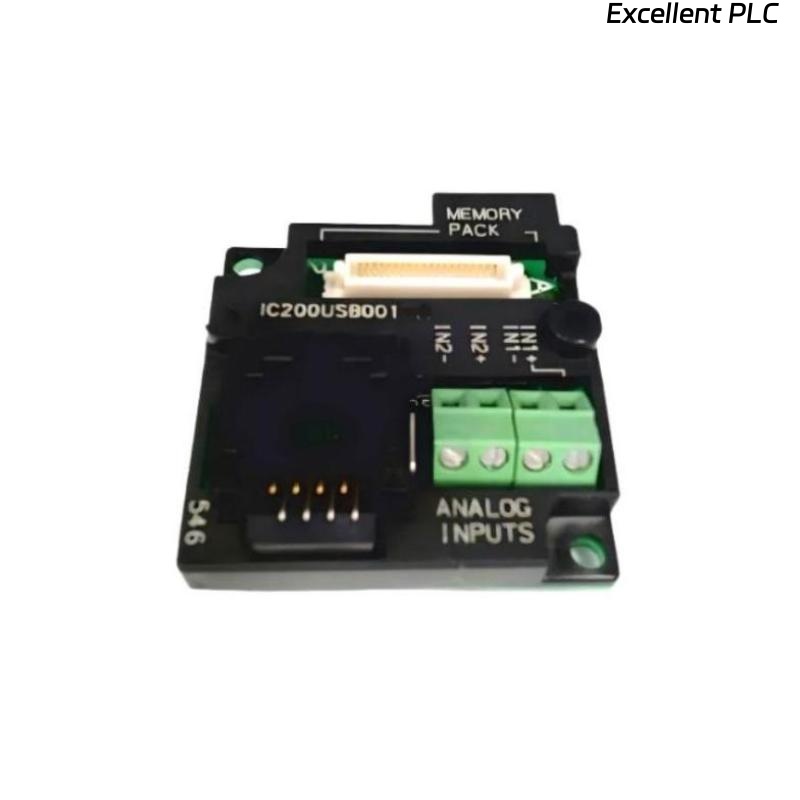

The GE IC200USB001 is an RS-232 communication option board designed for the VersaMax series of programmable logic controllers (PLCs). This board provides a reliable and efficient means to establish communication between the PLC and external devices via the RS-232 serial communication protocol. This is essential for systems requiring point-to-point communication, enabling easy integration with legacy systems, computers, and various industrial devices.
The IC200USB001 board adds RS-232 functionality to the VersaMax PLCs, allowing seamless data exchange over the RS-232 standard, commonly used for industrial control systems, networking, and data logging. With its compact design and plug-and-play integration, the board simplifies communication setup and ensures stable data transfer for a variety of applications.
This option board is widely used in automation, industrial control, and process monitoring systems, offering a cost-effective solution for adding serial communication capabilities to existing control systems.
Product Specifications
| Specification | Value |
|---|---|
| Model | GE IC200USB001 |
| Communication Protocol | RS-232 |
| Board Dimensions (L x W x H) | 56 x 70 x 20 mm |
| Weight | 0.06 kg |
| Interface | RS-232 |
| Compatibility | VersaMax PLCs |
| Mounting Type | Plug-in to PLC base |
| Data Rate | Up to 115.2 Kbps |
| Power Supply | Powered by PLC |
| Connector Type | DB9 Connector |
| LED Indicators | Communication status indicators |
Applications
The GE IC200USB001 RS-232 Communication Option Board is ideal for various industrial applications that require serial communication between PLCs and external devices. Key applications include:
-
Industrial Automation: Used to connect VersaMax PLCs to industrial equipment such as barcode scanners, motors, drives, and sensors via RS-232, enabling efficient data exchange and control.
-
Data Logging: Facilitates communication between the PLC and external data logging devices for continuous data collection, especially in manufacturing processes or control systems.
-
Process Control: Enables real-time communication between PLCs and external devices in process control systems, such as monitoring sensors, actuators, and other control equipment.
-
Networking: Used to establish serial communication networks, allowing VersaMax PLCs to communicate with other serial-based devices or systems in the same environment.
-
Legacy System Integration: Helps integrate new PLCs with legacy equipment that still uses the RS-232 standard for communication, ensuring backward compatibility in industrial systems.
-
Point-to-Point Communication: Perfect for simple, direct communication between two devices (e.g., PLC to computer, PLC to HMI), making it ideal for remote monitoring or control applications.
Advantages
-
Compact Design: The IC200USB001 board is compact, measuring just 56 x 70 x 20 mm and weighing 0.06 kg, making it easy to integrate into existing VersaMax PLC setups without taking up too much space.
-
Easy Integration: The board offers plug-and-play integration with VersaMax PLCs, simplifying installation and setup of serial communication with minimal configuration.
-
Reliable Communication: It supports RS-232 communication, providing a stable and well-established data transfer protocol for industrial applications.
-
High Data Rate: With support for data rates of up to 115.2 Kbps, the board can handle a wide range of industrial communication requirements, from slow data collection to faster control commands.
-
Versatile Connectivity: The DB9 connector allows easy and reliable connection to a variety of external devices, such as computers, sensors, and PLCs, enabling flexible communication setups.
-
Compatibility with Legacy Equipment: This option board ensures that modern VersaMax PLCs can still communicate with legacy systems or devices that rely on the RS-232 protocol.
-
Cost-Effective: Adding RS-232 communication capability to a VersaMax PLC is made affordable by the IC200USB001 board, which avoids the need for additional expensive equipment or modules.
-
Power Efficiency: The board is powered directly by the VersaMax PLC, reducing the need for additional power sources and simplifying installation.
FAQ
1. What is the maximum data transfer rate supported by the IC200USB001?
The IC200USB001 supports a maximum data transfer rate of 115.2 Kbps, which is suitable for most industrial applications requiring serial communication.
2. How does the IC200USB001 integrate with a VersaMax PLC?
The IC200USB001 is designed to plug directly into the VersaMax PLC, enabling easy communication setup without requiring external adapters or complex configurations.
3. Can this communication board be used with other PLC models?
No, the IC200USB001 is specifically designed to work with VersaMax PLCs. It is not compatible with other PLC models.
4. What type of connector does the IC200USB001 use?
The board uses a DB9 connector, which is a standard connector type for RS-232 communication, ensuring compatibility with a wide range of external devices.
5. Does the IC200USB001 board require an external power supply?
No, the board is powered directly by the VersaMax PLC, eliminating the need for an additional external power supply.
6. What is the primary communication protocol supported by the IC200USB001?
The board supports the RS-232 serial communication protocol, which is widely used in industrial systems for point-to-point communication.
7. How can the IC200USB001 be used in a process control system?
In a process control system, the IC200USB001 enables real-time communication between the VersaMax PLC and external devices such as sensors, actuators, and controllers, allowing for smooth data exchange and control commands.
8. Is the IC200USB001 suitable for high-speed applications?
While the IC200USB001 supports data rates up to 115.2 Kbps, it is primarily suited for moderate-speed applications that require reliable, point-to-point communication, rather than extremely high-speed data transfer.
9. Can this board be used for connecting to a computer?
Yes, the IC200USB001 can be used to connect a VersaMax PLC to a computer that supports RS-232 communication, enabling easy data transfer and control.
10. What is the function of the LED indicators on the IC200USB001?
The LED indicators on the board provide status feedback on the communication state, such as data transmission or connection status, ensuring that operators can monitor the operational status of the board.
