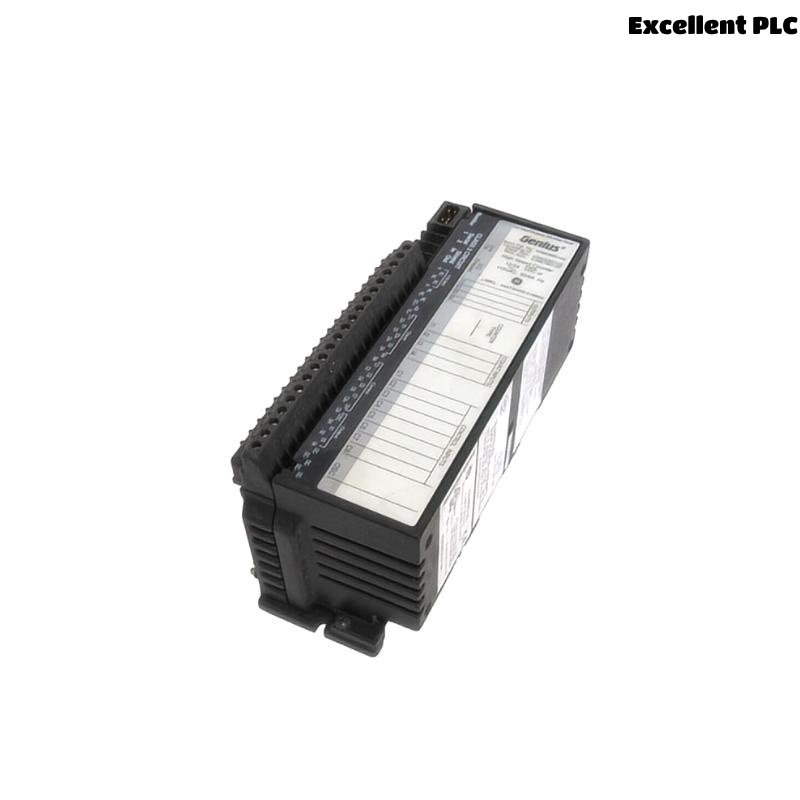

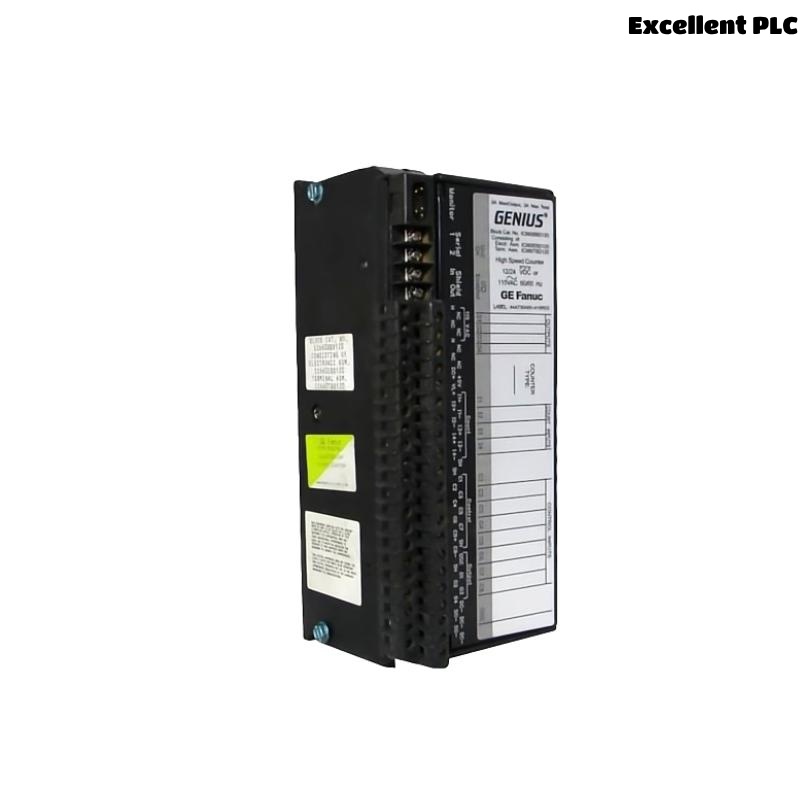

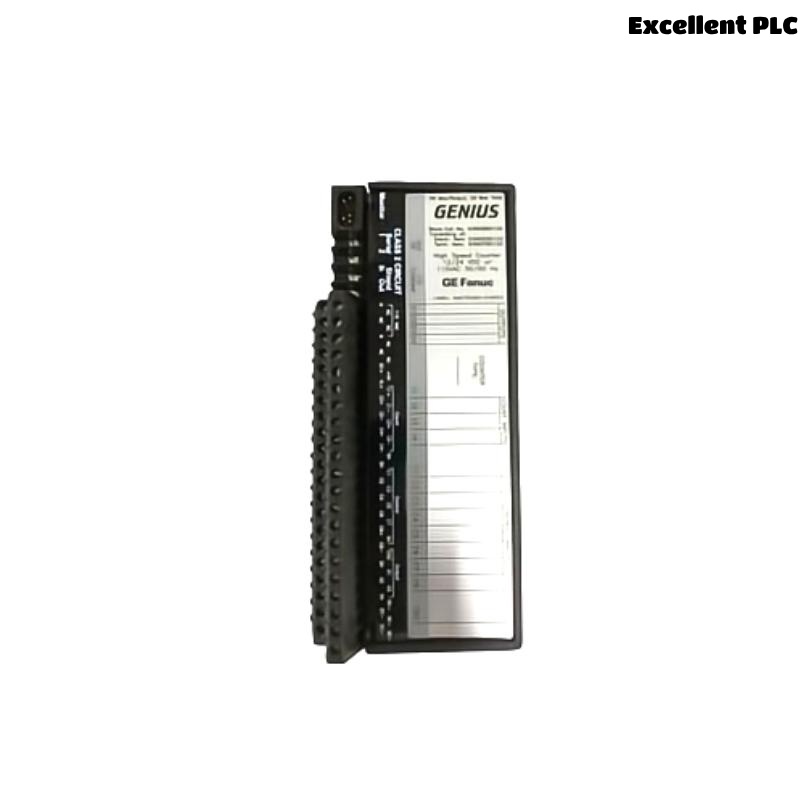

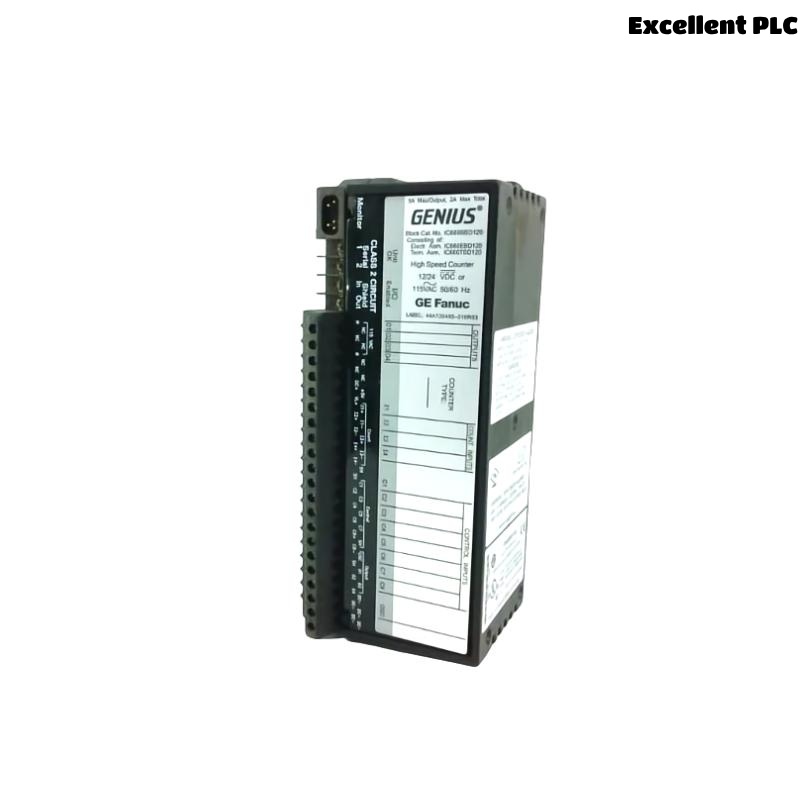

GE IC660BBD120 High Speed Counter Block

Product Introduction

The GE IC660BBD120 is a High-Speed Counter Block from the Genius I/O series, designed by GE Fanuc to perform rapid event counting and time-critical input processing in industrial environments. This module is particularly well-suited for applications where standard PLC scan times are insufficient to track fast digital signals such as encoder pulses or production line event triggers.

Engineered to deliver deterministic and real-time performance, the IC660BBD120 module operates independently of the host controller’s scan cycle. It supports up to four independent counters with flexible configuration options for mode, direction, and reset conditions. This module offers a superior solution for complex counting, measuring, or timing operations on fast-moving machinery and automated processes.

Its rugged design, built-in diagnostics, and high signal processing speed make it a trusted component in many high-speed manufacturing and motion control systems.

Product Specifications

Product Applications

The IC660BBD120 High-Speed Counter Block is designed for demanding industrial environments requiring precise event counting and input processing. Typical applications include:

• Packaging Lines
  Monitoring product counts, label application, or sealing operations at high speed.

• Material Handling Systems
  Detecting encoder feedback from conveyor belts or robotic arms.

• Automated Assembly Lines
  Counting parts or actions in mechanical sequences for precise control.

• Textile & Printing Machines
  Registering patterns, movement tracking, or position verification.

• Motion Control Systems
  Interface with quadrature encoders and rotary sensors for speed and direction.

• Bottling and Filling Systems
  Ensuring correct volume or product counts under rapid throughput.

Product Advantages

• Real-Time High-Speed Counting
  Capable of accurately registering signals up to 10 kHz, ideal for time-critical processes.

• Independent Processing
  Performs counting logic independently from the host controller, minimizing scan delays.

• Flexible Input Configuration
  Supports both sourcing and sinking inputs for broad field compatibility.

• Rugged Industrial Design
  Withstands vibration, electrical noise, and harsh factory conditions.

• Built-in Diagnostics
  Onboard self-diagnosis reduces troubleshooting time and enhances reliability.

• Compact and Modular
  Small footprint design simplifies installation in space-limited enclosures.

• Status Monitoring
  LED indicators offer real-time visibility of input and counter status.

Frequently Asked Questions (FAQs)

1. What is the maximum frequency the IC660BBD120 can handle per channel?
   Each input channel can support signals up to 10 kHz, making it suitable for high-speed applications.

2. Can this module operate independently of the main PLC?
   Yes, it processes high-speed counting independently, without relying on the PLC scan time.

3. Is it compatible with quadrature encoders?
   Yes, the IC660BBD120 can interface with quadrature encoders for position and direction sensing.

4. How are the counters configured?
   Counters can be configured using the Genius Hand-held Monitor or control system software.

5. Does the module support sourcing and sinking inputs?
   Yes, each input channel can be individually configured for either sourcing or sinking mode.

6. What kind of protection does the module offer?
   It includes diagnostics, short circuit protection, and conformal coating for harsh environments.

7. Is the IC660BBD120 hot-swappable?
   No, the power must be turned off before replacing the module.

8. How many counters does it provide?
   It supports 4 fully independent counters that can be assigned to input channels.

9. Are there LED indicators for each input?
   Yes, each input has a dedicated LED for quick status identification.

10. Can it be mounted on a DIN rail?
    Yes, although it is primarily panel-mounted, optional accessories support DIN rail installation.
