Product Introduction

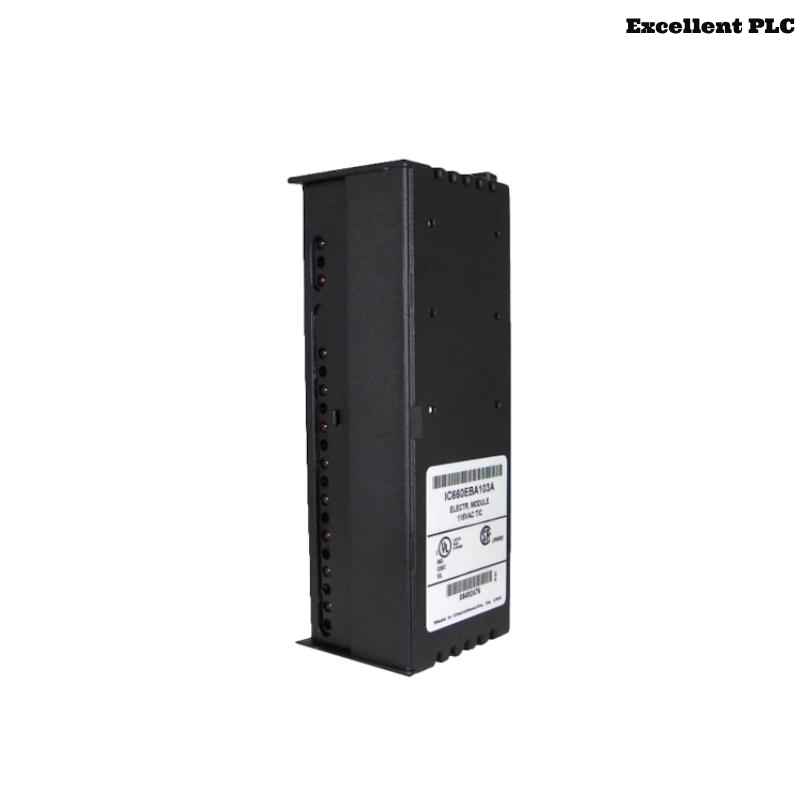

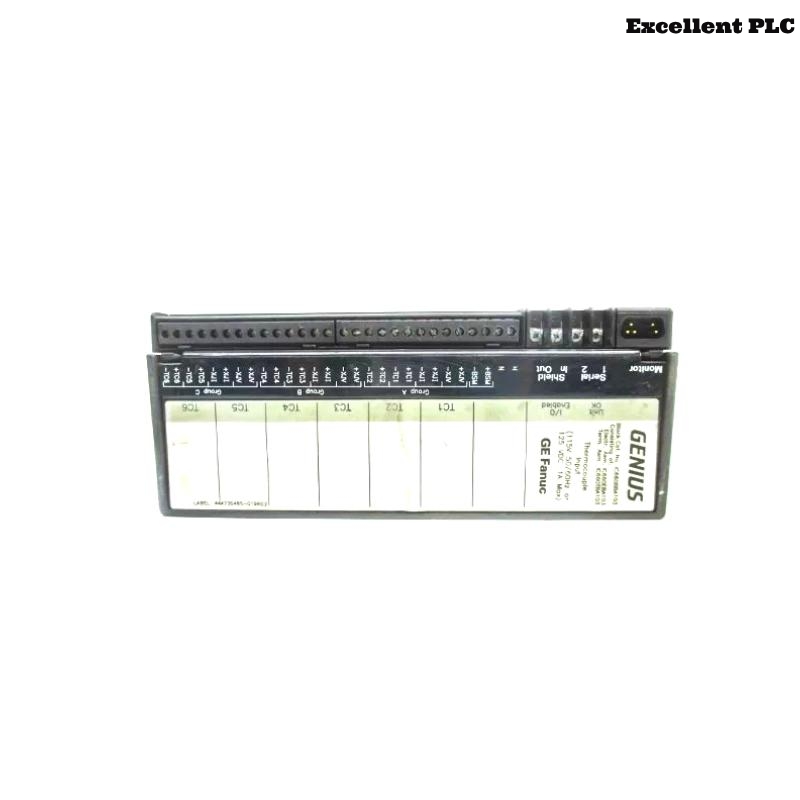

The GE IC660EBA103 I/O Module Electronics unit is part of the GE Fanuc Genius I/O product family, known for its robust and flexible distributed control capabilities. The IC660EBA103 module is designed as an electronics assembly for an I/O block, supporting various discrete and analog I/O configurations. This module replaces the electronics component of a Genius I/O block without replacing the entire block, reducing downtime and maintenance costs.
Built to withstand industrial environments, the IC660EBA103 supports high reliability and efficient control communications in both standard and harsh applications, maintaining seamless data exchange and intelligent device management across a Genius network.
Product Specifications
| Parameter | Details |
|---|---|
| Model | IC660EBA103 |
| Product Type | I/O Block Electronics Assembly |
| Supported Block Types | Discrete and Analog I/O blocks |
| Communication Interface | Genius Bus |
| Bus Interface | RS-485 compatible, shielded twisted pair cable |
| Baud Rate | Configurable: 153.6 Kbps, 76.8 Kbps, 38.4 Kbps |
| LED Indicators | Status LEDs for block status, communication, errors |
| Diagnostics | Built-in block-level diagnostics |
| Power Supply Voltage | 5V DC (supplied internally by the block) |
| Mounting | Attached to the I/O block |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 15g peak (operational) |
| Vibration Resistance | 5-10 Hz, 0.2” displacement; 10-200 Hz, 1g |
| Protection Rating | Depending on block housing (typically IP65) |
| Dimensions (H x W x D) | 117 x 87 x 30 mm |
| Weight | 0.907 kg |
| Certifications | UL, CSA, CE |
Product Applications
The GE IC660EBA103 module finds extensive use in a variety of industries where robust, distributed control and fault tolerance are required:
-
Manufacturing automation for assembly lines and robotics
-
Process control in oil and gas facilities
-
Material handling systems in warehouses and distribution centers
-
Water and wastewater treatment plants
-
Power generation facilities
-
Heavy machinery and mining operations
-
Chemical and pharmaceutical production environments
-
Food and beverage processing plants
Its flexibility to handle both discrete and analog I/O blocks makes it ideal for highly customized control applications.
Product Advantages
-
Cost-Effective Maintenance: Replacing only the electronics, rather than the whole block, significantly reduces spare parts inventory and maintenance expenses.
-
High Reliability: Designed for continuous operation even in rugged environments, supporting mission-critical applications.
-
Flexible Communication: Fully integrated with Genius Bus systems, offering high-speed, reliable data transfer across networks.
-
Built-in Diagnostics: Provides real-time information about block status, faults, and network health to improve system troubleshooting.
-
Compact Design: Small footprint allows installation in space-constrained environments without sacrificing performance.
-
Durable Construction: Resistant to vibration, shock, and harsh environmental conditions, ensuring long operational life.
-
Simplified Integration: Easy replacement within existing Genius I/O infrastructure, minimizing setup time and complexity.
-
Extended Compatibility: Supports a broad range of Genius I/O blocks, making it versatile across multiple system configurations.
Frequently Asked Questions (FAQ)
-
What is the primary function of the IC660EBA103?
It serves as a replacement electronics assembly for Genius I/O blocks. -
Can this module be used with both discrete and analog I/O blocks?
Yes, it is compatible with both discrete and analog block types. -
What communication standard does the IC660EBA103 use?
It communicates over the Genius Bus, using RS-485 physical layer standards. -
Is the module hot-swappable?
No, the I/O block must be powered down before replacing the electronics assembly. -
Does the IC660EBA103 support diagnostics?
Yes, it provides built-in diagnostics for block status and communication errors. -
What operating temperatures can the IC660EBA103 tolerate?
It operates reliably between 0°C and 60°C. -
What are the typical applications of this module?
It is used in distributed control systems across industries like manufacturing, energy, and water treatment. -
How is the IC660EBA103 mounted?
It is mounted directly to the existing Genius I/O block. -
Is this module certified for industrial use?
Yes, it carries certifications such as UL, CSA, and CE. -
What is the weight of the IC660EBA103?
It weighs 0.907 kg.
Related Models in the Same Series
| Model | Description | Type | Compatibility |
|---|---|---|---|
| IC660EBA100 | I/O Electronics Assembly | General Purpose | Genius I/O Blocks |
| IC660BBD024 | Discrete Input Block, 24V DC | Input Block | Genius I/O |
| IC660BBA103 | Discrete Output Block, 120/240V AC | Output Block | Genius I/O |
| IC660BBD025 | Discrete Input Block, 115V AC | Input Block | Genius I/O |
| IC660TBA100 | Thermocouple Block | Analog Input Block | Genius I/O |
| IC660BBD110 | Discrete Input Block, 32 Points | High-Density Input Block | Genius I/O |
