Product Introduction

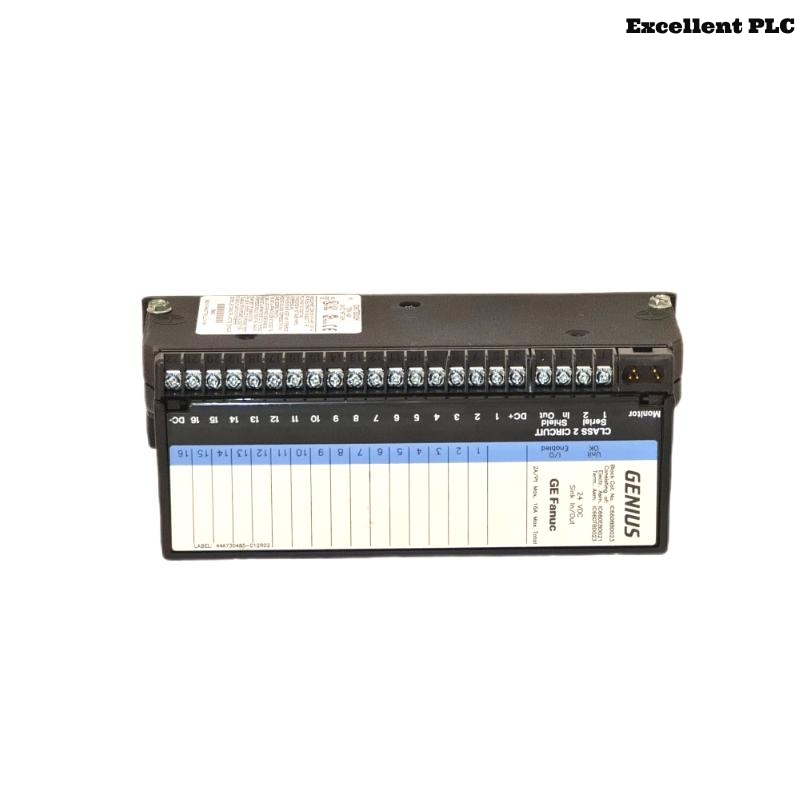

The GE IC660EBD023 is a discrete input module from GE’s Genius I/O series, designed for use in rugged industrial environments where reliability, durability, and seamless integration are critical. This particular model is the electronics-only variant of a 32-point discrete input module, meaning it requires a compatible terminal block for field wiring connections. The module is capable of receiving a wide range of DC input signals and is suitable for applications requiring large-scale discrete signal acquisition from sensors, switches, and other digital devices.
As a component of the Genius I/O family, the IC660EBD023 is engineered to communicate across the Genius Bus network, providing efficient distributed I/O capabilities while maintaining diagnostic transparency and rapid data updates. Its design adheres to GE’s commitment to quality, delivering a cost-effective and performance-driven solution for automation systems across manufacturing, utilities, and heavy industries.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE Fanuc / General Electric |
| Product Series | Genius I/O Series |
| Product Type | Discrete Input Module (Electronics Only) |
| Model Number | IC660EBD023 |
| Number of Input Points | 32 Discrete Inputs |
| Input Voltage | 24 VDC Nominal |
| Input Voltage Range | 0–30 VDC |
| Input Current | 6 mA typical at 24 VDC |
| Input Type | Sinking |
| Isolation | Optical isolation per point |
| Diagnostics | Per-point status indication via LED |
| Required Terminal Block | IC660TBD023 or equivalent |
| Bus Communication | Genius Bus |
| Compatible Systems | GE Series 90-30, 90-70, and Genius-compatible PLCs |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5%–95% non-condensing |
| Dimensions (H x W x D) | 112 x 89 x 46 mm |
| Weight | 1.81 kg |
| Protection Class | IP20 |
| Certifications | UL, CE, CSA |
Product Applications
The GE IC660EBD023 excels in demanding applications where dense discrete input handling is essential. Its 32-point input capability makes it ideal for high-channel-count systems and process environments where space and I/O density are key considerations. Common applications include:
-
Automated Assembly Lines: Captures feedback from sensors, photo-eyes, and machine status switches.
-
Process Control Systems: Collects digital status signals from field instruments in DCS and SCADA systems.
-
Material Handling: Ideal for conveyors, packaging, and robotics needing large digital input arrays.
-
Energy & Utilities: Used in substation and control room applications for status input from breakers and contactors.
-
Oil & Gas Platforms: Suited for digital signal capture in onshore and offshore process automation.
-
Public Infrastructure: Applied in traffic control, water treatment, and smart grid control centers.
Product Advantages
-
High Input Density: Offers 32 discrete input points in a compact form factor, reducing panel space.
-
Rugged Design: Built for continuous operation in industrial settings with wide temperature and humidity tolerances.
-
Field Replaceable: Electronics-only design allows replacement without disturbing field wiring.
-
Quick Diagnostics: Each channel features LED status indicators for fast issue identification.
-
Reliable Communication: Native support for Genius Bus ensures robust and real-time I/O data flow.
-
Easy Integration: Compatible with GE Series PLCs and Genius I/O networks for seamless system expansion.
-
Noise Immunity: Optical isolation protects internal electronics from field noise and voltage spikes.
-
Long Product Life: Proven durability with expected service life over a decade under normal conditions.
Frequently Asked Questions (FAQ)
-
What type of signals does the IC660EBD023 handle?
It processes 24VDC digital (ON/OFF) signals from field devices such as sensors or switches. -
Is this a complete module or part of a modular system?
It is an electronics-only module and must be paired with a terminal assembly like IC660TBD023. -
Can I use this module in a high-vibration environment?
Yes, it’s designed to operate in industrial conditions with mechanical stress, when properly mounted. -
How are the input points protected from electrical noise?
Each point is optically isolated, providing excellent protection against voltage transients and EMI. -
Is there any built-in diagnostic capability?
Yes, each input has a corresponding LED to indicate status, assisting in quick diagnostics. -
What happens if one input fails—does the module shut down?
No, the rest of the module continues to operate normally. Each point operates independently. -
What type of devices can be connected to this input module?
Compatible with dry contacts, PNP/NPN sensors, or any device providing 24VDC logic level signals. -
Is this module supported in modern automation systems?
Yes, it is still widely supported in systems using GE’s Genius I/O infrastructure. -
Can I mix this module with analog modules in the same network?
Yes, Genius I/O allows mixed module types on the same bus. -
What is the difference between IC660EBD023 and IC660BBD023?
The “E” model is electronics only; the “B” model includes both electronics and terminal block.
Related or Similar Models (Same Series or Function)
| Model Number | Description |
|---|---|
| IC660BBD023 | 32-Point DC Input Block (with terminal base) |
| IC660TBD023 | Terminal Block for IC660EBD023 |
| IC660EBD101 | 32-Point DC Input Electronics Module |
| IC660BBD100 | 16-Point DC Input Block (w/ electronics) |
| IC660TBD100 | Terminal Block for 16-Point Input Modules |
| IC660BBD110 | 16-Point AC Input Block |
Popular GE Modules Across Automation Systems
| Model Number | Description |
|---|---|
| IC695CPU310 | RX3i Central Processing Unit |
| IC693ALG223 | 4-Channel Analog Voltage Output Module |
| IC695ETM001 | RX3i Ethernet Interface Module |
| IC200MDL750 | VersaMax 32-Point Input Module (24VDC) |
| IC693PWR330 | High-Capacity Power Supply Module |
| IC200CPU001 | VersaMax Micro CPU Module |
