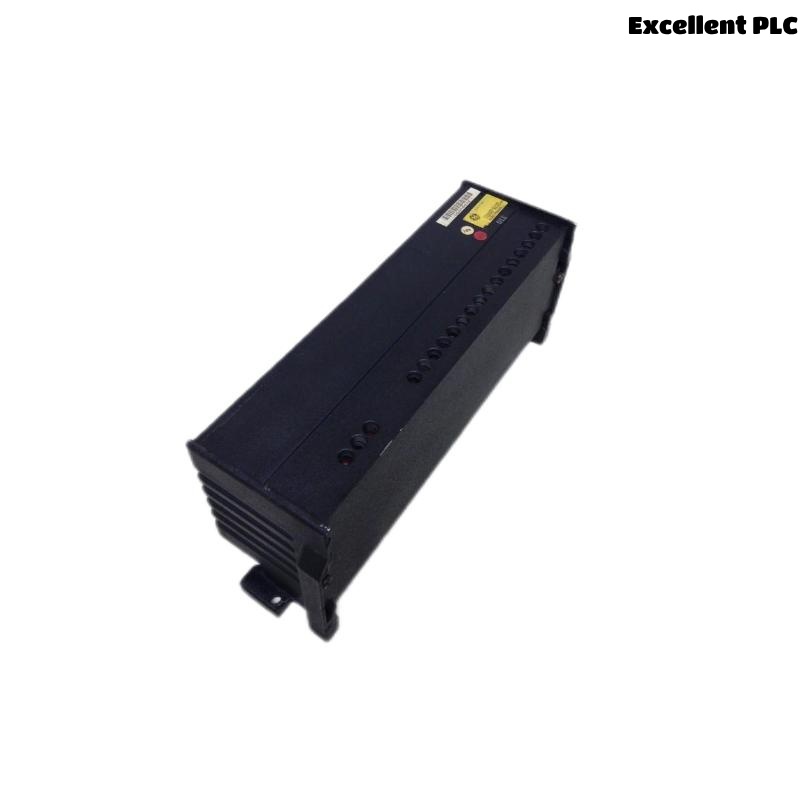

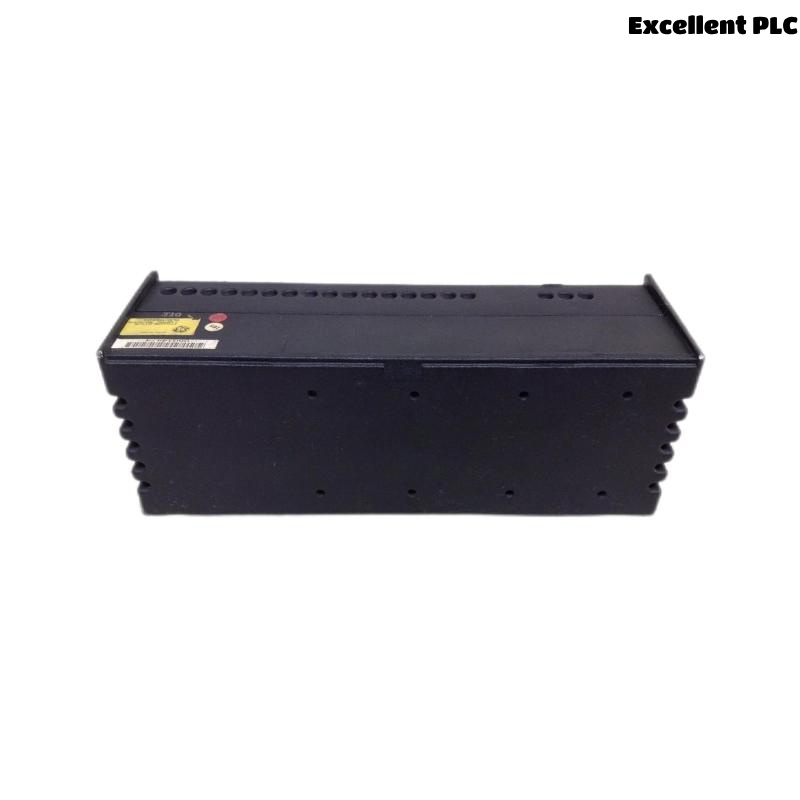

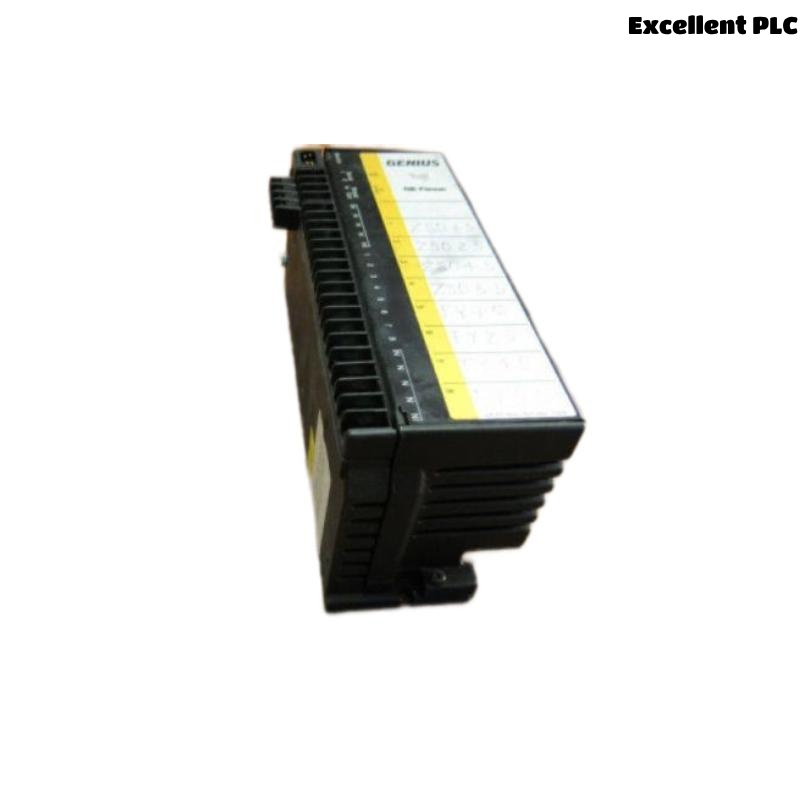

GE IC660ELD100 – Product Overview
The GE IC660ELD100 is a Genius I/O Electronic Input Block, designed and manufactured by General Electric for use in industrial automation and control systems. It is part of the GE Fanuc Series 90-30/70 Genius I/O family, which enables distributed I/O configurations in high-performance environments. The IC660ELD100 is primarily used to interface with a variety of discrete sensors and switches, collecting digital input signals and transmitting them to a central controller via the Genius I/O network. This allows for efficient and scalable automation solutions across diverse industries.
This input block supports 16 discrete inputs and is well-regarded for its rugged construction, ease of installation, and flexible communication capabilities. With its ability to operate in harsh environments and deliver high-speed data exchange, the IC660ELD100 has become a dependable choice in complex manufacturing setups, particularly in automotive, chemical, and process industries.
Key Features of GE IC660ELD100
-
Supports 16 discrete input channels
-
Compatible with sourcing and sinking input devices
-
Built-in diagnostics for enhanced reliability
-
Hot insertion and removal supported
-
DIN rail or panel mounting options
-
Wide input voltage range for flexibility
-
Compatible with Genius Bus for distributed I/O systems
-
Rugged enclosure suitable for industrial environments
Technical Specifications
Parameter | Details |
---|---|
Model Number | IC660ELD100 |
Manufacturer | GE (General Electric) |
Product Type | Genius I/O Electronic Input Block |
Input Channels | 16 Discrete Inputs |
Input Voltage Range | 0 – 32 VDC |
Input Type | Sourcing/Sinking |
LED Indicators | Yes (per channel and for status) |
Power Supply Voltage | 5 VDC (logic) / 24 VDC (field devices) |
Communication Interface | Genius Bus |
Diagnostics | Built-in (channel diagnostics and self-check) |
Mounting Type | Panel or DIN Rail |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 85°C |
Dimensions | 240 x 80 x 70 mm |
Weight | 1.3 kg |
Housing Protection | IP54 (when properly installed) |
Certifications | UL, CE, CSA |
Applications of GE IC660ELD100
The GE IC660ELD100 is widely adopted in applications where digital signal acquisition is critical to the automation process. It is used in:
-
Factory Automation: Capturing signals from sensors and switches on assembly lines.
-
Process Control Systems: Interfacing with field instruments in chemical, oil & gas, and water treatment plants.
-
Material Handling: Monitoring conveyor belts, sorters, and other equipment.
-
Packaging Systems: Enabling logic control based on sensor status.
-
Automotive Manufacturing: Synchronizing discrete operations on robotic work cells.
-
Utility and Energy Management Systems: Integrating with control logic for real-time input monitoring.
Advantages of GE IC660ELD100
-
Scalable Architecture: Easy integration into both small and large Genius I/O networks.
-
Reduced Wiring Costs: Genius Bus significantly reduces the need for point-to-point wiring.
-
Reliable Operation: Built for high-reliability performance in industrial environments.
-
Fast Data Processing: Real-time signal handling enables quick response in time-sensitive applications.
-
Diagnostic Capability: Helps in quick fault isolation and reduces system downtime.
-
Versatile Mounting: Fits easily into existing panels or DIN systems.
-
Broad Compatibility: Works seamlessly with a wide range of sensors and controllers in GE Fanuc systems.
Frequently Asked Questions (FAQ)
Q1: What kind of inputs does the IC660ELD100 accept?
A1: It accepts 16 discrete digital inputs, compatible with both sourcing and sinking devices operating at 0–32 VDC.
Q2: Can the IC660ELD100 be installed on a DIN rail?
A2: Yes, it supports both DIN rail and panel mounting, providing flexibility for installation.
Q3: Is this module hot-swappable?
A3: Yes, the IC660ELD100 can be inserted or removed from the system while powered, minimizing downtime.
Q4: What network does this block communicate over?
A4: It communicates via the Genius I/O bus, a proprietary GE high-speed serial network.
Q5: How is the health of the block or inputs monitored?
A5: The module includes built-in diagnostics for each input channel and overall module status.
Q6: Can the IC660ELD100 operate in outdoor environments?
A6: It is intended for indoor use; however, with appropriate enclosures (e.g., IP-rated cabinets), it can be adapted for harsher settings.
Q7: What controllers are compatible with this I/O block?
A7: It is compatible with GE Fanuc Series 90-30, 90-70, and other Genius Bus-capable controllers.
Q8: What certifications does it have?
A8: It carries UL, CE, and CSA certifications, ensuring it meets industrial safety standards.
Q9: Is any software required to configure this module?
A9: Yes, configuration tools compatible with GE Genius Bus systems are required for network setup.
Q10: What is the expected lifespan of the IC660ELD100?
A10: When used under specified operating conditions, the module typically has a lifespan exceeding 10 years.
Related or Similar Models in the Same Series
Model Number | Description | Input/Output Type | Key Feature |
---|---|---|---|
IC660BBA100 | Genius I/O Analog Block | Analog I/O | Configurable as input or output |
IC660BBD101 | Genius I/O Block | Discrete I/O | 32-point configurable I/O |
IC660TSD100 | Genius I/O Thermocouple Block | Analog Input | Temperature measurement support |
IC660ELD110 | Genius I/O Input Block | Discrete Input | Similar to ELD100, extended options |
IC660BBD020 | Genius I/O Block | Discrete I/O | Higher channel capacity |
IC660BBA103 | Genius I/O Analog Input Block | Analog Input | High resolution for precision |
Popular Models from the Same Brand (GE)
Model Number | Description | I/O Type | Application Area |
---|---|---|---|
IC693CPU364 | CPU module with Ethernet | Controller | GE Series 90-30 PLC systems |
IC695CPE330 | CPU with embedded PROFINET | Controller | RX3i PACSystems |
IC693MDL645 | 32-Point DC Input Module | Digital Input | Discrete input processing |
IC693PWR330 | Power Supply Module | Power Supply | For Series 90-30 PLC |
IC200ALG320 | VersaMax Analog Input Module | Analog Input | Modular I/O for smaller systems |
IC695ETM001 | Ethernet Interface Module | Communication | Networking for RX3i CPUs |
