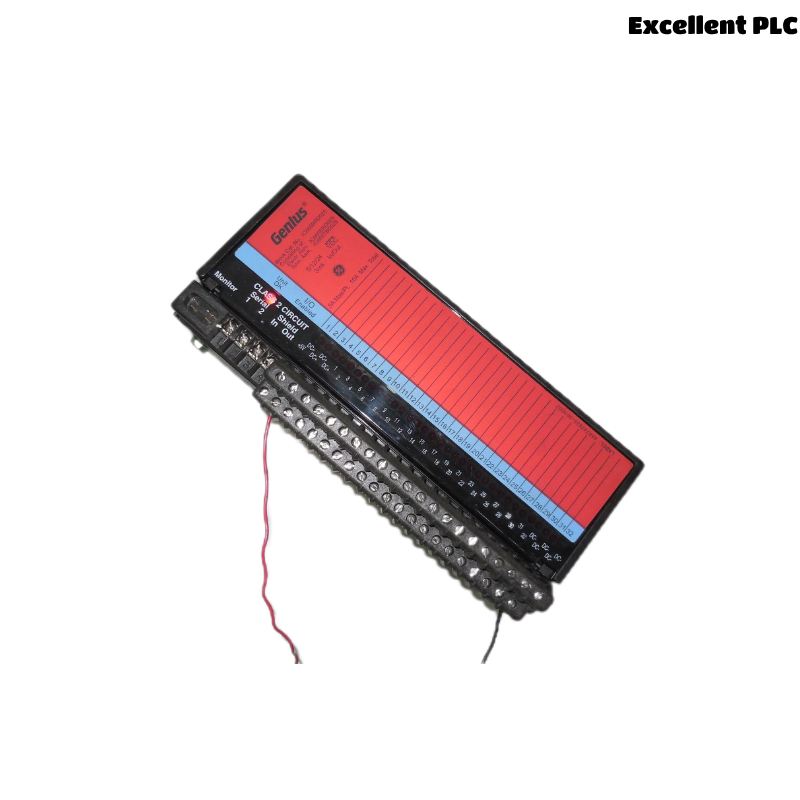

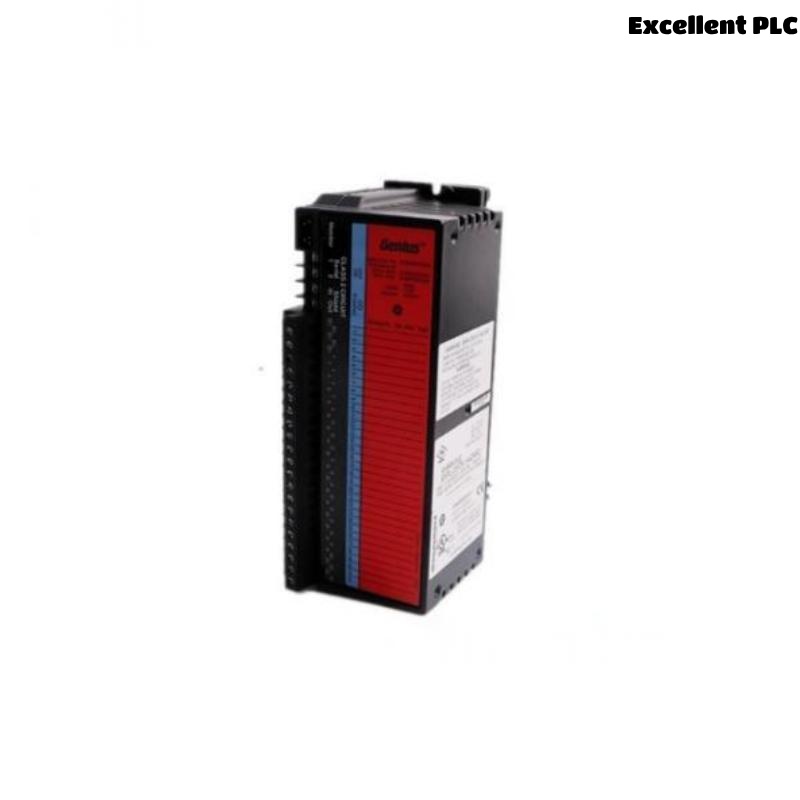

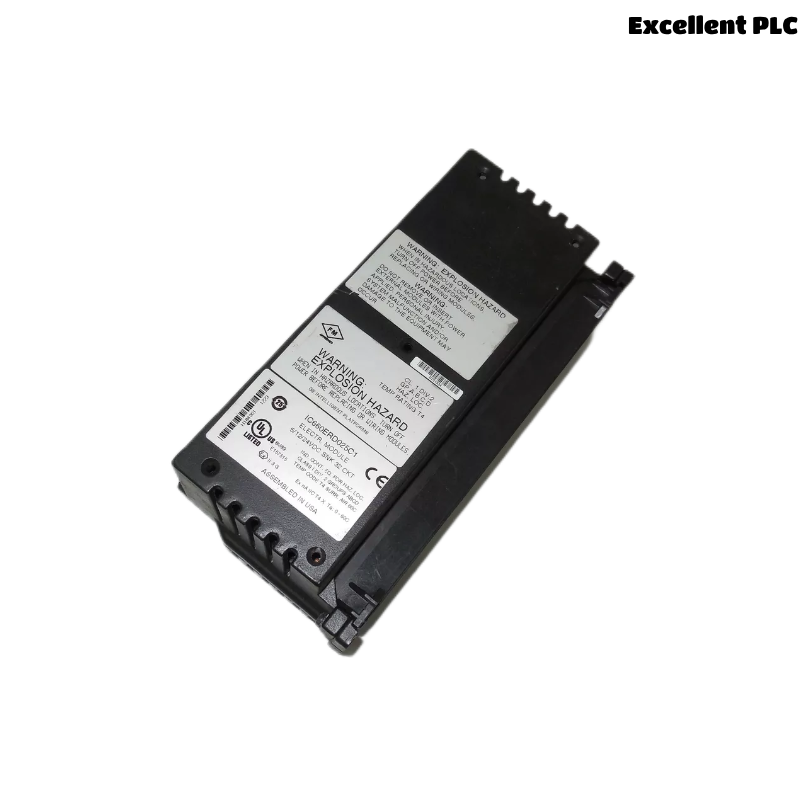

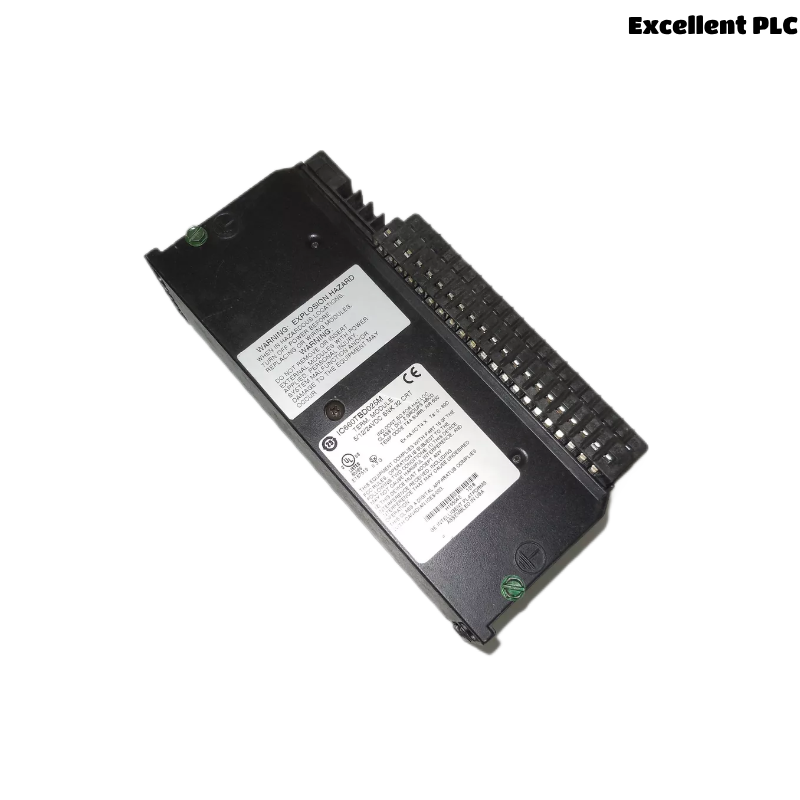

GE IC660ERD025 – Product Introduction
The GE IC660ERD025 is a robust and high-performance electronic relay designed for industrial applications. This product is part of the GE IC660 series, which is renowned for offering reliable and precise control solutions. The IC660ERD025 is equipped with advanced circuitry to ensure high reliability and operational efficiency in a wide range of industrial environments, especially those requiring real-time feedback and automation controls. It integrates seamlessly into existing systems and provides durable performance under harsh conditions.
Designed to meet stringent industrial standards, this relay is often used in the automation and control industries, ensuring optimal functionality and ease of integration with other GE products. Its versatility, alongside high load tolerance, makes it an ideal choice for applications that demand precision and high operational uptime.
Product Parameters
Here is a detailed list of the specifications and parameters for the GE IC660ERD025:
| Parameter | Specification |
|---|---|
| Model | GE IC660ERD025 |
| Type | Electronic Relay |
| Input Voltage | 24V DC |
| Relay Type | SPDT (Single Pole Double Throw) |
| Dimensions | 60 x 120 x 30 mm |
| Weight | 0.2 kg |
| Operating Temperature | -20°C to +70°C |
| Current Rating | 10A |
| Max Switching Voltage | 250V AC |
| Contact Resistance | < 50 mΩ |
| Mounting Type | DIN Rail |
| Cycle Time | 10 ms (Max) |
| Material | High-Quality Plastic & Metal Alloy |
| Standards Compliance | CE, UL, RoHS |
Applications of GE IC660ERD025
The GE IC660ERD025 is primarily designed for use in automation systems and industrial controls. It is highly suitable for:
-
Industrial Automation: Used for controlling the on/off states of equipment in manufacturing plants.
-
Control Systems: Ideal for PLC systems and SCADA-based operations in factories.
-
Motor Control Systems: Can be used to regulate the operation of electric motors by switching them on or off based on inputs from sensors.
-
Power Distribution: Used for switching power circuits in heavy-duty industrial equipment.
-
HVAC Systems: In buildings requiring automated control of air-conditioning and ventilation.
-
Lighting Control Systems: Employed in automatic lighting systems for commercial and industrial buildings.
Advantages of GE IC660ERD025
-
High Reliability: Built with advanced components that ensure long operational life and dependable performance under various conditions.
-
Versatility: Supports a wide range of input and output configurations, making it suitable for multiple applications.
-
Compact Design: Its small form factor (98 mm x 63 mm x 25 mm) ensures easy integration into tight spaces, ideal for control panels.
-
Fast Switching Speed: With a cycle time of just 10 ms, this relay offers rapid switching capabilities, improving the efficiency of automated processes.
-
Wide Operating Range: Operates effectively within a temperature range from -20°C to +70°C, making it suitable for use in both hot and cold environments.
-
Easy Installation: Features DIN rail mounting, ensuring simple and quick installation in standard industrial setups.
-
Compliance with Standards: Meets CE, UL, and RoHS certifications, ensuring adherence to international safety and environmental standards.
-
Enhanced Durability: Made from high-quality plastic and metal alloy, it is resistant to wear and tear, ensuring a longer service life in harsh environments.
-
Energy Efficiency: Consumes minimal power while maintaining high-performance levels, contributing to overall system efficiency.
-
Cost-Effective: A highly economical solution for industrial applications, offering excellent performance at a reasonable price.
FAQs for GE IC660ERD025
Q1: What is the input voltage range for GE IC660ERD025?
A1: The GE IC660ERD025 operates with a 24V DC input voltage.
Q2: Can the GE IC660ERD025 be used in outdoor environments?
A2: The relay is designed for use in industrial environments with operating temperatures between -20°C and +70°C. For outdoor use, ensure that it is installed in a protective enclosure.
Q3: How fast is the switching cycle of the IC660ERD025?
A3: The switching cycle time of this relay is a maximum of 10 milliseconds.
Q4: What type of relay is the IC660ERD025?
A4: The IC660ERD025 is an SPDT (Single Pole Double Throw) relay, ideal for controlling switching circuits in industrial automation.
Q5: What is the maximum switching voltage for this relay?
A5: The maximum switching voltage for the GE IC660ERD025 is 250V AC.
Q6: What is the weight of the GE IC660ERD025?
A6: The relay weighs approximately 0.23 kg.
Q7: Can I mount the GE IC660ERD025 directly to a panel?
A7: No, the relay is designed for DIN rail mounting. It can be easily installed on standard DIN rails for industrial control panels.
Q8: What are the key certifications for the GE IC660ERD025?
A8: The IC660ERD025 complies with CE, UL, and RoHS standards, ensuring it meets safety and environmental requirements.
Q9: Can the GE IC660ERD025 control motors?
A9: Yes, it is suitable for controlling electric motors as part of motor control systems in industrial automation setups.
Q10: What is the contact resistance of the GE IC660ERD025?
A10: The contact resistance of the GE IC660ERD025 is less than 50 milliohms.
Recommended Models from the GE IC660 Series
Here are 6 related models from the GE IC660 series that may complement your system:
| Model | Key Feature |
|---|---|
| GE IC660BBA100 | I/O module for industrial control |
| GE IC660BBA103 | High-speed digital input module |
| GE IC660BBA104 | Analog input/output module |
| GE IC660BBD023 | High-performance relay module |
| GE IC660BBA105 | Digital I/O module with high reliability |
| GE IC660BBD022 | Precision control relay |
