Product Introduction

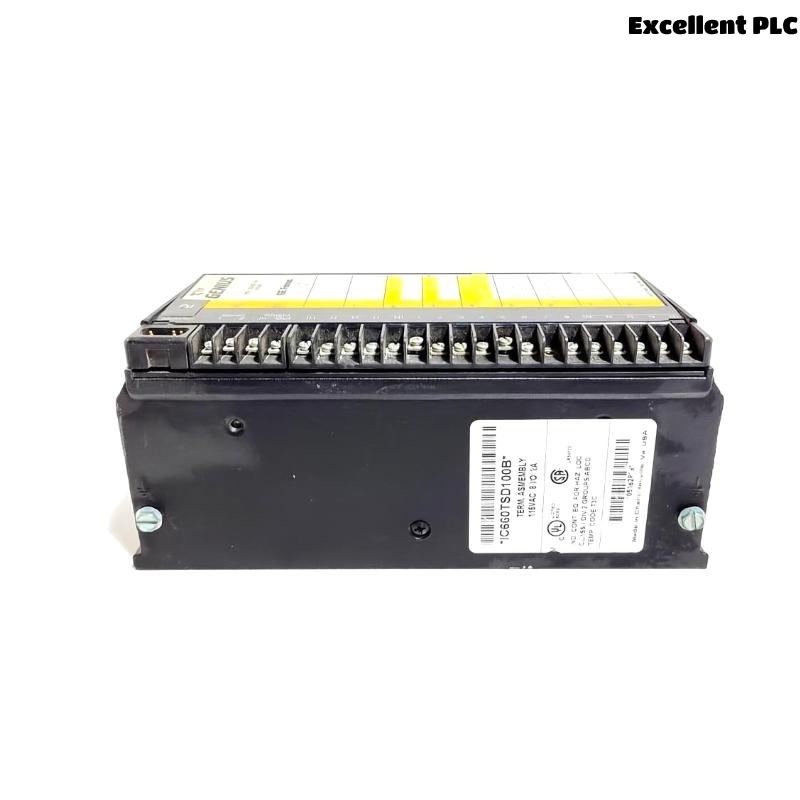

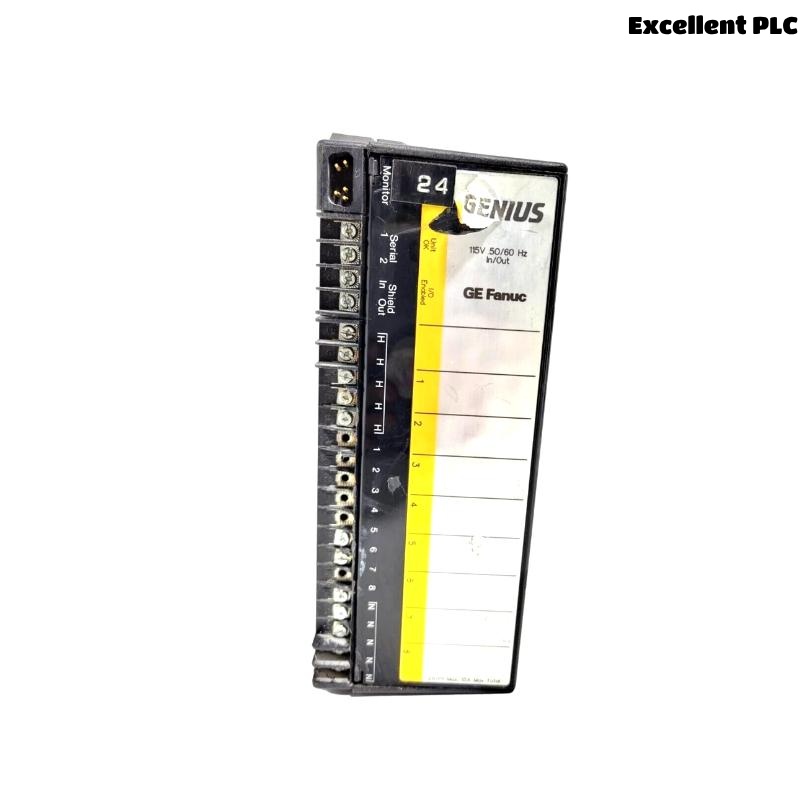

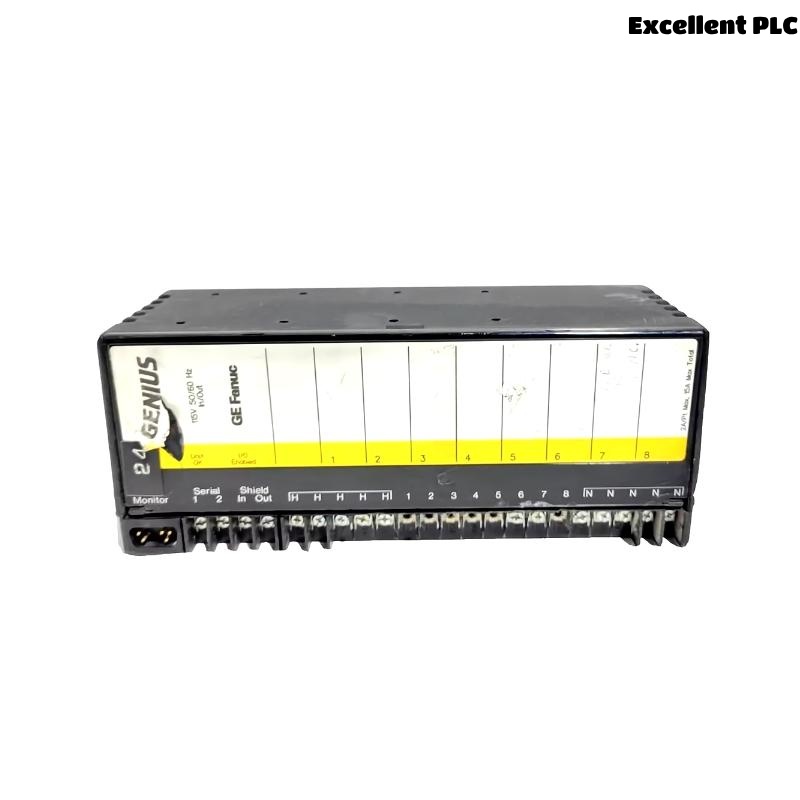

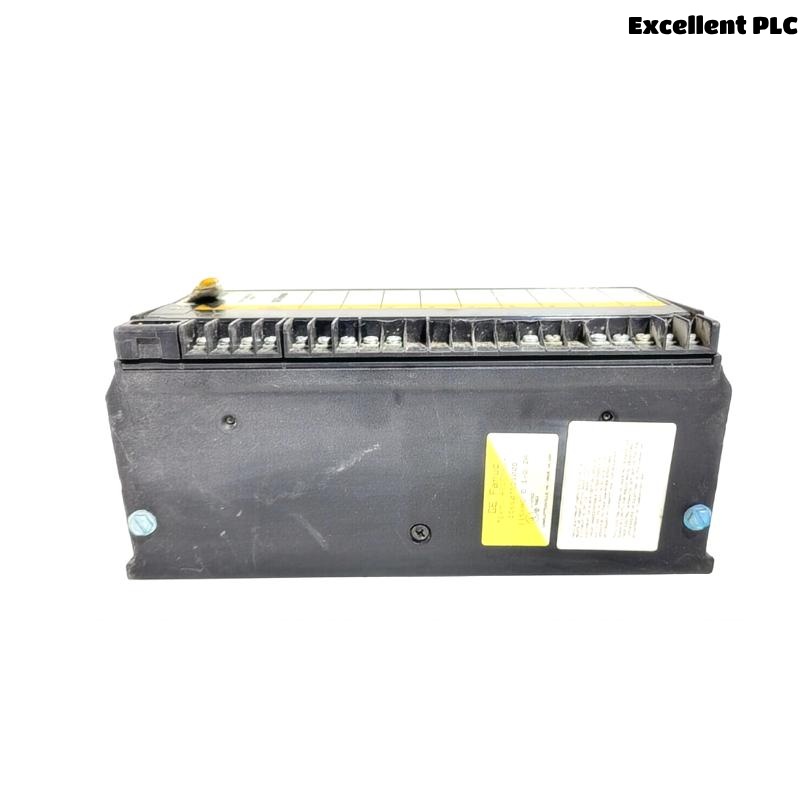

The GE IC660TSD100 Terminal Assembly is part of the Genius I/O system from GE Fanuc Automation, designed specifically for industrial control applications that demand high reliability and modularity. As a terminal block used with discrete I/O blocks, it provides essential electrical connections between field devices and the programmable controller.
This terminal assembly is known for its rugged design and ease of maintenance, often used in harsh industrial environments. It supports a source-type discrete output configuration, compatible with various sensors and actuators in process automation and manufacturing lines.
The IC660TSD100 includes field wiring terminals, fusing, and in some configurations, user-accessible diagnostics. It’s designed to fit seamlessly with Genius Block I/O modules, allowing users to simplify wiring and increase overall installation reliability.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | GE IC660TSD100 |
| Series | Genius I/O Terminal Assembly |
| Device Type | Source Discrete Output Terminal Assembly |
| Output Type | 24/48 VDC Sourcing |
| Number of Outputs | 16 |
| Output Current Capacity | 2 Amps per circuit max |
| Output Voltage Range | 24 to 48 VDC |
| Field Wiring Terminals | Screw-type |
| Short Circuit Protection | Fused per circuit |
| Diagnostics | Open circuit, shorted load (depends on configuration) |
| Environmental Rating | NEMA Class 1, IP20 |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Panel Mount |
| Compatibility | IC660 series blocks and CPUs |
| Dimensions (W x H x D) | 110 x 150 x 50 mm |
| Weight | 0.544 kg |
| Approvals | UL, CSA, CE |
Product Applications
The IC660TSD100 is ideal for use in a variety of industrial automation scenarios including:
-
Manufacturing Lines – Used to interface sensors and actuators in automated machinery.
-
Process Control Plants – Common in chemical, pharmaceutical, and water treatment systems.
-
Material Handling Systems – Provides reliable switching for conveyors, sorters, and packaging systems.
-
Power Utilities – Suitable for digital signal control in substations and remote control applications.
-
OEM Machine Builders – A standard component for machine designers needing robust, pluggable terminal solutions.
Product Advantages
-
Field-Proven Reliability – GE’s Genius I/O has a long-standing reputation for high durability and performance under industrial conditions.
-
Simplified Wiring – Clearly labeled screw terminals make field installation and servicing easier and faster.
-
Modular Design – Can be easily replaced or upgraded without disrupting the rest of the system.
-
Diagnostic Support – Allows for rapid troubleshooting with LED indicators and built-in test features.
-
Versatility – Supports a wide voltage range and multiple devices per output channel.
-
Robust Protection – Fused outputs and short circuit detection protect both field devices and upstream controllers.
-
Wide Environmental Range – Operates in demanding temperature and humidity conditions.
-
Global Certification – Approved for use in both North American and European industrial installations.
Frequently Asked Questions (FAQ)
-
What is the main function of the IC660TSD100?
It serves as a terminal assembly for 16 discrete source-type output channels in Genius I/O systems. -
Can this unit be used with sink-type loads?
No, it is specifically designed for sourcing (positive switching) output devices. -
Is this terminal assembly fused?
Yes, each output is individually fused to protect connected field devices. -
What kind of connectors are used for wiring?
Screw-type field wiring terminals are used for secure and easy installation. -
What is the power supply requirement for this unit?
It typically operates on a 24–48 VDC power supply depending on the application. -
How many output channels does it support?
The IC660TSD100 supports 16 discrete output channels. -
What diagnostic features does it support?
It can detect open circuits and shorted loads when used with compatible blocks. -
Is this product hot-swappable?
No, power should be removed before servicing to ensure safety. -
What environments is this device rated for?
It is rated for industrial environments, NEMA Class 1, IP20. -
Can I use this terminal block with other IC660 modules?
Yes, it is fully compatible with other Genius I/O IC660 modules and controllers.
