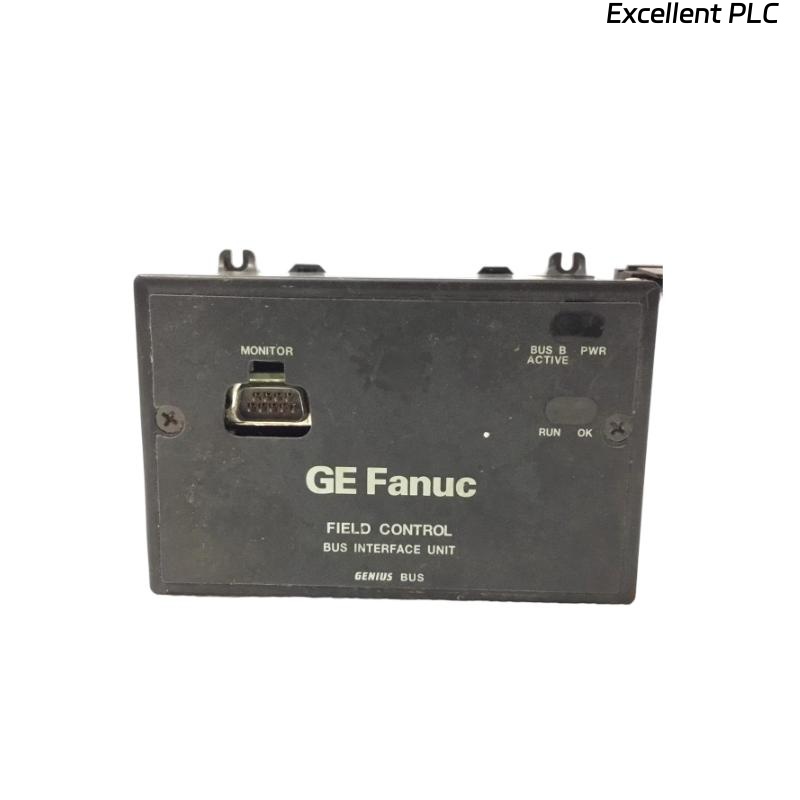

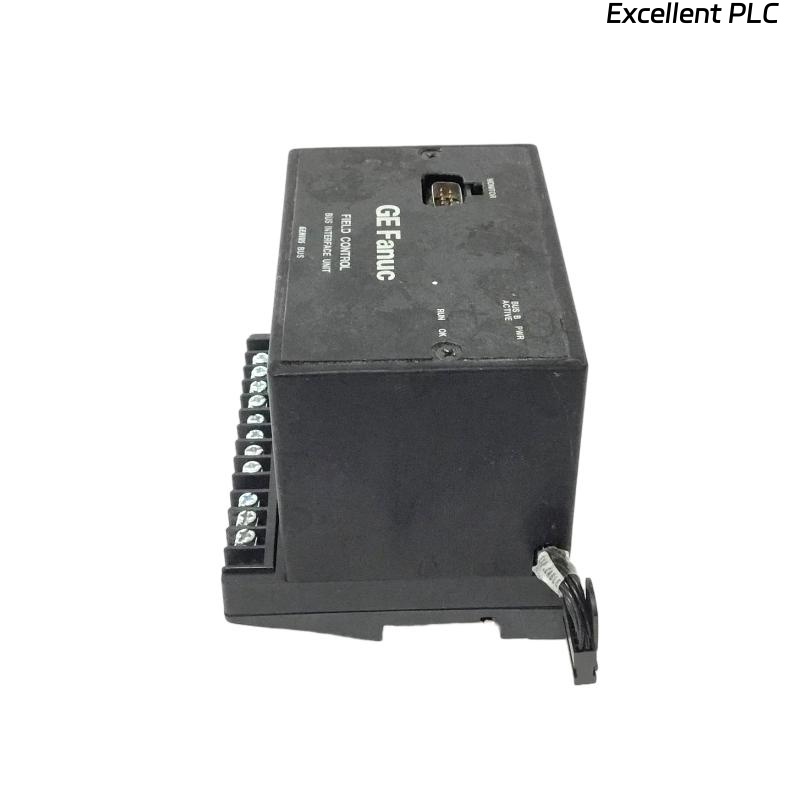

GE IC670GBI002 General Bus Interface Module

System Integration Overview

The GE IC670GBI002 is a General Bus Interface (GBI) module designed for the IC670 / RX3i PLC platform. Its primary function is to provide a robust communication bridge between the backplane bus of the IC670 chassis and remote or auxiliary I/O networks.

From a system integration perspective, the GBI module ensures deterministic data transfer between central CPUs and distributed I/O modules, supporting scalable industrial automation networks. It is widely used in applications where multiple chassis or extended I/O systems are deployed and centralized control must maintain low latency and high reliability.

Technical Specifications

Applications / Use Scenarios

• Connecting multiple IC670 chassis within a distributed control network

• Serving as communication bridge between central CPU and remote I/O racks

• Scalable factory automation systems with modular IC670 expansion

• Retrofitting older RX3i systems to support additional remote I/O

• Ensuring deterministic, low-latency communication for high-speed process control

Advantages / Engineering Benefits

• Deterministic communication ensures timely data transfer across multiple racks

• Supports both RS-232 and RS-485 for flexible serial network topologies

• DIP switch configuration simplifies addressing and system setup

• Compact design fits IC670 standard backplane slots without additional hardware

• Industrial-grade construction enhances reliability in harsh environments

• Facilitates modular system expansion without redesigning core CPU programs

Technical FAQs

1. What is the primary function of IC670GBI002?
   – Provides a communication bridge between backplane and remote I/O modules.

2. Which PLC chassis is it compatible with?
   – IC670 / RX3i series 3-slot and larger chassis.

3. What serial protocols does it support?
   – RS-232 and RS-485.

4. How is addressing configured?
   – Through DIP switches on the module.

5. Is power supplied through the chassis?
   – Yes, standard rack-powered 5 VDC logic, with 24 VDC optional for field devices.

6. What is the maximum operating temperature?
   – 60°C.

7. Can multiple GBI modules be used in one network?
   – Yes, supports multi-rack distributed I/O configurations.

8. Is hot-swapping supported?
   – No, power should be removed before insertion or removal.

9. What is the typical weight?
   – Approximately 0.48 kg.

10. Is it suitable for industrial vibration-prone environments?
    – Yes, designed with rugged construction for reliability.
