1. Overview

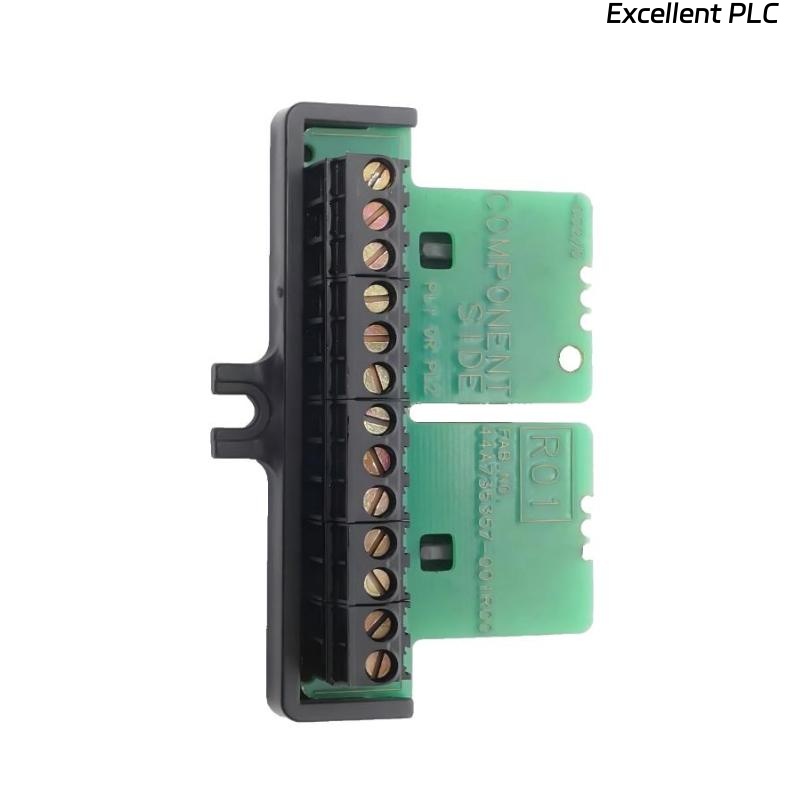

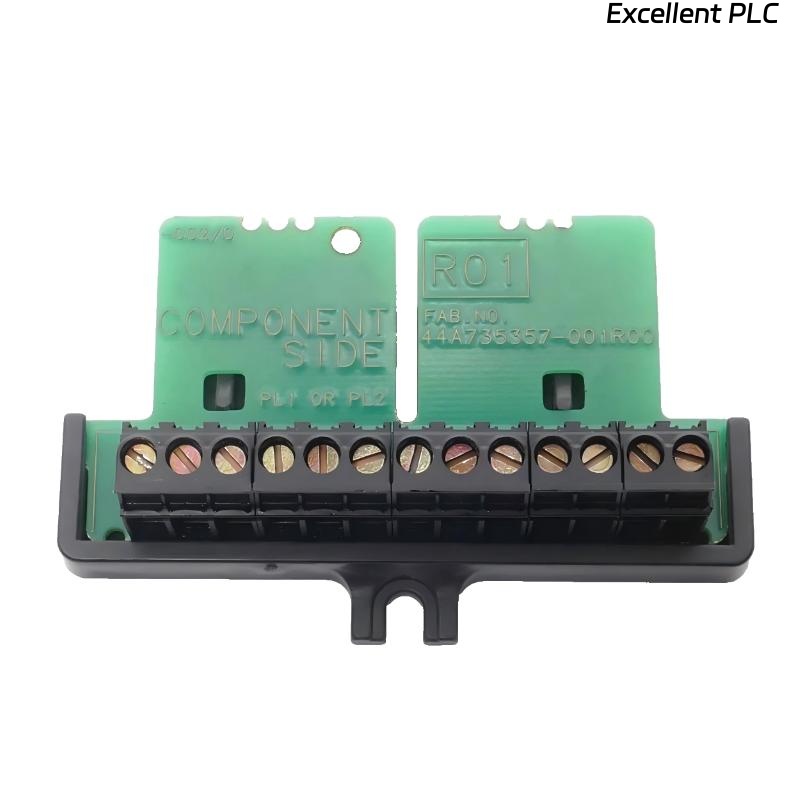

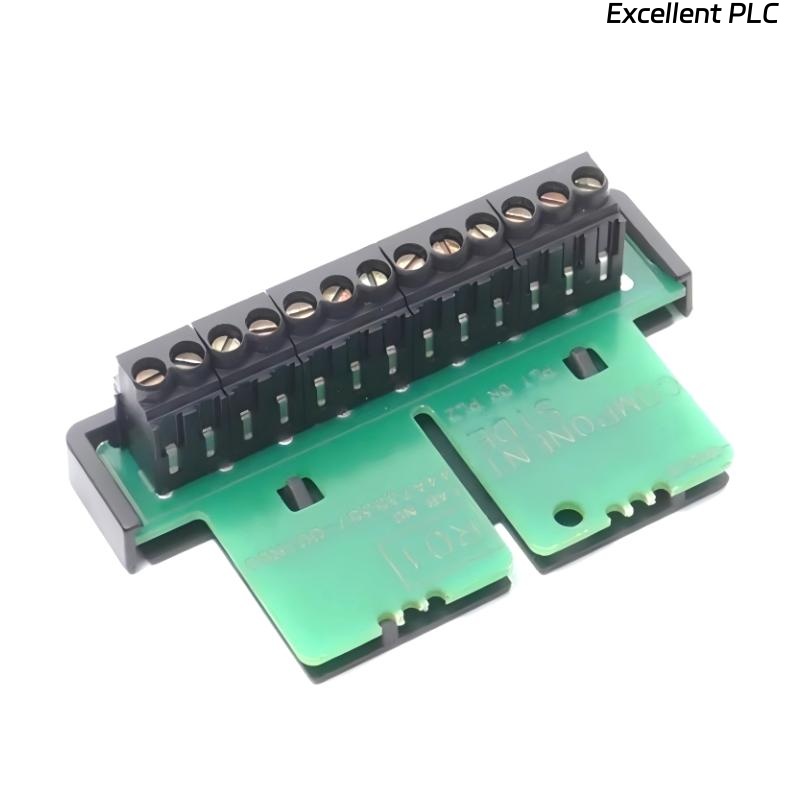

The GE IC670TBM002 is a terminal block module designed for the Field Control I/O family, providing reliable wiring termination for discrete and analog interface modules. Its hardened industrial structure and screw-clamp terminals make it suitable for environments requiring stable field connections and reduced maintenance.
2. Technical Specifications
| Parameter |
Details |
| Manufacturer |
GE Fanuc / GE Automation |
| Module Type |
Terminal Block Module |
| Compatibility |
GE Field Control I/O Series |
| Terminals |
Screw-clamp, labeled field wiring terminals |
| Channels Supported |
Matches associated I/O module (up to 32 depending on module) |
| Connection Type |
Direct plug-in to IC670 series bases |
| Isolation |
Based on associated module |
| Material |
Industrial-grade thermoplastic housing |
| Mounting |
Panel or base mounting |
Dimensions (H × W × D)
Approx. 125 mm × 42 mm × 118 mm
Weight
Approx. 260 g
3. Applications
-
Distributed I/O field wiring
-
Manufacturing and process control
-
Machine-level I/O termination
-
Rugged industrial equipment integration
-
PLC/SCADA field signal distribution
4. Advantages
-
Clean, labeled terminal layout for quick wiring
-
Durable mechanical structure with stable screw clamps
-
Matches GE Field Control modules without adapters
-
Simplifies maintenance and troubleshooting
-
Built for continuous industrial operation
Technical FAQs
-
Is the IC670TBM002 hot-swappable?
No, terminal blocks must be disconnected with the system powered down.
-
Does it support shielded cable termination?
Yes, depending on wiring method and grounding practices.
-
Can it work with analog modules?
Yes, as long as the associated module matches the terminal block configuration.
-
Is additional isolation provided?
Isolation is determined by the paired I/O module, not the terminal block.
-
What wire gauge is recommended?
Typically 18–24 AWG stranded or solid wire.
-
Does it require a special base?
It plugs directly into IC670 series installation bases.
-
Is the module suitable for vibration environments?
Yes, screw-clamp terminals maintain stable contact in vibration-prone setups.
-
How many terminals does it offer?
Depends on the I/O module—commonly 16 or 32 points.
-
Does it include diagnostic LEDs?
No, status LEDs are on the I/O module, not the terminal block.
-
Is it RoHS compliant?
Older GE Field Control modules may not be, depending on production batch.
