Product Introduction

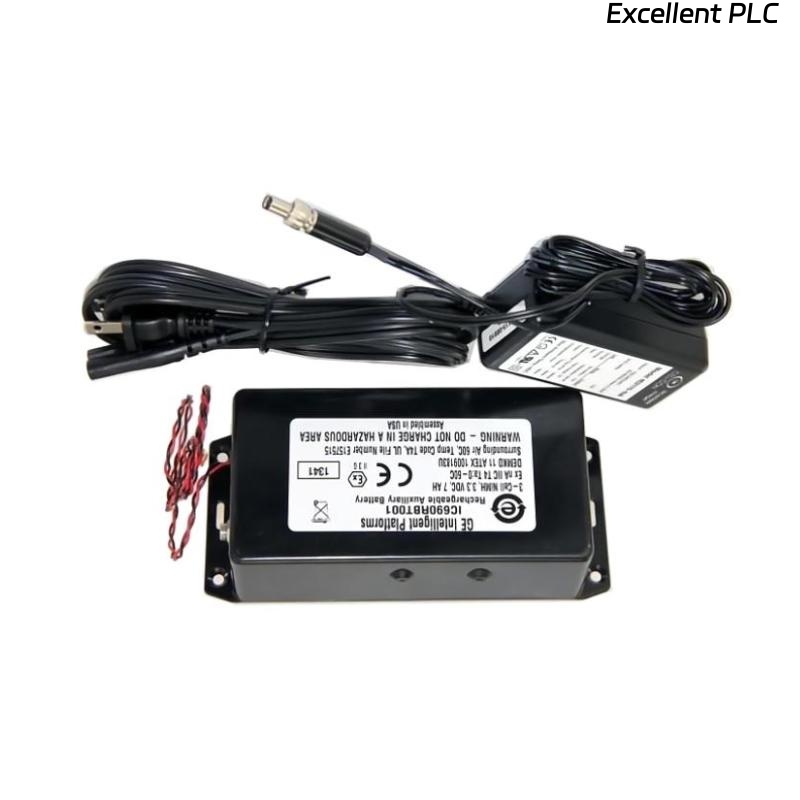

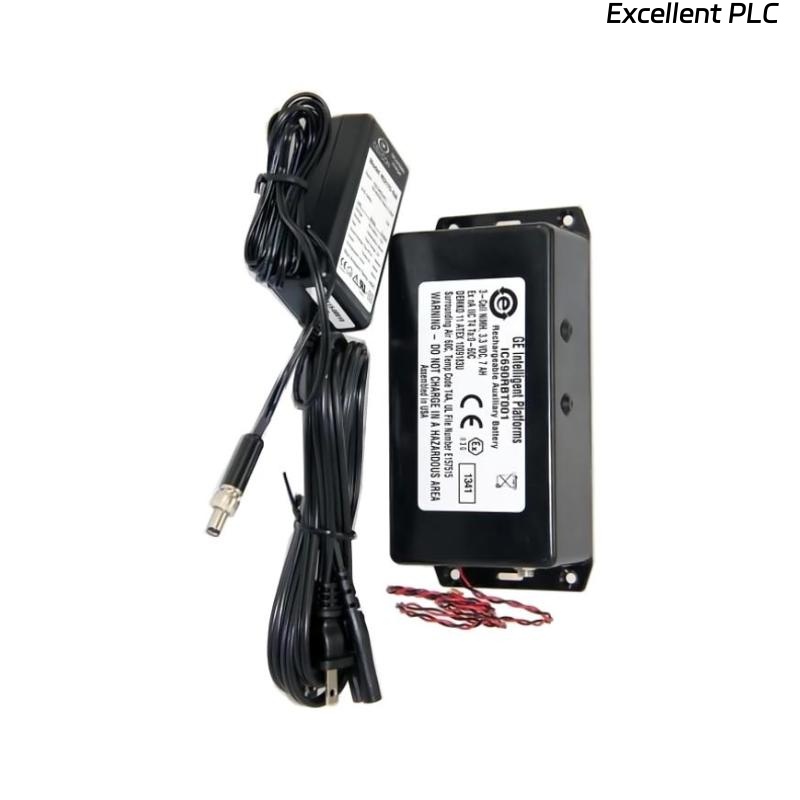

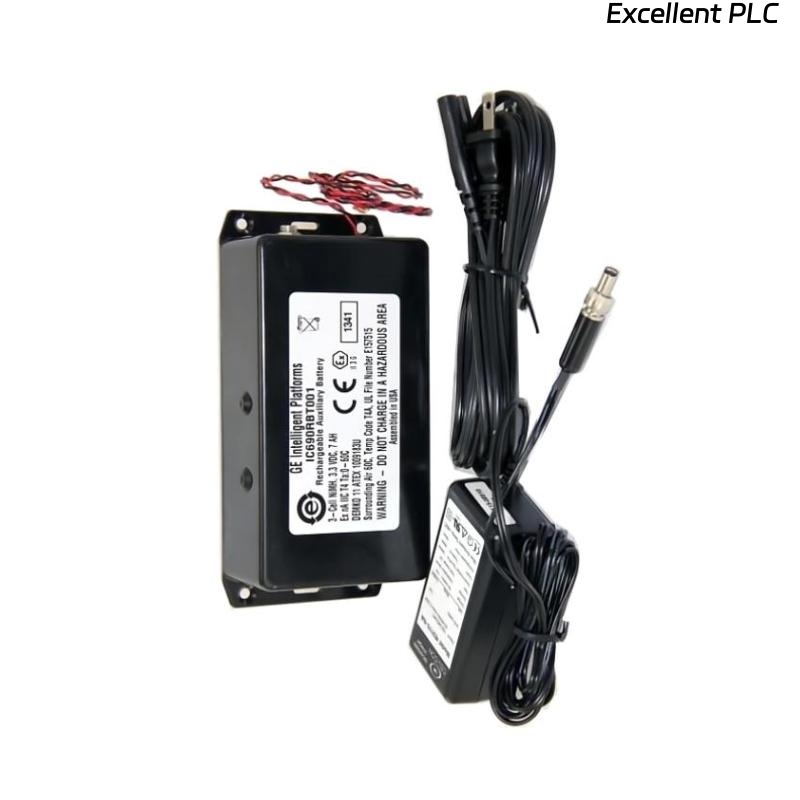

The GE IC690RBK001 Rechargeable Battery Kit is a high-quality, industrial-grade battery designed to provide backup power for GE Fanuc PAC and PLC controllers. This battery ensures that critical system memory is maintained during power interruptions, safeguarding program data, configuration settings, and operational logs.
The IC690RBK001 is compatible with PAC controllers including CPU310, CPU315, CPU320, and CRU320, as well as Series 90-30 and Series 90-70 CPUs. It is an essential component for maintaining system integrity, especially in industrial environments where unexpected power loss could lead to operational downtime or data loss. The battery kit is engineered for reliable performance under a wide range of temperatures and industrial conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | IC690RBK001 |
| Type | Rechargeable Battery Kit |
| Compatible Controllers | PAC CPU310, CPU315, CPU320, CRU320; Series 90-30, 90-70 CPUs |
| Battery Type | Rechargeable NiMH |
| Nominal Voltage | 3.6 V DC |
| Capacity | 1100 mAh |
| Recharge Method | Controlled charging via CPU |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | –20 °C to 60 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Maintenance | Automatic trickle charge by controller |
| Dimensions (L × W × H) | 185 × 45 × 30 mm |
| Weight | 1.36 kg |
| Certification | UL, CE |
| Mounting | Internal module slot within compatible CPU |
Applications
The IC690RBK001 battery kit is widely used in industrial automation to ensure reliable system operation:
-
Memory Backup for PAC Controllers: Maintains critical program memory and operational data during power loss.
-
Series 90-30 and 90-70 PLCs: Provides backup for legacy PLC systems to preserve configurations and logs.
-
Industrial Process Control: Ensures uninterrupted control operations in manufacturing, chemical, and energy production plants.
-
Field Maintenance: Provides technicians with a reliable battery solution for replacing or upgrading controller modules.
-
Data Integrity Protection: Prevents loss of historical process data during power interruptions.
Advantages
-
Reliable Memory Backup: Ensures critical data is preserved during power outages.
-
Wide Compatibility: Works with PAC controllers CPU310, CPU315, CPU320, CRU320, and Series 90-30/90-70 CPUs.
-
Automatic Charging: Integrated charging via controller eliminates the need for manual battery maintenance.
-
Compact Design: Fits neatly within internal CPU module slots without occupying additional space.
-
Durable Construction: Engineered for industrial environments with wide temperature tolerance.
-
Maintenance-Free Operation: Rechargeable design allows long-term operation without frequent replacement.
-
Industrial-Grade Safety: Certified to UL and CE standards for safe integration into control systems.
FAQ
1. What is the primary function of the IC690RBK001 battery kit?
It provides backup power to maintain controller memory during power interruptions.
2. Which controllers are compatible with this battery?
It is compatible with PAC CPU310, CPU315, CPU320, CRU320, and Series 90-30/90-70 CPUs.
3. What type of battery is used in the IC690RBK001?
It uses a rechargeable NiMH battery.
4. What is the nominal voltage and capacity of the battery?
The battery provides 3.6 V DC and has a capacity of 1100 mAh.
5. How is the battery charged?
It is automatically charged by the controller through a controlled trickle charge.
6. Can the battery be replaced in the field?
Yes, it can be replaced by technicians within the compatible CPU module slot.
7. Does the battery support legacy PLC systems?
Yes, it supports Series 90-30 and Series 90-70 PLC CPUs.
8. What is the operating temperature range for this battery?
The battery operates reliably between 0 °C and 50 °C.
9. How does the battery ensure data integrity?
By maintaining power to volatile memory in the CPU, preventing loss of program and process data.
10. Is the IC690RBK001 certified for industrial use?
Yes, it is UL and CE certified for safe use in industrial automation systems.
