Product Introduction

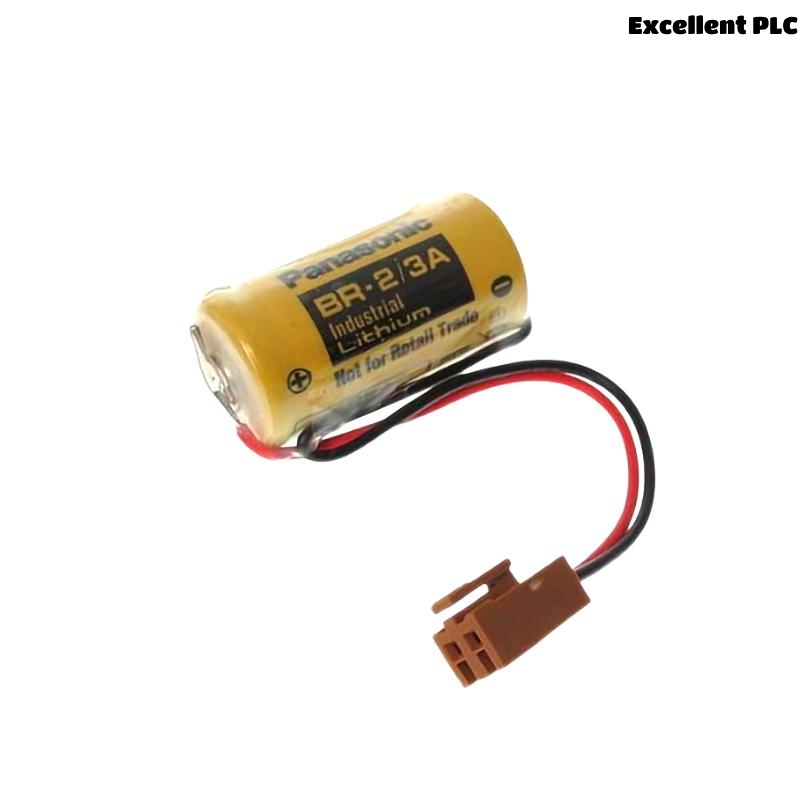

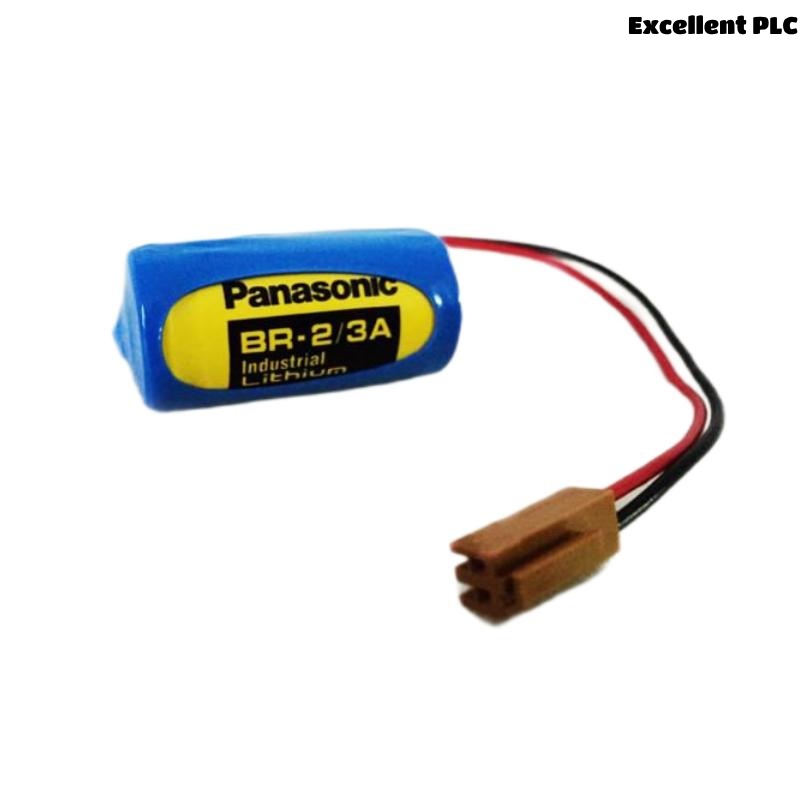

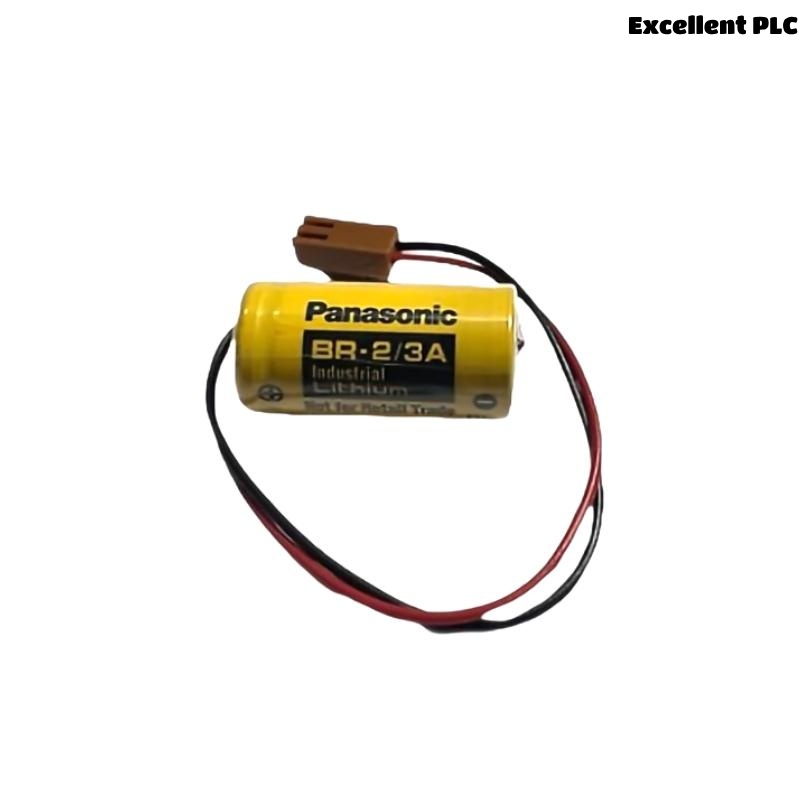

The GE IC693ACC301 Memory Backup Battery is a compact, high-reliability lithium battery designed to preserve memory content in the GE Series 90-30 programmable logic controllers (PLCs). It plays a critical role in ensuring system continuity by maintaining important data, such as user programs and configuration settings, during power loss or system shutdown.
This battery module is field-replaceable and connects directly to the CPU unit or baseplate, providing seamless backup without external cabling. It is engineered for long service life and dependable operation in a wide range of industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | IC693ACC301 |
| Product Type | Lithium Backup Battery |
| Application | Memory retention for Series 90-30 PLCs |
| Voltage Rating | 3.0 VDC |
| Battery Chemistry | Lithium (non-rechargeable) |
| Connector Type | 2-pin Molex-style plug |
| Typical Battery Life | 5 to 7 years (depending on usage and ambient temp) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Installation Location | Direct plug-in to CPU or baseplate battery port |
| Compatibility | GE Series 90-30 CPUs (e.g., IC693CPU311/313/323) |
| Dimensions (W×H×D) | 40 × 30 × 10 mm |
| Weight | 0.06 kg |
| Safety Certification | UL, CE compliant |
| Shelf Life | Up to 10 years if stored properly |
Product Applications
-
Industrial PLC Systems: Maintains memory in Series 90-30 controllers when the system is powered down.
-
Automated Machinery: Keeps machine logic programs intact between maintenance cycles or unexpected shutdowns.
-
Utility Plants: Used in SCADA systems for configuration backup during system faults.
-
Factory Automation: Ensures continuity of control programs in assembly lines or processing stations.
-
OEM Control Cabinets: Included in third-party control systems to support GE Series PLC deployments.
-
Remote Facilities: Supports memory preservation where stable power supply is not guaranteed.
Product Advantages
-
Long Battery Life: Designed to last up to 7 years under normal operating conditions, reducing maintenance intervals.
-
Compact and Lightweight: Small form factor allows easy installation within tight enclosures.
-
Reliable Data Retention: Prevents loss of programs and data during power failures or battery swaps.
-
Tool-Free Replacement: Quick connection using plug-in terminals—no soldering required.
-
High Compatibility: Fully compatible with a wide range of Series 90-30 CPU models.
-
Robust Performance: Operates reliably across wide temperature and humidity ranges.
-
Certified Safe: UL and CE compliant for global industrial applications.
Frequently Asked Questions (FAQ)
-
What does the IC693ACC301 battery do?
It supplies backup power to retain memory in GE 90-30 PLCs when the main power is off. -
How often should the battery be replaced?
Typically every 5 to 7 years, or sooner if the battery warning LED indicates low power. -
Is this battery rechargeable?
No. It is a lithium-based primary cell and should be replaced, not recharged. -
How do I know if the battery is failing?
Most GE CPUs will indicate a battery fault via an LED or system message. -
Can I replace the battery while the system is running?
Yes, but only if the CPU has internal capacitor hold-up time. Check model-specific guidelines. -
Is this battery compatible with all Series 90-30 CPUs?
It is compatible with most Series 90-30 CPUs, including CPU311, CPU313, and CPU323. -
What happens if the battery dies and power is lost?
The controller will lose volatile memory, including any unsaved program or configuration data. -
Where is the battery installed?
It plugs directly into a battery port on the CPU module or the power supply base. -
Can I store spare batteries?
Yes, store in a cool, dry place. Shelf life is up to 10 years when unused. -
Are there safety precautions for disposal?
Yes, lithium batteries must be disposed of following local regulations for hazardous waste.
