Product Introduction

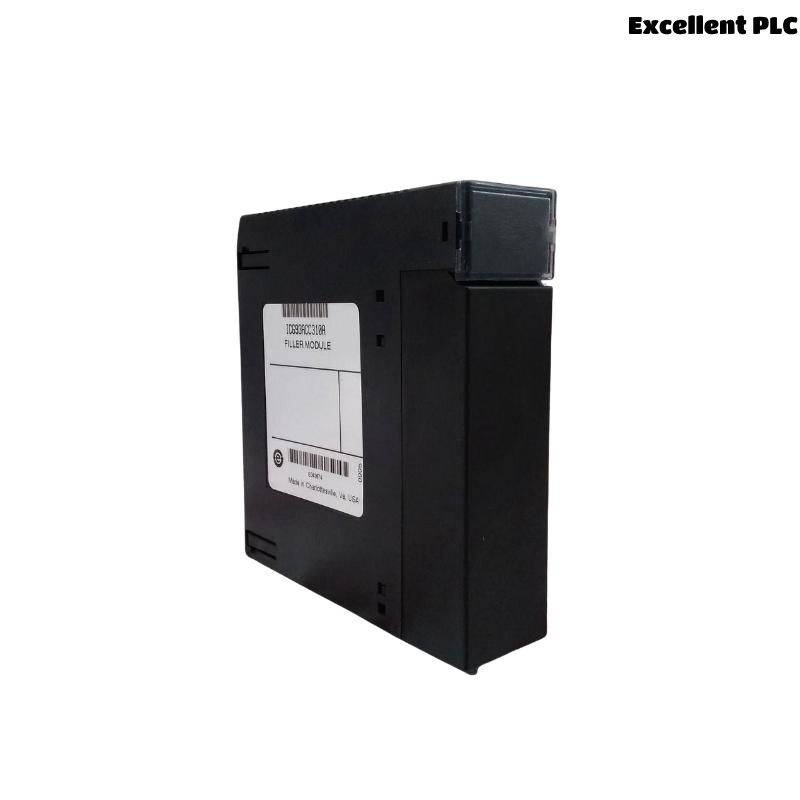

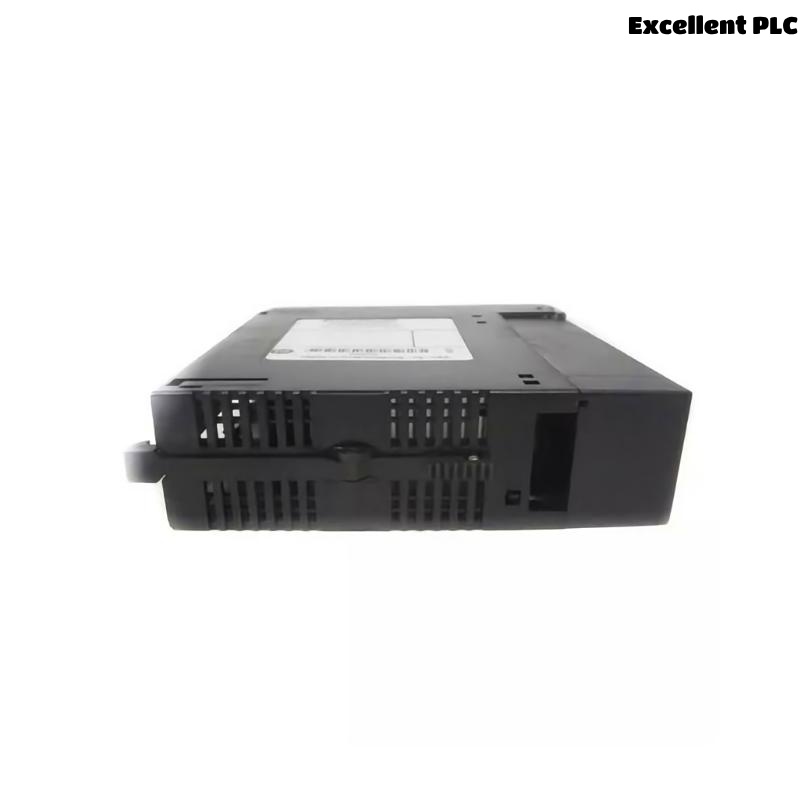

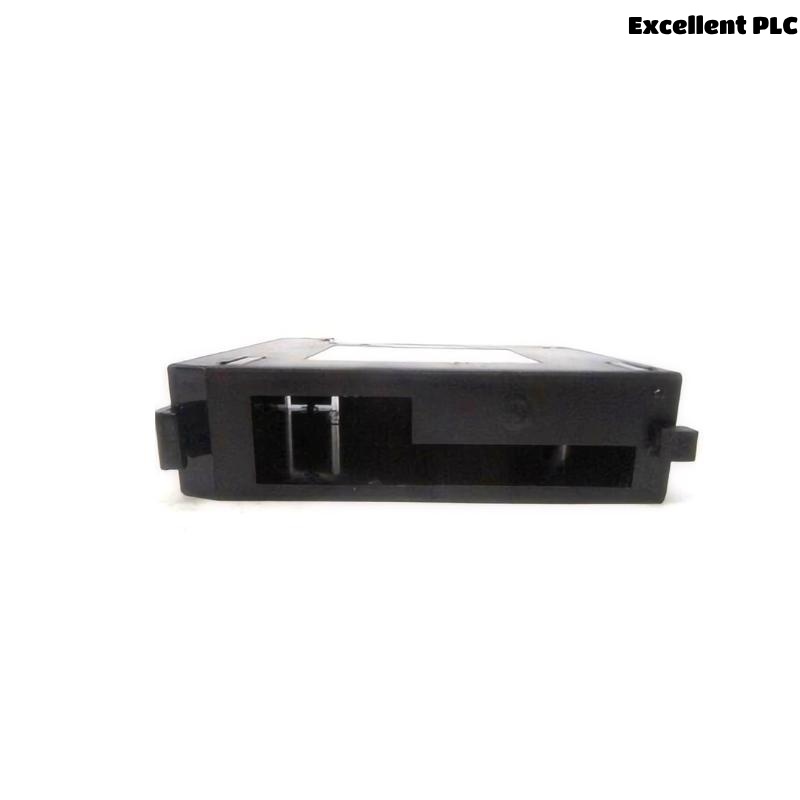

The GE IC693ACC310 Filler Module is an essential accessory designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. Unlike functional I/O or CPU modules, this filler module serves a purely mechanical and protective role, occupying unused slots within a 90-30 rack or baseplate.
By filling empty slots, the IC693ACC310 helps maintain the structural integrity and airflow balance of the rack assembly. This prevents dust accumulation and potential damage to the internal backplane connectors, enhancing the overall reliability of the PLC system.
The filler module is manufactured to match the physical and dimensional standards of active modules, ensuring a seamless, flush fit that does not interfere with rack installation or wiring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | GE IC693ACC310 Filler Module |
| Series | GE Fanuc Series 90-30 |
| Function | Rack slot filler, mechanical protection |
| Mounting | Single-slot, plugs into standard 90-30 baseplate |
| Dimensions (W x H x D) | 142 x 30 x 130 mm |
| Weight | 0.3 kg |
| Material | High-quality industrial-grade plastic and metal components |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Color | Standard gray industrial finish |
| Compliance | Meets IEC industrial standards for mechanical durability |
Product Applications
Although it does not perform electrical or control functions, the IC693ACC310 plays an important role in maintaining the health and stability of industrial automation systems by:
-
Protecting unused backplane slots: Preventing dust, debris, and accidental contact inside the rack.
-
Maintaining airflow: Ensuring proper ventilation inside the rack to avoid overheating of active modules.
-
Providing mechanical support: Reducing flexing or stress on adjacent modules and backplane connectors.
-
Aesthetic finishing: Giving the control rack a professional, neat appearance.
-
Preventing damage during transportation: Keeping modules secure and protected when systems are moved.
This module is ideal for use in any Series 90-30 rack installation where there are spare slots, especially in manufacturing plants, utilities, and process control environments where reliability and system integrity are priorities.
Product Advantages
-
Simple yet crucial: Provides vital protection without adding complexity.
-
Exact physical match: Designed to fit perfectly alongside active modules for a flush rack appearance.
-
Durable construction: Built to withstand industrial environments including dust, vibration, and temperature fluctuations.
-
Maintenance-free: No electronic components mean zero maintenance requirements.
-
Cost-effective: Offers an affordable solution to prevent costly backplane damage.
-
Improves system longevity: Protects delicate connectors, reducing downtime and repair costs.
-
Easy installation: Plug-in design for fast rack assembly or modification.
-
Supports system airflow: Helps maintain optimal temperature balance within the rack enclosure.
Frequently Asked Questions (FAQ)
-
What is the primary purpose of the IC693ACC310?
It fills unused rack slots to protect the backplane and improve airflow. -
Does the filler module provide any electrical functionality?
No, it is a mechanical component only. -
Can I use it in any slot within the 90-30 rack?
Yes, it can be installed in any open slot to maintain rack integrity. -
Is the filler module compatible with other GE Fanuc series?
It is specifically designed for the Series 90-30 system. -
What are the dimensions of the IC693ACC310?
142 x 30 x 130 mm. -
How much does it weigh?
0.3 kg. -
Does it help with cooling?
Yes, by maintaining proper airflow through unused rack spaces. -
Is the filler module reusable?
Yes, it can be reinstalled multiple times without damage. -
Does it come in different colors?
It is typically supplied in the standard gray industrial finish. -
Can the filler module prevent damage during system transport?
Yes, it helps protect connectors and modules by filling empty slots.
Related or Compatible Models
| Model Number | Description |
|---|---|
| IC693ACC300 | Series 90-30 slot filler, alternative design |
| IC693CHS391 | 10-slot baseplate compatible with filler modules |
| IC693CPU374 | CPU module for Series 90-30, used alongside filler |
| IC693PWR321 | Standard power supply module for 90-30 rack |
| IC693MDL645 | Discrete input module compatible with 90-30 rack |
| IC693ALG223 | Analog input module designed for 90-30 systems |
