Product Introduction

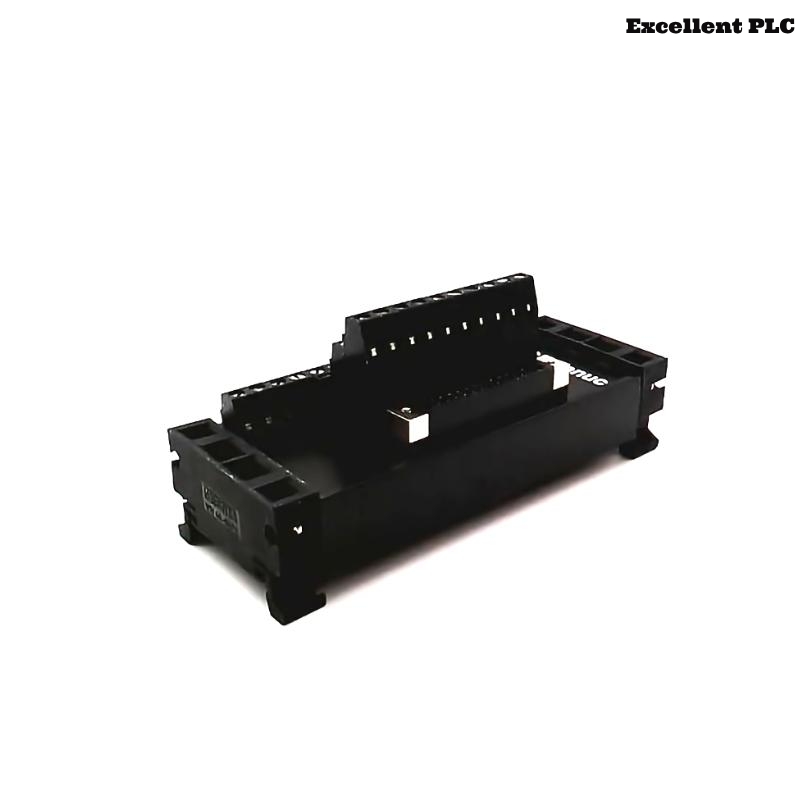

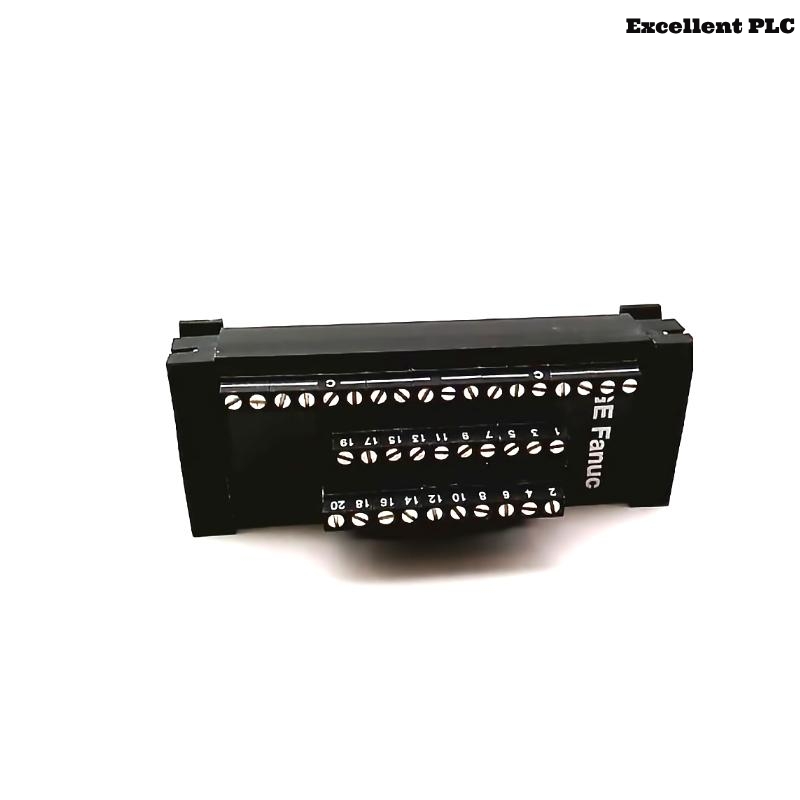

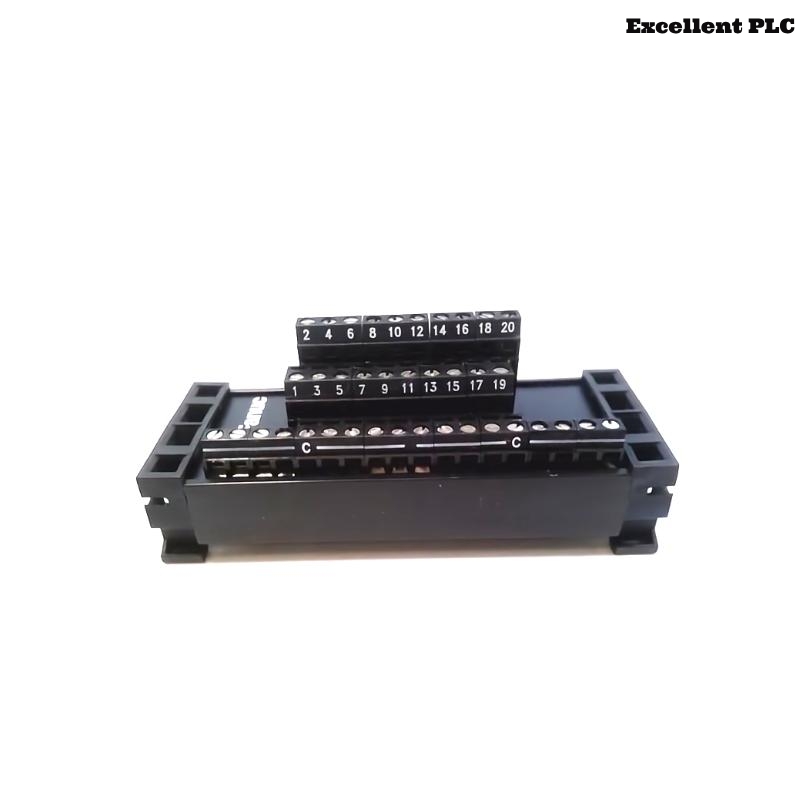

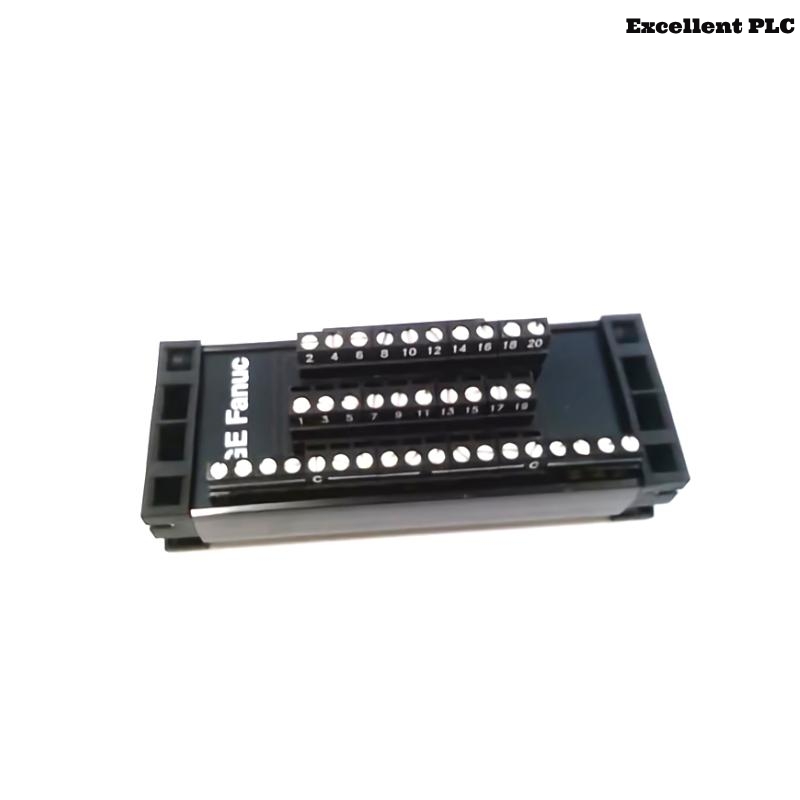

The GE IC693ACC330 is a Terminal Block Quick Connect (TBQC) Base Module engineered for use with the GE Fanuc Series 90-30 PLC system. Specifically designed to streamline field wiring connections, this module acts as a passive interface between I/O modules and external devices via quick-connect ribbon cables.
As part of the GE Fanuc modular automation platform, the IC693ACC330 significantly reduces installation time, minimizes wiring errors, and enhances system maintainability. By eliminating traditional point-to-point wiring and replacing it with pre-configured connections, the IC693ACC330 ensures consistency, simplifies troubleshooting, and improves efficiency in maintenance-heavy environments.
This base module is commonly paired with compatible GE 90-30 I/O modules, such as discrete input/output modules or analog signal interfaces, providing a robust and clean termination solution for industrial panels, machine control systems, and process plants.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693ACC330 |
| Product Type | Terminal Block Quick Connect (TBQC) Base Module |
| Series Compatibility | GE Fanuc Series 90-30 |
| Function | Provides quick-connect interface for I/O modules |
| Connection Method | Ribbon cable (IDC-type) |
| Compatible Cable Assemblies | GE IC693CBL3xx Series Cables |
| Supported Modules | GE discrete input/output and analog modules |
| Mounting Options | DIN Rail or Panel Mounting |
| Enclosure Material | High-durability industrial ABS plastic |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5–10 Hz, 0.2g |
| Shock Resistance | 15g |
| Certifications | UL, CSA, CE |
| Dimensions (H x W x D) | 117.86 × 57 × 45 mm |
| Weight | 0.1 kg |
Product Applications
The GE IC693ACC330 TBQC Base Module is widely used in the following applications:
-
Factory Automation Systems – Simplifies I/O wiring for complex machine control.
-
Process Control Panels – Enhances reliability in analog and digital signal routing.
-
Power and Utility SCADA Systems – Speeds up deployment in substations and control centers.
-
Food & Beverage Processing Lines – Provides clean, modular cabling in regulated environments.
-
Pharmaceutical Manufacturing – Meets stringent wiring and traceability standards.
-
Water/Wastewater Automation – Facilitates modular upgrades and preventive maintenance.
Product Advantages
-
Rapid Wiring and Installation
The quick-connect ribbon system eliminates the need for manual point-to-point wiring, significantly reducing installation time. -
Reduced Human Error
Predefined cable terminations ensure consistent and error-free connections during installation or maintenance. -
Simplified Maintenance
Modules and cables can be swapped quickly, minimizing downtime during service windows. -
Compact and Durable Design
Engineered for industrial environments with rugged plastic housing and compact footprint. -
Compatible with Multiple Modules
Can be used across a range of I/O modules, increasing flexibility in control system design. -
Clean Cabinet Layout
Promotes organized wiring and a more maintainable panel design. -
Standards Compliance
Meets industrial certifications such as UL, CSA, and CE for global applications.
Frequently Asked Questions (FAQ)
-
What is the main function of the IC693ACC330 TBQC base module?
It serves as a wiring base that provides a quick-connect interface between I/O modules and field wiring using ribbon cables. -
Which I/O modules are compatible with this TBQC base?
It is compatible with GE Fanuc Series 90-30 discrete and analog input/output modules. -
Can this be used with the IC693CBL305 ribbon cable?
Yes, it supports various ribbon cables from the IC693CBL3xx series, including the IC693CBL305. -
Does this base support DIN rail mounting?
Yes, it can be DIN rail-mounted or panel-mounted, depending on installation preferences. -
Is this product hot-swappable?
No, the power should be disconnected before removing or replacing this module. -
What makes this base different from screw terminal blocks?
It uses ribbon connectors to drastically reduce wiring complexity and save space. -
Does this base support shielded cables?
Yes, if used with properly grounded and shielded ribbon cable assemblies. -
What is the maximum operating temperature?
The base supports operating temperatures up to +60°C. -
Is the IC693ACC330 suitable for high-vibration environments?
Yes, it has built-in shock and vibration resistance in line with industrial standards. -
How heavy is the IC693ACC330 module?
The module weighs 0.1 kg.
