Product  Introduction:

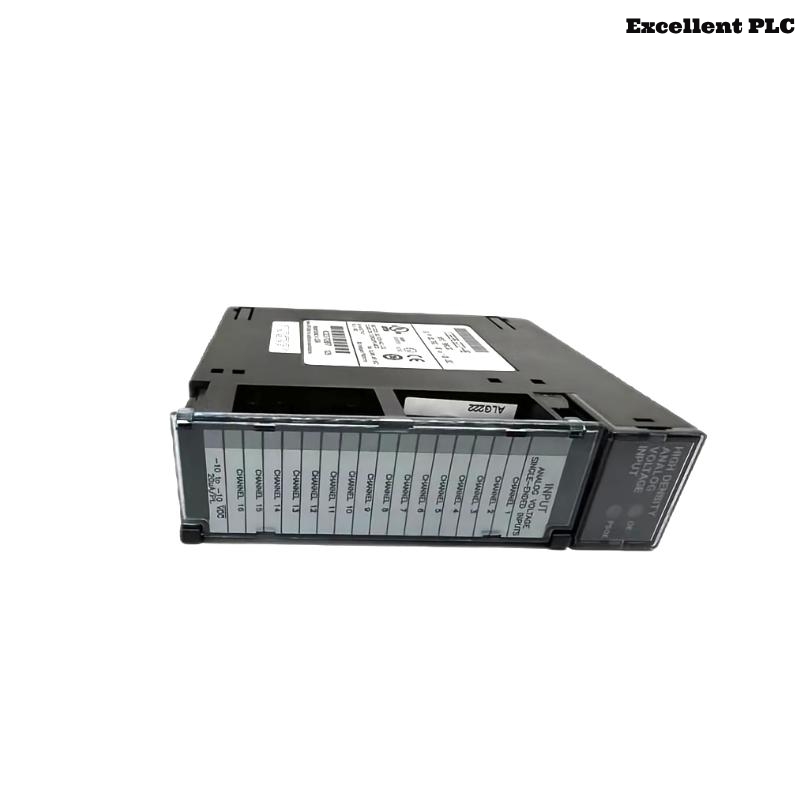

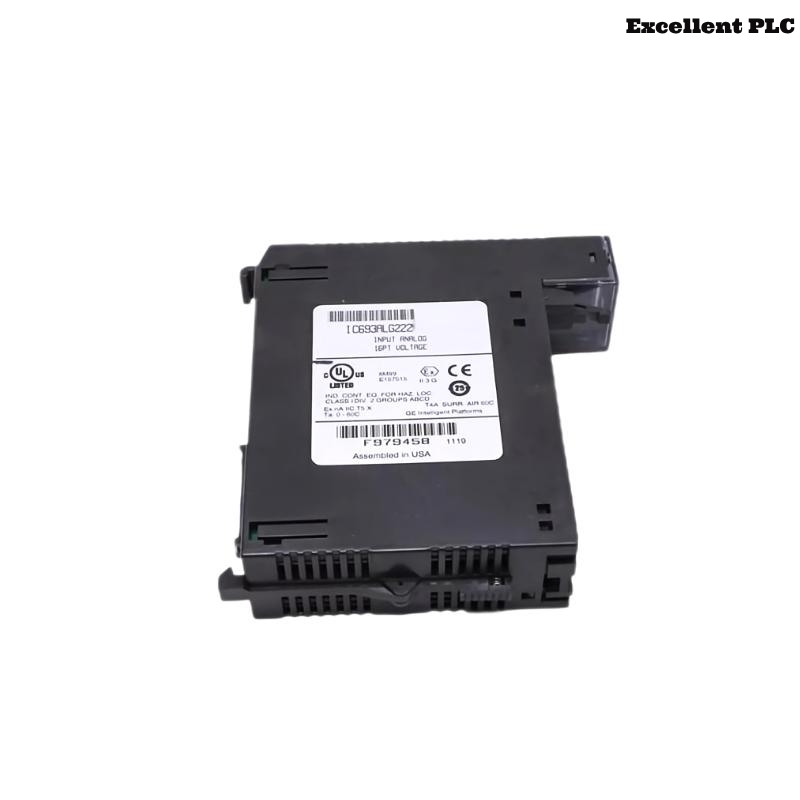

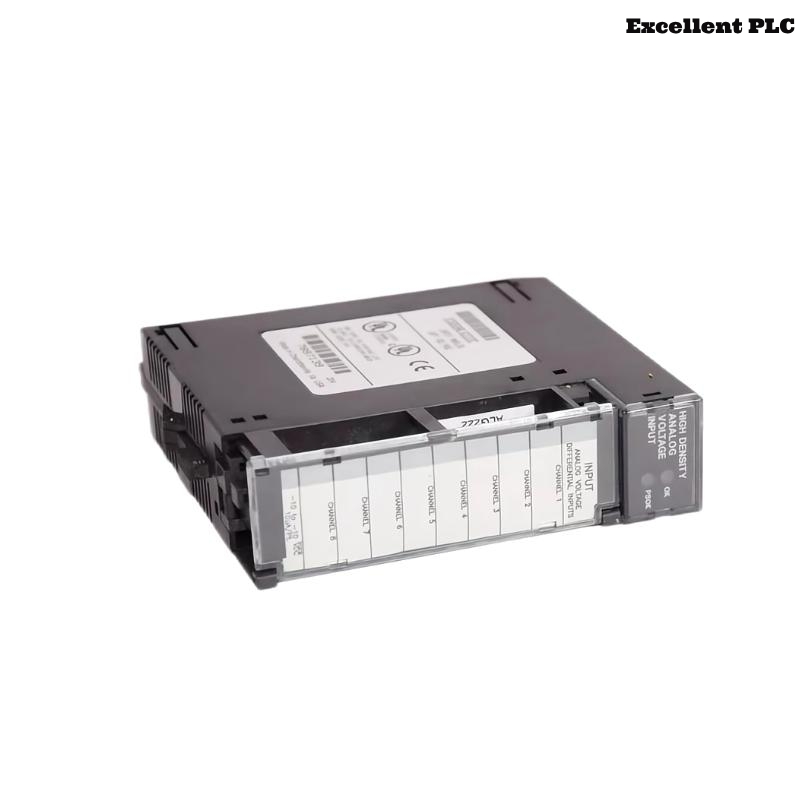

The GE IC693ALG222 Analog Voltage Input Module is a high-performance input module designed for use in the GE Fanuc Series 90-30 PLC system. This module provides the ability to interface with analog voltage signals and convert them into digital signals for the PLC system to process. It is specifically designed to offer accurate and reliable measurement of analog voltage inputs, making it ideal for various industrial automation applications.

The IC693ALG222 is equipped with high-resolution input channels that support a wide range of voltage signals, making it highly versatile. It is often used in systems requiring the monitoring and control of analog devices, such as sensors, transmitters, and other analog equipment. The module is known for its precision and reliability in capturing and converting analog voltage signals into a form that the PLC can use for further processing and control.

---

Product Parameters:

Below is a detailed table outlining the key specifications of the GE IC693ALG222 Analog Voltage Input Module:

---

Applications:

The GE IC693ALG222 Analog Voltage Input Module is suitable for various applications across different industries, particularly where analog voltage inputs need to be processed by a programmable logic controller (PLC). Some typical applications include:

1. Industrial Automation: It is used in automation systems to interface with analog sensors that monitor temperature, pressure, flow, and other process variables.

2. Process Control Systems: The module is used to convert analog signals from process equipment such as flowmeters, pressure transmitters, and temperature sensors into digital signals for the PLC system to process.

3. Energy Management Systems: The IC693ALG222 is employed in energy monitoring systems where voltage levels from power meters need to be accurately monitored and controlled.

4. Factory Monitoring Systems: For monitoring machine performance, the module can be used with analog output devices that provide feedback to the PLC system.

5. Data Acquisition Systems: It is also used in systems where data from analog sources needs to be captured for analysis and decision-making.

6. Environmental Monitoring: The module is used for collecting data from environmental sensors such as humidity, gas, and radiation sensors, where analog signals are crucial for environmental control systems.

---

Advantages:

1. High Accuracy: The IC693ALG222 provides exceptional accuracy in capturing analog signals, ensuring that the data it processes is reliable and precise, which is critical for industrial applications.

2. Multiple Input Configurations: The ability to handle both differential and single-ended input types allows the module to be used in a variety of applications, offering greater flexibility in system design.

3. High Resolution: With a 12-bit resolution, the module offers finer granularity in signal measurement, allowing for more precise data capture.

4. Easy Integration: The IC693ALG222 is designed to easily integrate with the GE Fanuc Series 90-30 PLC, enabling users to expand their systems without complex configurations.

5. Compact Design: The module’s compact dimensions make it suitable for use in environments where space is limited, while still providing full functionality.

6. Programmable Filtering: The module features programmable digital filtering, which helps eliminate noise and improve signal clarity, making it ideal for environments with fluctuating or noisy signals.

7. Durable Construction: The IC693ALG222 is designed to operate reliably in a variety of harsh industrial environments, ensuring long-lasting performance.

---

Frequently Asked Questions (FAQ):

1. What types of signals can the IC693ALG222 module read?

   • The IC693ALG222 can read differential and single-ended analog voltage signals, with input ranges such as 0-10V, ±10V, 0-5V, and ±5V.

2. How many analog channels are available on the IC693ALG222?

   • The IC693ALG222 features 8 analog input channels.

3. What is the resolution of the IC693ALG222?

   • The module offers 12-bit resolution for precise signal measurement.

4. Can the IC693ALG222 handle temperature extremes?

   • Yes, the module can operate within a temperature range of 0°C to 60°C.

5. How is the IC693ALG222 mounted?

   • The module is mounted on a Series 90-30 PLC rack for easy installation.

6. Is there a status indicator for each input channel?

   • Yes, each input channel has an LED indicator to show its status.

7. What is the maximum operating voltage for the IC693ALG222?

   • The module operates at 5V DC.

8. What is the typical weight of the IC693ALG222 module?

   • The IC693ALG222 weighs 0.41 kg.

9. Can the IC693ALG222 module be used with other brands of PLCs?

   • The IC693ALG222 is designed for the GE Fanuc Series 90-30 PLC, and compatibility with other brands may be limited.

10. What is the warranty period for the IC693ALG222?

    • We provide one year warranty.

---
