Product Introduction

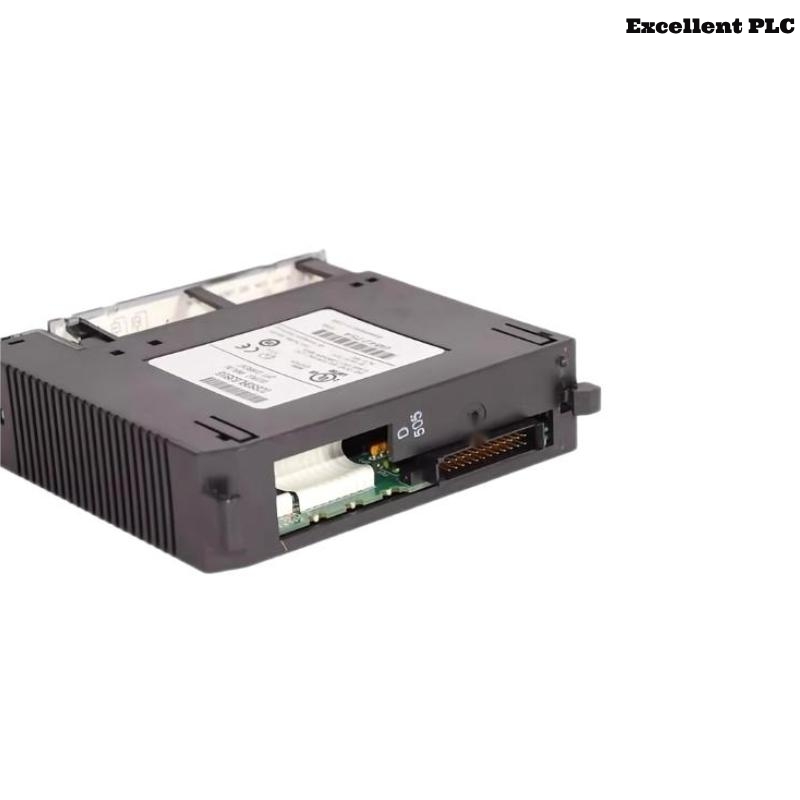

The GE IC693ALG391 is a 2-channel analog current output module designed for the GE Fanuc Series 90-30 programmable logic controller (PLC) family. It is specifically engineered to deliver reliable current signals for field device control in process automation systems. Each channel is capable of outputting signals in the range of 4 to 20 mA, which is the industry standard for analog current control.
The module is isolated from the backplane and includes diagnostic features that help monitor system integrity. Its compact design, high accuracy, and compatibility with Series 90-30 racks make it ideal for both retrofit projects and new control system installations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693ALG391 |
| Product Type | Analog Output Module (Current) |
| Number of Channels | 2 isolated analog output channels |
| Output Signal Range | 4 to 20 mA |
| Resolution | 12-bit resolution (approx. 4.88 μA/bit) |
| Load Resistance | 0 to 750 Ohms |
| Channel Isolation | No channel-to-channel isolation; isolated from PLC logic |
| Accuracy | ±0.5% of full scale |
| Update Rate | 5 ms/channel |
| Power Consumption | 100 mA @ 5V DC (from backplane) |
| Diagnostics | Internal fault detection, channel diagnostics |
| System Compatibility | GE Fanuc Series 90-30 PLCs |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, CSA, Class I Div 2 compliant |
| Dimensions (H × W × D) | 51 x 127 x 127 mm |
| Weight | 0.358 kg |
Product Applications
The GE IC693ALG391 module is widely used in industries requiring precision analog current control. Typical applications include:
-
Process Automation: Controls valves, actuators, and pumps using 4–20 mA signals in chemical, oil & gas, and pharmaceutical plants.
-
Water & Wastewater Treatment: Interfaces with flow controllers and dosing pumps.
-
HVAC Systems: Sends setpoint signals to actuators and dampers.
-
Power Generation: Controls excitation systems, voltage regulators, and feedback loops.
-
Manufacturing Automation: Interfaces with analog-driven motors and other industrial equipment.
-
Food & Beverage: Manages process temperatures and liquid flow rates using analog control.
Product Advantages
-
Industry-Standard Output: Provides 4–20 mA signals, widely accepted in industrial automation systems.
-
High Accuracy: ±0.5% full-scale accuracy ensures precise current output.
-
12-Bit Resolution: Offers smooth analog signal transitions, minimizing fluctuations.
-
Electrical Isolation: Isolation from logic circuitry improves system safety and reduces interference.
-
Compact Design: Easy to install in tight control panel spaces within a 90-30 rack.
-
Easy Integration: Seamless compatibility with GE Series 90-30 hardware and programming tools.
-
Fast Output Update: 5 ms update rate ensures quick response in control loops.
-
Integrated Diagnostics: Detects faults and helps in proactive maintenance.
-
Robust Operation: Operates reliably across a wide temperature and humidity range.
-
Longevity & Reliability: Proven performance record in thousands of industrial applications.
Frequently Asked Questions (FAQ)
-
Q: What type of output does the IC693ALG391 module provide?
A: It provides analog current output in the range of 4 to 20 mA. -
Q: How many output channels are available?
A: The module has 2 analog output channels. -
Q: Is the module compatible with other GE platforms like RX3i?
A: No, it is specifically designed for the GE Fanuc Series 90-30 platform. -
Q: Are the channels isolated from one another?
A: No, channel-to-channel isolation is not provided. However, the outputs are isolated from PLC logic. -
Q: What is the minimum and maximum load resistance supported?
A: The module supports a load resistance from 0 to 750 Ohms. -
Q: What is the typical accuracy of the current output?
A: It has a typical accuracy of ±0.5% of full scale. -
Q: Can the module be hot-swapped during operation?
A: No, Series 90-30 modules are not designed for hot-swapping. -
Q: Does it require an external power source for the analog output?
A: No, it draws power from the PLC backplane. -
Q: What kind of diagnostic features does this module have?
A: It has internal diagnostics for channel errors and output faults. -
Q: Can this module be used in hazardous environments?
A: Yes, it is rated for use in Class I, Division 2 hazardous locations.
Related Models (Same Series or Analog I/O)
| Model Number | Description |
|---|---|
| IC693ALG390 | 2-Channel Analog Voltage Output Module (0–10 VDC) |
| IC693ALG223 | 4-Channel Analog Input Module (Voltage/Current) |
| IC693ALG221 | 4-Channel Analog Voltage Input Module |
| IC693ALG392 | 4-Channel Analog Output Module (Voltage/Current) |
| IC693ALG222 | 4-Channel Analog Current Input Module |
| IC693ALG442 | High-Resolution 4-Channel Analog Input Module (16-bit) |
