Product Introduction

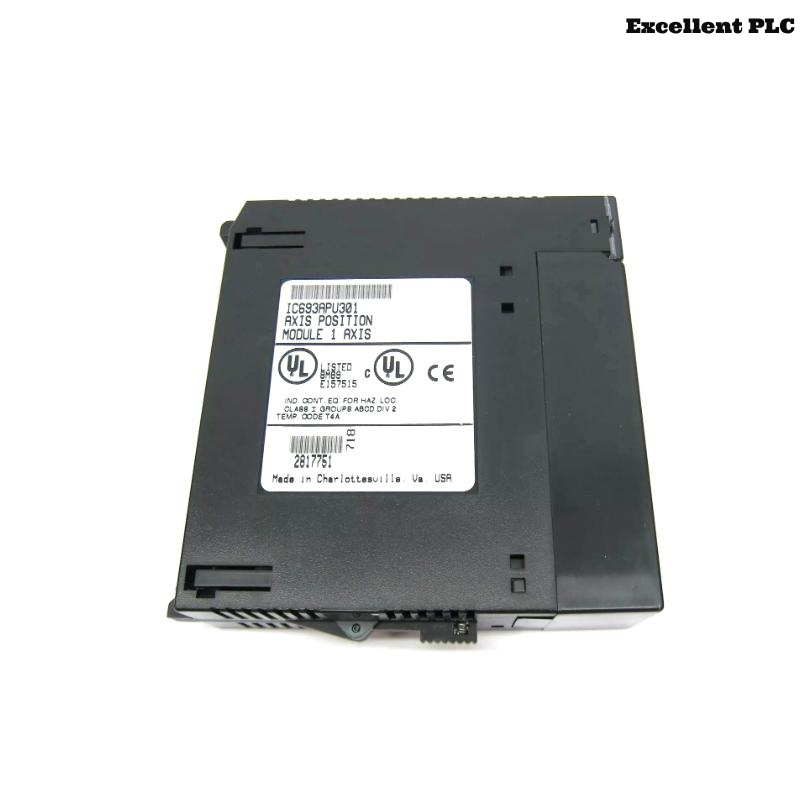

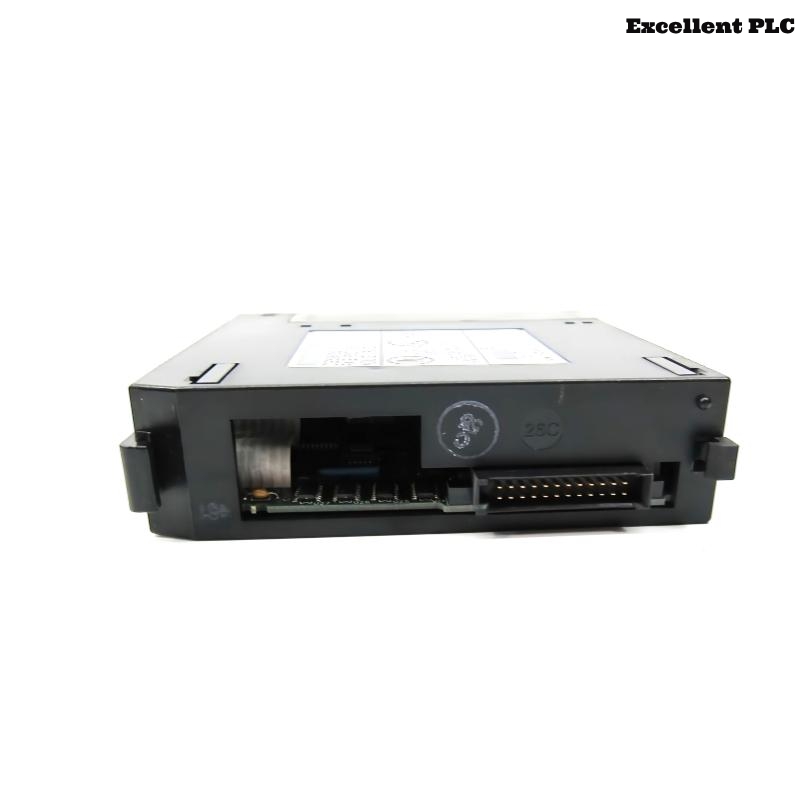

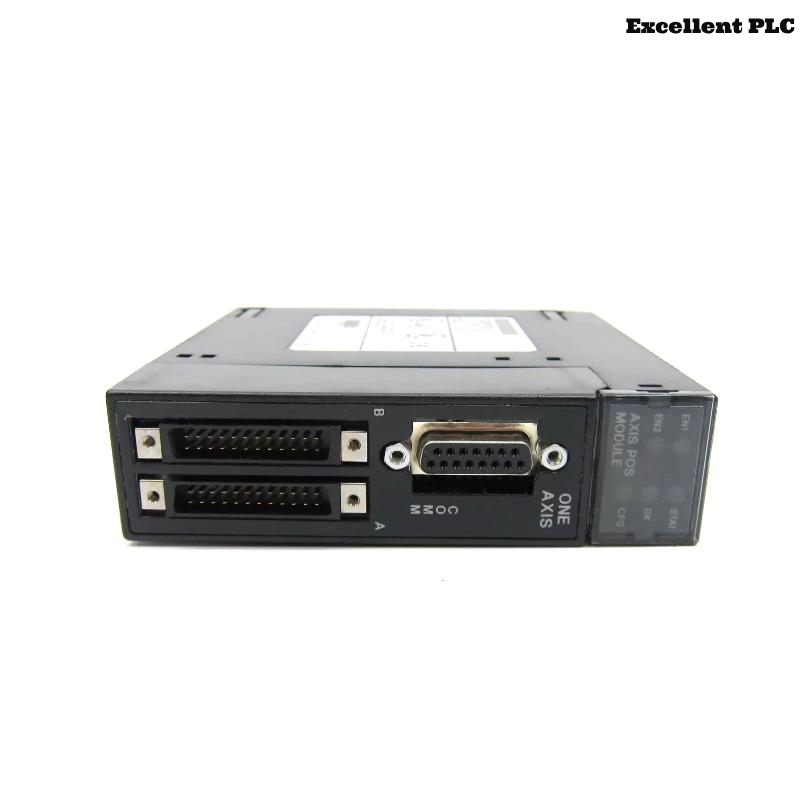

The GE IC693APU301 is a high-performance Axis Positioning Module developed by GE Fanuc for use within the Series 90-30 PLC system. Designed to provide sophisticated motion control capabilities, this module is primarily used for controlling stepper motors and servo drives in applications where accurate axis movement and positioning are critical. With an intelligent processor onboard, it offloads motion control tasks from the main CPU, ensuring more responsive and reliable automation processes.
The module supports both incremental and absolute encoders, features 12-bit resolution for input signals, and provides three pulse output modes (pulse & direction, up/down, and quadrature). It is widely used in industries where precise mechanical motion is essential, such as CNC machines, packaging systems, robotics, and material handling equipment.
Its seamless integration with the GE Series 90-30 PLC platform allows it to be easily programmed using GE Proficy Machine Edition or Logic Developer software, making it suitable for both new installations and retrofits of legacy motion systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | GE Fanuc IC693APU301 Axis Positioning Module |
| Manufacturer | GE Fanuc Automation |
| Series | Series 90-30 |
| Function | Axis positioning and motion control for stepper and servo drives |
| Axis Support | 1 axis per module |
| Encoder Type | Supports incremental and absolute encoders |
| Output Modes | Pulse and Direction, Up/Down, Quadrature |
| Resolution | 12-bit |
| Input Voltage Range | 5V TTL (encoder input) |
| Output Voltage Range | 5V TTL compatible |
| Isolation | Optical isolation between field and logic circuits |
| Communication | Uses I/O base system of Series 90-30 |
| Programming Interface | GE Proficy Machine Edition / Logic Developer |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (H x W x D) | 51 x 127 x 127 mm |
| Weight | 0.23 kg |
| Mounting Type | Rack-mounted |
| Certifications | CE, UL, cUL, Class I Division 2 |
Applications
The IC693APU301 module is ideal for automation applications where precision positioning and axis control are required. Below are some of the primary areas where this module is deployed:
-
CNC Machines: For controlling linear and rotary motion with high precision.
-
Packaging Equipment: Synchronizing conveyor movement and robotic pick-and-place arms.
-
Robotics: Position control for single-axis or multi-axis movement.
-
Material Handling Systems: For managing conveyors, sorting systems, and lifters.
-
Textile Machinery: Controlling fabric feed and tensioning systems.
-
Assembly Lines: Coordinating motion between mechanical tools and sensors.
Advantages
-
Dedicated Motion Processing: Built-in processor handles motion commands independently of the main CPU, improving system responsiveness.
-
Flexible Output Modes: Multiple pulse output formats allow compatibility with various drive systems.
-
High Compatibility: Seamless integration with GE Series 90-30 PLC systems ensures low learning curve and reduced deployment time.
-
Encoder Feedback: Supports encoder feedback for real-time position validation and control.
-
Compact Design: Small footprint and light weight for easy installation in space-constrained panels.
-
Cost-Efficient Upgrade Path: Ideal for retrofitting older systems with modern motion control features without a full system replacement.
-
Reliable Performance: GE’s industrial-grade build ensures durability in harsh environments and extended operational life.
Frequently Asked Questions (FAQ)
-
Q: What type of motors can the IC693APU301 control?
A: It is designed for controlling stepper motors and servo drives using pulse-based signals. -
Q: Does it support multiple axes?
A: No, each IC693APU301 module supports control of a single axis. Multiple modules can be used for multi-axis systems. -
Q: Is encoder feedback supported?
A: Yes, the module supports both incremental and absolute encoder feedback for position monitoring. -
Q: What software is used to configure this module?
A: GE Proficy Machine Edition or Logic Developer software is used for configuration and programming. -
Q: Can this module be used with other PLC brands?
A: No, it is specifically designed to be used with GE Series 90-30 PLC systems. -
Q: Is the module hot-swappable?
A: No, the module must be installed and removed with power off to prevent damage or communication issues. -
Q: How is the module mounted?
A: It is mounted on a standard GE Series 90-30 I/O base rack. -
Q: Does it have electrical isolation?
A: Yes, optical isolation is provided between field inputs and the logic circuitry. -
Q: What output signal types are supported?
A: The module supports pulse & direction, up/down, and quadrature output formats. -
Q: Can I use this module for position-based triggering?
A: Yes, it supports position latch functions and position-based control.
Related or Same Series Models (GE Series 90-30 Motion & I/O Modules)
| Model | Description | Function |
|---|---|---|
| IC693APU300 | High Speed Counter Module | Position counting and feedback |
| IC693MDL240 | 120 VAC Input Module, 16 Points | Discrete input |
| IC693MDL645 | Isolated Relay Output Module, 8 Points | Relay output control |
| IC693ALG390 | Analog Output Module, 2 Channels | Analog signal output |
| IC693BEM331 | Genius Bus Controller Module | Network communication |
| IC693CPU374 | CPU with Ethernet Interface | Main controller CPU |
Popular Models from GE Fanuc (Across Series)
| Model | Description | Function |
|---|---|---|
| IC697CMM742 | Ethernet Interface Module | Ethernet communication |
| IC695CPE330 | RX3i CPU with Ethernet | High-performance CPU |
| IC695ETM001 | RX3i Ethernet Interface | Network interface |
| IC693CHS391 | 10-Slot I/O Base | I/O expansion rack |
| IC200MDL750 | VersaMax Discrete Input Module | Digital input for VersaMax |
| IC694MDL645 | Output Relay Module for RX3i | Isolated relay output |
