Product Introduction

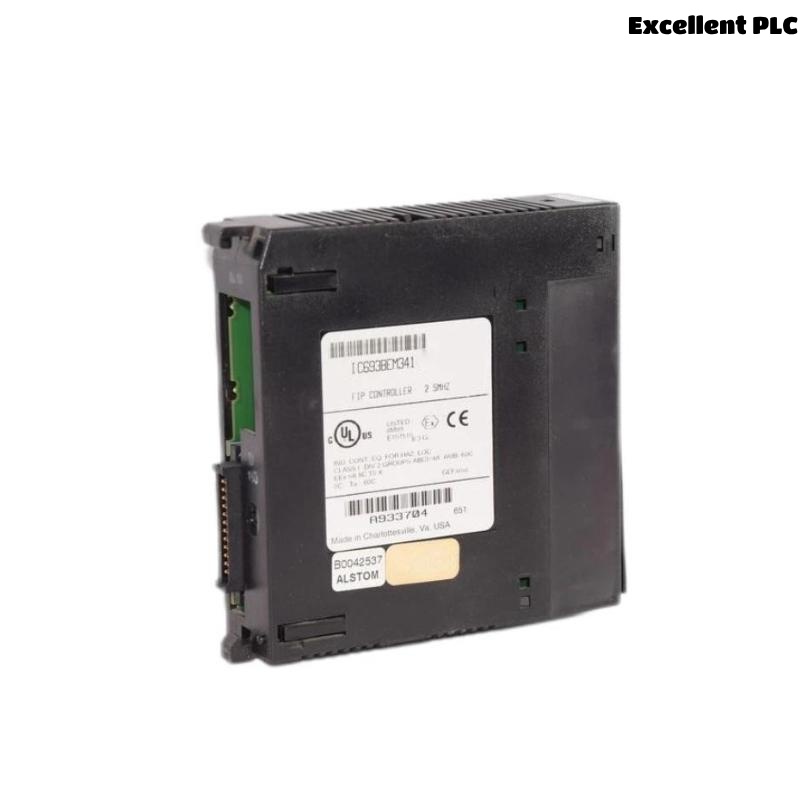

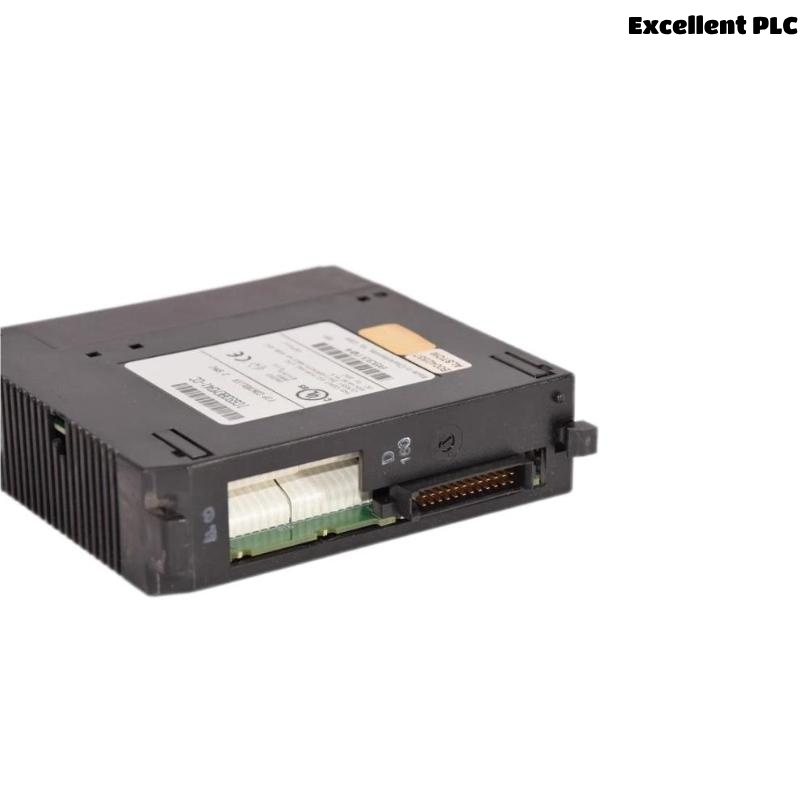

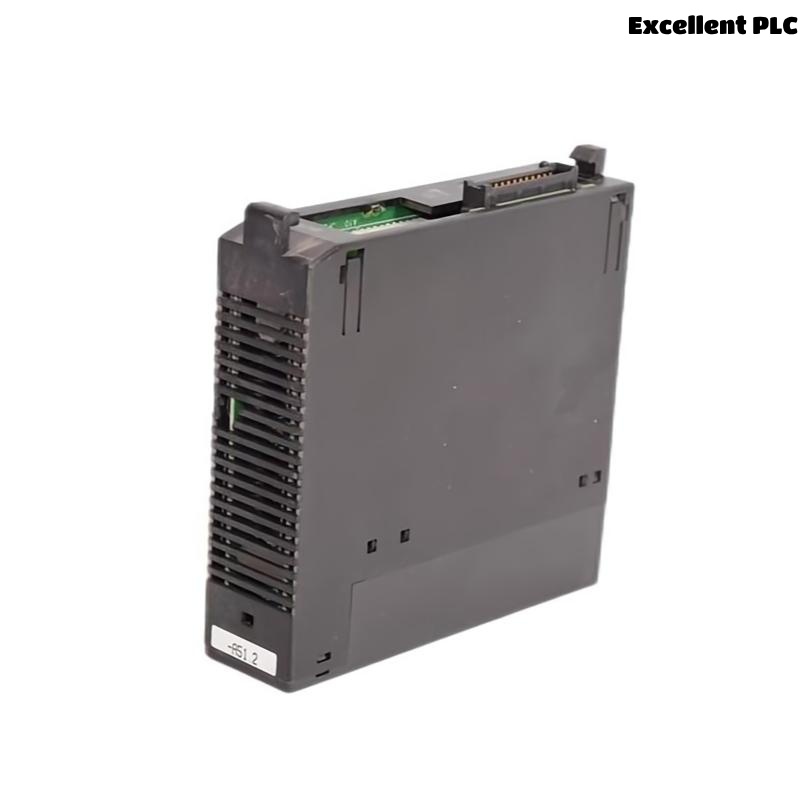

The GE IC693BEM341 is a Bus Controller module specifically designed for use within the GE Fanuc Series 90-30 PLC system. It acts as a vital communication bridge between the CPU and other intelligent devices or remote I/O systems connected via the GE Genius I/O bus. This module enables high-speed, efficient, and reliable data transfer in real-time industrial control environments, ensuring seamless integration across diverse automation components.
The IC693BEM341 is installed in a Series 90-30 baseplate and communicates directly with the CPU, handling all I/O bus traffic on the Genius Bus. It supports both discrete and analog I/O and can interface with up to 31 devices on the Genius I/O network. This makes it a suitable solution for scalable, distributed control systems in industrial applications that demand dependable, high-performance communications.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693BEM341 |
| Product Type | Genius Bus Controller Module |
| Supported Platform | GE Fanuc Series 90-30 PLC |
| Communication Type | Genius I/O Bus |
| Bus Baud Rate | Up to 153.6 Kbps |
| Connected Devices | Up to 31 devices |
| Mounting | Rack-mounted on 90-30 baseplate |
| Status Indicators | LED indicators for module status and communication |
| Power Consumption | 450 mA from 5V backplane |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, CSA |
| Dimensions (HxWxD) | 100 × 127 × 60 mm |
| Weight | 0.386 kg |
| Diagnostics | Built-in diagnostics for bus and device communication |
Product Applications
The GE IC693BEM341 is widely used in various industrial automation settings that require distributed I/O communication and process control. Common application areas include:
-
Manufacturing plants for assembly line coordination
-
Water and wastewater treatment facilities
-
Material handling and robotics
-
Automotive and packaging systems
-
Power and energy management solutions
-
Pharmaceutical and chemical processing plants
Product Advantages
-
High Compatibility
Seamlessly integrates with existing Series 90-30 PLC hardware and Genius I/O modules. -
Robust and Reliable Communication
Ensures real-time, deterministic communication with up to 31 devices on a single bus. -
Efficient Diagnostics
Built-in diagnostics provide immediate feedback on communication status and potential faults. -
Flexible Architecture
Supports both discrete and analog I/O modules, offering versatility in system design. -
Cost-Effective Expansion
Reduces wiring and infrastructure cost by enabling remote I/O access over a single communication bus. -
Industrial-Grade Durability
Withstands harsh industrial environments with wide operating temperature and humidity ranges.
Frequently Asked Questions (FAQs)
-
What is the main function of the IC693BEM341 module?
It serves as a Genius I/O Bus Controller, facilitating communication between the PLC CPU and remote I/O devices. -
Can the IC693BEM341 be used with Series 90-70?
No, it is specifically designed for the GE Fanuc Series 90-30 platform. -
How many devices can it support on the Genius Bus?
Up to 31 devices can be connected and addressed on the bus. -
Does the module support hot-swapping?
No, the IC693BEM341 does not support hot-swapping. Power should be turned off before removal or insertion. -
What type of I/O does it support?
It supports both discrete and analog Genius I/O blocks. -
Is this module compatible with third-party devices?
Only if those devices are Genius I/O compatible or certified for Genius Bus. -
What is the recommended cable for Genius Bus?
Belden 9463 or equivalent twisted-pair cable is commonly used for Genius Bus networks. -
Does the module have status indicators?
Yes, it includes LED indicators that show communication and module status. -
What are the environmental specifications for this unit?
It operates between 0°C to 60°C and up to 95% non-condensing humidity. -
How is the IC693BEM341 powered?
It draws power from the Series 90-30 backplane (450 mA at 5V).
