Product Introduction

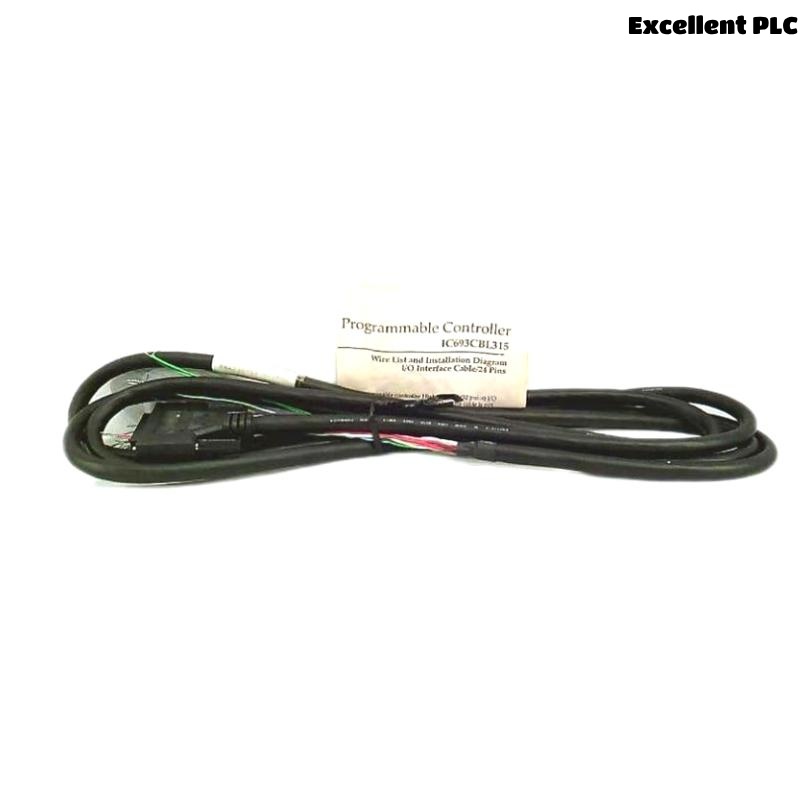

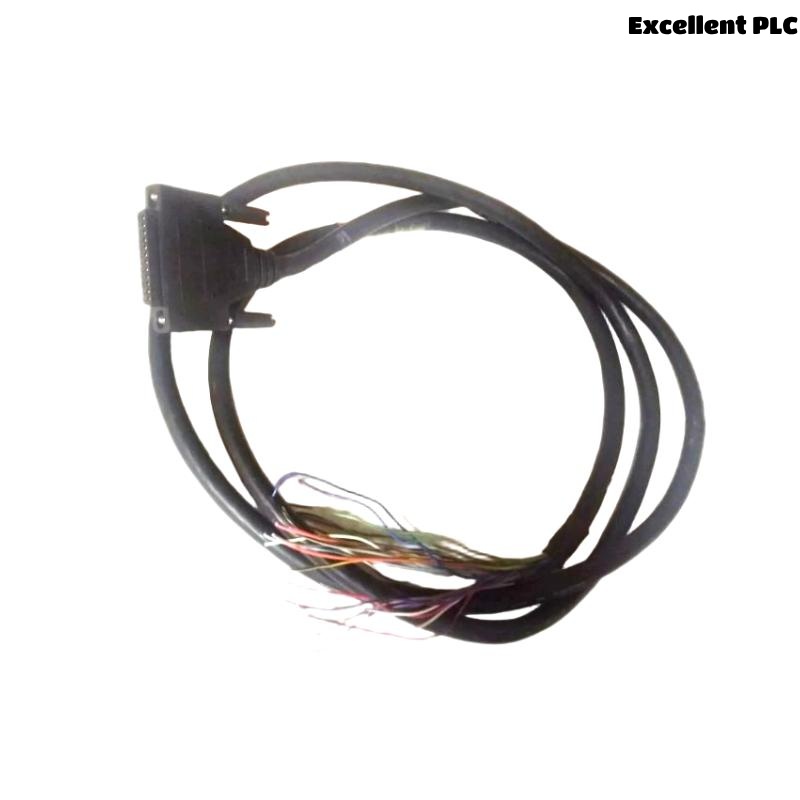

The GE IC693CBL315 is a factory-assembled Remote I/O Expansion Cable designed specifically for use with the GE Fanuc Series 90-30 PLC systems. As part of the trusted GE Fanuc automation platform, this 3 meters cable allows seamless communication between a central CPU rack and remote or expansion I/O racks, enabling scalable and modular architecture across industrial control environments.
Built with durable materials and industrial-grade shielding, the IC693CBL315 is ideal for environments requiring high-performance signal integrity over moderate distances. The pre-terminated connectors ensure reliable plug-and-play installation, minimizing installation time and error, while maximizing system uptime.
Whether in discrete manufacturing, utilities, or continuous process control, this cable plays a critical role in ensuring stable and synchronized operation across multiple hardware racks in a distributed control system.
Technical Specifications
Parameter | Details |
---|---|
Model Number | IC693CBL315 |
Product Type | Remote I/O Expansion Cable |
Cable Type | Multi-conductor, shielded |
Compatible Systems | GE Fanuc Series 90-30 |
Connector Type | GE proprietary expansion connectors |
Application | Communication between CPU rack and I/O expansion rack |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 85°C |
Humidity Range | 5% to 95% (non-condensing) |
Construction | Braided shielding, copper core, PVC insulation |
Certifications | UL, CSA, CE |
Cable Length | 3 meters |
Weight | 0.408 kg |
Applications
The IC693CBL315 is widely used in automation environments where rack-based expansion of the PLC system is required. It serves as the communication bridge between the CPU and one or more remote I/O racks.
Common application scenarios include:
-
Modular manufacturing lines with distributed control architecture
-
Automated warehousing and material handling systems
-
Water treatment and pumping stations with distributed I/O
-
Petrochemical and refinery systems requiring remote sensor integration
-
Packaging and bottling plants needing spatial separation of I/O devices
-
OEM machine control systems with high flexibility and modularity
The cable allows for physical separation of racks without compromising communication integrity, making it essential for scalable control system deployment.
Product Advantages
-
Reliable Long-Distance Communication: 3 meters reach with minimal signal loss and strong shielding.
-
Plug-and-Play: Pre-terminated connectors eliminate guesswork during installation.
-
Shielded Construction: Reduces electromagnetic interference in industrial environments.
-
GE Certified Compatibility: Designed for and tested with Series 90-30 systems.
-
Flexible and Durable: Withstands repeated handling, bending, and long-term industrial use.
-
No Configuration Required: Recognized immediately by the PLC upon connection.
-
Reduces Wiring Complexity: Simplifies rack-to-rack communication setup.
-
Cost-Effective Expansion: Facilitates system scaling without additional processors.
-
Minimizes Downtime: Fast, reliable connections help ensure high system availability.
-
Standard Compliance: Meets major industrial safety and emission standards (UL, CE, CSA).
-
Frequently Asked Questions (FAQ)
-
What systems can I use the GE IC693CBL315 cable with?
This cable is designed specifically for GE Fanuc Series 90-30 PLC systems. It is not intended for use with other GE series like RX3i or VersaMax. -
Do I need to install software or drivers to use this cable?
No, the cable functions as a hardware connection between racks. Once physically connected, no additional configuration is required. -
Is it safe to use the IC693CBL315 in a high-temperature environment?
It can operate safely within a temperature range of 0°C to 60°C. For environments exceeding this range, additional protection may be necessary. -
Can this cable support multiple expansion racks simultaneously?
No, each IC693CBL315 cable connects one CPU rack to one remote or expansion rack. For additional racks, more connections are required. -
How should I route this cable in a control cabinet?
Route the cable away from high-voltage lines and sources of electrical noise. Use cable trays or conduit where possible to protect against damage. -
What is the proper way to disconnect the cable?
Always power down the system before disconnecting. Carefully release the connector latches to avoid damaging the terminals. -
Is the cable flexible enough for tight spaces or cable trays?
Yes, the cable has moderate flexibility and can be bent gently to fit inside control panels or trays. However, avoid sharp bends or kinks. -
What should I do if the system doesn’t recognize the expansion rack after connection?
Check the cable seating at both ends, ensure power is properly supplied, and verify the rack modules are correctly installed. -
Can I use the cable outdoors or in wet environments?
The IC693CBL315 is not rated for outdoor or wet locations unless additional protective conduits are used. -
Is this cable reusable after system upgrade?
Yes, if the new system remains within the Series 90-30 family and rack configuration is unchanged.
-
Recommended Related Models (Same Series / Function)
Model | Description | Length | Application |
---|---|---|---|
IC693CBL313 | Expansion Cable for 90-30 (1 meter) | 1 meter | Short-distance rack expansion |
IC693CBL314 | Expansion Cable for 90-30 (15 feet) | 4.5 meters | Mid-range I/O rack extension |
IC693CBL316 | Expansion Cable for 90-30 (22 feet) | 6.7 meters | Longer-distance rack extension |
IC693ACC310 | Expansion Cable Adapter | – | Adapter for custom cabling |
IC693CBL301 | RS232 Programming Cable | 1.8 meters | PLC programming/diagnostics |
IC693ACC307 | 90-30 Remote Power Cable | 2 meters | Power distribution to remote racks |
