Product Introduction

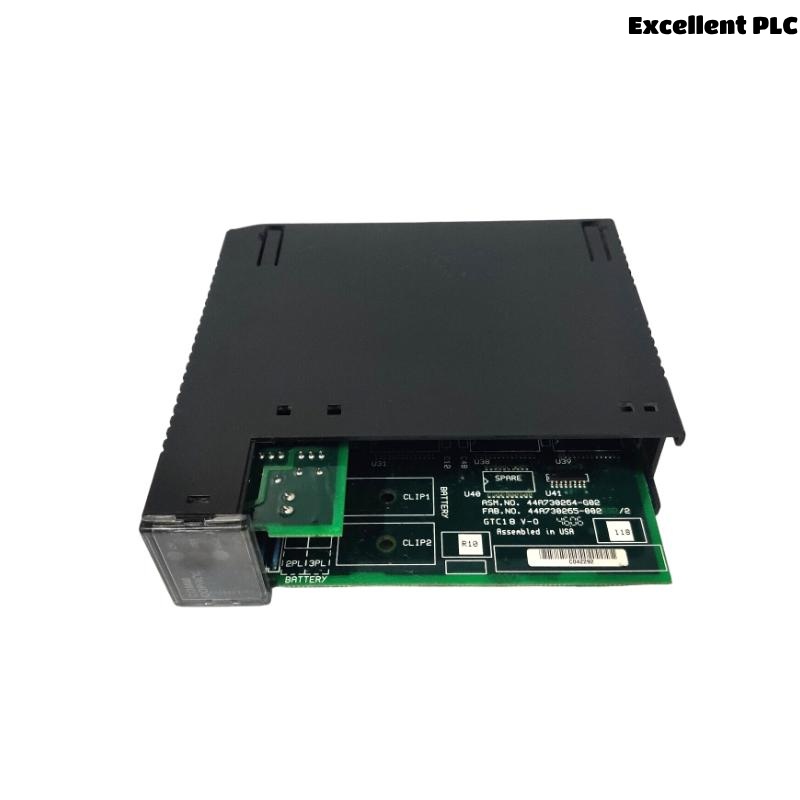

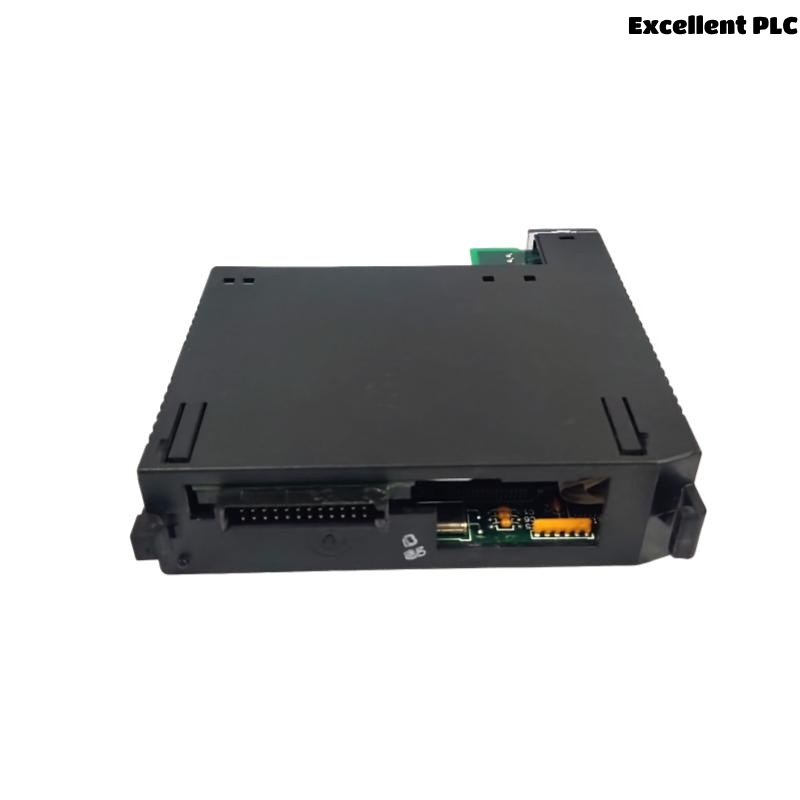

The GE IC693CMM311 is a Communications Coprocessor Module designed for the GE Fanuc Series 90-30 programmable logic controller (PLC) system. This module significantly enhances the communication capabilities of a PLC by providing an additional serial port and offloading communication processing from the main CPU. It is used to enable serial communication between the Series 90-30 PLC and external devices such as computers, HMIs (Human-Machine Interfaces), bar code readers, and other serial-enabled equipment.
The IC693CMM311 supports Modbus RTU master and slave protocols, as well as user-defined protocols, making it highly versatile in multi-device environments. By integrating this module, users can configure their automation systems to communicate with a wide variety of third-party devices over RS-232 or RS-485.
Engineered for reliability and performance in industrial settings, the CMM311 is a robust and flexible solution for applications requiring advanced serial communication.
Product Specifications
| Parameter | Details |
|---|---|
| Model | IC693CMM311 |
| Series | GE Fanuc Series 90-30 |
| Product Type | Communications Coprocessor Module |
| Communication Protocols | Modbus RTU Master, Modbus RTU Slave, User-defined protocols |
| Supported Ports | 1 Serial Port (RS-232 / RS-485, software-selectable) |
| Baud Rates | 300 to 19,200 bps (software-configurable) |
| Parity | Odd, Even, None |
| Stop Bits | 1 or 2 |
| Mounting Location | Any I/O slot (except CPU slot) |
| Power Requirements | 5 VDC, 300 mA |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 125 x 160 x 25 mm |
| Weight | 0.4 kg |
| LED Indicators | OK, TX, RX |
| Certifications | UL, CSA, CE |
Product Applications
The IC693CMM311 is designed for use in a wide range of industrial environments where serial communication between the PLC and external devices is required. Common applications include:
-
Factory Automation Systems
For communication with barcode scanners, operator panels, and data terminals. -
SCADA and HMI Integration
Enables the PLC to exchange data with SCADA systems using Modbus protocols. -
Building Automation
Used to interface HVAC controllers, lighting systems, and building sensors. -
Energy Management Systems
Facilitates data acquisition from meters and power analyzers. -
Transportation and Traffic Control
Connects to signage systems, fare collection terminals, or ticketing machines. -
Packaging and Labeling Equipment
Interfaces with printers, weighers, and labeling devices in automated lines.
Product Advantages
-
Protocol Flexibility
Supports both Modbus RTU Master and Slave roles, plus custom protocols. -
CPU Offloading
Communication tasks are handled by the module, reducing CPU burden. -
Dual Interface Modes
Software-selectable RS-232 and RS-485, offering broad compatibility. -
Compact Integration
Easily installs in any I/O slot within the Series 90-30 baseplate. -
Diagnostic LEDs
Built-in TX/RX/OK LEDs help in real-time communication diagnostics. -
Extended Baud Rate Range
Supports speeds from 300 to 19,200 bps, accommodating slow and fast devices. -
Industrial Ruggedness
Designed to withstand industrial operating conditions over long lifespans. -
Simplified Configuration
Uses GE Fanuc configuration software for intuitive setup and monitoring.
Frequently Asked Questions (FAQ)
-
What does the IC693CMM311 module do?
It enables serial communication between the GE Series 90-30 PLC and external devices. -
What protocols does it support?
It supports Modbus RTU (Master and Slave) and user-defined protocols. -
Can I use it with both RS-232 and RS-485 devices?
Yes, the port is software-configurable for either RS-232 or RS-485. -
How many serial ports does it offer?
One serial port with selectable communication standards. -
Does it reduce the load on the main CPU?
Yes, it handles communications independently as a coprocessor. -
Can I install it in any slot?
Yes, except the CPU slot. It can be installed in any standard I/O slot. -
Is this module compatible with SCADA systems?
Yes, particularly through its Modbus RTU support. -
Are the baud rate and parity settings adjustable?
Yes, settings like baud rate, parity, stop bits are software-configurable. -
Does it come with diagnostic indicators?
Yes, it features OK, TX (Transmit), and RX (Receive) LEDs. -
Can it be used for custom communication protocols?
Yes, it supports user-defined protocols in addition to standard ones.
Related Models from the Same Series
| Model | Description | Function | Protocol Support |
|---|---|---|---|
| IC693CMM301 | Genius Communications Module | Genius Bus Interface | Genius Protocol |
| IC693CMM302 | Ethernet Interface Module | TCP/IP Ethernet Communications | Ethernet (UDP, TCP/IP) |
| IC693CMM321 | CCM Communications Module | GE’s CCM Protocol Support | CCM Protocol |
| IC693CMM311U | Updated Communications Coprocessor | Enhanced Serial Support | Modbus RTU / User-defined |
| IC693CBL316 | RS-232 Serial Cable for CMM311 | Accessory / Cable | N/A |
| IC693MAR590 | 4-Channel Analog Output Module | Analog Output | N/A |
Popular Models from GE (Same Brand)
| Model | Description | Type | Key Features |
|---|---|---|---|
| IC693CPU364 | CPU with Ethernet and Serial Port | CPU Module | Built-in Ethernet, 240 KB memory |
| IC695CPE330 | RX3i CPE CPU Module | CPU Module | 1 GHz CPU, 64 MB memory, USB ports |
| IC200MDL750 | VersaMax Discrete Input Module | I/O Module | 32-pt DC Input, Sink/Sourcing |
| IC695ETM001 | RX3i Ethernet Interface Module | Network Interface | High-speed Ethernet communications |
| IC200ALG260 | VersaMax Analog Input Module | I/O Module | 8-Channel, 4–20 mA / 0–10V support |
| IC200CHS002 | VersaMax 7-Slot DIN Rail Mount Backplane | Baseplate | Compact modular backplane |
