Product Overview

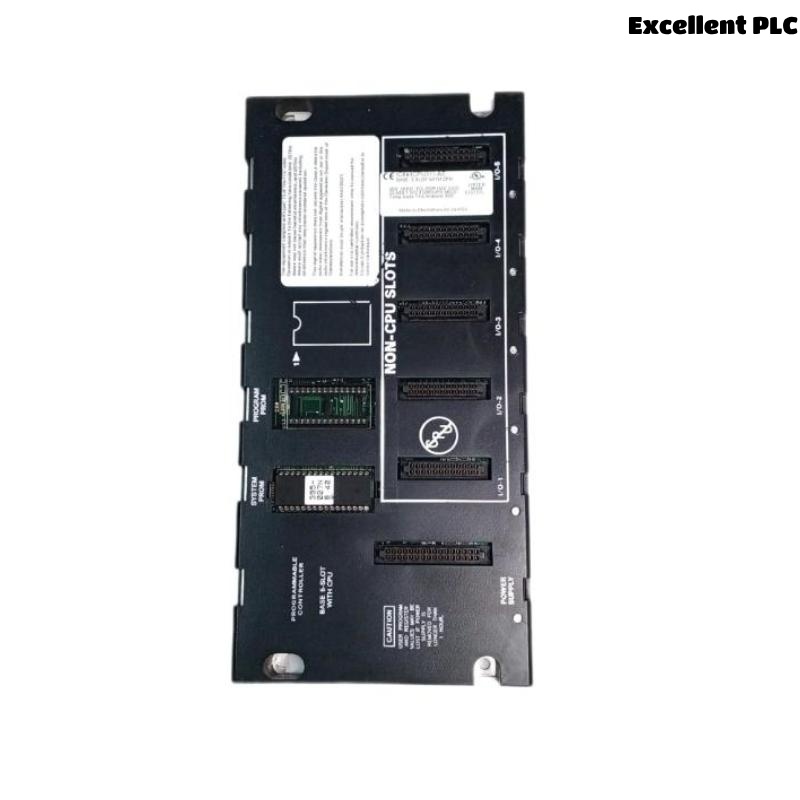

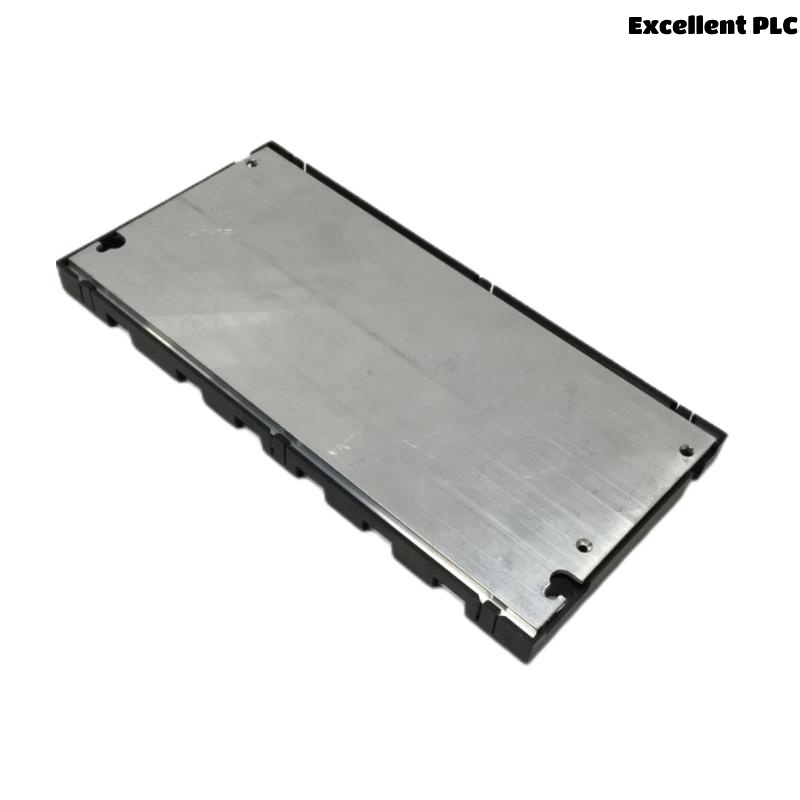

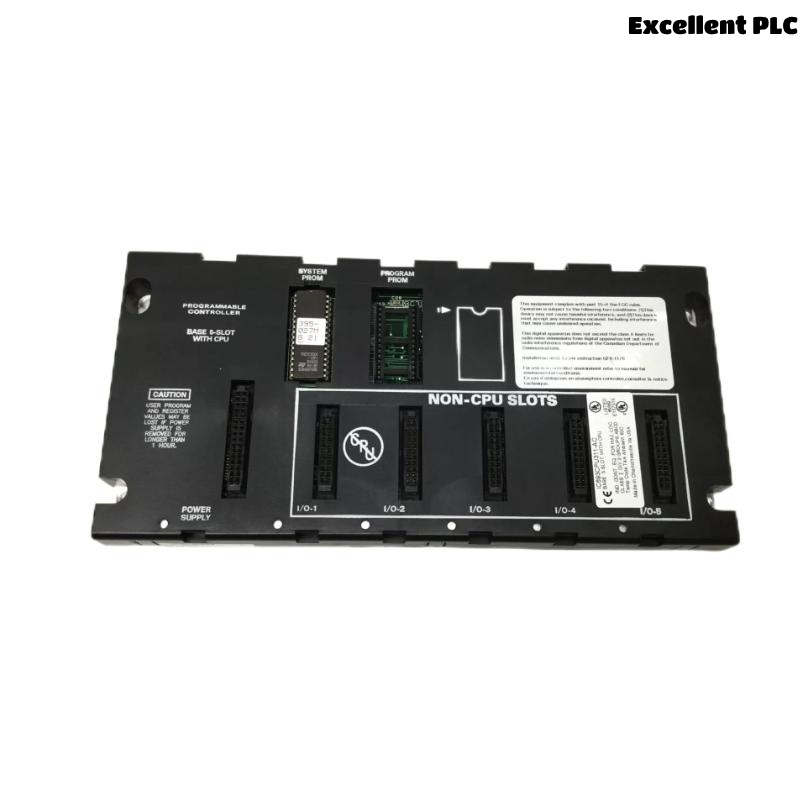

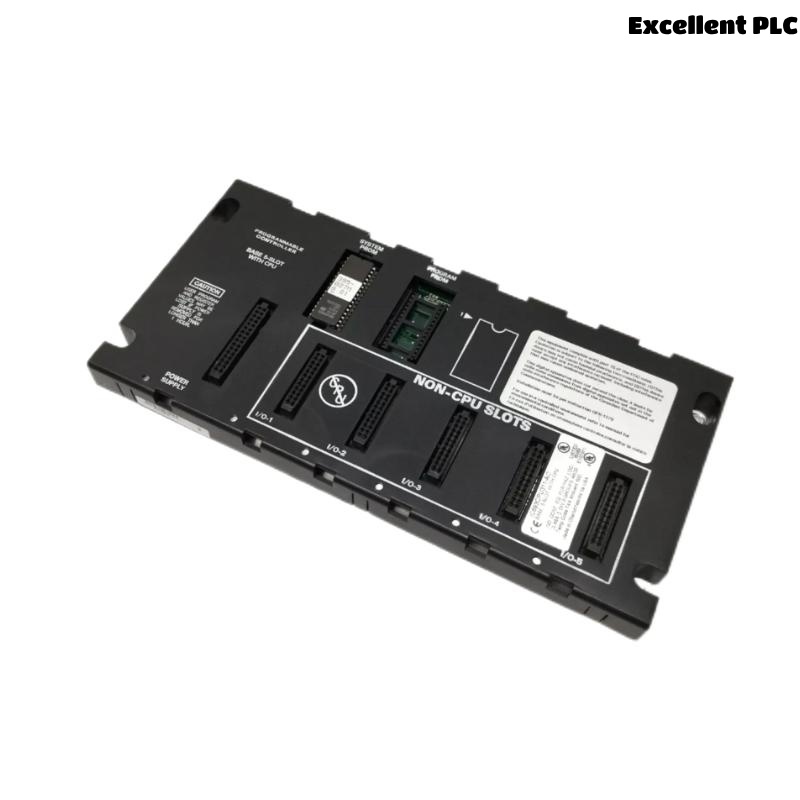

The GE IC693CPU311 is an integrated programmable logic controller (PLC) unit from the GE Series 90-30 family. It features a 5-slot baseplate with a built-in CPU, making it ideal for compact industrial automation systems. With 6KB of user program memory and support for various I/O configurations, it provides reliable control for discrete and analog processes.
Technical Specifications
Parameter | Specification |
---|---|
Model | IC693CPU311 |
Product Type | 5-slot baseplate with embedded CPU |
Processor Type | Intel 80188 |
Processor Speed | 10 MHz |
User Program Memory | 6 KB |
Typical Scan Rate | 18 ms per 1K of boolean logic |
Discrete Input/Output Points | 160 (max, combined) |
Internal Coils (%M) | 1024 bits |
Temporary Coils (%T) | 256 bits |
Global Memory (%G) | 1280 bits |
Analog Inputs (%AI) | 64 words |
Analog Outputs (%AQ) | 32 words |
Register Memory (%R) | 512 words |
Built-in Serial Ports | 1 (SNP, SNP-X protocols) |
Communications Support | Ethernet, FIP, Profibus, GBC, GCM, GCM+ |
Power Consumption | 410 mA from +5V DC |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Memory Type | RAM with optional EPROM/EEPROM |
Dimensions | 156 x 102 x 30 mm |
Weight | 0.907 kg |
Applications
-
Factory automation systems
-
Packaging and labeling lines
-
Water treatment control
-
Material handling systems
-
Small-scale process control systems
Advantages
-
Compact design with built-in CPU
-
Suitable for space-constrained panels
-
Supports both discrete and analog I/O
-
Expandable with GE Series 90-30 modules
-
Compatible with various industrial network protocols
Frequently Asked Questions (FAQs)
Q1: What is the maximum user memory of the IC693CPU311?
A1: It supports up to 6 KB of user program memory.
Q2: Does this unit have Ethernet capability?
A2: Ethernet is supported via an optional communication module.
Q3: Can I expand the number of I/O points?
A3: Yes, you can use additional I/O modules within the 5-slot limit.
Q4: What protocol does the serial port support?
A4: It supports SNP and SNP-X slave protocols.
Q5: Is the CPU removable from the baseplate?
A5: No, the CPU is embedded in the 5-slot baseplate.
Q6: Does it support battery-backed real-time clock?
A6: No, this model does not include a battery-backed clock.
Q7: Can it be programmed using Proficy Machine Edition?
A7: Yes, GE’s Proficy Machine Edition is compatible.
Q8: What type of memory does it use?
A8: RAM and optionally EPROM or EEPROM.
Q9: Is this model compatible with PCM or CCM?
A9: No, it does not support PCM/CCM modules.
Q10: What is the power requirement?
A10: It requires 410 mA from a +5 VDC supply.
Related Series 90-30 or Compatible Models
Model | Description | User Memory | Dimensions (mm) | Weight |
---|---|---|---|---|
IC693CPU313 | 5-slot base with CPU, 12KB memory | 12 KB | 156 x 102 x 30 | 0.915 kg |
IC693CPU323 | 10-slot base with CPU, 24KB memory | 24 KB | 240 x 102 x 30 | 1.250 kg |
IC693CPU331 | 10MHz CPU with 16KB memory | 16 KB | 156 x 102 x 30 | 0.920 kg |
IC693CPU350 | 25MHz CPU with advanced features | 32 KB | 156 x 102 x 30 | 0.935 kg |
IC693CPU360 | CPU with floating point support | 48 KB | 156 x 102 x 30 | 0.945 kg |
IC693CHS397 | 5-slot expansion baseplate | N/A | 156 x 102 x 30 | 0.870 kg |
Popular GE Automation Models
Model | Description | User Memory | Dimensions (mm) | Weight |
---|---|---|---|---|
IC695CPU310 | RX3i CPU, 1GHz, 64MB memory | 64 MB | 190 x 150 x 50 | 1.300 kg |
IC695CHS012 | RX3i 12-slot universal backplane | N/A | 305 x 190 x 50 | 1.800 kg |
IC200CPU001 | VersaMax CPU, compact design | 32 KB | 125 x 90 x 35 | 0.620 kg |
IC200ALG260 | VersaMax analog input module (8-channel) | N/A | 120 x 90 x 35 | 0.510 kg |
IC697CPU731 | Series 90-70 CPU with 256KB memory | 256 KB | 280 x 160 x 50 | 1.400 kg |
IC695PSA140 | RX3i power supply, 120/240 VAC | N/A | 125 x 140 x 60 | 1.200 kg |
