Product Overview

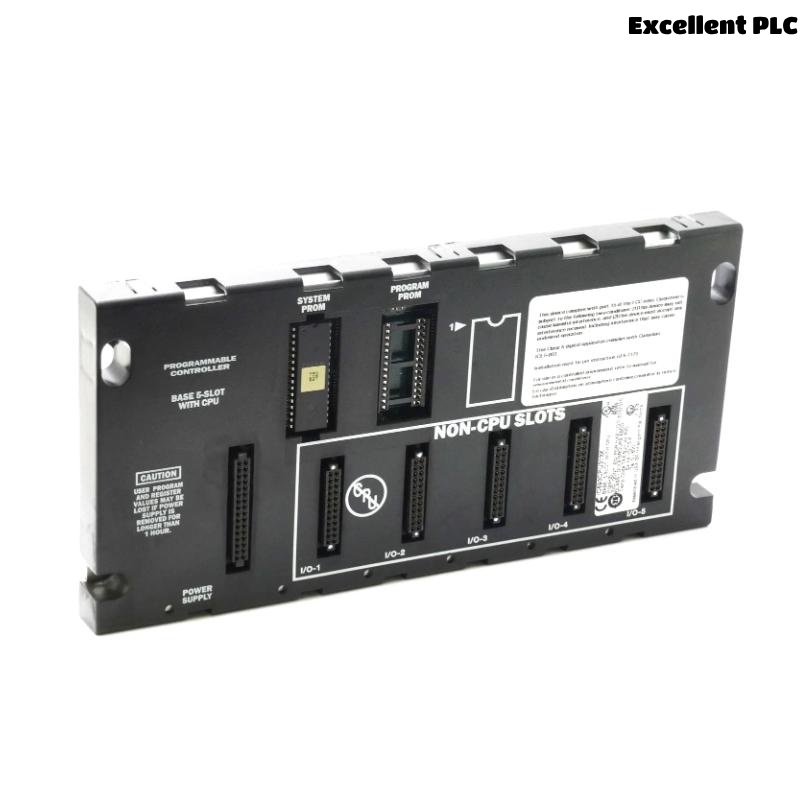

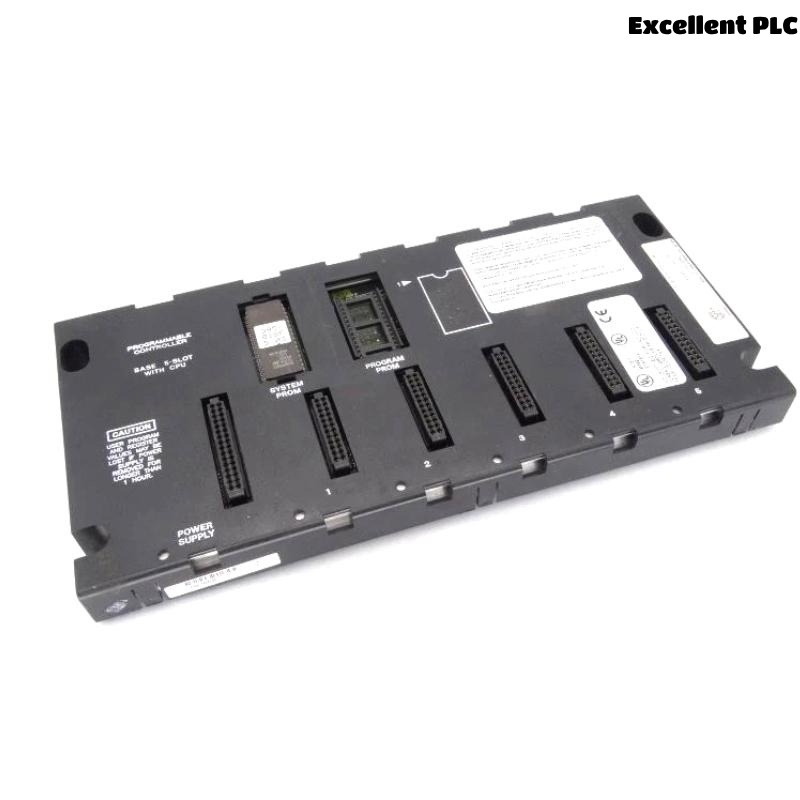

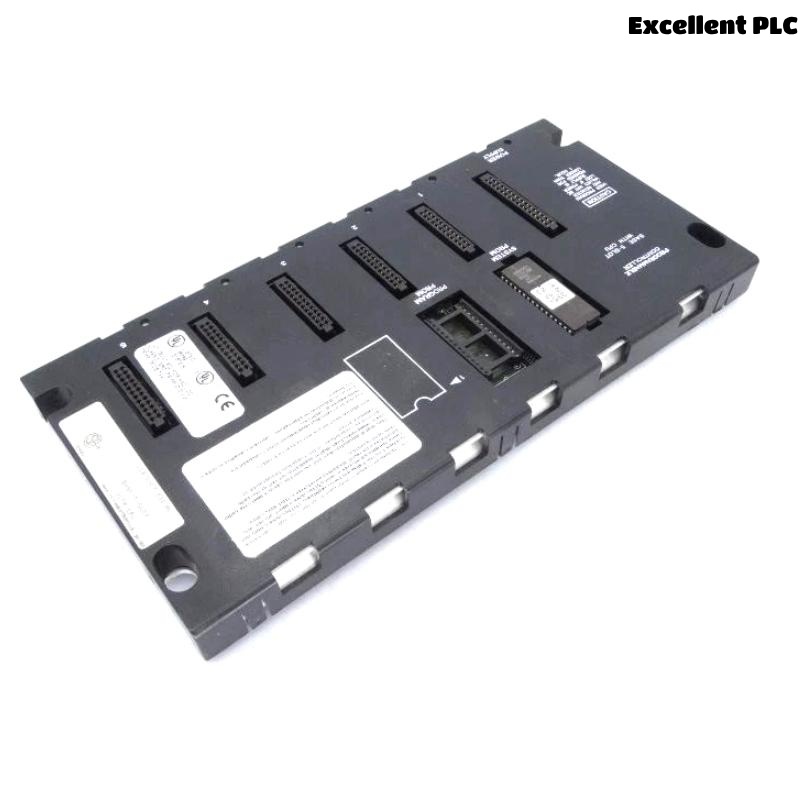

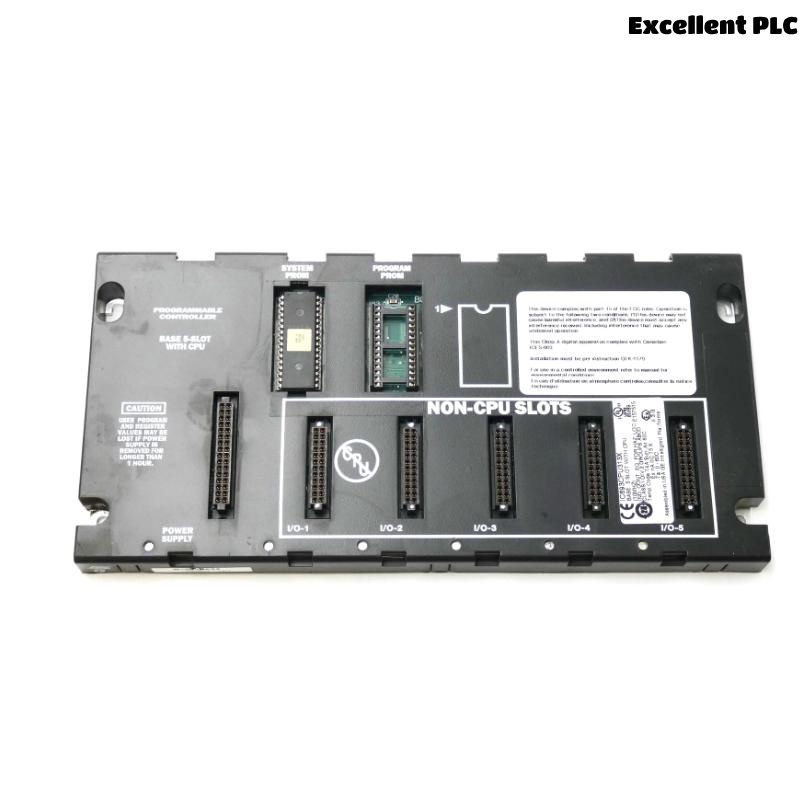

The GE IC693CPU313 is a compact and efficient 5-slot baseplate with an integrated Turbo CPU, part of the GE Fanuc Series 90-30 PLC family. It features 12K bytes of user program memory and a scan rate of 0.6 ms per 1K Boolean logic, ideal for small to mid-range automation tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | IC693CPU313 |
| CPU Type | Embedded in 5-slot baseplate |
| Processor Type | 80188 |
| Processor Speed | 10 MHz |
| User Program Memory | 12K Bytes (6K pre-Release 7) |
| Typical Scan Rate | 0.6 ms per 1K Boolean logic |
| Discrete Inputs / Outputs | 160 points max (combined) |
| Internal Coils (%M) | 1024 bits |
| Temporary Coils (%T) | 256 bits |
| Global Memory (%G) | 1280 bits |
| Analog Inputs / Outputs | 64 words / 32 words |
| Register Memory (%R) | 1024 words |
| Timers / Counters | 170 |
| Built-in Ports | 1 (SNP/SNP-X slave via power supply connector) |
| LAN Communication Support | Yes (Ethernet, Profibus, FIP, GBC, GCM+) |
| Power Supply Load Requirement | 430 mA @ +5 VDC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Memory Type | RAM + optional EPROM/EEPROM |
| Dimensions | 156 x 102 x 30 mm |
| Weight | 0.57 kg |
Applications
-
Machine control and automation
-
Packaging equipment
-
Material handling systems
-
Water treatment plants
-
Building management systems
-
Small process control systems
Product Advantages
-
Integrated CPU in compact 5-slot base
-
Fast scan time suitable for real-time control
-
Broad communication support for various networks
-
Cost-effective for mid-range PLC applications
-
Flexible memory expansion options
-
Reliable performance in industrial environments
Frequently Asked Questions (FAQ)
Q1: Is the IC693CPU313 suitable for high-speed applications?
A1: Yes, it has a 0.6 ms/1K logic scan rate, ideal for responsive automation.
Q2: How much user memory does the CPU provide?
A2: It provides up to 12K Bytes of user program memory.
Q3: Can this module be used in remote I/O configurations?
A3: No, it supports only one baseplate system, not remote I/O expansion.
Q4: What communication protocols are supported?
A4: SNP, SNP-X, Ethernet, Profibus, FIP, GBC, GCM, and GCM+ via options.
Q5: Is battery-backed clock available in this CPU?
A5: No, the IC693CPU313 does not include a battery-backed clock.
Q6: Does it support interrupts?
A6: No, the IC693CPU313 does not support interrupt handling.
Q7: What kind of memory storage does it use?
A7: It uses RAM with optional EPROM or EEPROM.
Q8: Can shift register logic be programmed?
A8: Yes, shift registers are supported in logic programming.
Q9: How many timers/counters can be used?
A9: Up to 170 timers or counters are supported.
Q10: What is the power requirement for operation?
A10: It requires 430 mA from a +5 VDC power supply.
Related Series 90-30 Models
| Model | Description | Memory | Slots | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| IC693CPU311 | Basic CPU Module | 6K Bytes | 5 | 156 x 102 x 30 | 0.57 kg |
| IC693CPU323 | 10-slot Baseplate with Embedded CPU | 12K Bytes | 10 | 265 x 102 x 30 | 0.75 kg |
| IC693CPU350 | CPU with Ethernet Support | 12K Bytes | N/A | 130 x 102 x 30 | 0.58 kg |
| IC693CPU363 | Advanced CPU with Ethernet & Profibus | 32K Bytes | N/A | 130 x 102 x 30 | 0.58 kg |
| IC693CPU372 | High-Speed CPU with Floating Point Support | 64K Bytes | N/A | 130 x 102 x 30 | 0.59 kg |
| IC693CPU374 | Ethernet CPU with Full Logic Capability | 240K Bytes | N/A | 130 x 102 x 30 | 0.60 kg |
Popular GE Fanuc Models
| Model | Description | Application Area | Dimensions (mm) | Weight |
|---|---|---|---|---|
| IC695CPU315 | PACSystems RX3i CPU | High-performance control | 132 x 100 x 40 | 0.62 kg |
| IC200UDR005 | VersaMax Micro PLC | Compact automation | 120 x 80 x 30 | 0.40 kg |
| IC200CPUE05 | VersaMax CPU with Ethernet | Distributed I/O systems | 110 x 90 x 35 | 0.45 kg |
| IC697CGR935 | Redundant CPU Controller | Critical applications | 150 x 120 x 40 | 0.78 kg |
| IC695CPU320 | RX3i CPU with 1GHz Processor | Fast control systems | 132 x 100 x 40 | 0.65 kg |
| IC695ETM001 | Ethernet Interface Module for RX3i | Network expansion | 120 x 100 x 30 | 0.48 kg |
