Product Introduction

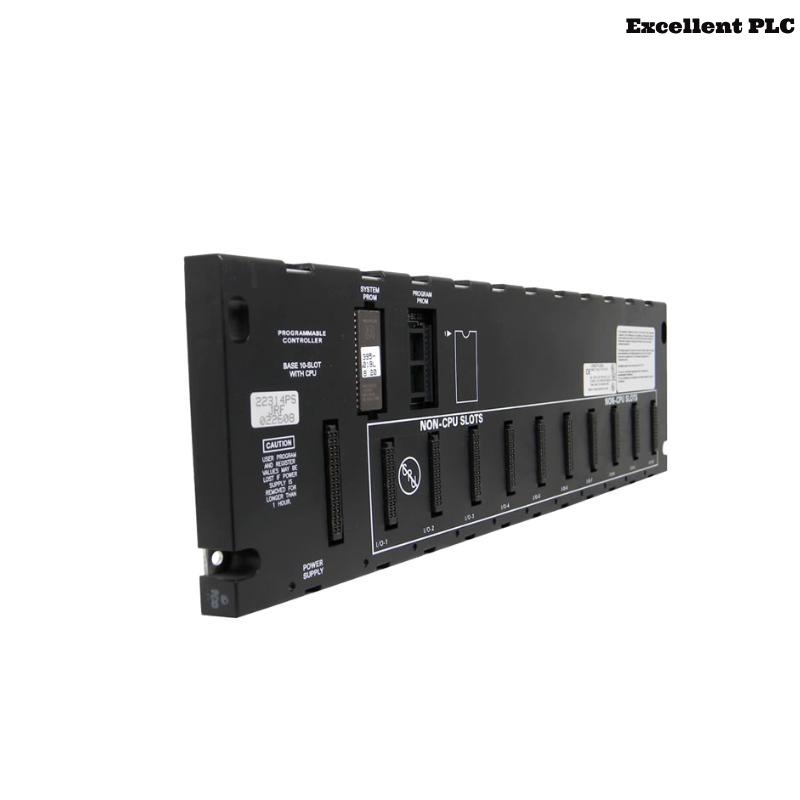

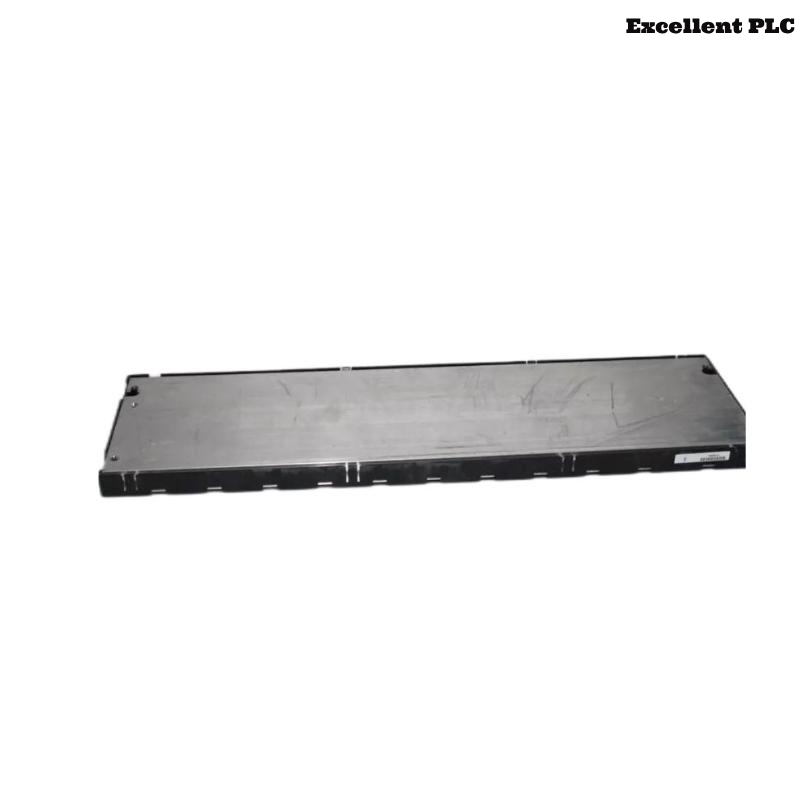

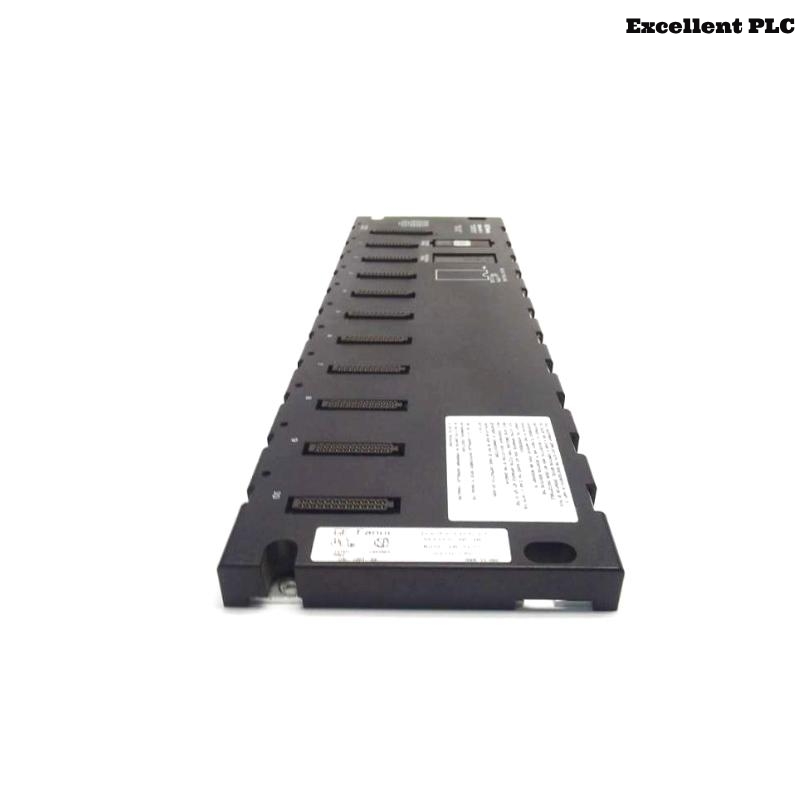

The GE IC693CPU323 is an integrated 10-slot base unit that includes a built-in CPU for the GE Fanuc Series 90-30 programmable logic controller (PLC) system. This compact and cost-effective PLC solution combines the central processing unit with a modular I/O base, offering a space-saving and efficient control option for small to medium-sized industrial automation applications. Engineered for reliability and simplicity, the IC693CPU323 is designed to streamline control system architecture, making it an excellent choice for OEMs and process control engineers seeking a robust and expandable control platform.
The unit features integrated power supply capabilities, onboard memory, I/O support, and communication options—making it well-suited for standalone applications or as part of a larger distributed control system.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC693CPU323 |
| Product Type | CPU with 10-slot base |
| Series | GE Fanuc Series 90-30 |
| Processor Type | Embedded CPU (based on 80386EX or similar microprocessor) |
| User Memory | 240KB total (for application logic and data storage) |
| Battery-Backed RAM | Yes (for program and data retention) |
| I/O Slot Capacity | 10 module slots (1 reserved for CPU) |
| Power Supply | Integrated, typically 120/240 VAC input or 24 VDC |
| Program Storage Type | RAM with battery backup |
| Communication Ports | RS-232 (serial programming port), optional Ethernet modules |
| Instruction Execution | 0.4 microseconds per boolean instruction |
| Real-Time Clock | Built-in with battery backup |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN-rail or panel mount |
| Dimensions (W x H x D) | 130 x 428 x 142 mm |
| Weight | 1.4 kg |
| Certifications | CE, UL, CSA |
Product Applications
The GE IC693CPU323 is widely adopted in a variety of industries and applications, including:
-
Factory Automation: Controls assembly lines, conveyor systems, and packaging machines.
-
Water/Wastewater Management: Supervises pump stations, filter systems, and SCADA connectivity.
-
HVAC Systems: Manages industrial ventilation, heating, and cooling equipment.
-
Building Automation: Integrates security, lighting, and elevator control systems.
-
Machine Tool Control: Handles the logic for CNC machines and robotic arms.
-
Food and Beverage: Controls batching, filling, and bottling systems with precision and safety.
Its modularity and expandable design make it an adaptable choice for both centralized and decentralized control strategies.
Product Advantages
-
All-in-One Integration: Combines CPU and 10-slot base in a single module to save space and reduce wiring complexity.
-
Expandable Design: Compatible with a wide range of Series 90-30 I/O, analog, digital, and communication modules.
-
Rugged Reliability: Designed for harsh industrial environments with strong EMC and thermal endurance.
-
Flexible Communications: Supports RS-232 and optional Ethernet or Profibus for SCADA integration.
-
Quick Instruction Execution: Boolean logic processing at microsecond-level speeds for fast control.
-
Battery-Backed Memory: Retains user programs and clock data during power outages.
-
Real-Time Clock: Supports time-stamped logging and scheduled operations.
-
Simple Installation: Compact design with intuitive mounting and easy wiring access.
-
Wide Software Support: Configurable using GE’s VersaPro or Proficy Machine Edition.
-
Proven Platform: Built on GE’s trusted Series 90-30 architecture, widely used globally for decades.
Frequently Asked Questions (FAQ)
-
Q: What is included in the IC693CPU323 module?
A: It includes a built-in CPU, integrated power supply, and a 10-slot base for I/O expansion. -
Q: Is the module programmable via standard GE software tools?
A: Yes, it is compatible with VersaPro and Proficy Machine Edition. -
Q: How much user memory does the CPU provide?
A: It provides approximately 240KB of total user memory for logic and data. -
Q: Can I add Ethernet communication?
A: Yes, using additional modules such as the IC693CMM321 Ethernet module. -
Q: Does the unit support redundancy?
A: While the IC693CPU323 itself doesn’t support CPU redundancy, it can be part of a redundant control system using external configurations. -
Q: What type of mounting does it support?
A: It supports both DIN-rail and panel mounting. -
Q: Is the CPU hot-swappable?
A: No, the CPU should be powered down before installation or removal. -
Q: What is the backup power source for memory retention?
A: A replaceable lithium battery supports memory and RTC backup. -
Q: Can I monitor the system remotely?
A: Yes, with proper communication modules and SCADA/HMI integration. -
Q: Is it suitable for outdoor installation?
A: No, it must be installed in a controlled indoor cabinet or enclosure.
Related Models (Same Series or Functionality)
| Model | Description | I/O Slots | CPU Included | Communication Options |
|---|---|---|---|---|
| IC693CPU331 | CPU module only | N/A | Yes | RS-232 |
| IC693CPU350 | Mid-range CPU with enhanced memory | N/A | Yes | RS-232/RS-485 |
| IC693CPU363 | CPU with Ethernet port | N/A | Yes | Ethernet, RS-232 |
| IC693CHS391 | 10-slot base (no CPU) | 10 | No | Depends on installed CPU |
| IC693PWR321 | 120/240 VAC power supply module | N/A | No | N/A |
| IC693MDL645 | 16-point digital input module (24 VDC) | N/A | No | N/A |
Popular GE Models (Other Categories)
| Model | Description | Type | Application | Compatibility |
|---|---|---|---|---|
| IC695CPU315 | High-performance RX3i CPU | CPU Module | Complex automation systems | PACSystems RX3i |
| IC200MDL750 | 32-point digital output module | Digital Output Module | General I/O control | Versamax I/O |
| IC200CPUE05 | Versamax CPU with Ethernet | CPU | Mid-sized control systems | Versamax System |
| IC695PSA040 | 40W RX3i power supply | Power Module | PLC rack power source | PACSystems RX3i |
| IC695ETM001 | Ethernet interface module for RX3i | Communication Module | Remote monitoring | PACSystems RX3i |
| IC200ALG264 | 15-bit analog input module (8 channels) | Analog Input Module | Process signal monitoring | Versamax I/O |
