Product Overview

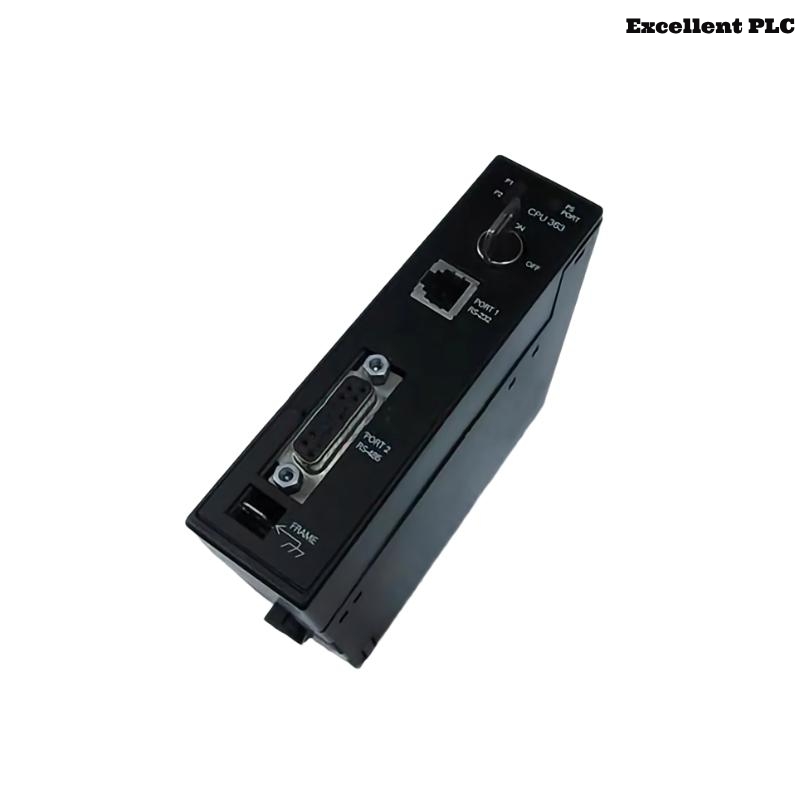

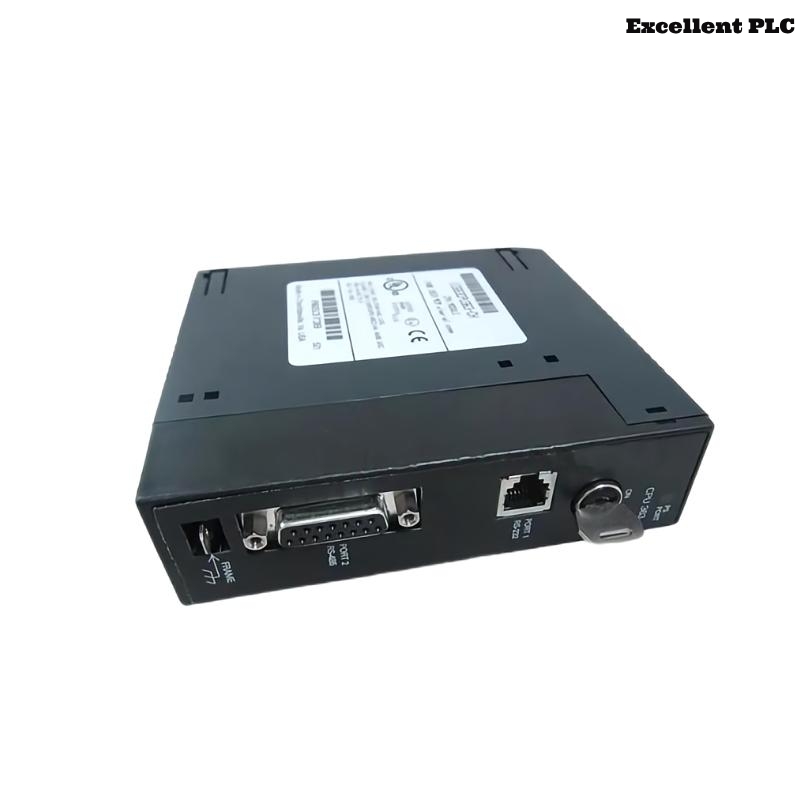

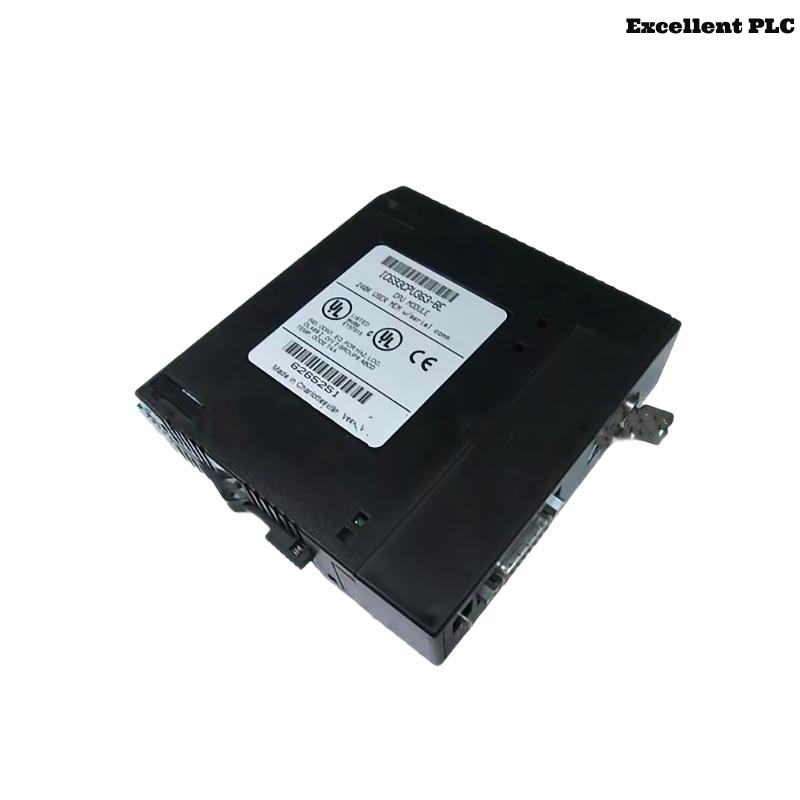

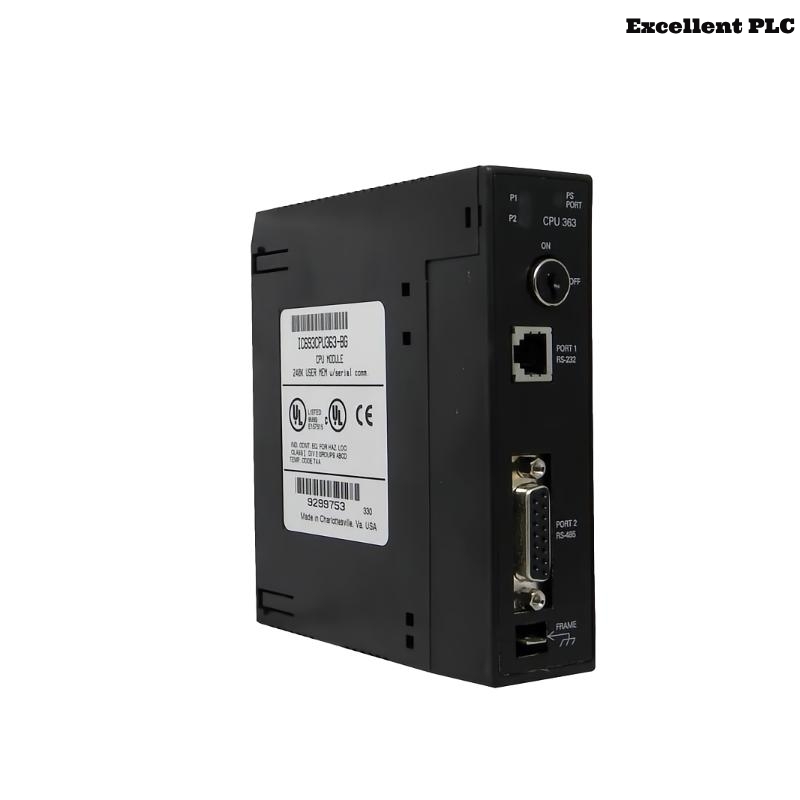

The GE IC693CPU363 is a high-performance CPU module belonging to the Series 90-30 programmable logic controller (PLC) family by GE Fanuc (now GE Automation & Controls). Known for its reliability, flexibility, and integration capabilities, this compact single-slot CPU is designed to meet the requirements of a wide range of industrial automation applications.
The IC693CPU363 offers powerful processing capabilities and supports up to 240 I/O points locally, while also accommodating expansion modules and various communication options. It is widely used in factory automation, process control, and machine control systems, thanks to its robust design and consistent performance.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (GE Automation & Controls) |
| Product Model | IC693CPU363 |
| Product Type | Single-Slot CPU Module |
| Processor Type | Embedded CPU with high-speed processing |
| User Memory | 240 KB total (Logic, Register, and Config memory combined) |
| I/O Capacity (Local) | Up to 240 I/O points |
| I/O Expansion | Yes, with remote and expansion I/O racks |
| Number of Slots Used | 1 |
| Programming Software | Proficy Machine Edition (Logic Developer – PLC) |
| Programming Languages | Relay Ladder Logic (RLL), Structured Text |
| Battery-Backed RAM | Yes |
| Real-Time Clock | Built-in, battery-backed |
| Communication Ports | One RS-232/RS-485 Serial Port, One Ethernet Port |
| Protocol Support | SNP, Modbus RTU, TCP/IP, Ethernet Global Data (EGD) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Requirements | +5VDC @ 890mA (typical) |
| Mounting | Rack-mounted |
| Dimensions (HxWxD) | 100 x 38 x 80 mm |
| Weight | 0.5 kg |
| Certifications | UL, CE, CSA compliant |
Applications
The IC693CPU363 CPU module is well-suited for applications across multiple industrial sectors, including:
-
Manufacturing Automation: For sequential control of production lines and machinery.
-
Packaging Machines: Managing multi-axis control and packaging sequence logic.
-
Water Treatment Plants: For process monitoring, valve control, and feedback logic.
-
Material Handling Systems: Including conveyors, sorters, and robotic interfaces.
-
Building Automation: HVAC systems, lighting controls, and access management.
-
Process Control: Oil & gas, pharmaceuticals, and chemical manufacturing.
Its scalability and robust communications make it ideal for both small-scale and distributed automation systems.
Product Advantages
-
Compact Single-Slot Design: Saves space while maintaining high performance.
-
Integrated Ethernet Port: Enables modern connectivity and remote diagnostics.
-
Expandable Architecture: Compatible with a wide variety of Series 90-30 I/O and specialty modules.
-
Flexible Programming Options: Supports both Ladder Logic and advanced instructions.
-
Reliable Operation: Proven performance in harsh and demanding industrial environments.
-
Cost-Effective: Offers a high level of functionality at a competitive price point.
-
Real-Time Clock: Ensures accurate time-stamping for time-sensitive applications.
-
Long Product Lifecycle: Supported by GE’s extended product availability and support network.
Frequently Asked Questions (FAQ)
-
Q: What programming software is compatible with IC693CPU363?
A: The module is programmed using GE’s Proficy Machine Edition – Logic Developer PLC software. -
Q: Does the IC693CPU363 support Ethernet communication?
A: Yes, it features an integrated Ethernet port supporting TCP/IP and EGD protocols. -
Q: How many I/O points can it handle locally?
A: It supports up to 240 local I/O points, and additional points via expansion. -
Q: Can I use structured text to program this module?
A: While Relay Ladder Logic (RLL) is primary, Proficy ME allows limited structured programming. -
Q: Is it possible to connect this module to SCADA systems?
A: Yes, the Ethernet and serial ports allow connection to SCADA/HMI using Modbus or GE protocols. -
Q: Is there a built-in battery for memory retention?
A: Yes, the module includes a battery-backed RAM and a real-time clock. -
Q: Can I install it on any Series 90-30 baseplate?
A: It can be installed in any slot on a Series 90-30 baseplate, except slot 0 which is reserved for power supply. -
Q: Does this module support redundancy?
A: No, the IC693CPU363 does not support redundant CPU configurations. -
Q: What is the difference between IC693CPU363 and IC693CPU364?
A: The CPU364 has more memory and advanced Ethernet capabilities compared to the CPU363. -
Q: How long is the typical lifecycle of the module?
A: These modules are designed for long-term industrial use, often exceeding 10 years in operation with proper maintenance.
Related or Same-Series Models
| Model | Description | User Memory | Communication |
|---|---|---|---|
| IC693CPU311 | Basic CPU Module, Entry-Level | 12 KB | RS-232 Serial |
| IC693CPU313 | Enhanced Basic CPU with More Memory | 24 KB | RS-232 Serial |
| IC693CPU323 | Mid-Range CPU with Expanded I/O | 24 KB | RS-232/RS-485 |
| IC693CPU331 | Advanced CPU with Built-In Real-Time Clock | 32 KB | RS-232/RS-485 |
| IC693CPU350 | High-Capacity CPU, Greater Application Range | 48 KB | RS-232, Ethernet (Optional) |
| IC693CPU364 | High-End CPU with Advanced Ethernet and Larger RAM | 512 KB | RS-232, Ethernet |
Popular GE Automation Models
| Model | Product Type | Key Features | Series |
|---|---|---|---|
| IC695CPU310 | CPU Module | Part of RX3i series, high-speed processor | PACSystems RX3i |
| IC695CHS012 | Universal Backplane | 12-slot backplane for RX3i series | PACSystems RX3i |
| IC200UDR005 | VersaMax Micro Controller | Compact PLC with built-in I/O | VersaMax |
| IC200CPU001 | CPU Module | VersaMax CPU with Modbus support | VersaMax |
| IC695CPE305 | Compact CPU | Supports PACSystems, high-speed Ethernet | PACSystems RX3i |
| IC693ALG220 | Analog Output Module | 2-channel Analog Voltage Output | Series 90-30 |
