Product Introduction
The GE IC693CPU367 Single-Slot CPU Module is one of the most powerful processors in the GE Fanuc Series 90-30 PLC family. Designed for demanding industrial automation applications, this advanced module delivers fast processing, extensive memory, and superior communication capabilities — all in a compact single-slot form factor.
A key strength of the IC693CPU367 is its built-in Ethernet port, enabling seamless integration with modern networks and easy remote monitoring. With an operating speed of 64 MHz, expanded program memory, and data-handling capabilities, the CPU367 is ideal for complex control tasks across a wide range of industries. Its design is fully compatible with the existing Series 90-30 racks and I/O modules, providing an easy path to upgrade legacy systems with higher performance.
Engineers trust the IC693CPU367 to deliver exceptional speed, reliability, and flexibility — making it a staple choice for upgrading PLC systems and tackling large-scale industrial automation projects.
Product Specifications
| Parameter | Specification |
|---|---|
| CPU Model | IC693CPU367 Single-Slot CPU Module |
| Processor Speed | 64 MHz |
| User Program Memory | 512 KB |
| Data Memory | 512 KB |
| Ethernet Port | Built-in 10/100 Mbps Ethernet (RJ-45) |
| Serial Port | 1 × RS-232 / RS-485 (Configurable) |
| Backplane Power Requirement | 5 VDC @ 1.2 A |
| Battery Backup | Yes (for program and data retention) |
| Real-Time Clock | Built-in |
| Programming Languages | Ladder Logic, Structured Text, SFC, Function Block |
| Operating Voltage | Supplied via Series 90-30 rack (5 VDC) |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certifications | UL, CE, CSA, FM Approved |
| Dimensions (L × W × H) | 130 x 35 x 116 mm |
| Weight | 0.4 kg |
Applications
The GE IC693CPU367 is deployed across numerous industrial applications where performance and reliability are critical:
-
Automotive Assembly Lines: Robotic control, conveyor management, welding, painting
-
Oil & Gas Facilities: Pipeline management, drilling rigs, refining process control
-
Food & Beverage: High-speed packaging, mixing, batch production
-
Water & Wastewater Treatment: Pumping stations, filtration processes, chemical dosing
-
Power Utilities: Power generation control, substation monitoring, load balancing
-
Pharmaceuticals: Precision batch manufacturing, environmental monitoring
-
Material Handling: Conveyor systems, sorters, AGV (automated guided vehicle) control
-
Textile Production: Process automation, dyeing, finishing equipment
Advantages and Key Features
-
High-Speed Processing: 64 MHz processor delivers fast scan times and supports complex applications.
-
Large Memory Capacity: 512 KB program + 512 KB data memory allows for advanced logic and data-intensive processes.
-
Built-in Ethernet Connectivity: Simplifies network integration and remote diagnostics.
-
Flexible Communications: Integrated serial (RS-232/RS-485) and Ethernet support.
-
Compact Single-Slot Design: Saves valuable rack space.
-
Compatible with Existing Series 90-30 Hardware: Easy upgrades for legacy systems.
-
Industrial-Grade Reliability: Operates reliably in harsh environments.
-
Battery Backup: Maintains memory during power interruptions.
-
Real-Time Clock: Supports time-stamped data collection and logging.
-
Widely Supported: Compatible with popular SCADA and HMI systems.
Frequently Asked Questions (FAQ)
-
What is the processor speed of the IC693CPU367?
It runs at a fast 64 MHz to handle advanced automation applications. -
How much memory does the CPU367 provide?
It includes 512 KB of user program memory and 512 KB of data memory. -
Does the module have built-in Ethernet?
Yes, it comes with a 10/100 Mbps Ethernet port for easy network integration. -
Can it be installed into older 90-30 racks?
Yes, the CPU367 is fully compatible with standard Series 90-30 racks. -
What programming languages are supported?
Ladder Logic, Structured Text, Sequential Function Chart (SFC), and Function Block. -
Does the module support data retention after a power failure?
Yes, with an onboard battery backup, the CPU367 retains both the program and critical data. -
What is the size of the CPU367?
130 x 35 x 116 mm. -
What is the weight of this module?
0.4 kg. -
Is this module certified for industrial use?
Yes, it is UL, CE, CSA, and FM approved. -
What industries typically use this CPU module?
It’s used in manufacturing, oil & gas, power utilities, pharmaceuticals, food & beverage, water treatment, and more.
Recommended Related Models (Same Series / Similar Models)
| Model | Description | Notes |
|---|---|---|
| IC693CPU366 | High-performance CPU with Ethernet | Predecessor to CPU367 |
| IC693CPU360 | Mid-range CPU with serial port only | No built-in Ethernet |
| IC693CPU350 | Basic CPU module | For simple control tasks |
| IC693CPU341 | Mid-level CPU with moderate memory | For legacy systems |
| IC693CPU340 | Entry-level CPU | Basic automation |
| IC693CPU313 | Compact CPU | Small applications |
Popular GE Fanuc PLC Modules (Same Brand)
| Model | Description | Typical Use |
|---|---|---|
| IC693CPU367 | High-speed CPU with Ethernet | Complex industrial automation |
| IC693PWR321 | Power Supply Module | Powers Series 90-30 rack |
| IC693APU300 | High-Speed Counter Module | High-speed event counting |

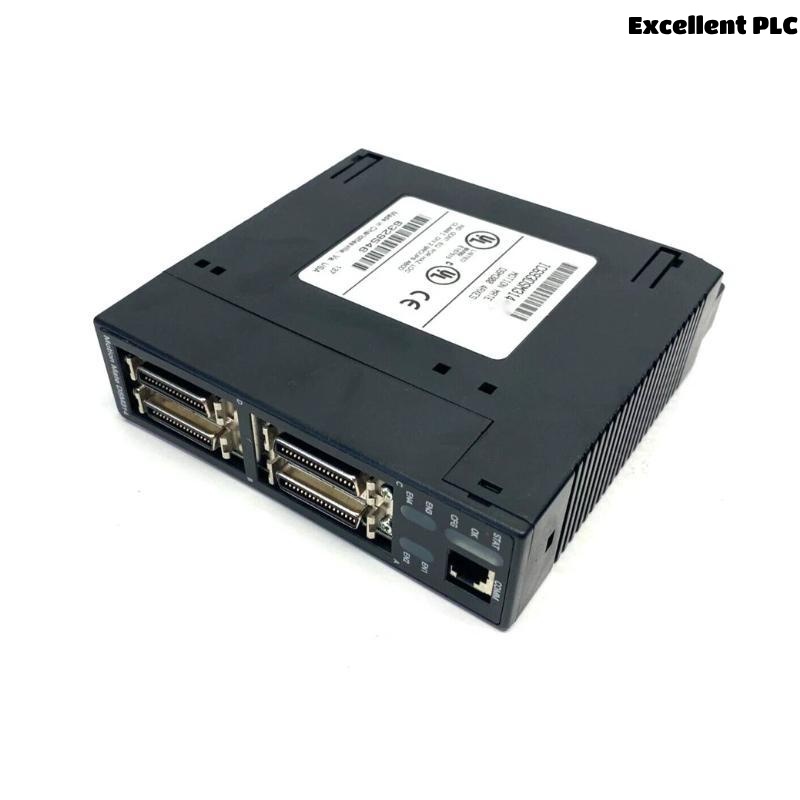

| IC693DSM314 | Digital Output Module (16 pts) | Digital control of field devices |
