Product Introduction

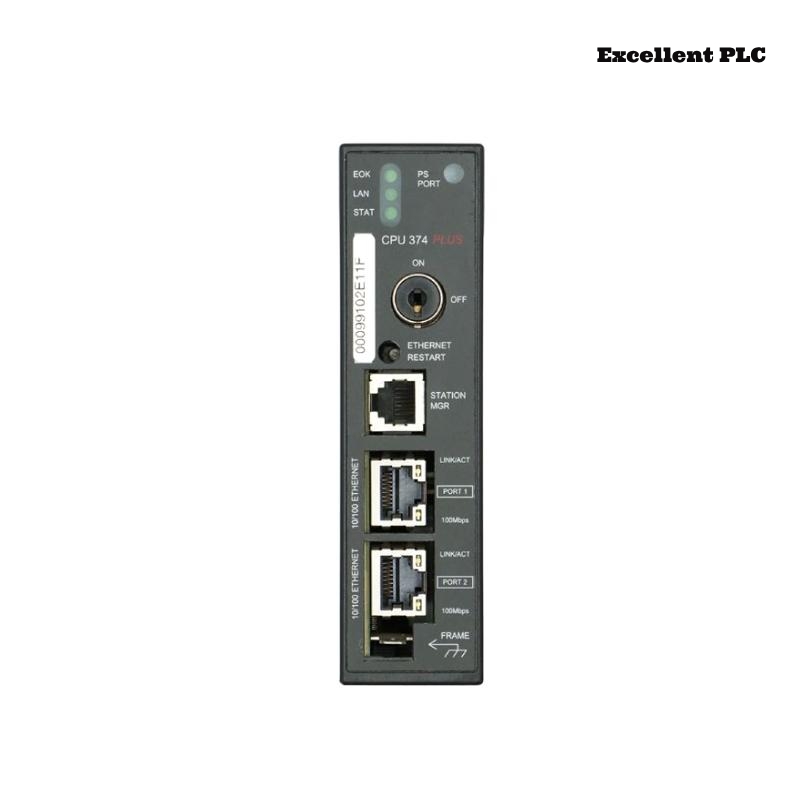

The GE IC693CPU374-KZ is a high-performance CPU module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This single-slot module integrates a powerful 133 MHz processor and an embedded Ethernet interface, facilitating efficient and reliable control for a wide range of industrial automation applications. With 240 KB of configurable user memory, the IC693CPU374-KZ is capable of handling complex control tasks and large programs, making it a versatile choice for various industries.
The embedded Ethernet interface supports communication speeds of up to 100 Mbps and includes a built-in switch, allowing seamless integration into existing network infrastructures. This enables real-time data exchange between the PLC and other networked devices, enhancing system responsiveness and coordination.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | GE IC693CPU374-KZ Single Slot CPU Module |
| Manufacturer | GE Fanuc |
| Processor Speed | 133 MHz |
| User Memory | 240 KB configurable |
| Discrete I/O Points | 2,048 (fixed) |
| Analog I/O Points | Configurable within memory limits |
| Embedded Ethernet | Yes, with built-in switch |
| Ethernet Speed | 10/100 Mbps |
| Supported Protocols | SRTP, Ethernet Global Data, Modbus TCP (client/server) |
| Serial Ports | None |
| Backplane Current Consumption | 7.4 Watts |
| Battery Backup | Internal: up to 1.2 months; External: up to 12 months |
| Floating Point Math Hardware | Yes |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 100 x 38 x 80 mm |
| Weight | 0.5 kg |
Applications
The GE IC693CPU374-KZ is suitable for a wide range of industrial automation applications, including but not limited to:
-
Manufacturing Process Control: Manages complex manufacturing processes, ensuring precision and efficiency.
-
Material Handling Systems: Controls conveyors, robotic arms, and sorting systems for streamlined operations.
-
Energy Management: Monitors and controls energy distribution systems to optimize usage and reduce waste.
-
Water and Wastewater Treatment: Automates treatment processes, ensuring compliance with environmental standards.
-
Building Automation: Integrates various building systems such as HVAC, lighting, and security for centralized control.
-
Transportation Systems: Oversees operations of automated guided vehicles (AGVs) and other transport mechanisms within facilities.
Product Advantages
-
High Processing Power: The 133 MHz processor enables fast execution of control algorithms, reducing cycle times and enhancing system performance.
-
Embedded Ethernet Interface: Facilitates high-speed communication and easy integration into existing network infrastructures without the need for additional hardware.
-
Scalable Memory: 240 KB of configurable user memory allows for flexibility in program design and the ability to handle complex control tasks.
-
Compact Design: Occupies a single slot in the PLC rack, conserving space and allowing for more efficient system layouts.
-
Reliable Battery Backup: Offers internal and optional external battery options to maintain system operation during power interruptions, ensuring data integrity and system reliability.
-
Support for Multiple Protocols: Compatibility with SRTP, Ethernet Global Data, and Modbus TCP protocols enables communication with a wide range of devices and systems.
-
Floating Point Math Support: Enhances the module’s capability to perform complex mathematical calculations required in advanced control applications.
Latest News Headlines
-
“GE Fanuc Enhances Series 90-30 PLCs with High-Speed IC693CPU374-KZ Module”
-
“Industrial Automation Sees Boost with GE’s IC693CPU374-KZ CPU Module Integration”
-
“GE’s IC693CPU374-KZ: A Game-Changer in PLC Performance and Connectivity”
-
“Manufacturers Achieve Greater Efficiency with GE Fanuc’s Latest CPU Module”
-
“GE Fanuc’s IC693CPU374-KZ Sets New Standard for Embedded Ethernet in PLCs”
-
“Energy Sector Adopts GE’s IC693CPU374-KZ for Enhanced Control Systems”
-
“Building Automation Systems Upgraded with GE’s High-Performance CPU Module”
-
“GE Fanuc’s IC693CPU374-KZ: Driving Innovation in Industrial Control Solutions”
Frequently Asked Questions (FAQ)
-
Q: What is the processor speed of the IC693CPU374-KZ module?
A: The module features a 133 MHz processor, providing high-speed processing capabilities. -
Q: How much user memory is available in the IC693CPU374-KZ?
A: It offers 240 KB of configurable user memory for program storage and execution. -
Q: Does the IC693CPU374-KZ have an embedded Ethernet interface?
A: Yes, it includes an embedded Ethernet interface with a built-in switch, supporting 10/100 Mbps communication speeds. -
Q: What communication protocols are supported by the IC693CPU374-KZ?
A: The module supports SRTP, Ethernet Global Data, and Modbus TCP (client/server) protocols. -
Q: Are there any serial ports available on the IC693CPU374-KZ?
A: No, this module does not include any serial ports. -
Q: What is the power consumption of the IC693CPU374-KZ module?
A: The module consumes approximately 7.4 Watts of power. -
Q: How long does the internal battery backup last?
A: The internal battery can provide backup power for up to 1.2 months. An optional external battery can extend this up to 12 months. -
Q: What are the operating temperature ranges for the IC693CPU374-KZ?
A: The module operates within a temperature range of 0°C to 60°C. -
Q: What are the dimensions and weight of the IC693CPU374-KZ module?
A: The module measures 100 x 38 x 80 mm, with a weight of 0.5 kg. -
Q: Does the IC693CPU374-KZ support floating-point math operations?
A: Yes, the CPU is equipped with hardware support for floating-point arithmetic, essential for advanced control logic and calculations.
Related Models in the Same Series or Function Group
| Model Number | Description | Key Feature |
|---|---|---|
| IC693CPU364 | CPU with Ethernet, 1-slot | Similar to 374-KZ but lower processing speed |
| IC693CPU363 | CPU with serial port only | Lower model, no Ethernet |
| IC693CPU350 | Mid-level CPU | Suitable for small to mid-size applications |
| IC693CPU331 | Entry-level CPU module | For basic automation needs |
| IC693CHS391 | 10-slot baseplate for CPU modules | Compatible rack/chassis |
| IC693PWR330 | Power Supply Module | Pairs with CPU modules |
| IC693ALG392 | Analog output module | Often used with CPU374 in analog systems |
| IC693MDL645 | 32-point DC output module | Frequently deployed with IC693 series CPUs |
