GE IC693MCD001 Digital Servo Interface Module

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

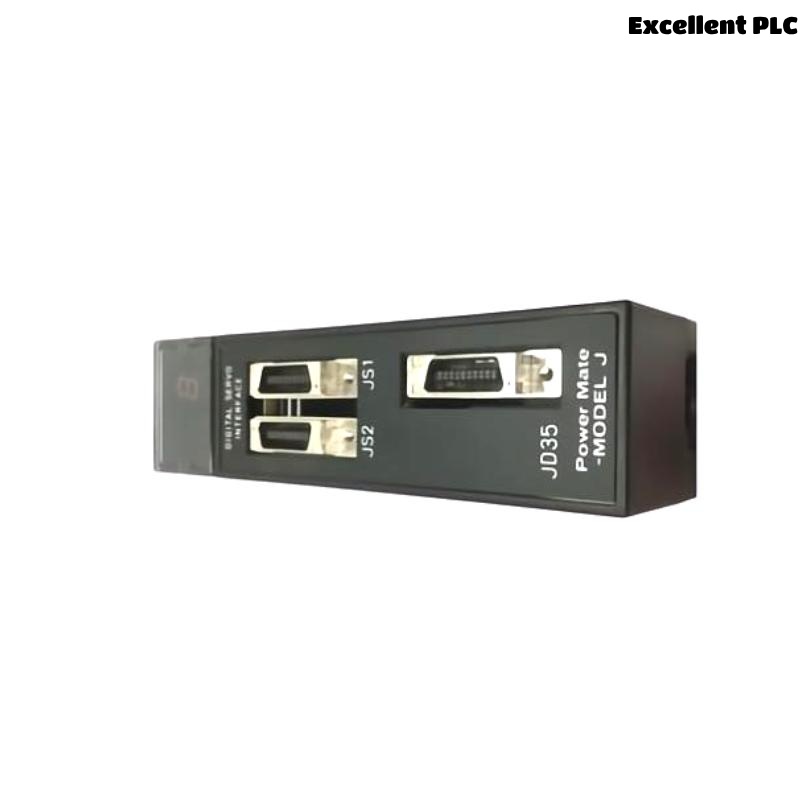

The GE IC693MCD001 Digital Servo Interface Module is an advanced interface module designed for use with GE Fanuc Series 90-30 PLC systems. Specifically, this module provides an efficient solution for integrating digital servo drive systems with the PLC, enabling precise motion control in a wide range of industrial automation applications.

The IC693MCD001 serves as a communication bridge between the PLC and digital servo drives, allowing the controller to command servo movements and monitor feedback such as position, speed, and status. By offloading motion control tasks to a dedicated module, it ensures high-speed, accurate control without burdening the CPU. The module supports industry-standard servo protocols, providing flexibility for use with various servo systems.

Its robust design, fast response time, and seamless integration with GE PLCs make the IC693MCD001 an excellent choice for demanding automation environments such as robotics, CNC machinery, packaging equipment, and material handling systems.

---

Product Specifications

---

Applications

The GE IC693MCD001 Digital Servo Interface Module is well-suited for precision motion control tasks across a wide variety of industries:

• Robotics: For controlling robotic arms and automated guided vehicles (AGVs).

• CNC Machinery: High-speed motion and position control in CNC lathes and mills.

• Packaging Equipment: Synchronizing multiple axes for automated packaging lines.

• Material Handling Systems: For controlling conveyors, lifts, and sorters.

• Printing Presses: Managing synchronized motion in multi-stage printing processes.

• Semiconductor Manufacturing: Ultra-precise motion control for wafer handling and inspection equipment.

• Automotive Assembly Lines: Controlling servo actuators and robotic welding arms.

• Textile Machinery: Coordinated drive control for spinning, weaving, and finishing processes.

---

Advantages

• Precision Motion Control: Enables highly accurate control of servo motors for positioning, velocity, and torque.

• Fast Response: Response times under 1 ms provide real-time control for high-performance applications.

• Versatile Servo Compatibility: Works with a variety of industry-standard digital servo drives.

• Integrated Feedback: Supports encoder feedback for closed-loop control.

• Compact Footprint: Slim module fits easily into standard Series 90-30 racks.

• LED Diagnostics: Simplifies troubleshooting with clear status indicators.

• Reduced CPU Load: Offloads motion control tasks from the main PLC CPU.

• High Isolation: 1500 V RMS isolation protects the PLC and connected devices.

• Industrial Durability: Designed for continuous operation in harsh environments.

• Easy Integration: Seamless compatibility with GE Fanuc Series 90-30 PLC systems reduces setup time.

---

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC693MCD001 module?
   It is used to interface digital servo drives with GE Series 90-30 PLCs, enabling precise motion control.

2. How many axes can this module control?
   The module is designed to control one axis per module.

3. Does the module support encoder feedback?
   Yes, it supports both incremental and absolute encoder feedback.

4. Is the module compatible with third-party servo drives?
   It supports industry-standard protocols and may be compatible with many third-party drives; specific compatibility should be verified with the servo drive manufacturer.

5. What is the response time of the module?
   Typical response time is less than 1 ms.

6. What type of control does it provide?
   It supports position, velocity, and torque control modes.

7. What is the isolation level between the servo interface and PLC backplane?
   The module provides 1500 V RMS isolation.

8. Can this module be used in a multi-axis system?
   Yes, multiple modules can be installed in a single rack to control multiple axes.

9. What kind of diagnostic features are available?
   LED indicators provide status for communication, error, and power.

10. Is the module suitable for continuous industrial operation?
    Yes, it is designed for reliable operation in 24/7 industrial environments.

---
