Product Introduction

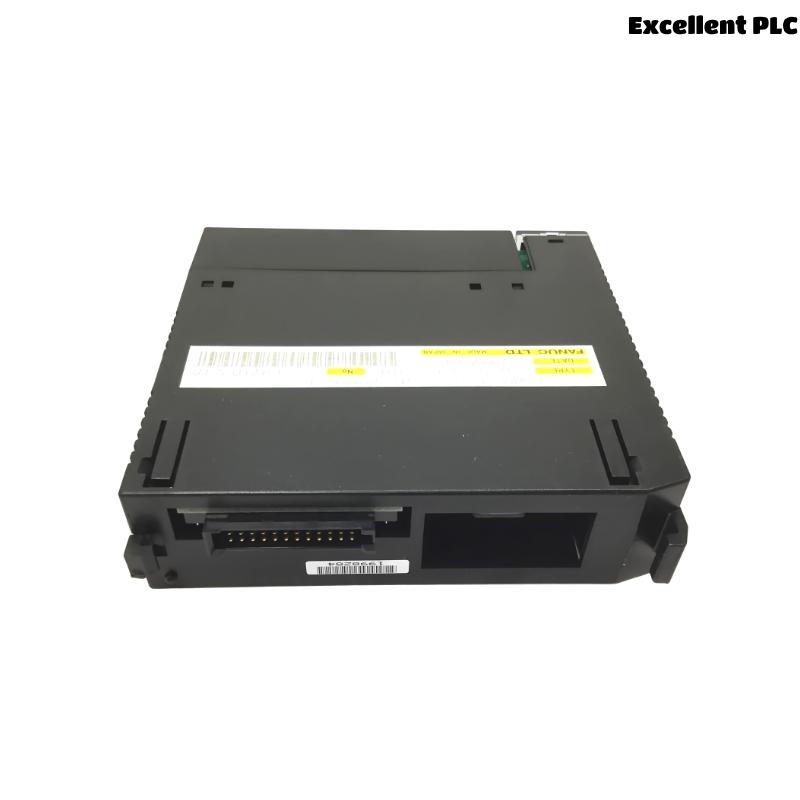

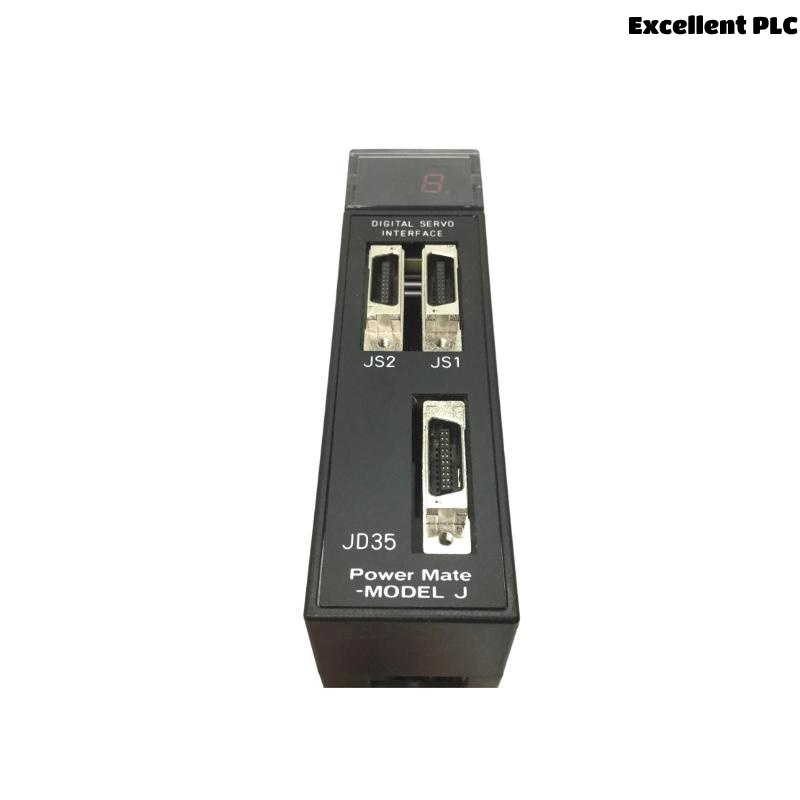

The GE IC693MCM001 Digital Servo Interface Module is a high-performance communication module designed to interface GE Series 90-30 PLCs with digital servo drives and motion controllers. The IC693MCM001 provides a flexible and reliable way to integrate motion control devices into industrial automation environments by supporting Modbus Master/Slave communications over serial RS-232 or RS-422/485 interfaces.
By allowing the PLC to send and receive data to servo controllers or other intelligent devices via serial communication, this module plays a critical role in applications that require synchronized motion, precision control, and complex drive interactions. It is ideal for situations where real-time servo control must be coordinated with machine logic and process automation.
The module provides multiple configurable channels, robust diagnostics, and supports a variety of industry-standard protocols, making it an essential component for engineers building advanced motion systems or modernizing legacy equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693MCM001 |
| Product Type | Digital Servo Interface / Communication Module |
| Communication Protocol | Modbus RTU (Master/Slave), ASCII |
| Serial Interface | 2 Serial Ports (RS-232 / RS-422 / RS-485) |
| Baud Rate Range | 300 to 115.2 Kbps |
| Word Length | 7 or 8 data bits |
| Parity | None, Even, Odd |
| Stop Bits | 1 or 2 |
| Number of Channels | 2 Independent Channels |
| Data Buffers | 512 bytes per transmit and receive buffer |
| PLC Compatibility | GE Fanuc Series 90-30 PLC |
| Status Indicators | LED indicators for TX, RX, Module OK, Fault |
| Isolation Voltage | 1500 V RMS channel-to-PLC backplane |
| Power Requirements | 5 VDC, 400 mA (from backplane) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95%, non-condensing |
| Dimensions | 102.5 x 82 x 50 mm |
| Weight | 0.27 kg |
| Mounting | GE Series 90-30 rack |
| Environmental Protection | IP20 |
Applications
The GE IC693MCM001 Digital Servo Interface Module serves in a variety of industries and applications where motion control, data acquisition, and device communication are required:
-
Robotics: Real-time control of servo-driven robotic arms and manipulators.
-
Packaging Machinery: Synchronization of servo motors with process automation for packaging lines.
-
Material Handling: Control of conveyors, pick-and-place systems, and stackers.
-
Printing Equipment: Coordinated servo control for printing and converting machines.
-
CNC Machine Tools: Servo drive communication in computer numerical control machines.
-
Semiconductor Manufacturing: High-precision positioning and motion feedback.
-
Automotive Industry: Motion control for assembly lines and automated workstations.
-
Energy Sector: Servo-based control in power generation and renewable energy systems.
-
Textile Machinery: Coordinated servo drive management for weaving, spinning, and finishing.
Advantages
-
Flexible Communication: Supports Modbus Master/Slave and ASCII protocols for compatibility with a wide range of devices.
-
Dual Channels: Two independent serial channels provide high flexibility for complex system architectures.
-
High Data Throughput: Optimized buffers allow reliable, fast communication with servo drives.
-
Reduced System Load: Offloads communication tasks from the PLC CPU.
-
Easy Integration: Seamlessly integrates into GE Fanuc Series 90-30 PLC racks.
-
Compact Design: Small footprint conserves valuable space in control cabinets.
-
Robust Diagnostics: Built-in LED indicators simplify troubleshooting and maintenance.
-
Industrial Durability: Designed for harsh industrial environments and continuous operation.
-
Broad Protocol Support: Enables integration with both modern and legacy servo systems.
-
Cost-Effective Modernization: Ideal for upgrading older systems to advanced digital servo interfaces.
Frequently Asked Questions (FAQ)
-
What is the main purpose of the IC693MCM001 module?
It allows GE Series 90-30 PLCs to communicate with servo drives and intelligent devices using Modbus and ASCII protocols. -
How many serial ports are available on this module?
The module features 2 independent serial ports. -
Does it support Modbus Master and Slave configurations?
Yes, the IC693MCM001 can be configured as either a Master or Slave. -
What is the maximum supported baud rate?
It supports baud rates up to 115.2 Kbps. -
Is it compatible with third-party servo drives?
Yes, provided the drives support Modbus RTU or ASCII protocols. -
Can both serial channels operate independently?
Yes, each channel can be configured and operated independently. -
What PLC series is this module compatible with?
It is designed for GE Fanuc Series 90-30 PLC systems. -
What kind of isolation does the module provide?
It offers 1500 V RMS isolation between the communication channels and PLC backplane. -
What are typical applications for this module?
Robotics, CNC machines, packaging lines, printing equipment, and other motion control applications. -
Is the IC693MCM001 suitable for new installations?
Yes, it is also widely used for modernizing older PLC-based motion systems.
Related Models (Same Series or Related)
| Model Number | Product Type | Application Area | Key Features |
|---|---|---|---|
| IC693DSM302 | Two-Axis Motion Control Module | Multi-axis motion control | Position, velocity, torque |
| IC693DSM324 | Four-Axis Motion Control Module | Complex synchronized motion | 4-axis control |
| IC693MCD001 | Digital Servo Interface Module | Servo control | Encoder feedback, high-speed |
| IC693MDL930 | High-Speed Counter Module | Position sensing, counting | High input speed |
| IC693MDL645 | DC Input Module (24 VDC) | Discrete input sensing | Industrial I/O |
| IC693MDL740 | Relay Output Module | Actuator control | High current outputs |
