Product Overview

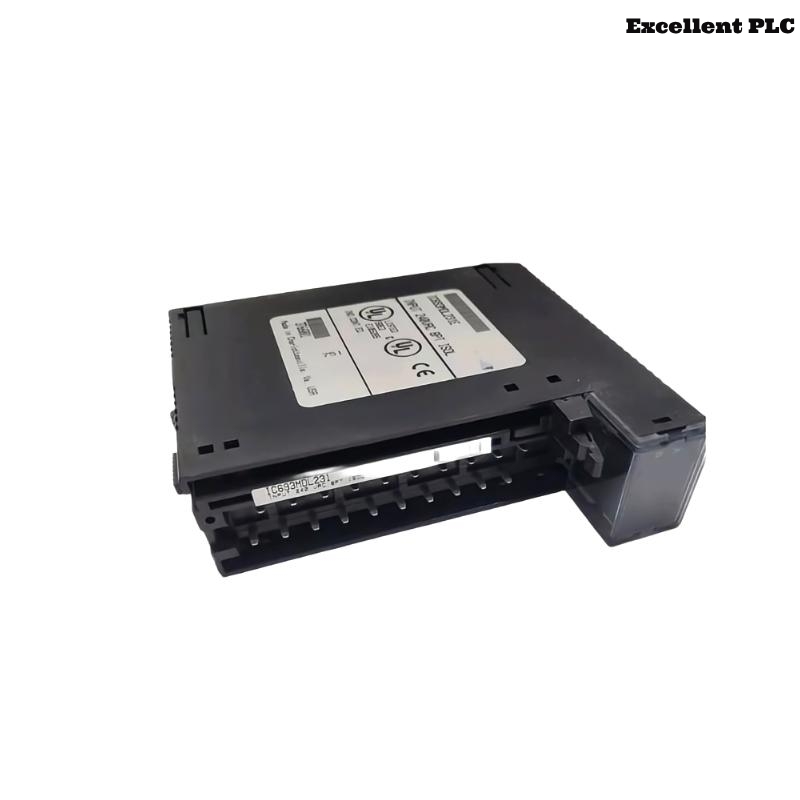

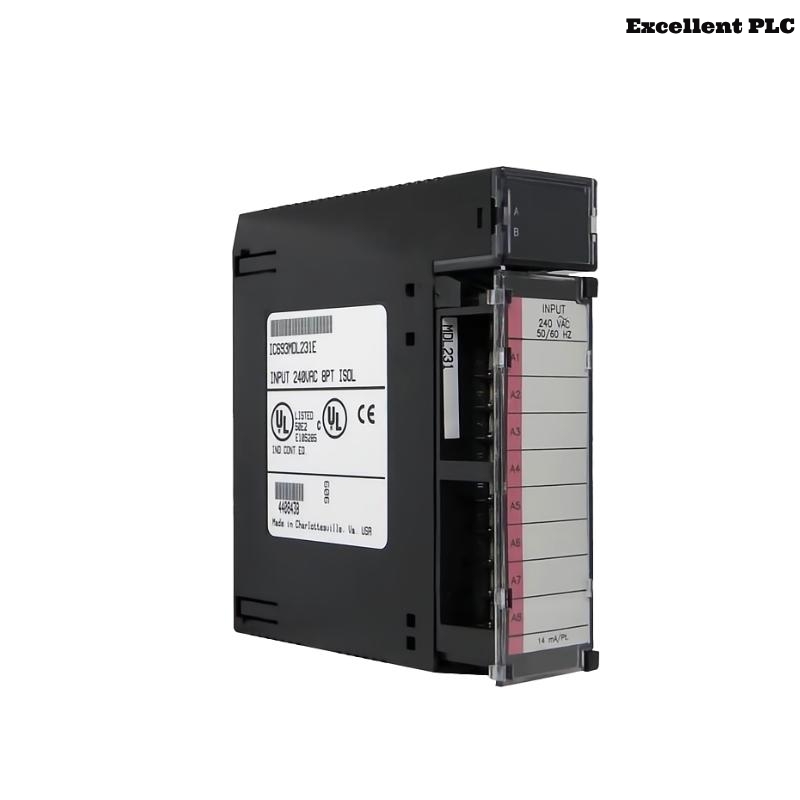

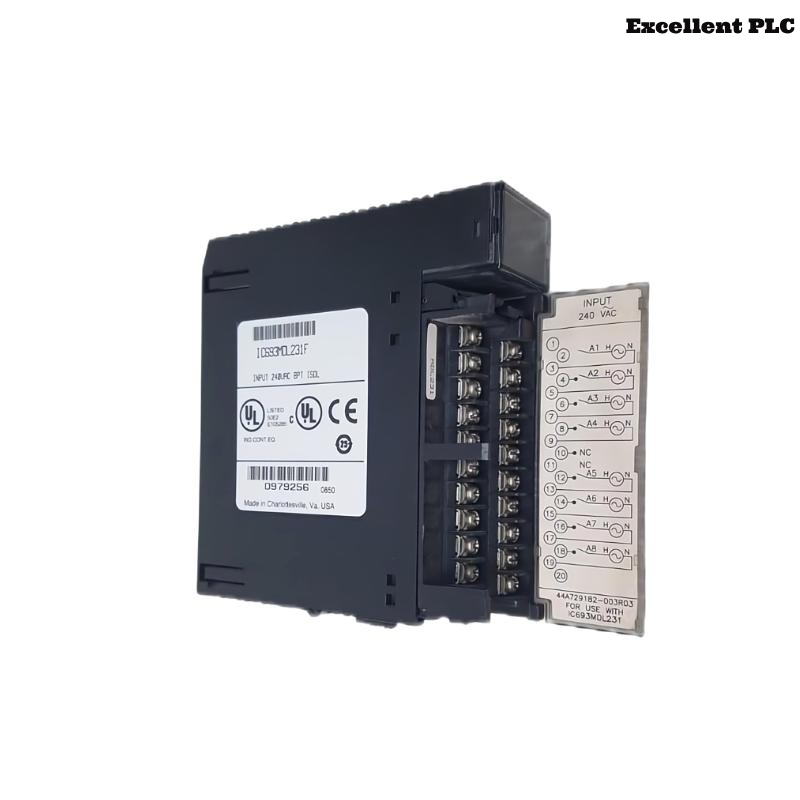

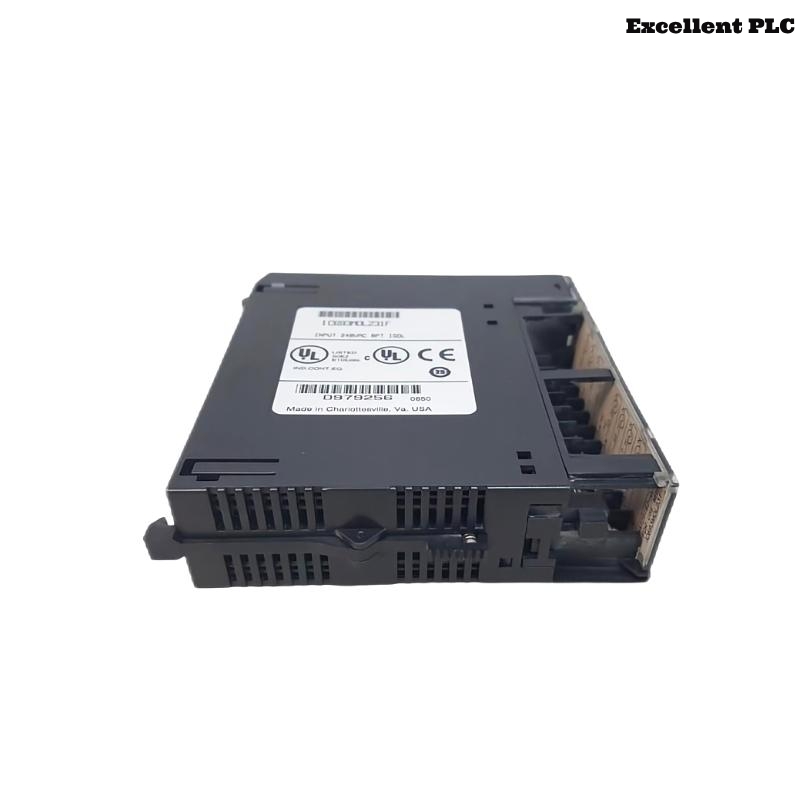

The GE Fanuc IC693MDL231 is an 8-point isolated input module designed for the Series 90-30 Programmable Logic Controller (PLC) systems. Operating at 240 VAC, this module provides reliable isolation between the field and logic sides, ensuring safe and accurate signal processing in industrial environments. Each input point is individually isolated, allowing for flexible wiring configurations and enhanced protection against electrical noise and transients.
This module is ideal for interfacing with a variety of AC-powered input devices such as pushbuttons, limit switches, and electronic proximity sensors. Its robust design and compatibility with Series 90-30 systems make it a dependable choice for a wide range of industrial automation applications.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (GE Automation & Controls) |
| Product Model | IC693MDL231 |
| Product Type | Isolated Input Module |
| Series | Series 90-30 |
| Number of Inputs | 8 isolated input points |
| Input Voltage Range | 0 to 264 VAC, 50/60 Hz |
| Rated Voltage | 240 VAC |
| Input Current at Rated Voltage | 15 mA (typical) |
| On-State Voltage | 148 to 264 VAC |
| Off-State Voltage | 0 to 40 VAC |
| Minimum On-State Current | 6 mA |
| Maximum Off-State Current | 2.2 mA |
| On Response Time | 30 ms (maximum) |
| Off Response Time | 45 ms (maximum) |
| Isolation | 1500 V RMS (field side to logic side) |
| Power Consumption | 60 mA (all inputs on) from 5V bus on backplane |
| LED Indicators | 8 LEDs (one per input point) |
| Mounting | Compatible with 5-slot or 10-slot Series 90-30 baseplates |
| Dimensions (HxWxD) | 142 x 30 x 130 mm |
| Weight | 0.25 kg |
| Certifications | UL, CE, CSA compliant |
Applications
The IC693MDL231 is suitable for a variety of industrial applications where reliable AC signal input is required. Typical use cases include:
-
Manufacturing Automation: Monitoring the status of machinery and equipment through limit switches and sensors.
-
Process Control Systems: Receiving signals from field devices in chemical, pharmaceutical, and food processing industries.
-
Building Automation: Integrating with HVAC systems, lighting controls, and security systems.
-
Energy Management: Monitoring inputs from various energy meters and switches in power distribution systems.
-
Water and Wastewater Treatment: Interfacing with level sensors, flow switches, and other monitoring devices.
Its isolated input design ensures that electrical noise and transients do not affect the PLC’s logic circuits, making it ideal for environments with high electrical interference.
Product Advantages
-
High Voltage Isolation: Provides 1500 V RMS isolation between field and logic sides, enhancing system safety.
-
Individual Input Isolation: Each input point is isolated, allowing for flexible wiring and reducing the risk of cross-talk.
-
LED Status Indicators: Each input has a corresponding LED for easy status monitoring and troubleshooting.
-
Wide Input Voltage Range: Accepts a broad range of input voltages (0 to 264 VAC), accommodating various field devices.
-
Robust Construction: Designed to withstand industrial environments with high reliability and durability.
-
Easy Integration: Seamlessly integrates with Series 90-30 PLC systems, supporting quick installation and configuration.
Frequently Asked Questions (FAQ)
-
Q: Can the IC693MDL231 be used with DC input signals?
A: No, the IC693MDL231 is designed exclusively for AC input signals ranging from 0 to 264 VAC. -
Q: What type of devices can be connected to this module?
A: Devices such as pushbuttons, limit switches, and electronic proximity sensors that operate on AC voltage. -
Q: Is each input point isolated from the others?
A: Yes, each of the 8 input points is individually isolated, allowing for flexible and safe wiring configurations. -
Q: What is the significance of the LED indicators on the module?
A: Each LED corresponds to an input point and illuminates when the respective input is active, aiding in diagnostics. -
Q: Can this module be installed in any slot of the Series 90-30 baseplate?
A: Yes, it can be installed in any I/O slot of a 5-slot or 10-slot Series 90-30 baseplate. -
Q: What is the maximum input current per channel?
A: At the rated voltage of 240 VAC, the typical input current is 15 mA. -
Q: Does the module provide protection against electrical noise?
A: Yes, the 1500 V RMS isolation between field and logic sides helps protect against electrical noise and transients. -
Q: What are the on and off response times for the inputs?
A: The maximum on response time is 30 ms, and the maximum off response time is 45 ms. -
Q: Is there any special maintenance required for this module?
A: Regular inspection for physical damage and ensuring clean, secure connections is recommended; no special maintenance is required. -
Q: Where can I find the wiring diagram for this module?
A: The wiring diagram is typically provided in the module’s user manual.
Related or Same-Series Models
| Model | Description | Input Voltage | Number of Inputs |
|---|---|---|---|
| IC693MDL230 | 120 VAC Isolated Input Module | 120 VAC | 8 |
| IC693MDL240 | 120 VAC Input Module with 16 Points | 120 VAC | 16 |
| IC693MDL241 | 24 VAC/VDC Positive/Negative Logic Input Module | 24 VAC/VDC | 16 |
| IC693MDL250 | 5 VDC Input Module | 5 VDC | 32 |
| IC693MDL260 | 12/24 VDC Input Module | 12/24 VDC | 32 |
| IC693MDL645 | 24 VDC Input Module with High-Density | 24 VDC | 64 |
