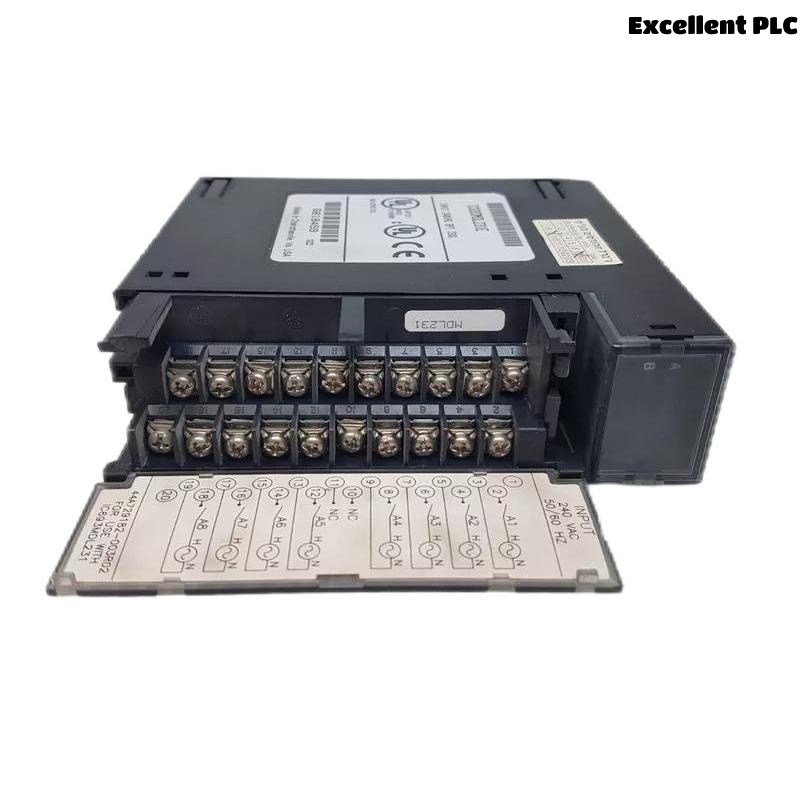

GE IC693MDL231E Isolated Input Module

Product Introduction

---

The GE IC693MDL231E is a 120 VAC positive logic input module designed for the GE Series 90-30 PLC system. As part of the trusted Series 90-30 family, this module handles up to 16 discrete input points, offering reliable signal processing in industrial environments. The design emphasizes compactness, straightforward installation, and dependable performance for a range of discrete input applications. Thanks to its robust build and consistent quality, the IC693MDL231E continues to be widely used in factory automation, process control, and other industrial settings requiring reliable digital input acquisition.

---

Technical Specifications

---

---

Product Applications

---

The GE IC693MDL231E finds application across a wide variety of industries and control systems:

• Machine automation in packaging, assembly, and material handling

• Process control systems in chemical, food & beverage, and water treatment plants

• Building automation for HVAC and security systems

• Energy management systems monitoring external input signals

• Factory automation linking sensors and control panels to central PLC logic

• Infrastructure projects, including transportation and traffic control systems

Its flexibility, robustness, and compatibility with the Series 90-30 platform make it suitable for both new systems and upgrades to existing installations.

---

Product Advantages

---

The IC693MDL231E is recognized for multiple key advantages:

• Reliable Performance: Maintains signal integrity and stability even in electrically noisy industrial environments

• Compact Form Factor: Saves valuable panel space, allowing more modules in the same rack

• Straightforward Diagnostics: Individual LED indicators help technicians quickly identify active channels and troubleshoot faults

• Integration Flexibility: Seamlessly fits into Series 90-30 PLC systems without complicated configuration

• Long Service Life: Built to GE’s industrial standards, providing dependable operation over many years

• Reduced Downtime: Rugged design lowers the risk of failure and helps maintain production continuity

---

FAQ (Frequently Asked Questions)

---

Q1: What type of inputs does the IC693MDL231E accept?
A1: It accepts 120 VAC discrete input signals with positive logic configuration.

Q2: Can it be mixed with DC modules in the same rack?
A2: Yes, it can operate alongside DC input/output modules in the same Series 90-30 baseplate.

Q3: Is it compatible with newer PACSystems RX3i series?
A3: No, it’s specifically designed for the Series 90-30 platform; RX3i modules use different backplane and architecture.

Q4: Does the module provide channel-level isolation?
A4: It offers group isolation between field wiring and logic side, but not channel-to-channel isolation.

Q5: How can I check if an input is active?
A5: Each of the 16 channels has a dedicated LED indicator that lights up when the corresponding input is ON.

Q6: What is the maximum power consumption?
A6: Typically around 120 mA from the 5 VDC bus, but exact consumption depends on the number of active points.

Q7: What certifications does it carry?
A7: It complies with CE requirements and is UL and CSA certified for industrial applications.

Q8: Can I hot-swap this module?
A8: No, the Series 90-30 modules are not hot-swappable; power must be off during installation or removal.

Q9: How do I wire the common terminals?
A9: The 16 inputs are divided into two groups of eight, each group sharing a common terminal.

Q10: Is the module protected against reverse voltage?
A10: Since it’s an AC input module, it relies on design and wiring standards; always follow GE wiring guidelines to avoid damage.

---
