Product Introduction

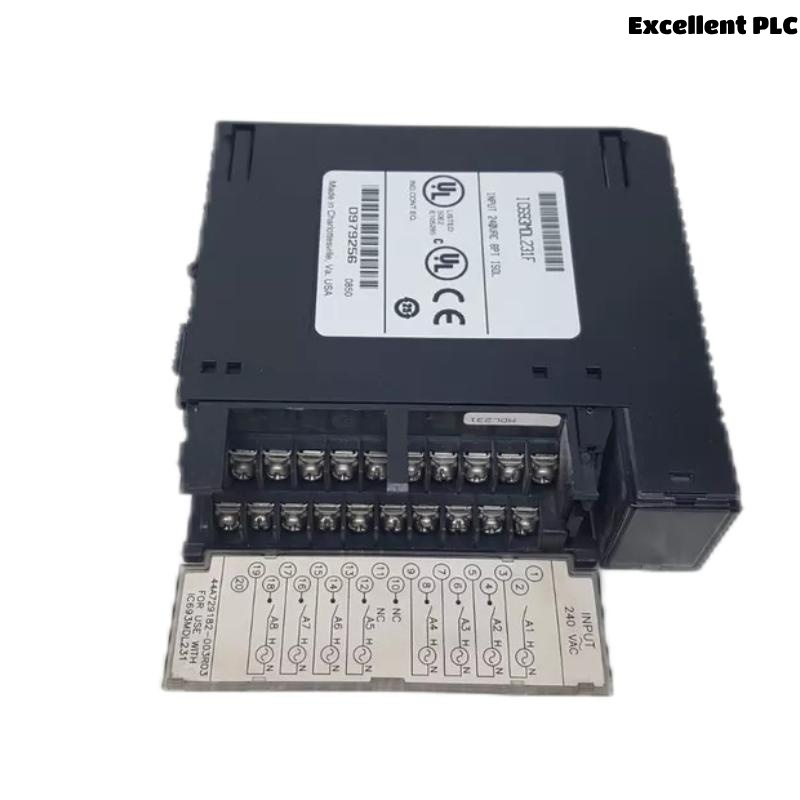

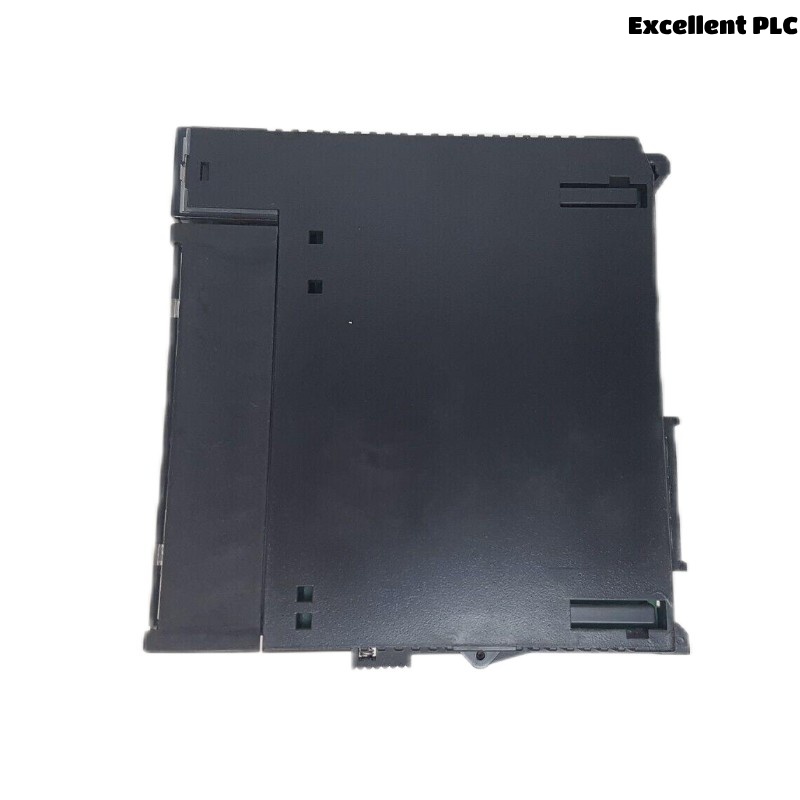

The GE IC693MDL231F is a high-performance digital input module from the Series 90-30 PLC by GE Fanuc (now part of Emerson Automation). This module is designed for industrial automation applications, providing reliable and fast response times for digital signal processing. It is widely used in manufacturing, energy, and process control systems due to its robust design and compatibility with GE’s PLC systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | 16-Point Digital Input Module |
| Input Voltage | 24V DC (Sinking/Sourcing) |
| Input Current | 5mA per point (typical) |
| Isolation Voltage | 1500V AC (channel to bus) |
| Response Time | 1ms (ON to OFF), 3ms (OFF to ON) |
| Power Consumption | 1.5W (typical) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 142 x 30 x 132 mm |
| Weight | 0.25 kg |
| Compatibility | GE Series 90-30 PLC |
| Certifications | UL, CE, CSA |
Product Applications
The IC693MDL231F is ideal for:
-
Industrial Automation: Monitoring sensors, switches, and relays in production lines.
-
Machine Control: Integrating with PLCs for machinery operation.
-
Energy Management: Used in power distribution systems for status monitoring.
-
Process Control: Detecting signals in chemical, oil & gas, and water treatment plants.
-
Material Handling: Conveyor belt control and safety interlocking.
Product Advantages
-
High Reliability: Designed for harsh industrial environments with strong noise immunity.
-
Fast Response: Low latency (1-3ms) ensures real-time signal processing.
-
Easy Integration: Compatible with GE Series 90-30 PLCs, reducing setup complexity.
-
Compact Design: Space-saving form factor for high-density installations.
-
Wide Voltage Support: Works with 24V DC systems, common in industrial setups.
-
Isolation Protection: 1500V isolation prevents damage from voltage spikes.
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for the IC693MDL231F?
A1: It operates at 24V DC (sinking/sourcing).
Q2: How many input points does this module have?
A2: It provides 16 digital input points.
Q3: Is the module compatible with other GE PLCs?
A3: No, it is specifically designed for the Series 90-30 PLC.
Q4: What is the response time for input signals?
A4: 1ms (ON→OFF) and 3ms (OFF→ON).
Q5: Can it handle high-voltage surges?
A5: Yes, it has 1500V isolation for protection.
Q6: What are the operating temperature limits?
A6: 0°C to 60°C (32°F to 140°F).
Q7: Does it support hot swapping?
A7: No, the module must be powered down before installation/removal.
Q8: What certifications does it have?
A8: UL, CE, and CSA listed.
Q9: What is the module’s weight?
A9: 0.25 kg.
Q10: Can it be used in safety-critical systems?
A10: It is not a safety-rated module; use dedicated safety relays for critical applications.
Recommended Related Models
Same Series (Series 90-30) Models
| Model Number | Description |
|---|---|
| IC693MDL230 | 16-Point Digital Input (120V AC) |
| IC693MDL232 | 32-Point Digital Input (24V DC) |
| IC693MDL240 | 16-Point Digital Output (24V DC) |
| IC693MDL645 | 8-Point Analog Input (Thermocouple) |
| IC693MDL660 | 8-Point Analog Output (4-20mA) |
| IC693MDL390 | 16-Point Relay Output |
Popular GE Fanuc Models (Other Series)
| Model Number | Description |
|---|---|
| IC695MDL664 | 32-Point Digital Input (Rx3i Series) |
| IC697MDL753 | 16-Point Analog Input (Series 90-70) |
| IC200MDD840 | 8-Point Digital Input (VersaMax) |
| IC200MDL640 | 16-Point Digital Output (VersaMax) |
| IC698CPE040 | CPU Module (RX7i Series) |
| IC754VSI12CTD | HMI Touchscreen (QuickPanel+) |
