Product Introduction

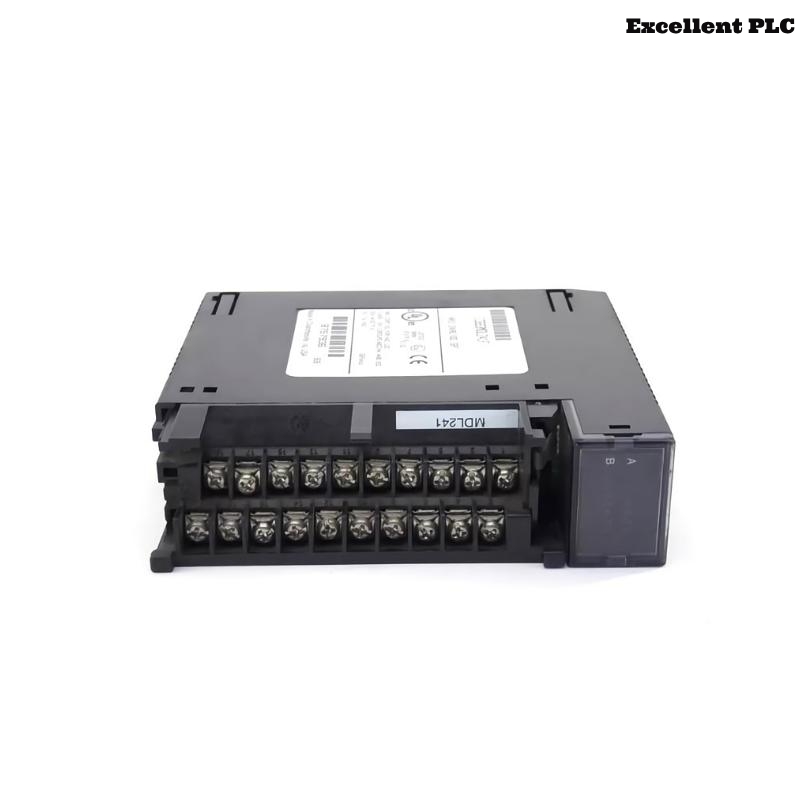

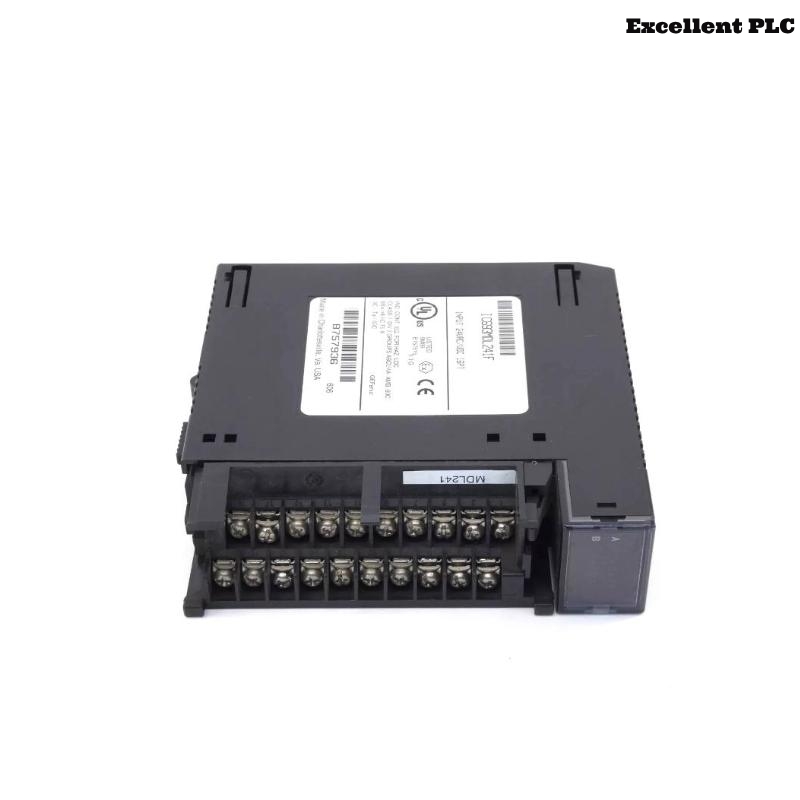

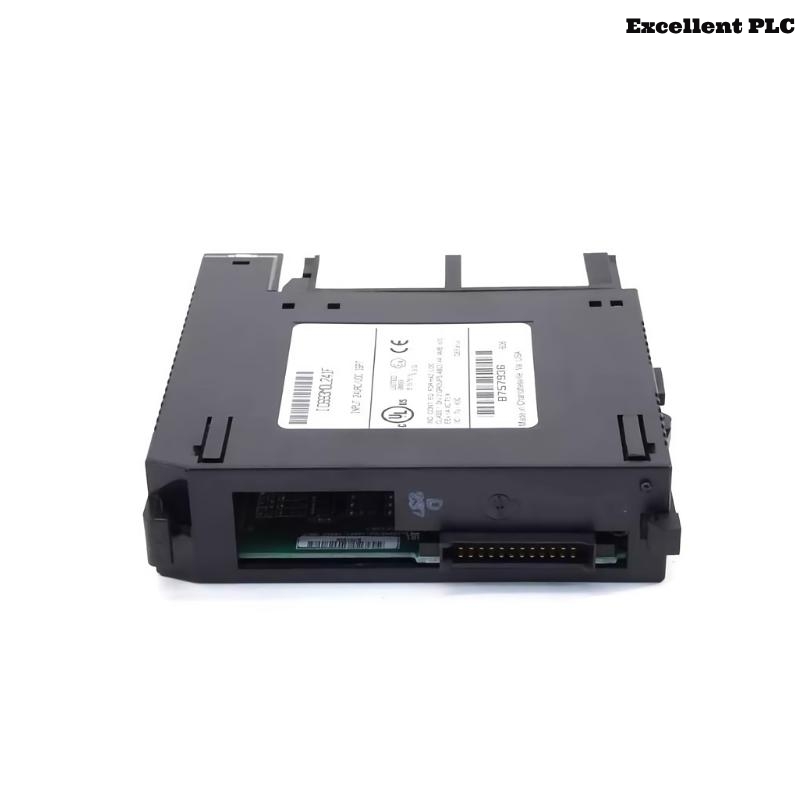

The GE IC693MDL241 is a high-reliability 120VAC discrete input module designed for industrial automation systems utilizing the GE Fanuc Series 90-30 PLC platform. It features 8 isolated input channels that detect ON/OFF states from field devices operating at 120 volts AC. Unlike shared-common input modules, each channel in the IC693MDL241 is electrically isolated, providing enhanced protection and diagnostic capabilities for complex and critical industrial applications.
The IC693MDL241 module is ideally suited for receiving signals from a wide range of AC-powered field devices such as proximity switches, mechanical limit switches, float sensors, and manual push buttons. It integrates seamlessly into Series 90-30 systems and is recognized for its durable build and dependable performance under tough industrial conditions.
Product Specifications
| Parameter | Value |
|---|---|
| Product Type | AC Discrete Input Module |
| Input Voltage | 120VAC (50/60Hz) |
| Voltage Range | 74–132VAC |
| Number of Inputs | 8 (individually isolated) |
| Input Current | 10.5 mA at 120 VAC |
| ON Voltage Threshold | ≥ 74 VAC |
| OFF Voltage Threshold | ≤ 20 VAC |
| Input Impedance | Approx. 10 kΩ |
| Isolation per Channel | 1500 VAC |
| Response Time | 25 ms (typical) |
| Input Indicators | Individual LEDs per channel |
| Internal Power Consumption | 0.08A at 5VDC (from PLC backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting Style | Rack-mounted via baseplate |
| Dimensions (W x H x D) | 142 x 30 x 130 mm |
| Weight | 0.3 kg |
| Compatible Series | GE Fanuc Series 90-30 |
Applications
The GE IC693MDL241 module is widely applied across industries requiring robust and isolated AC input detection. Typical applications include:
-
Factory Automation – Detecting input signals from AC sensors, relays, and control devices in production lines.
-
Material Handling Systems – Monitoring conveyor sensors and operational signals.
-
Water and Wastewater Plants – Receiving status signals from pumps, level switches, and flow sensors.
-
Energy and Utilities – Interface with control panels in substations and power distribution units.
-
Building Automation – Interfacing with AC-powered access systems and HVAC controls.
-
Packaging and Sorting Machines – Input feedback from doors, gates, and machine-ready signals.
Product Advantages
-
Isolated Inputs: Each channel is individually isolated, providing superior protection against voltage surges and electrical noise.
-
Wide Voltage Tolerance: Operates reliably over a voltage range of 74 to 132 VAC, allowing flexibility in field wiring.
-
Clear Diagnostics: On-board LEDs for each input point enable immediate status verification and simplify troubleshooting.
-
Stable Performance: Designed for dependable operation under varying environmental conditions, including temperature and humidity fluctuations.
-
Efficient Power Use: Draws minimal power from the PLC backplane, supporting energy-conscious designs.
-
Durable Housing: Robust construction designed to withstand the rigors of industrial applications.
-
Easy Integration: Directly mounts into a Series 90-30 baseplate, ensuring simple installation and minimal wiring rework.
-
Safety Compliant: High-voltage isolation meets industrial safety standards and reduces risk of damage to internal logic circuits.
Frequently Asked Questions (FAQ)
-
What is the main function of the GE IC693MDL241 module?
It detects 120VAC input signals from field devices and transfers the ON/OFF states to the PLC system. -
How many inputs does the module provide?
The module provides 8 individually isolated AC input channels. -
What is the significance of input isolation?
Isolation protects each channel from electrical interference, surges, and potential faults from adjacent inputs. -
Can I use this module with 24V AC signals?
No, it is optimized for 120VAC. Using a lower voltage will not trigger the ON-state reliably. -
Does the module have built-in indicators for each input?
Yes, there is an LED indicator for every input channel to display its current state. -
What kind of devices can be connected to the IC693MDL241?
Devices such as limit switches, pressure switches, relay contacts, and manual push buttons are commonly used. -
Is this module compatible with Series 90-70 or RX3i systems?
It is designed specifically for Series 90-30, and may not be directly compatible with other series without adapters. -
What is the input response time of this module?
The typical input response time is 25 milliseconds, suitable for most AC applications. -
Can this module be hot-swapped?
No, always power down the system before removing or inserting the module. -
Does the module support both 50Hz and 60Hz operation?
Yes, it operates at both 50Hz and 60Hz power frequencies.
Related Models (Same Series or Functional Category)
| Model Number | Description | Voltage Type | I/O Type | Channels |
|---|---|---|---|---|
| IC693MDL240 | 120VAC Input Module, 16 Points (Non-Isolated) | AC | Input | 16 |
| IC693MDL250 | 24VDC Positive Logic Input Module | DC | Input | 16 |
| IC693MDL260 | 24VDC Negative Logic Input Module | DC | Input | 16 |
| IC693MDL645 | Relay Output Module | Relay | Output | 8 |
| IC693MDL340 | 120VAC Output Module | AC | Output | 6 |
| IC693MDL930 | Isolated Relay Output Module | Relay | Output | 4 |
