Product Overview

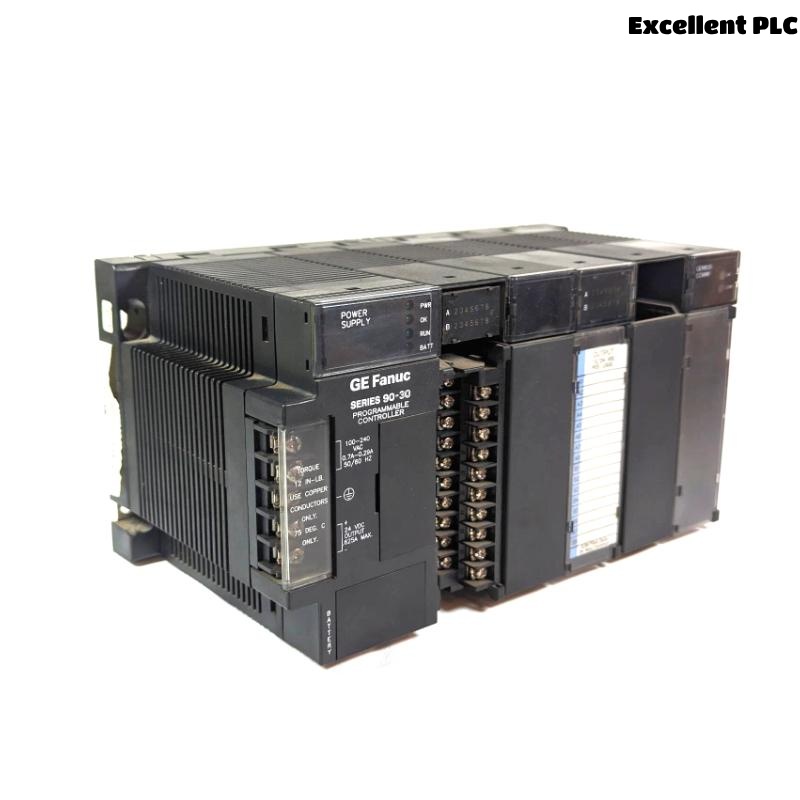

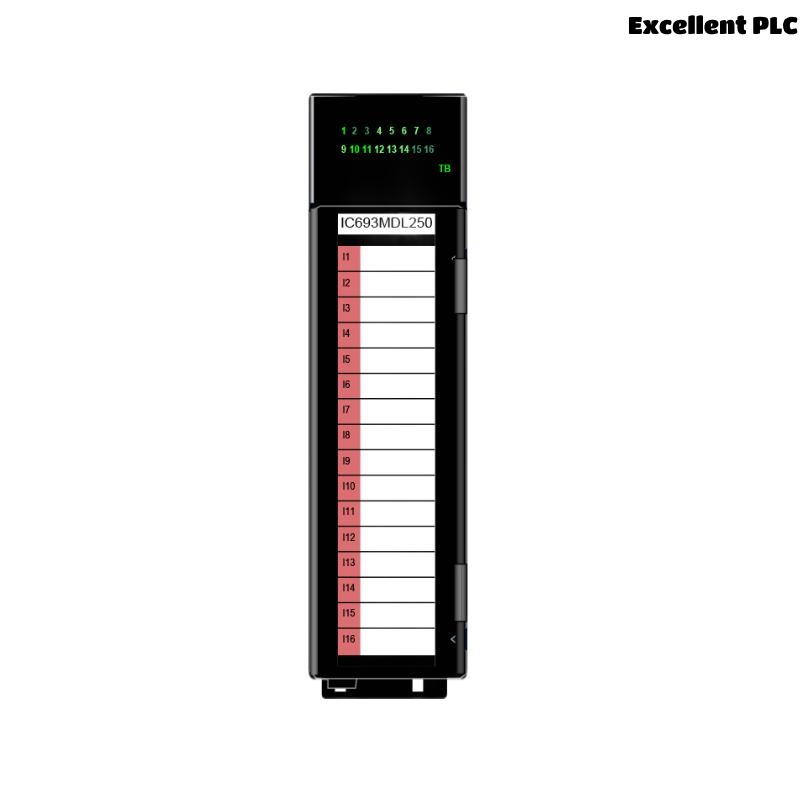

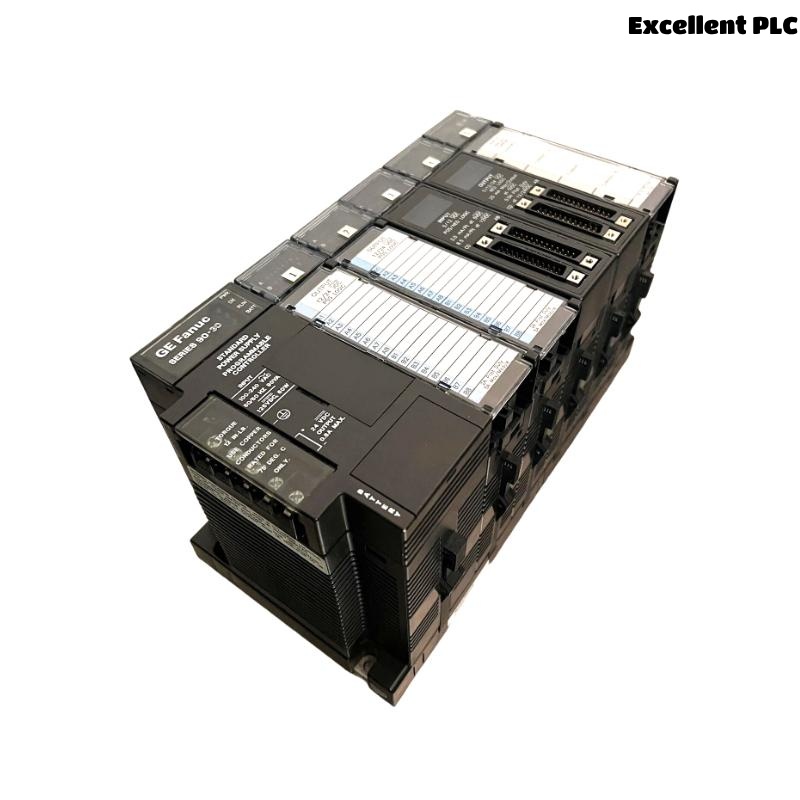

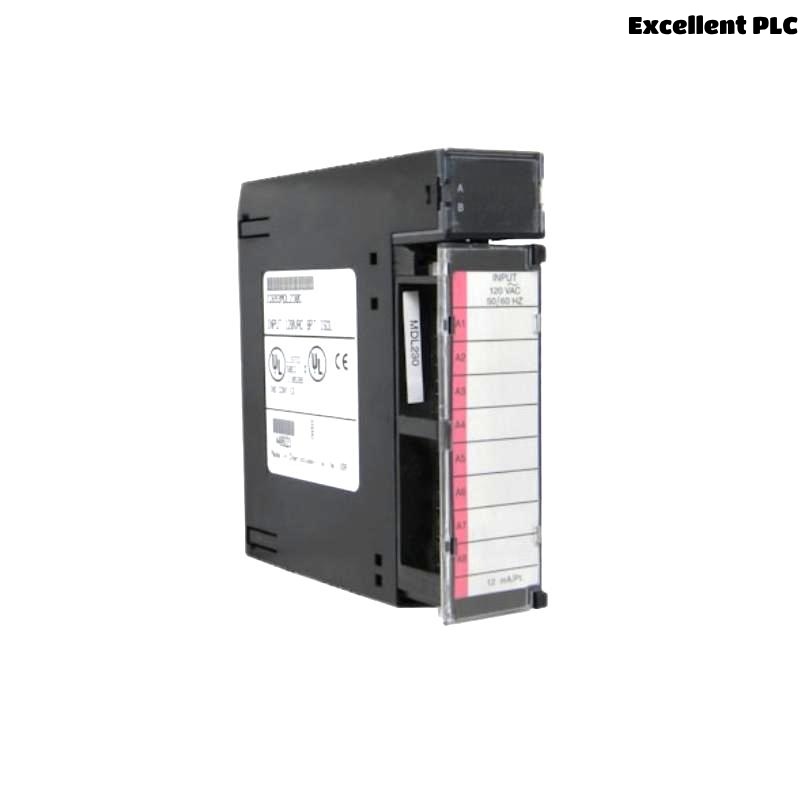

The GE IC693MDL250 is a 120 VAC Isolated Input Module used in GE’s PACSystems RX3i and Series 90-30 PLC systems. It is designed to interface discrete input devices like limit switches, push buttons, and proximity sensors with the PLC, converting 120 VAC signals into logic-level signals that the CPU can process.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Discrete Input |
| Number of Inputs | 16 (Individually isolated) |
| Input Voltage | 120 VAC nominal |
| Voltage Range | 75 to 132 VAC, 47–63 Hz |
| Input Current | 10 mA (typical) at rated voltage |
| Input Isolation | 1500 V RMS (input-to-backplane) |
| Between Inputs Isolation | 500 V RMS |
| On-State Voltage | 75–132 VAC |
| Off-State Voltage | 0–25 VAC |
| On-State Current | 6–15 mA |
| Off-State Current | ≤3 mA |
| Input Impedance | 10 kΩ (typical) |
| Input Delay (filter time) | 20 ms (typical) |
| Proximity Compatible | Yes |
| Current from 5V Bus | 0.35 A |
| Dimensions | 142 x 30 x 132 mm |
| Weight | 0.3 kg |
Applications
-
Factory automation systems
-
Motor and process control
-
Discrete input data acquisition
-
Machine safety interlock monitoring
-
Packaging and material handling systems
Product Advantages
-
Individually isolated inputs enhance system reliability and fault isolation
-
Wide input voltage tolerance ensures stable operation under industrial conditions
-
Compatible with PACSystems RX3i and Series 90-30 platforms
-
Supports AC input from a variety of industrial sensors and switches
-
Designed for high noise immunity in harsh environments
FAQs
Q1: What is the input voltage range of the IC693MDL250?
A1: 75 to 132 VAC at 47–63 Hz.
Q2: How many input points does this module support?
A2: It supports 16 individually isolated input points.
Q3: Can the IC693MDL250 detect proximity switches?
A3: Yes, it is compatible with proximity switches.
Q4: Is the IC693MDL250 suitable for high-noise environments?
A4: Yes, it features 1500 V RMS isolation to protect against electrical noise.
Q5: Does this module support hot-swapping?
A5: No, the module does not support hot-swap functionality.
Q6: What is the typical input delay time for this module?
A6: Approximately 20 milliseconds.
Q7: Can it be used with a 24 VAC signal?
A7: No, it is designed specifically for 120 VAC input signals.
Q8: What is the required backplane power consumption?
A8: 0.35 A from the 5V bus.
Q9: What types of controllers are compatible with this module?
A9: It is compatible with GE PACSystems RX3i and Series 90-30 controllers.
Q10: What is the module’s size and weight?
A10: It measures 142 x 30 x 132 mm and weighs 0.3 kg.
Related Models in the Same Series
| Model | Description | Input Type | Voltage | Inputs | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| IC693MDL240 | AC Input Module | Discrete | 120 VAC | 16 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL241 | AC Input Module | Discrete | 240 VAC | 16 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL645 | DC Input Module | Discrete | 24 VDC | 32 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL634 | Relay Output Module | Discrete | 5–30 VDC | 12 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL930 | Isolated Relay Output Module | Discrete | 120/240 VAC | 16 | 142 x 30 x 132 | 0.3 kg |
| IC693MDL752 | DC Output Module (Negative Logic) | Discrete | 24/48 VDC | 32 | 142 x 30 x 132 | 0.3 kg |
